Product Overview

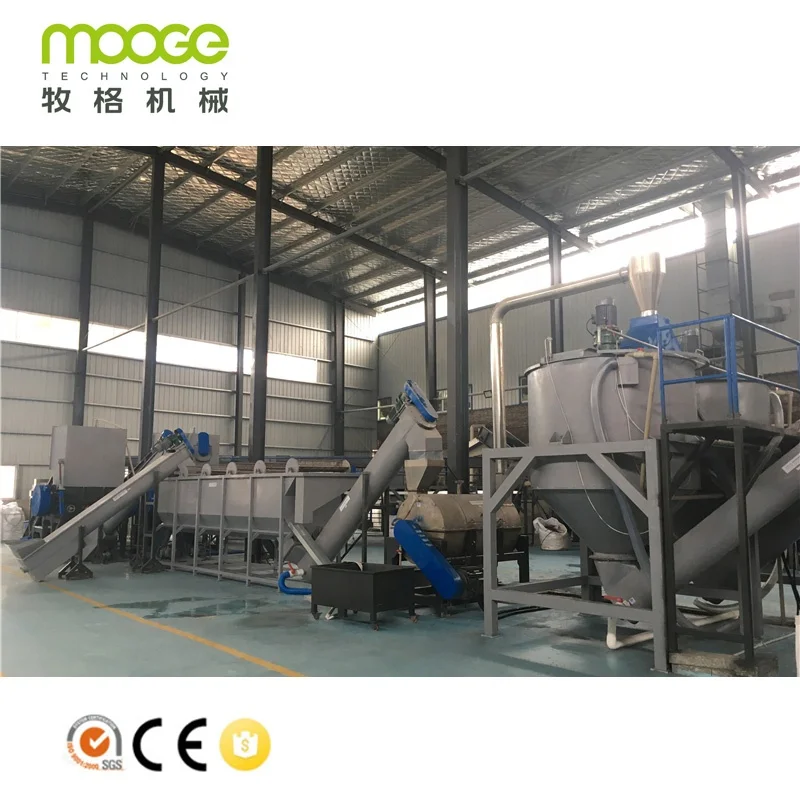

MOOGE Efficient Plastic recycling machine
MOOGE MT series Efficient plastic recycling machine is mainly used to recycling the waste PET bottles, water bottles,cola bottles, PET sheet and PET packing containers. The Recycled waste cola bottle PET recycling machine can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes. All your requirements of the Recycled waste cola bottle PET recycling machine will be customized.
Products Description
We have 500-5000 kg/h MT Series Efficient plastic recycling machine.and We can design the layout according to your requirements .
Model | Capacity | Installed Power | Steam Use | Water Supply | Manpower | Area Required |
MT-500 | 500 kg/hr | 190 KW | Optional | 4-5 m3/hr | 4-6 Person | 60*5*5 m |
MT-1000 | 1000 kg/hr | 260 KW | Optional | 6-8 m3/hr | 8-10 Person | 80*8*5 m |
MT-2000 | 2000 kg/hr | 400 KW | Suggest Use | 10-15 m3/hr | 10-12 Person | 80*8*5 m |
MT-3000 | 3000 kg/hr | 600 KW | 80,000 Kcal | 20-30 m3/hr | 12-16 Person | 100*8*10 m |
MT-4000 | 4000 kg/hr | 800 KW | 100,000 Kcal | 30-40 m3/hr | 15-20 Person | 135*10*10 m |
MT-5000 | 5000 kg/hr | 1000 KW | 120,000 Kcal | 40-50 m3/hr | 15-20 Person | 135*10*10 m |
Features At-A-Glance
De-Baling Machine
Function: Opening the PET bottle bales
With 4 roller cylinder to feeding the bottles equally. Claw steel is very strong and the thickness is 20mm.
With 4 roller cylinder to feeding the bottles equally. Claw steel is very strong and the thickness is 20mm.
Machine chamber made by solid strong steel. Working chamber size can above 1600x1600mm(depth x width).
Machine fixed with support over the sorting table
Trommel Machine
Function: loose pet bottle and remover caps, sand, soil and feeding the bottles out constantly.
The track and gear made by one unit steel with forging steel strong and heating treatment.
With high platform with dirty collecting chute, put the jumbo bags under the Trommel.
With high platform with dirty collecting chute, put the jumbo bags under the Trommel.
Label Remover Machine
Function:remove the labels from the bottle and separate label out from bottles.
Blade made by alloyed steel for long time use.
Blade is fixed by screw on the rotor easy to adjustable and changeable.
The barrel is designed with doors opening on it very easy to opening and maintenance .
The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use.
The barrel is designed with doors opening on it very easy to opening and maintenance .
The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use.

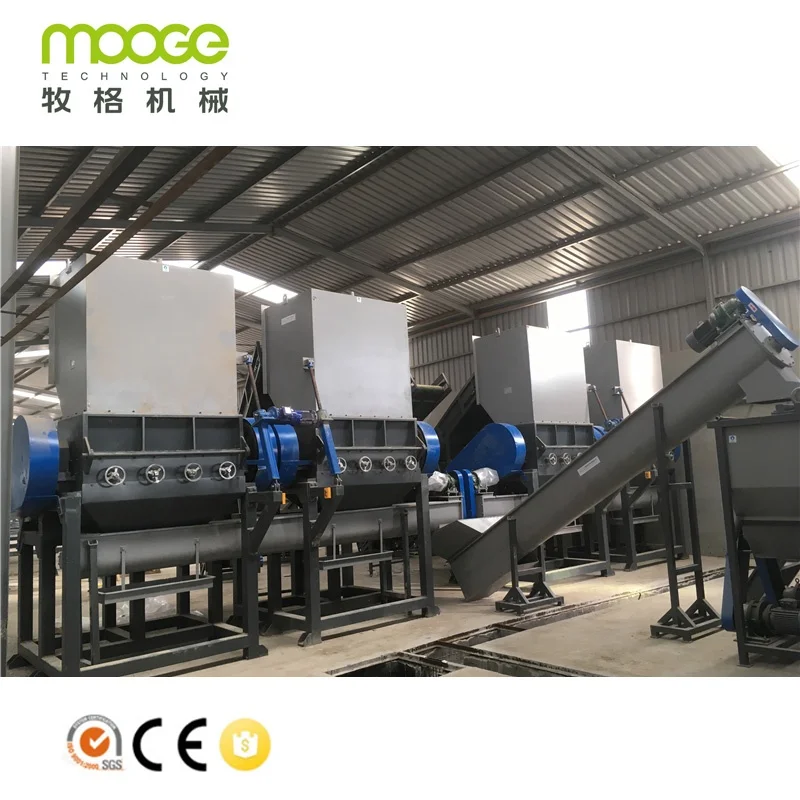

Plastic Crusher Machine
Function: crushing the bottles to PET flakes.
With water inlet do wet crushing. Chamber opened by screw motor.
Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet grinding can extension the blades use life, reduce the dust generation.
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.
Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet grinding can extension the blades use life, reduce the dust generation.
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.

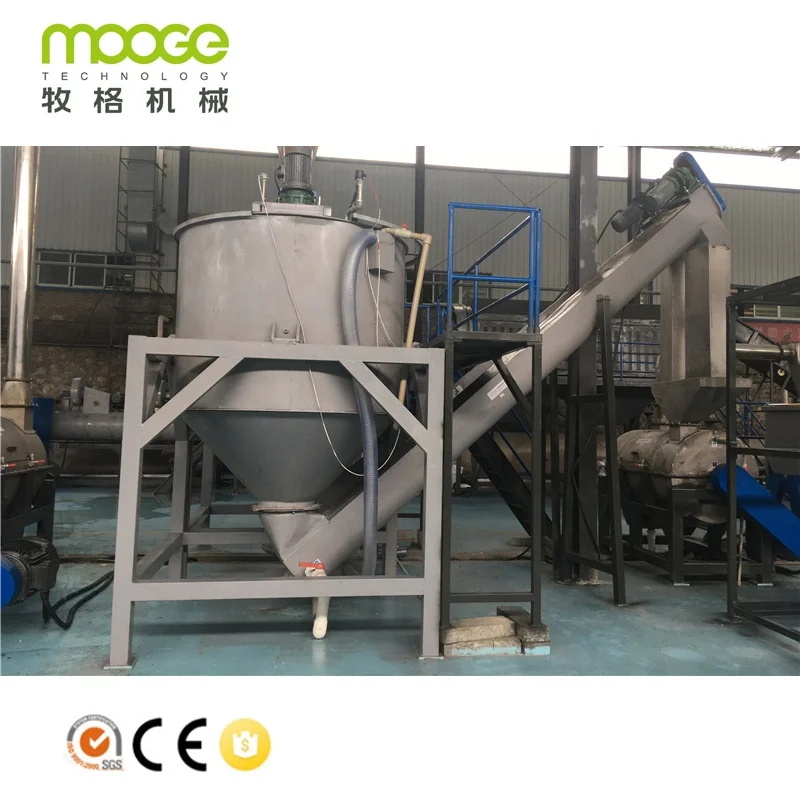

Hot Washing Tank
Function: with hot water washing to remove oil/glue and other dirty from the flakes.
The tank made with insulation layer to save energy.
Feeding caustic soda/detergent to washing Its better Heating by steam,
You can buy a steam boiler to produce the steam.
The boiler can heating up by gas/diesel/petrol/LPG
The tank made with insulation layer to save energy.
Feeding caustic soda/detergent to washing Its better Heating by steam,
You can buy a steam boiler to produce the steam.
The boiler can heating up by gas/diesel/petrol/LPG

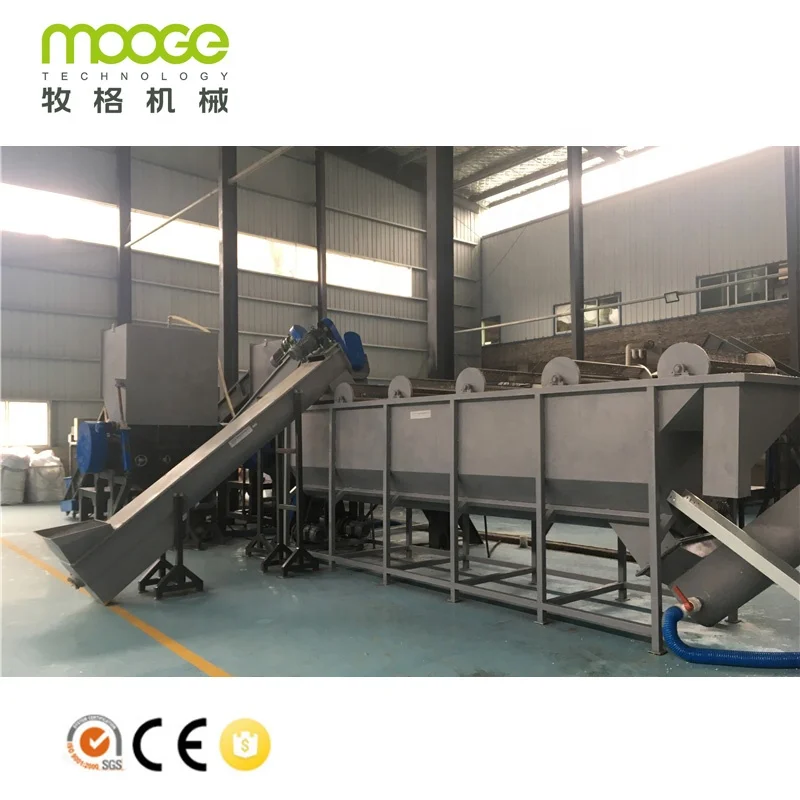

Floating Washing Tank
Function: Used to wash the flakes, with the top rollers automatic take out the caps/rings and other impurities, flakes sinking down and take out by screw.
With the rollers working will use less water to take out the caps/rings.
With the rollers working will use less water to take out the caps/rings.
With double screw.
Rotor shaft made by seamless steel tube.
With drain hole on the bottom of tank.
With drain hole on the bottom of tank.

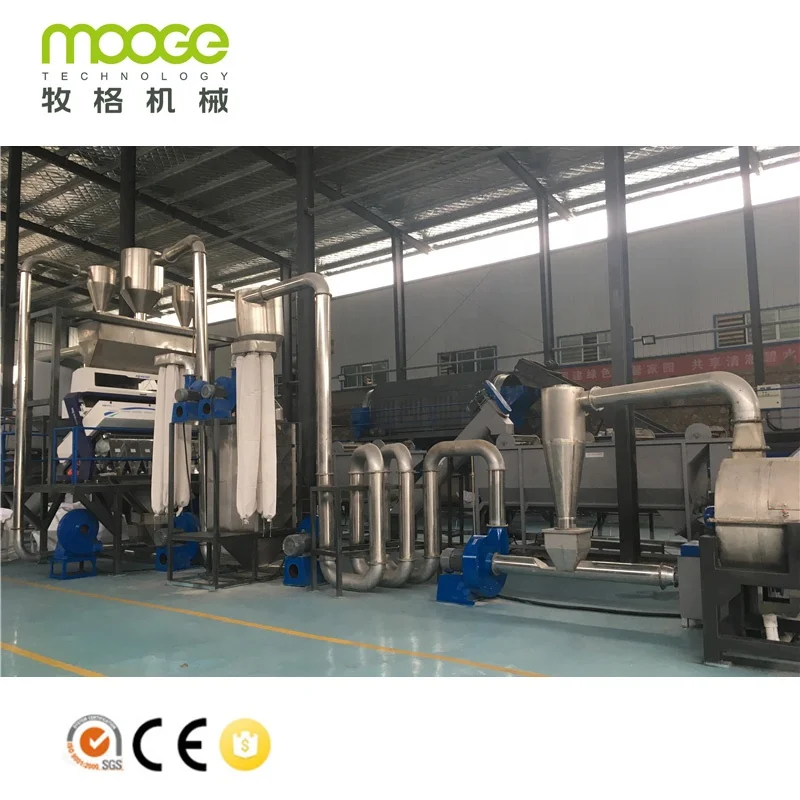

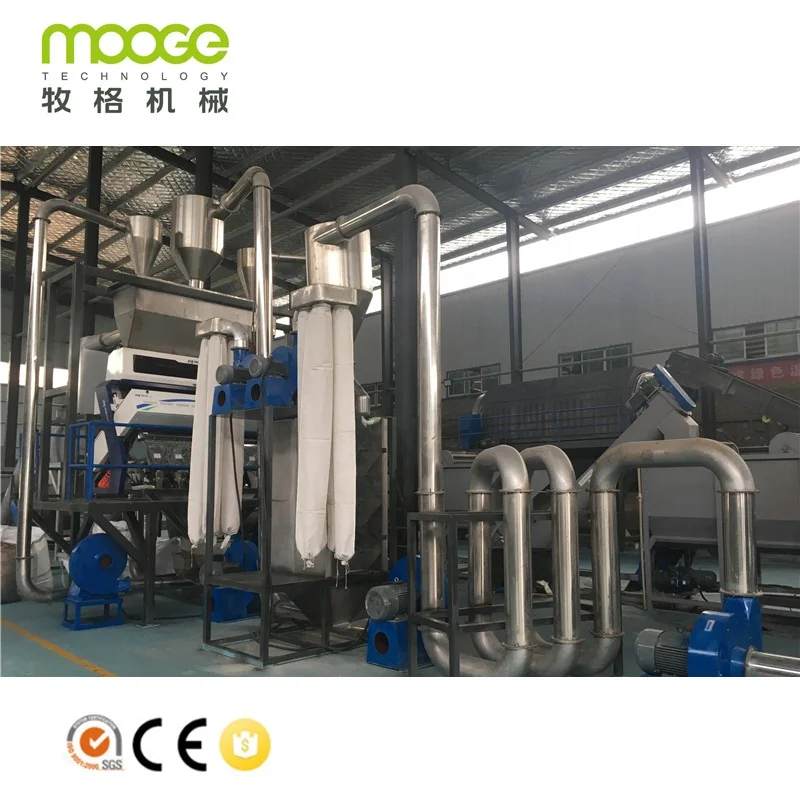

Final "Zig-zag" Label Separator
Function: Remove the final labels, dust and other mini material from the flakes to guarantee the PVC content.
Blower can be adjusted by inverter.
With inverter to control the air flux of blower.
Zig zag main chamber one set made by stainless steel.
Chamber with plexiglass window to open and check inside
With inverter to control the air flux of blower.
Zig zag main chamber one set made by stainless steel.
Chamber with plexiglass window to open and check inside
Customer Onsite
MT-500 PET recycling machine in Myanmar
MT-1000 PET bottle recycling washing machine in Korea
MT-2000 PET bottle recycling washing machine in Mexico
MT-4000 PET bottle recycling washing machine in China
MT-5000 PET bottle recycling washing machine in Algeria
