Product Overview
This RIGID PE PP PLASTIC BOTTLE WASHING MACHINE is used to recycling the waste HDPE/LDPE/PP bottles and buckets, hollow container and so on.

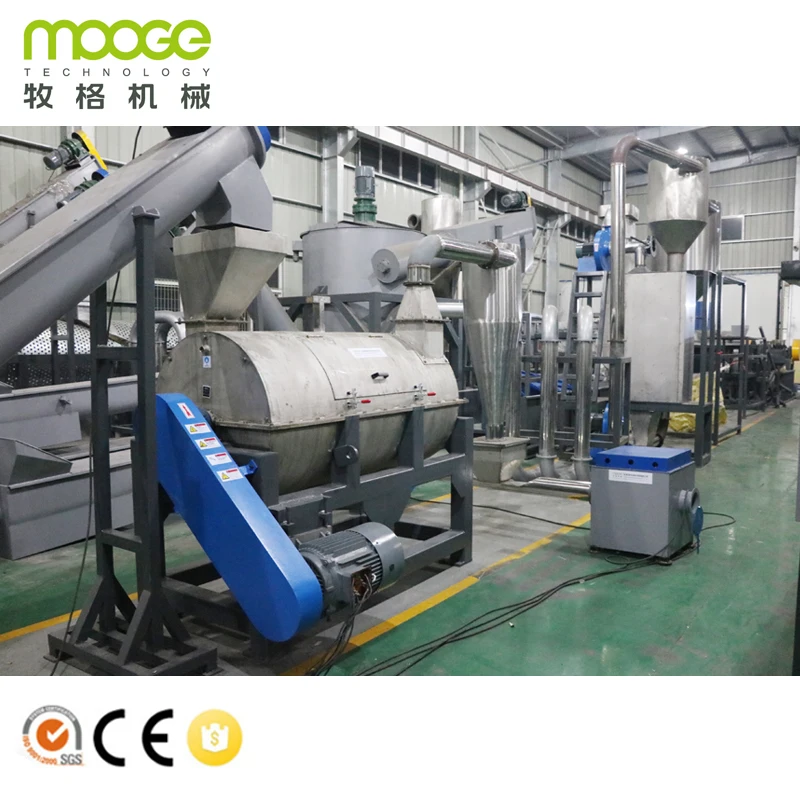

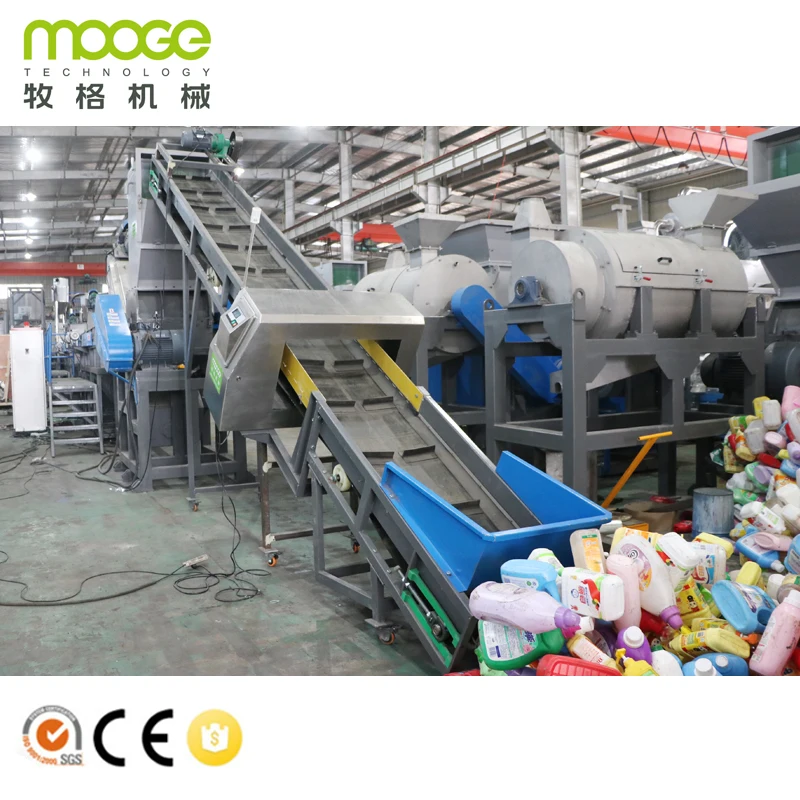

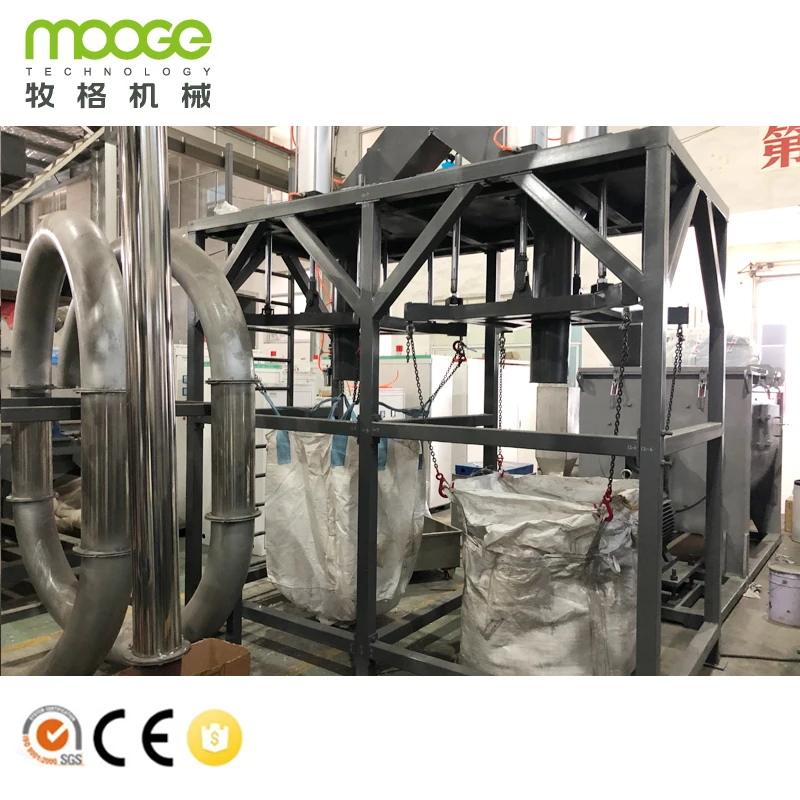

The whole recycling line including the conveyor belt, metal detector, wet crusher, floating washing tank, high speed friction washer machine, centrifugal dewatering machine, hot air drying system and material collecting packing system.
The whole recycling line including the conveyor belt, metal detector, wet crusher, floating washing tank, high speed friction washer machine, centrifugal dewatering machine, hot air drying system and material collecting packing system.
We also can customized the line components according to your special requirement.
Product Paramenters
We have the rigid pe pp bottle bucket washing line with capacity from 300kg/h to 2000 kg/h for your optional choice.
We can design the layout into "L" or "U" shape according to your requirements.
Model | Capacity | Installed Power | Water Supply | Manpower | Area Required |
MEB-300 | 300 kg/hr | 100 KW | 4-5 m3/hr | 3-4 Person | 20*4.5*5 |
MEB-500 | 500 kg/hr | 115 KW | 5-6 m3/hr | 4-6 Person | 20*4.5*5 |
MEB-1000 | 1000 kg/hr | 125 KW | 7-8 m3/hr | 8-10 Person | 23*5*5 |
MEB-1500 | 1500 kg/hr | 180 KW | 8-10 m3/hr | 12-14 Person | 23*5*5 |
MEB-2000 | 2000 kg/hr | 225 KW | 10-15 m3/hr | 16-18 Person | 28*5.5*5 |
Features At-A-Glance
--Function :crushing the pe pp bottles/buckets into small flakes
--With water inlet do wet crushing
--The rotary and fixed blades inside the crusher are more wider, it will save the blades cost
--Use the big roller bearing ensure durable use
--Bearing house is installed outside of the crusher chamber so no dirty goes inside
Friction Washing Loader
--Function: Friction washing the bottle flakes with water and loading up it
--Up and down both mounted with bearing design ensure the low maintenance and long use life
--With water injection system to cleaning the screen
--Bottom with water drain system
--Up and down both mounted with bearing design ensure the low maintenance and long use life
--With water injection system to cleaning the screen
--Bottom with water drain system
--The machine part contact with water made by SUS304

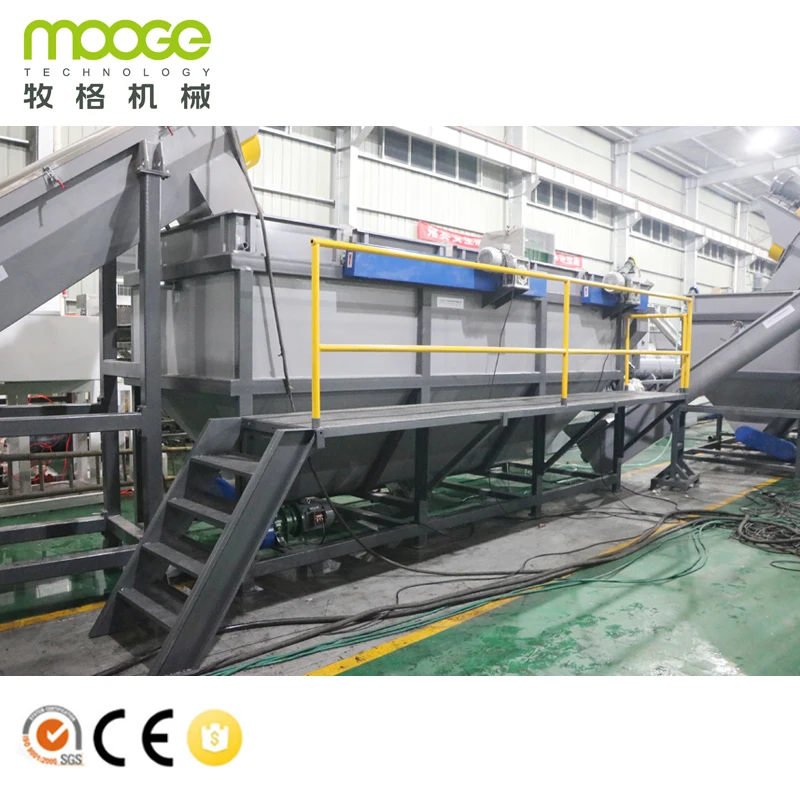

--Function: Floating washing separate the sand, soil and other dirty
--The roller is specially made can have more
washing for flakes but less water take out
--Bottom with positive and negative screw to push the dirty into the middle for easily drain out
washing for flakes but less water take out
--Bottom with positive and negative screw to push the dirty into the middle for easily drain out
--The machine part contact with water made by SUS304

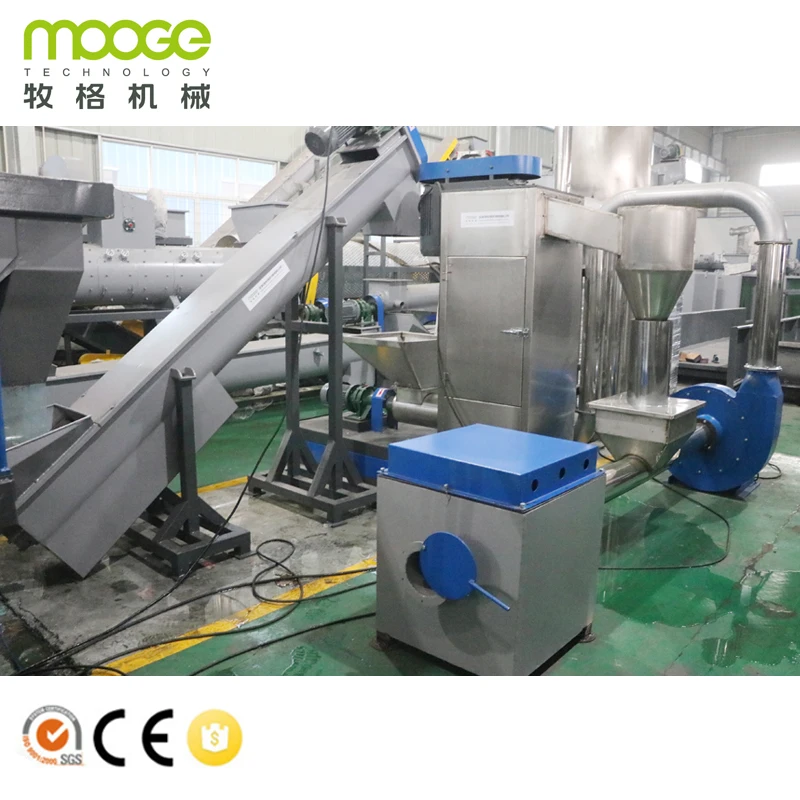

--Function: take out dirty and remover water
--With high raotary speed reach up to 1500rpm
--With the roller bearing and fixed outside of the rotor for long use life
--Inside with mesh layer, mesh made by SUS304 with the diameter 3mm
--With water spray system to clean the mesh
--With the roller bearing and fixed outside of the rotor for long use life
--Inside with mesh layer, mesh made by SUS304 with the diameter 3mm
--With water spray system to clean the mesh

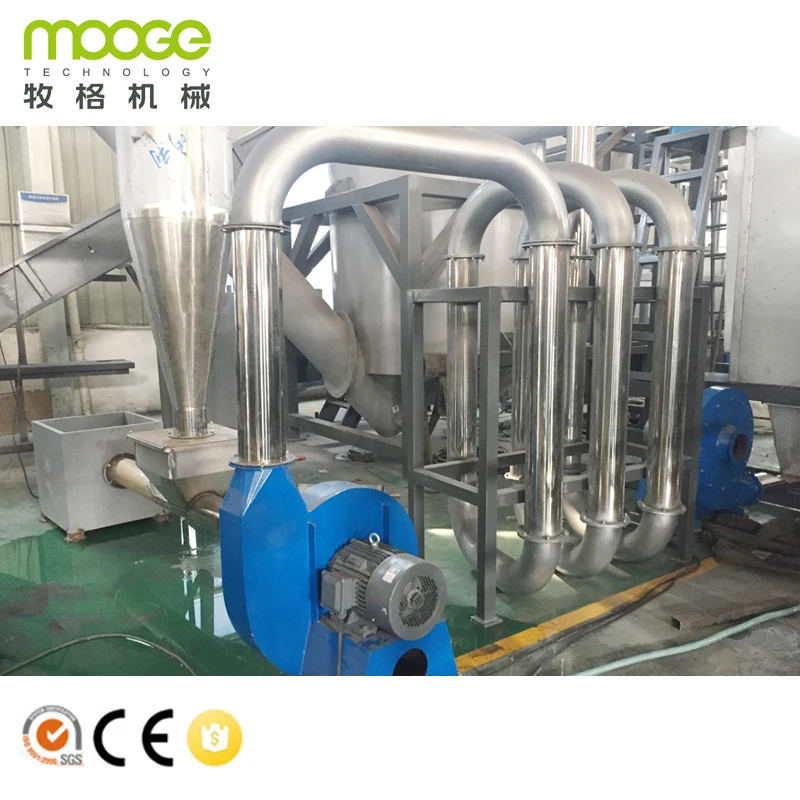

--Function: futher drying the bottle flakes with hot air
--Heating by electricity, with one set of heating box
--Heating by electricity, with one set of heating box
--With one set of blower fan to transmit the flakes through the pipe
--The pipe is made by 304 stainless steel
--The pipe with bigger and more thickness elbow for longer use
Relate Product
YSL-Series PE/PP Bottle Flakes Pelletizing Line
（Strand-cooling Cutting Type）
YSS-Series PE/PP Bottle Flakes Pelletizing Line
（Die-face Cutting Type）
Exhibition
We attend the CHINAPLAS every year (In Shanghai and Guangzhou) and take with our machine for test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Please kindly contact with us in advance if you also have time to attend and sincerely welcome to our booth for visit and discuss about detailed issues.
Mooge is committed to the developing concept "Do Better And Better" and trying to provide our customer the ideal solution for plastic recycling project.
Customer Onsite
500kg/h PE PP bucket washing line
1000kg/h PE PP bottle washing line
1000kg/h PE PP bottle washing line
