Полностью автоматическая машина для погружения проводов двойная головка зачистки резки поворота олова многофункциональная обработки

Описание и отзывы

Трекер стоимости

Характеристики

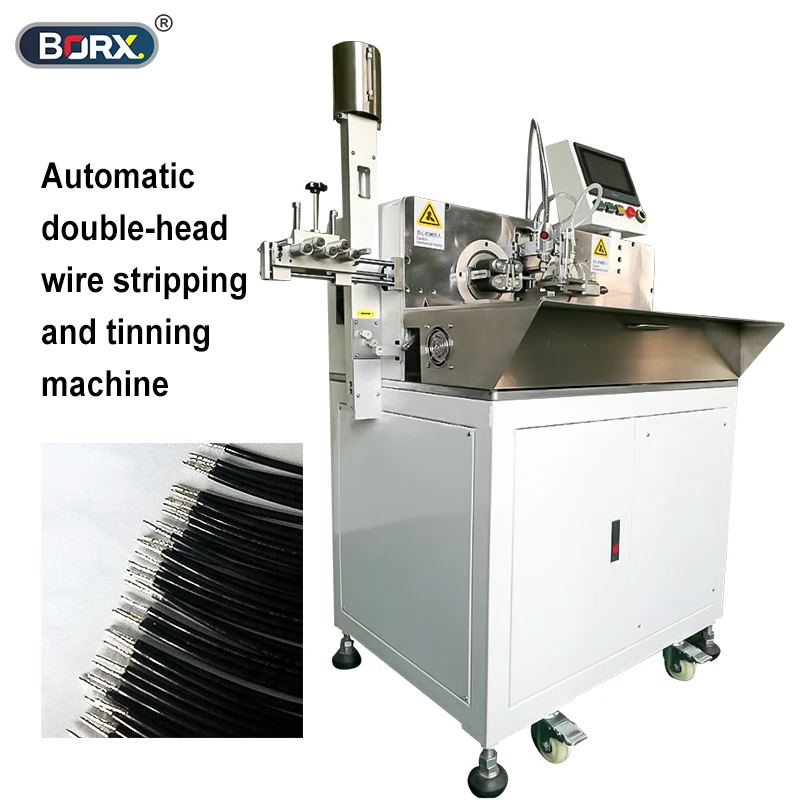

Fully automatic wire dipping machine double head wire stripping cutting twist tin dip Multi functional cable processing machine

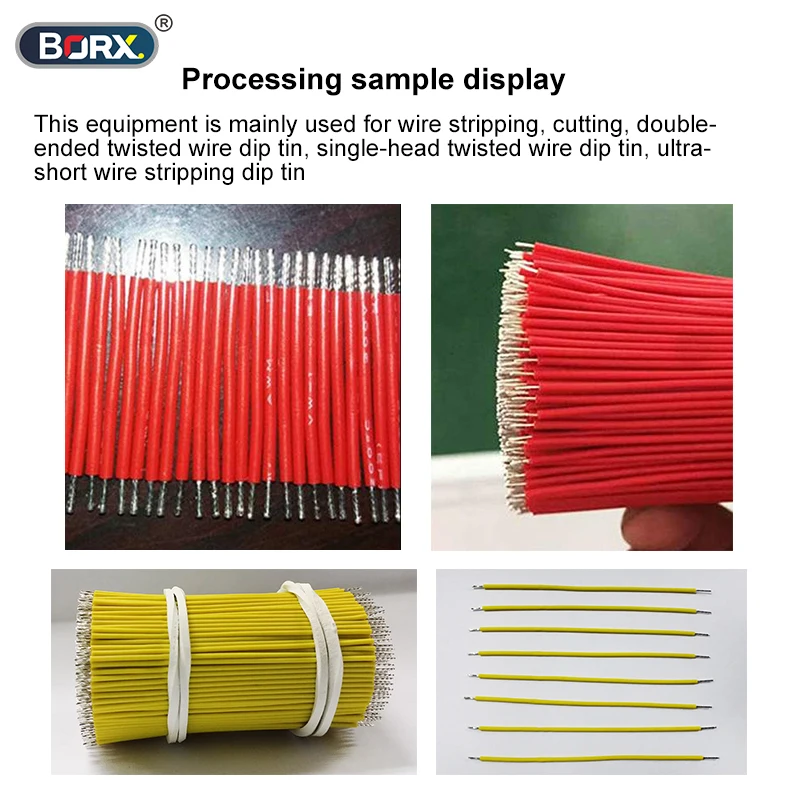

• This equipment is mainly used for wire stripping, cutting, double ended twisted wire dip tin, single head twisted wire dip tin, ultra-short wire stripping dip tin.

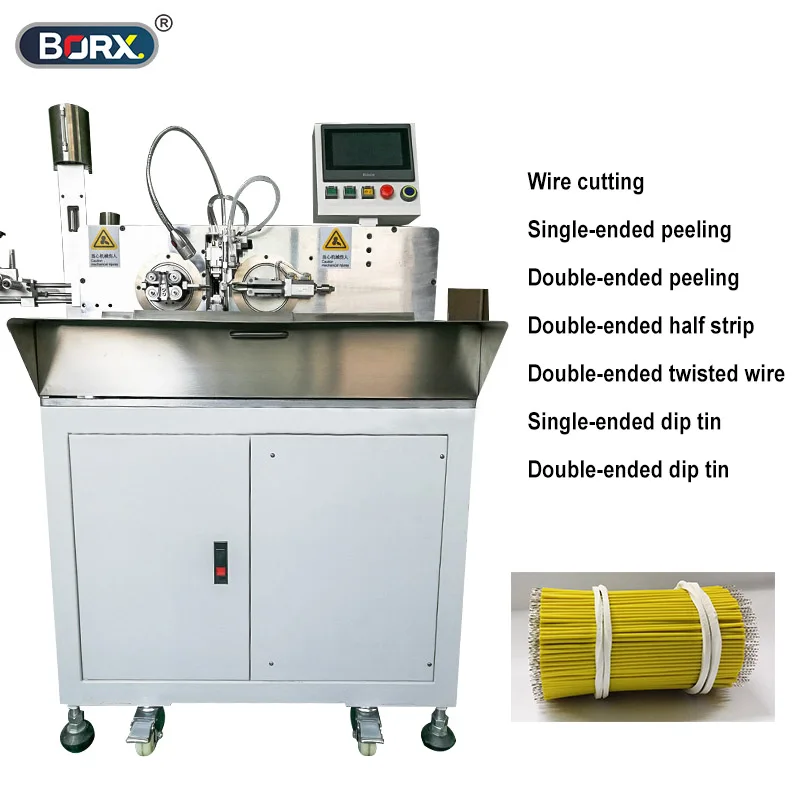

• Wire cutting, single ended peeling, double ended peeling, double ended half strip, double headed twisted wire, single ended dip tin, Double ended dip tin.

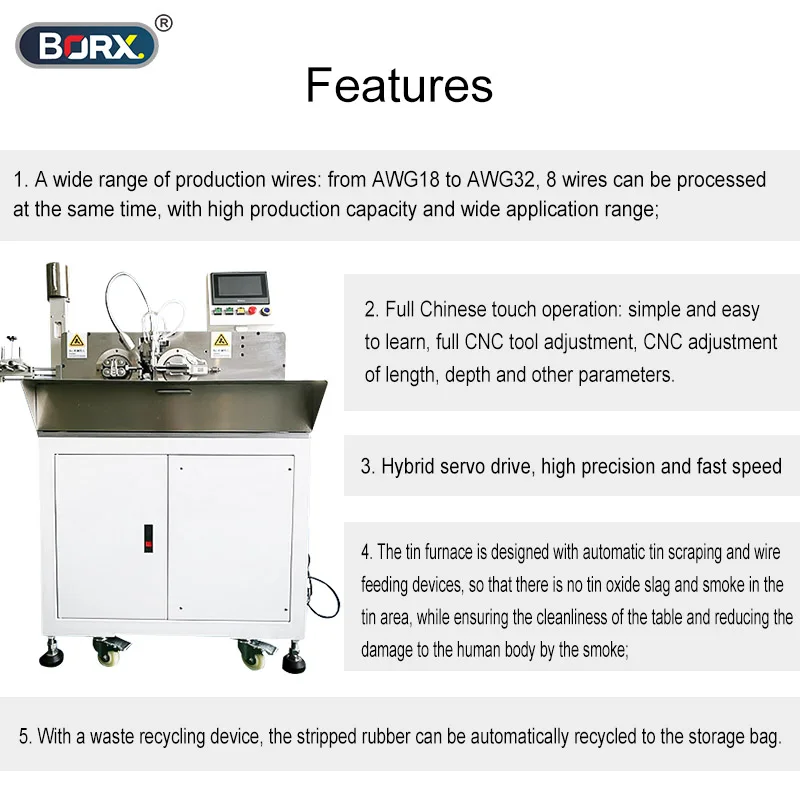

• A wide range of production wire from AWBG18 to AWG 32, 8 wires can be processed at the same time, with high production capacity and wide application range.


• Full chinese touch operation,simple and easy to learn, full CNC tool adjustment, CNC adjustment of length , depth and other parameters.


• Hybrid servo drive, high percision and fast speed.


• The tin furnace is designed with auotomatic tin scraping and wire feeding device, so that there is no tin oxide slag and smoke in the tin area, while ensuring cleanlines of the table and reducing the damage to human body by the smoke.


• With a waste recycling device, the stripped rubber can be automatically recycled to the storage room.

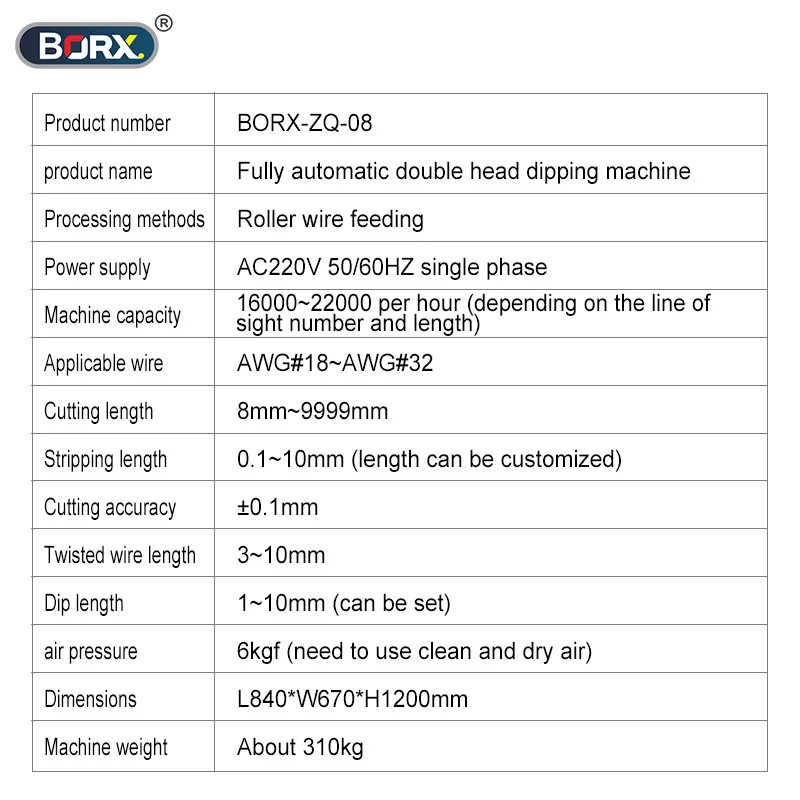

Product model	BORX-ZQ-08
Product name	Fully automatic double head dipping machine
Processing methods	Roller wire feeding
Power supply	AC220V 50/60HZ single phase
Machine capacity	16000-22000 per hour(depending on the line of sight number and length)
Applicable wire	AWG#18-AWG#32
Cutting length	8mm-9999mm
Stripping length	0.1-10mm
Cutting accuracy	+/-0.1mm
Twisted wire length	3-10mm
Dip length	1~10mm can be set
Aire pressure	6KGf (need to use clean and dry air)
Dimension	840*670*1200mm
Weight	310KG
