Metal bend machine Azhur-1 for table art forging, metallurgy equipment in stock

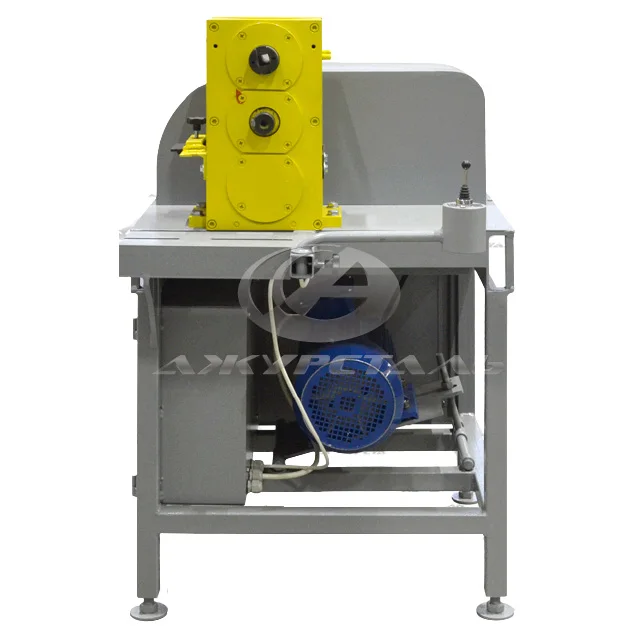

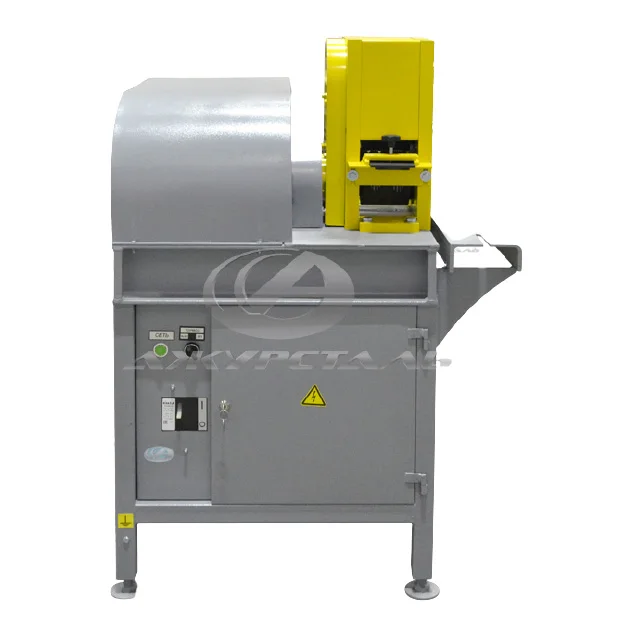

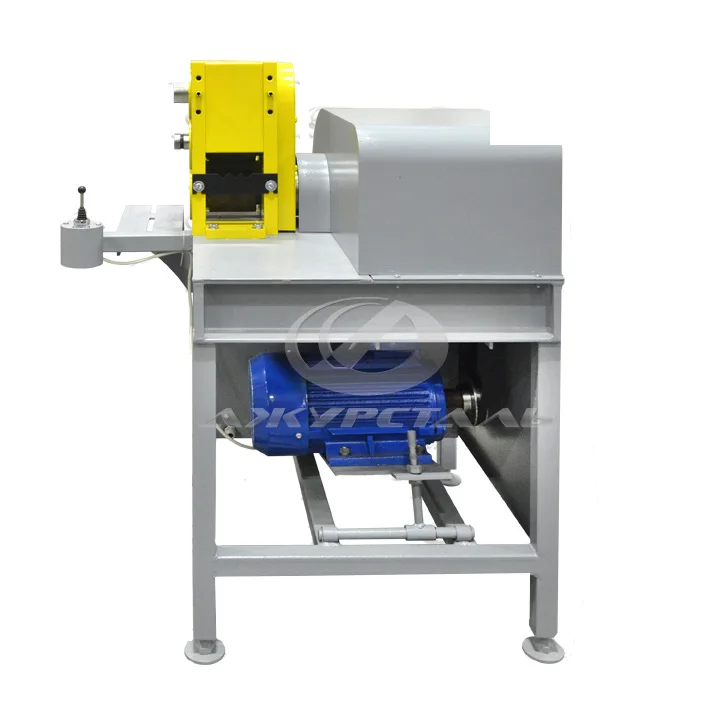

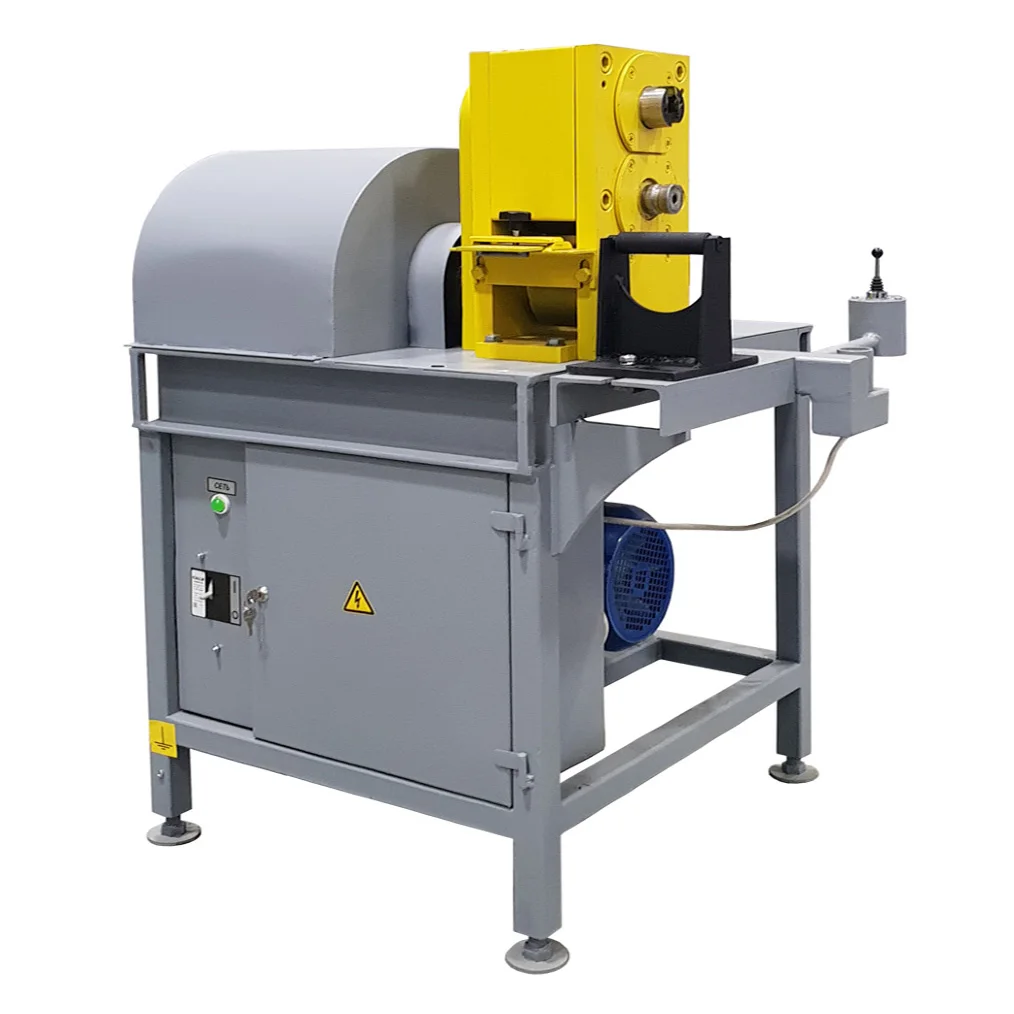

The Azhur 1-M bending machine is one of our biggest sellers. It helps to manufacture the elements that are frequently used in artistic forging. It is used to bend and twist metal without heating up the workpiece. It processes round and square bars, strips, and profiled tubes.

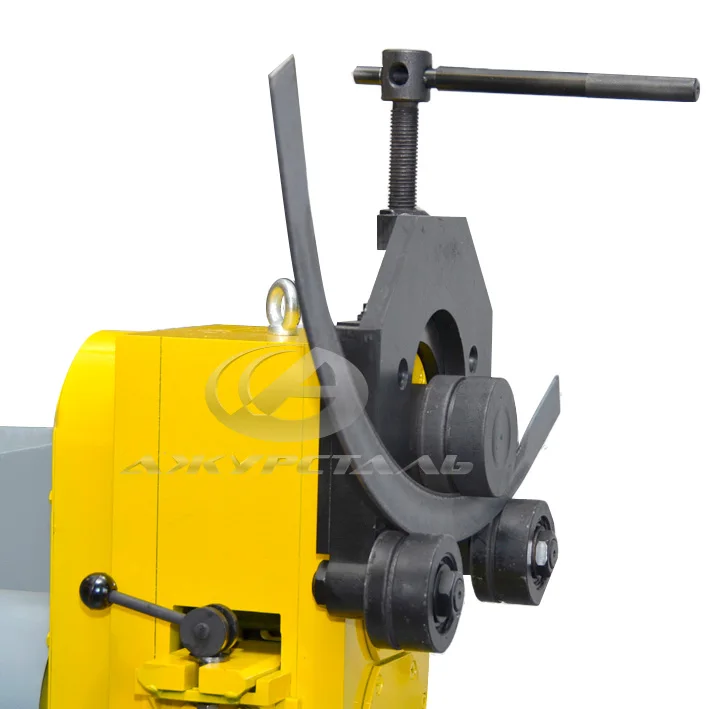

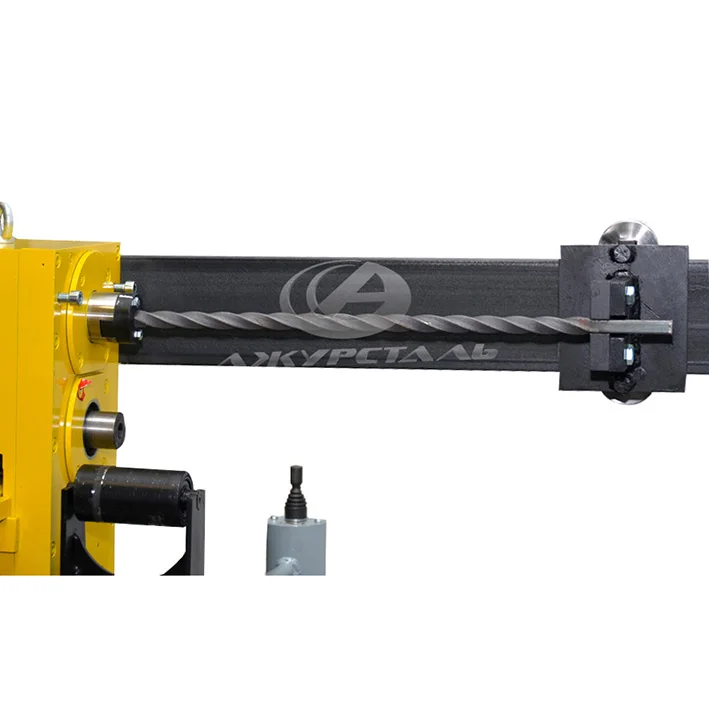

This machine fabricates elements like Volyutas (Volutes), Chervonkas (Curves), Baskets, Torsions, Rings, and Arches of various diameter.
Shaft rotation speed |
|
7.5 rpm |
Direction of rotation |
|
reverse |
Electrical engine power |
|
3.0 kW |
Rotation speed |
|
1,450 rpm |
Supply voltage |
|
380 V, 50 Hz, (AC, three-phase), Possible to fabricate machines to work at 220 V |
Dimensions |
|
950 x 700 x 1,200 mm |
Unit weight (without fixtures) |
|
325 kg |
Unit weight (basic configuration) |
|
417 kg |
Furnace fuel |
|
propane |
Compressed air flow for furnace |
|
220 L/min |
![certification]()
![certification]()
Port |
|
St. Petersburg |
Processing Time |
|
3 days |
Packaging Details |
|
Carton Box |
![]()
![]()
![]()
![]()
ABOUT COMPANY
The "Azhurstal" company is the largest Russian manufacturer of professional forging equipment. Our own production allows us to offer universal machines with a variety of equipment that are superior to imported analogues, both in quality and functionality. Our equipment is highly appreciated by Russian blacksmiths and foreign specialists who regularly order new models in Chelyabinsk.
Modern production of machines for artistic metal forging is aimed at simplifying the tasks of craftsmen as much as possible.
![]()
The company "Azhurstal" was founded in 2001.the Company started its activity with the introduction of equipment for artistic metal forging, which was designed by the best specialists who have experience in designing military equipment. Today, almost every blacksmith shop has machines manufactured by the company "Azhurstal". The reliability, functionality and versatility of the machines were appreciated by the blacksmiths. The company received its current name in 2004.
The company "Azhurstal" does not stop there. In 2007, the "Sphere" equipment was developed and put into production, designed for the construction of prefabricated frameless structures: hangars, warehouses, sports facilities, attic floors, etc. "Sphere" makes construction accessible to everyone, fast, simple and economical.
![]()
In 2016, there was equipment for the production of "Prefabricated sandwich panels" - "Sphere-SSP". Due to the low cost of the received building materials, you can save huge amounts of money during the construction of buildings.
![]()
![]()
