Разъем для зарядного устройства ev
- Категория: Другие запчасти и аксессуары для электромобилей >>>
- Поставщик: Suzhou,Yihang,Electronic,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 38.38 $* | 40.56 $* |
| Aug-16-2025 | 38.83 $* | 40.77 $* |
| Jul-16-2025 | 32.4 $* | 34.99 $* |
| Jun-16-2025 | 37.96 $* | 39.20 $* |
| May-16-2025 | 32.49 $* | 34.25 $* |
| Apr-16-2025 | 36.3 $* | 38.61 $* |
| Mar-16-2025 | 36.47 $* | 38.90 $* |
| Feb-16-2025 | 36.69 $* | 38.96 $* |
| Jan-16-2025 | 36.6 $* | 38.87 $* |
Характеристики
Product Description

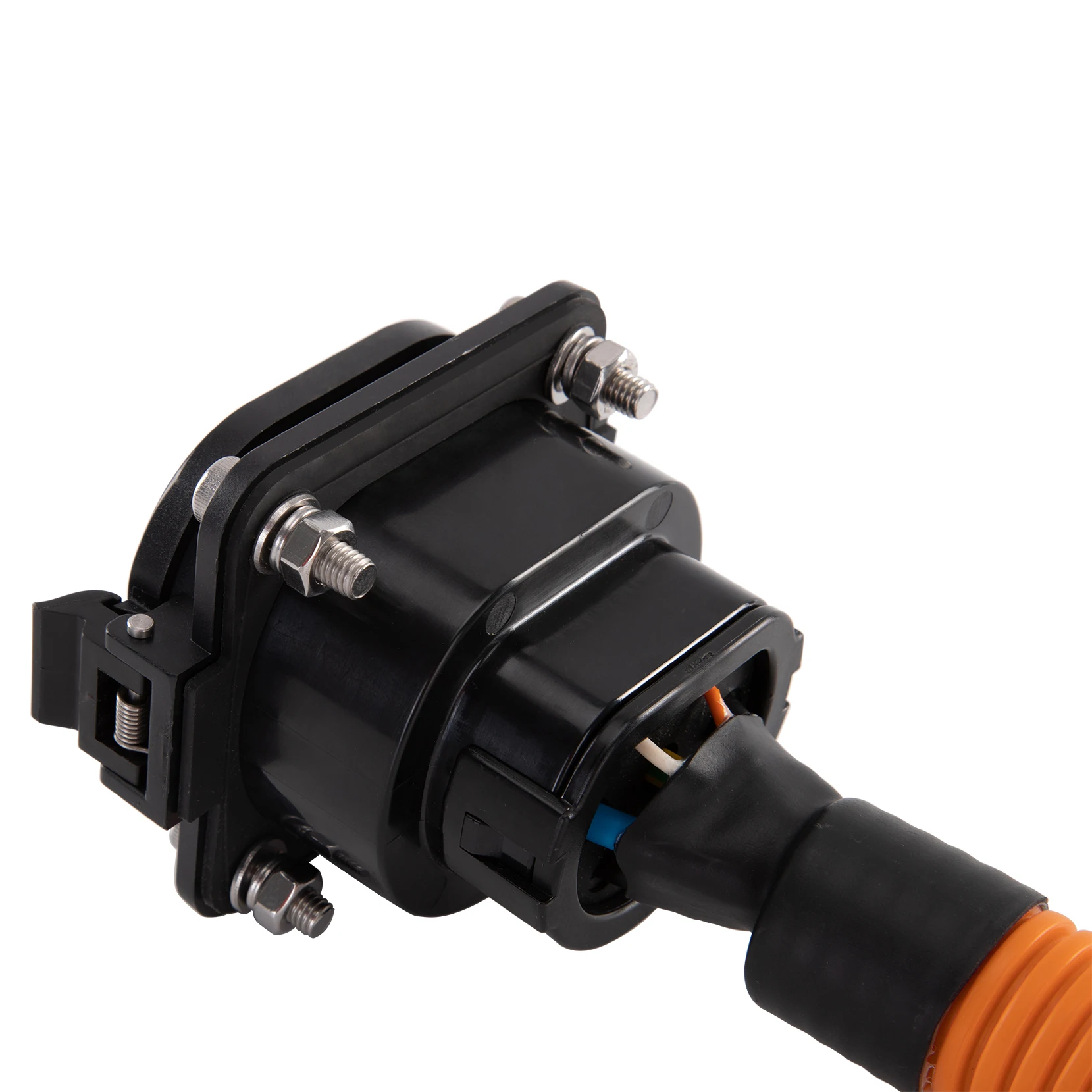

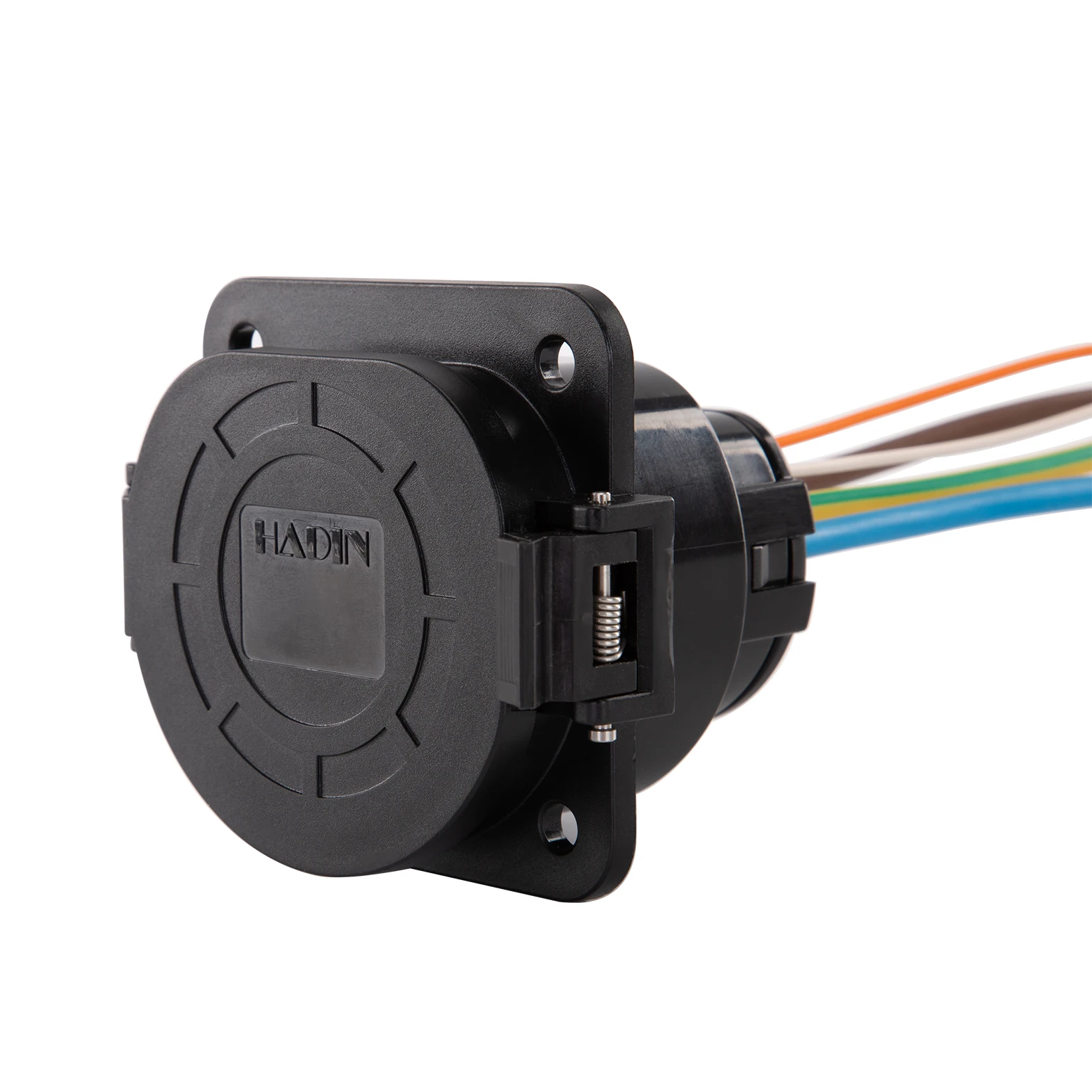

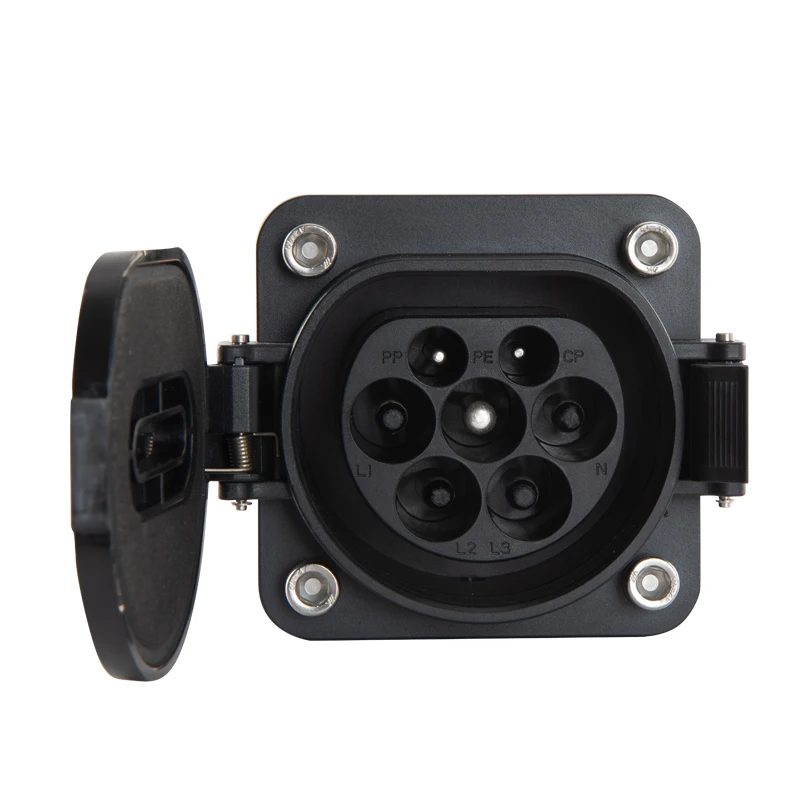

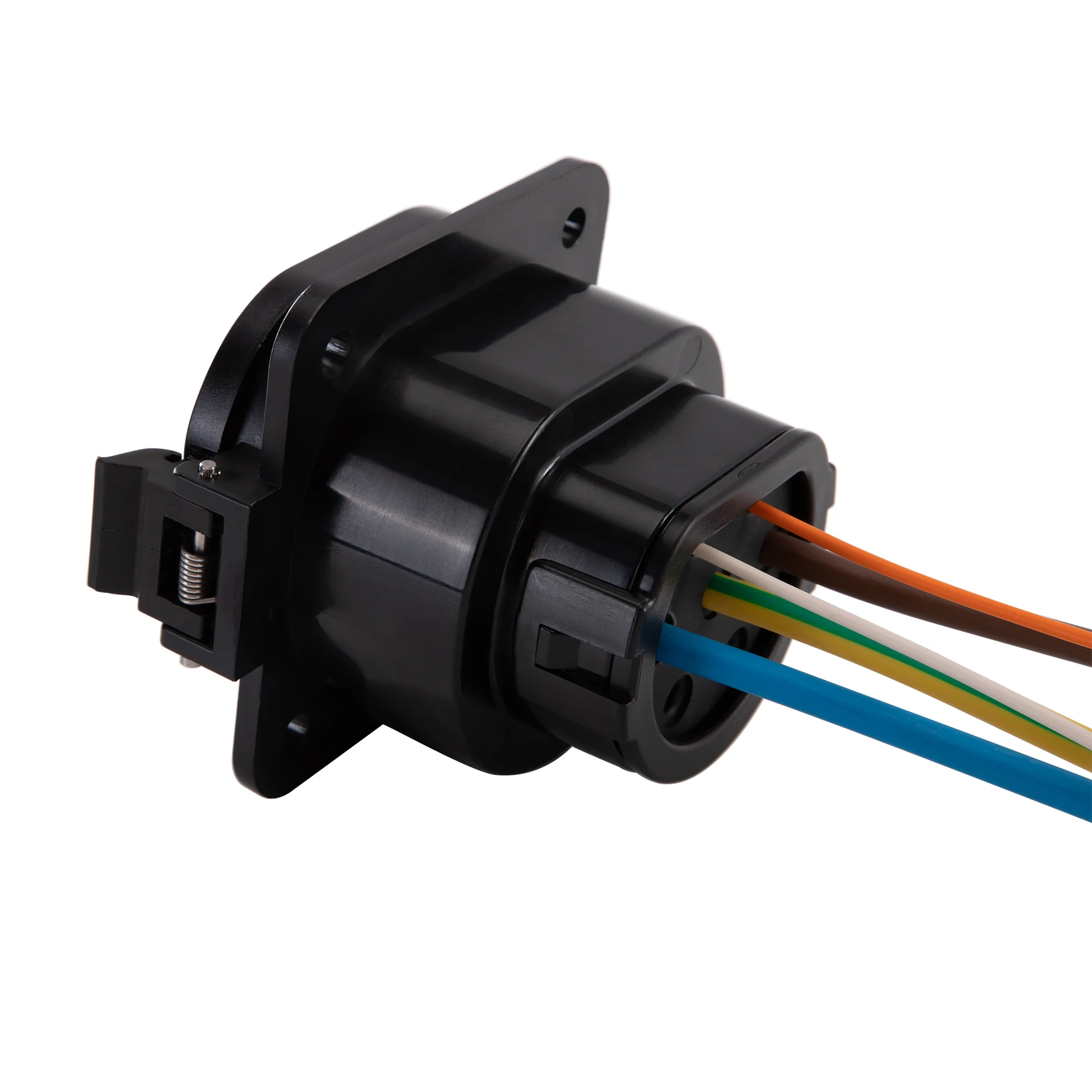

Product Name | EV male charging socket |
Rated Current | 16A /32A |
Operate Voltage | 25V/415V |
Insulation Resistance | >1000mΩ(DC500V) |
Terminal Temperature rise | <50K |
Withstand Voltage | 2000 V |
Contact Resistance | 0.5mΩ Max |
Operating Temperature | -30℃-+50℃ |
Application Standard | CE TUV |
Case Material | Thermoplastic, flame, retardant grade UL94 V-0 |
Company Information
Notifications
1. Don't submerge the EV charging box in water.
2. Don't step on, fold, or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near a high-temperature object when charging.
5. Don't use this device with an extension cord or adaptor.
6. The EV charging box is only for EV charging using.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this EV charging box when the cable is damaged.
