3. Mash Tun + Lauter Tank + Brew Kettle/Whirlpool Tank(3 vessel)
4. Mash Tun + Lauter Tank + Brew Kettle + Whirlpool Tank(4 vessel)
Fermentation System
1.Fermentation Tank
2.Bright beer Tank
Cooling System
1.Cold Water tank 2.Cooling Unit
Cleaning System
1.Disinfection Tank
2.Alkali Tank
Control System
1.PID (optional) 2.PLC (optional)
METO Craft Beer Equipment absorbs the mature, advanced beer brewing technology from Europe and USA , and upgrades and improves the technology to meet different needs on taste, production or process.
Depends on different productions 100L-5000L, it can be divided three series, 20 kinds of specifications.Maximize your brewhouse’s efficiency with our systems!
METO’s professional beer equipment engineer also can provide Personalized services, according to your demand.Choose State-of-the-Art 2, 3 and 4 Vessel Brewing Systems,whether you want to save space, money, and time by only using a 2 vessel mash and boil kettle or other requirement, we can provide you with the best solution.

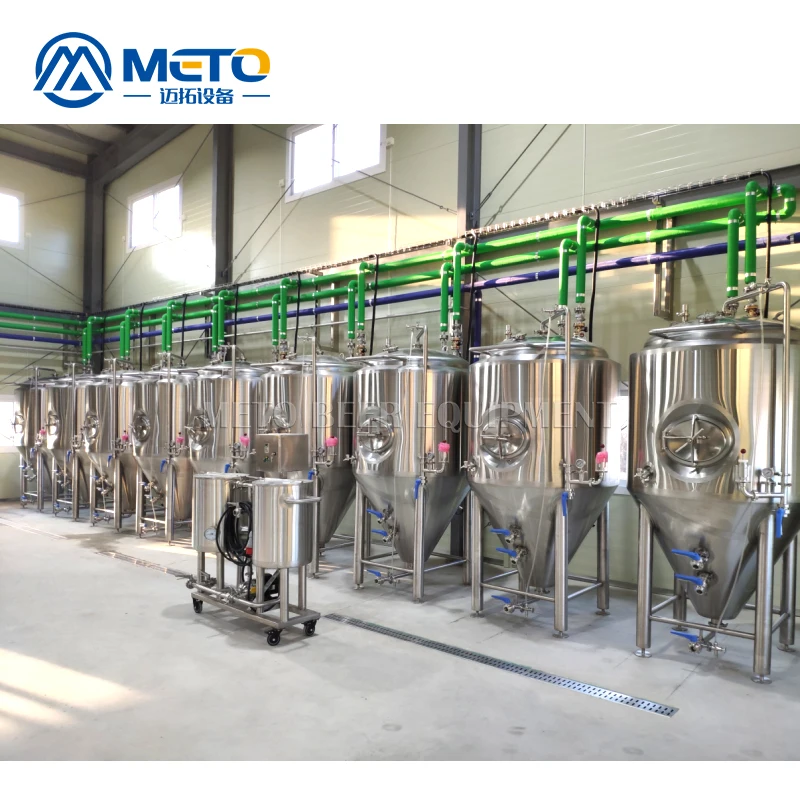

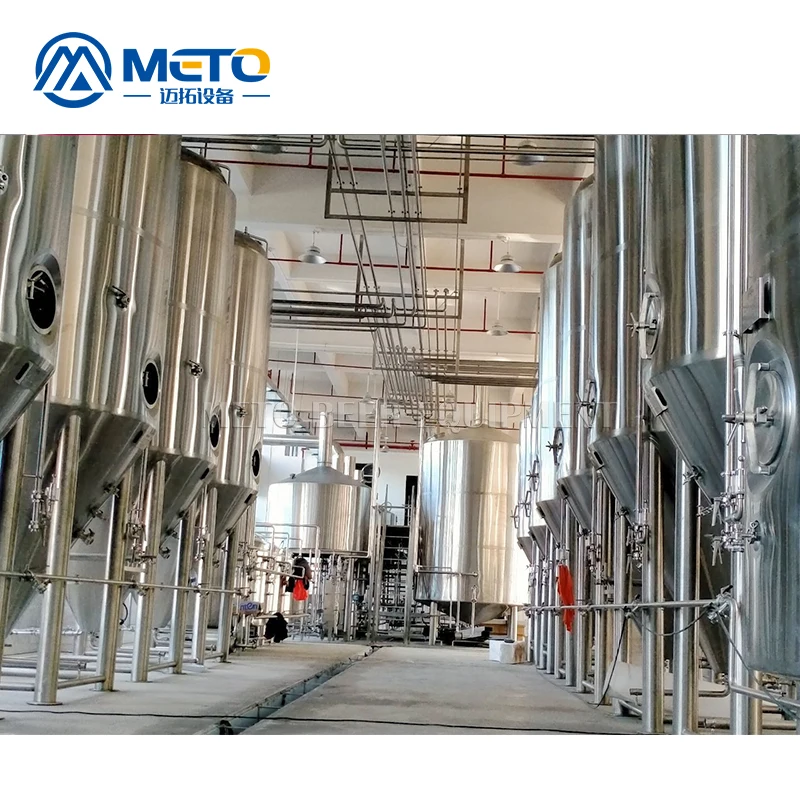

2. METO Fermentation System:
METO fermentation system consist by many fermentation tanks . All tanks are made by SUS304 Stainless Steel, which meet domestic and international food safety and hygiene standards. They are cylindrical cone bottom tank, the cone is 54-72 degree. Their externals are made by 2B stainless steel drawing board ,connected by welding. Their internals have a protective film by pickling passivation, and equipped with 80mm polyurethane insulation. The tanks with dimple plate on cone and side, they are cooled by glycol water or alcohol water. Single tank , single control.
Fermentation Tank Capacity
Volume in US Gallon
Diameter
Height
300L Fermentation Tank
79US Gallon
860mm
2000mm
500L Fermentation Tank
132US Gallon
960mm
2350mm
1000L Fermentation Tank
264US Gallon
1260mm
2650mm
2000L Fermentation Tank
528US Gallon
1560mm
3150mm
3000L Fermentation Tank
793US Gallon
1800mm
3550mm
5000L Fermentation Tank
1321US Gallon
2000mm
4450mm
10000L Fermentation Tank
2642US Gallon
2200mm
6100mm
20000L Fermentation Tank
5283US Gallon
2200mm
10200mm
Our Services
1.Pre-sales:
- Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement. - Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout . - 3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience.
2.After-sale - We can provide weekly production report to let you clear of production progrss and production details; - We will do equipment test and test report available for you; - Providing piping connection drawing and English operation manuals; - Providing equipment installation, debugging, and personnel training service; - We can help you to arrange transportation till to your location; - Main machine guarantee for three years; Accessories and electronic components will have one year free warranty; Supply lifetime maintenance and technical service.
