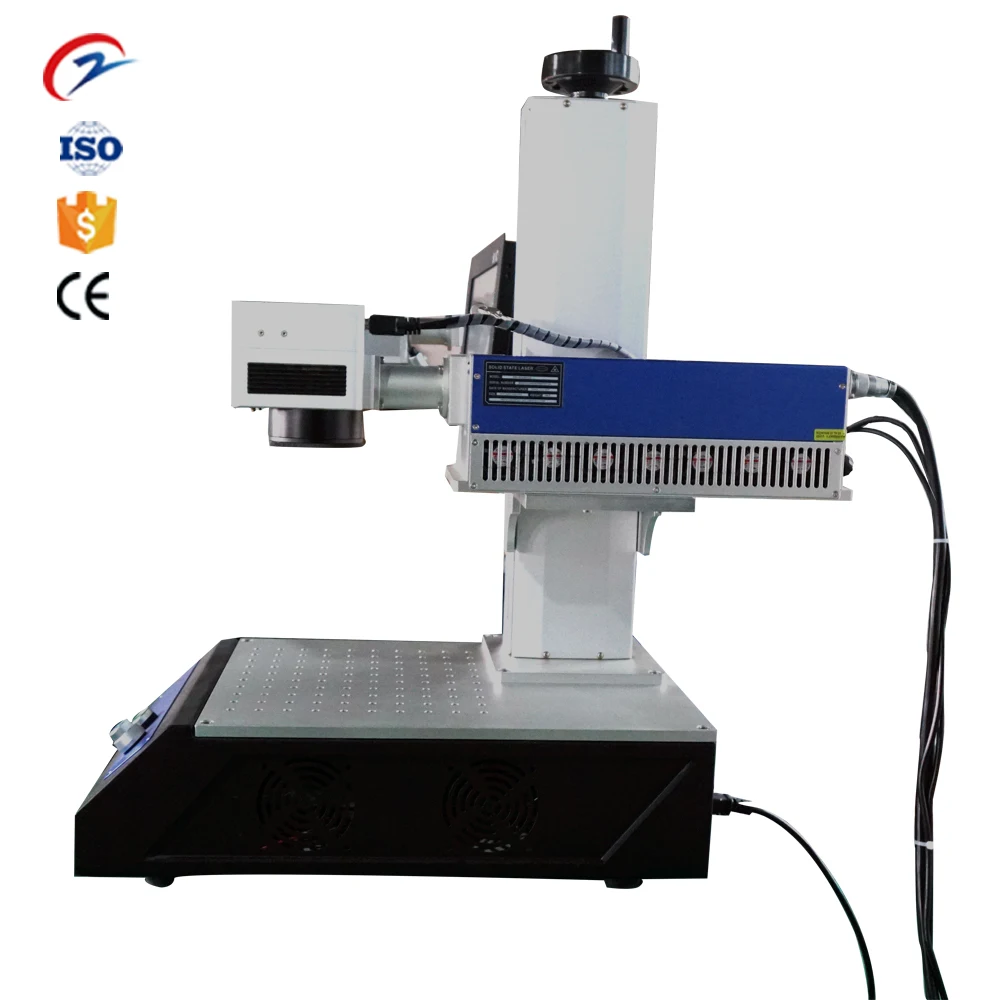

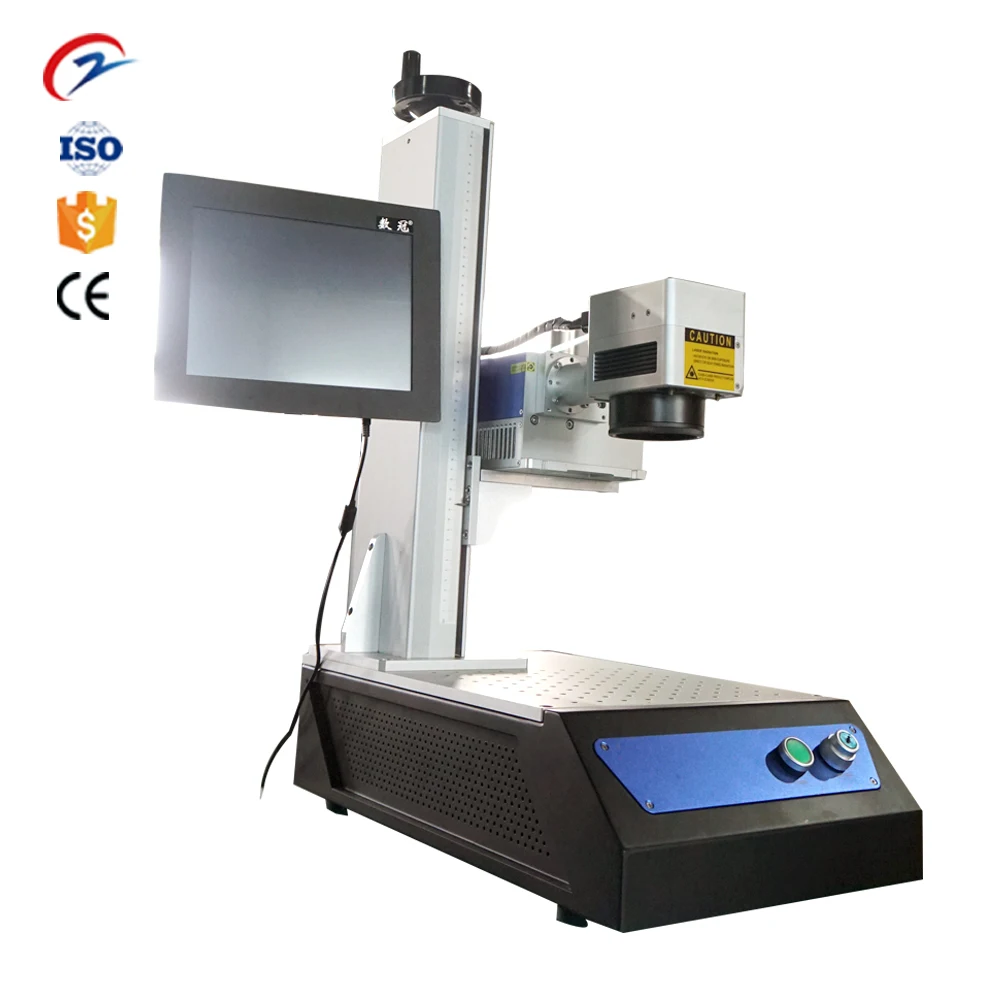

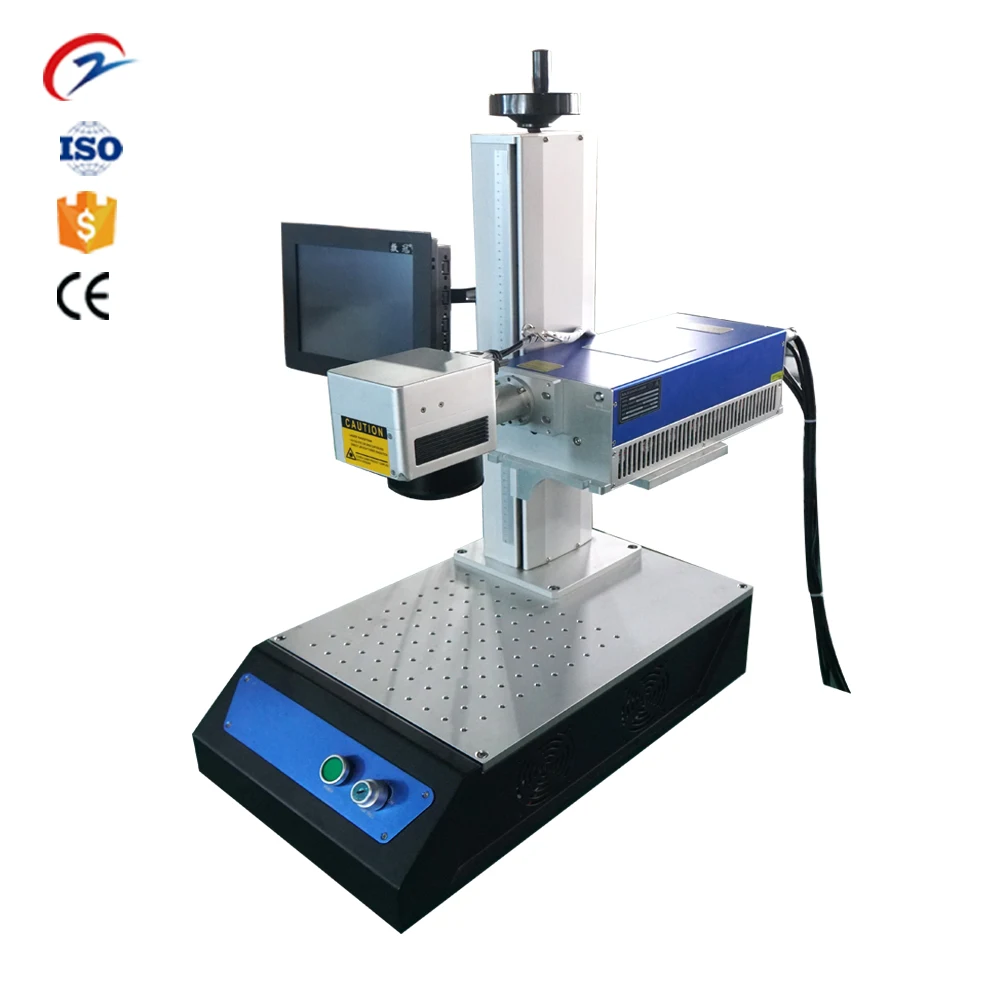

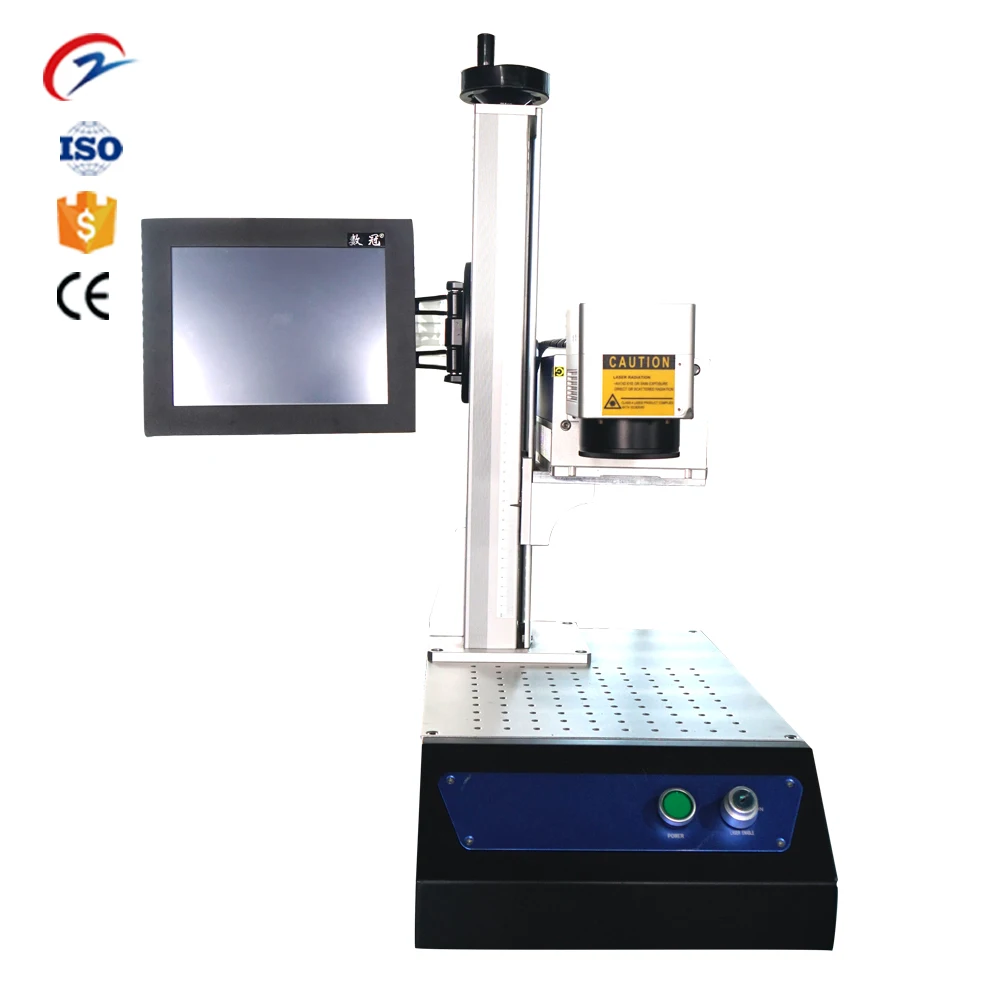

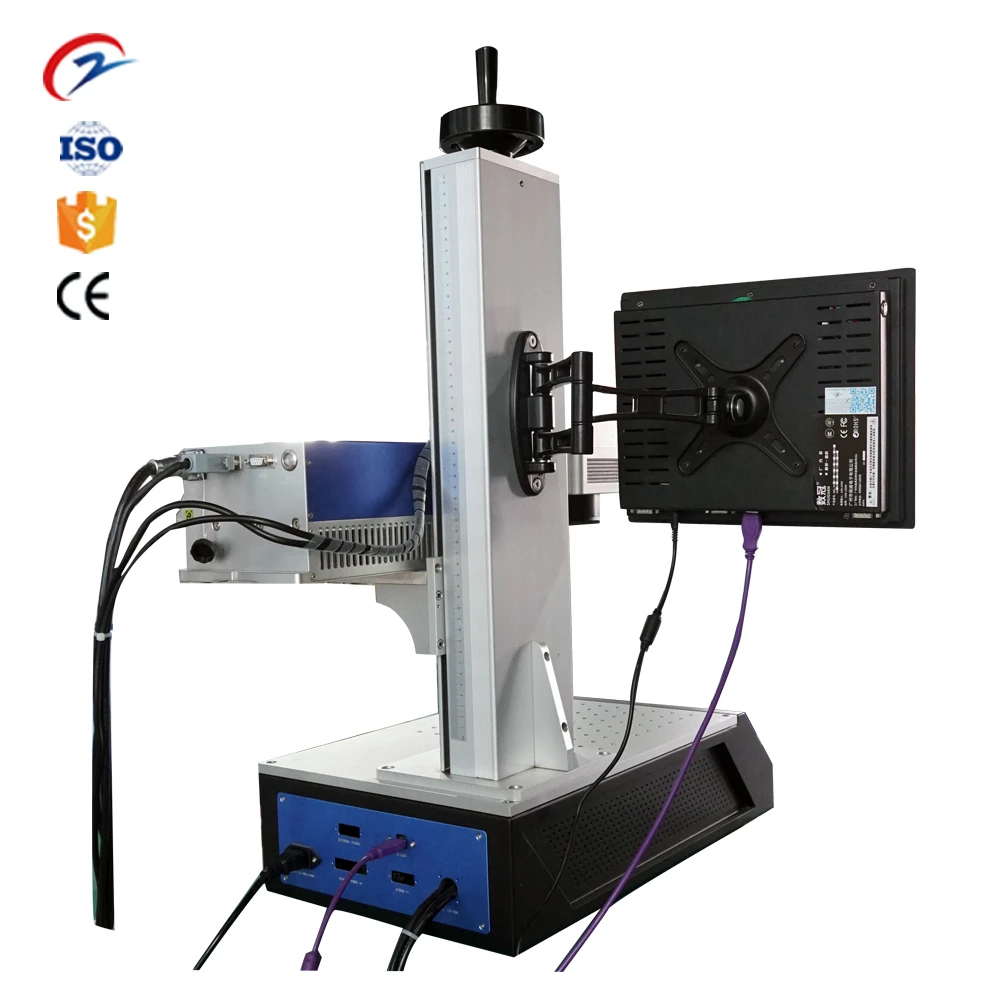

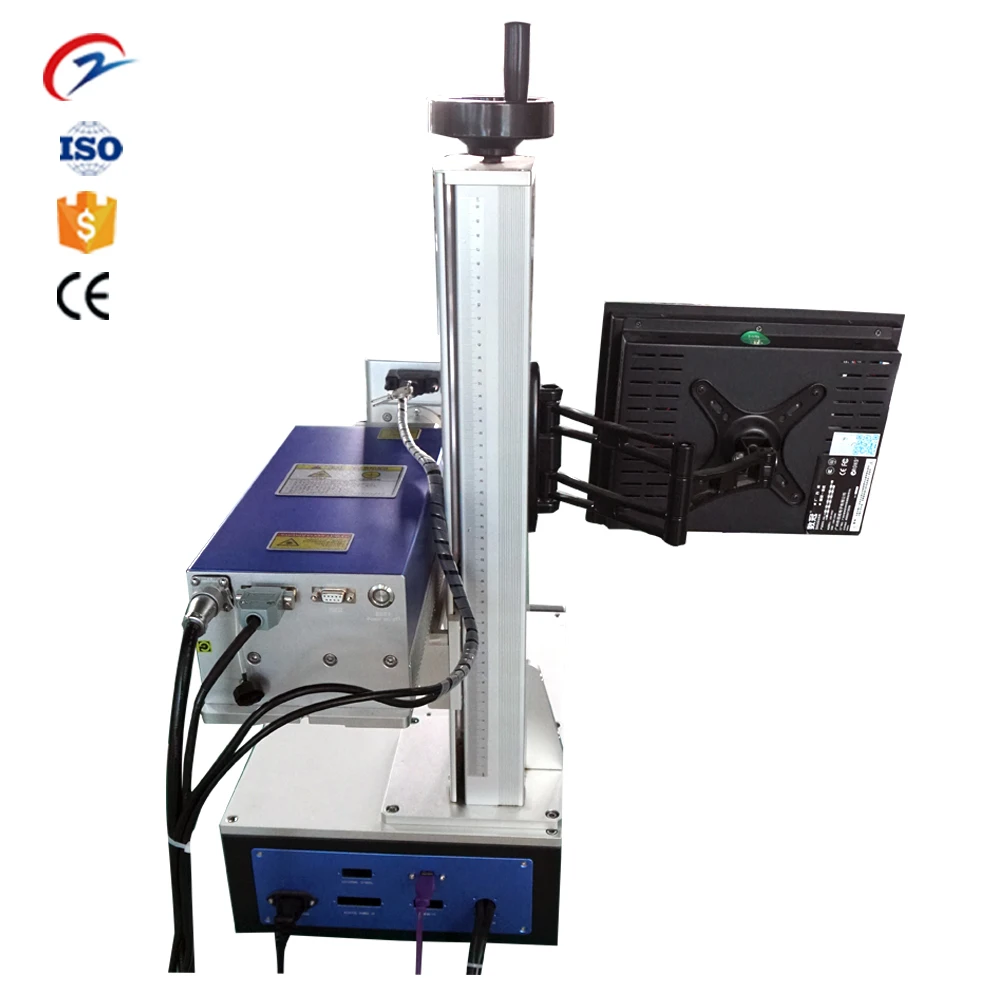

2022 новейший настольный мини 3 Вт 5 10 УФ лазерная маркировка печать гравировка режущая машина для солнцезащитных очков ручка
- Категория: Аппарат для лазерной гравировки >>>
- Поставщик: Zhongcan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 4641.50 $* | 4873.51 $* |
| Aug-19-2025 | 4602.33 $* | 4832.64 $* |
| Jul-19-2025 | 3861.84 $* | 4054.28 $* |
| Jun-19-2025 | 4524.87 $* | 4750.2 $* |
| May-19-2025 | 3939.43 $* | 4136.15 $* |
| Apr-19-2025 | 4446.85 $* | 4668.33 $* |
| Mar-19-2025 | 4407.59 $* | 4627.74 $* |
| Feb-19-2025 | 4368.85 $* | 4586.47 $* |
| Jan-19-2025 | 4329.14 $* | 4545.35 $* |
Характеристики
Model | ZC-DB-UV | RLaser Source | JPT/MAIMAN/Gainlaser |
Laser Type | UV | Positioning Way | Red Light |
Laser Power | 3W/5W/7W/10W | Laser Module Life | 100000h |
Weave Length | 355nm | Cooling Style | Air/water cooling |
Marking Area | ≤300*300mm | Total Power | Customerized |
Marking Speed | ≤7000mm/s | Operating Voltage | Customerized |
Marking Depth | ≤1mm | Supported Windows | Windows XP,7,8,10 |
Repetition Precision | 0.001mm | Certificate | CE,CCC,ISO |
Control Software | EZCAD | Supported Format | BMP/GIF/JPG/PCX/TGA/TIFF/PLT |
Machine weight | 60kg | Machine size | 32L*55W*67H (cm) |
packing weight | 75kg | packing size | 83L*42W*89H (cm) |
Material | Fiber | CO2 | UV |
Wooden Product | √ | √ | |
Acrylic | √ | √ | |
Plastic Products | √ | √ | |
Leather Fabric | √ | √ | |
Glass Ceramic | √ | √ | |
Resin Plastic | √ | √ | |
Paper Packaging | √ | √ | |
Electronic Components | √ | √ | |
Hardwaretool Products | √ | √ | |
3C Electronics | √ | √ | |
Precision Equipment | √ | √ | |
High & Low Voltage Electrical Appliances | √ | √ | |
Gem | √ |
01
Galvanometer Mirror
Galvanometer Mirror
Scanning galvanometer, full digital signal, super anti-interference ability.High precision, short delay, fast speed, small
temperature drift, especially suitable for all kinds of high precision, high speed marking requirements.The fiber wavelength is 1064nm.
temperature drift, especially suitable for all kinds of high precision, high speed marking requirements.The fiber wavelength is 1064nm.
02
F-theta LensFamous brand field lens Wavelength Higher energy conversion rate，fast speed and long life.75MM*75MM ,100*100MM,150*150MM ,200*200MM ,300*300MM ,Above working area optical Same power for example 20W if working area smaller,the marking depth by one time is bigger
03
JCZ Main boardMeanwell power supply
configured with high precision
04
Laser sourceAluminum working table. Flat and smooth, compact structure, flexible processing direction adjustable control.
05
Rotary deviceThe rotating device is suitable for various round objects, such as rings, glass bottles, etc.The speed can be controlled by the computer liberalization.
04
EZCAD Control SoftwareControl software, beautiful interface, powerful function, detailed parameters, simple operation, can describe any pattern, text,
bar code, two dimensional code processing.
bar code, two dimensional code processing.
7
Zhongcan Technology Co., LTD.is a world leading manufacturer of industrial laser machinery.located in --- Jinan Shandong.Ourcompany mainly production and sales of the products included Laser Cutting Machine Series, Laser Marking Machine Series, Laser Engraving Machine Series and Laser Cleaning Machine Series .Widely used in textiles, leather, clothing, industrial fabrics,advertising, technology products, printing, packaging, electronics, pharmaceuticals, furniture, hardware tools, molds, and other industries.
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking engraving and the depth of marking / engraving.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the
machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole
lifetime service. So any doubts, just let us know, we will give you solutions.
machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole
lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What’s consumables of laser marking machine?
A:It does not have consumable. It’s very economical and cost effective.
Q5: How’s the effect of the laser marking?
If you want to know the effect, you can send the sample or drawing to us, we will do the free sample for you and show you in video how to operate it.
Q6: What’s delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.
Q7: How is theshipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
