SZ-08 электрический ремонт сварщик пресс-форм дефектов литья от электростатического разряда холодной сварочные аппараты Производитель Прямая продажа с

SZ-08 электрический ремонт сварщик пресс-форм дефектов литья от электростатического разряда холодной сварочные аппараты Производитель Прямая продажа с

Категория: Other Welding Equipment >>>
Поставщик: Shanghai,Shengzao,Mechanical,Electrical,Equipment,Co.,Ltd.

Цена:1 299,00 $ - 1 599,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	1650.39 $*	1683.55 $*
Jul-16-2025	1338.75 $*	1365.41 $*
Jun-16-2025	1624.96 $*	1656.88 $*
May-16-2025	1611.65 $*	1643.6 $*
Apr-16-2025	1286.30 $*	1312.40 $*
Mar-16-2025	1585.79 $*	1617.26 $*
Feb-16-2025	1572.44 $*	1603.73 $*
Jan-16-2025	1559.94 $*	1590.45 $*

Характеристики

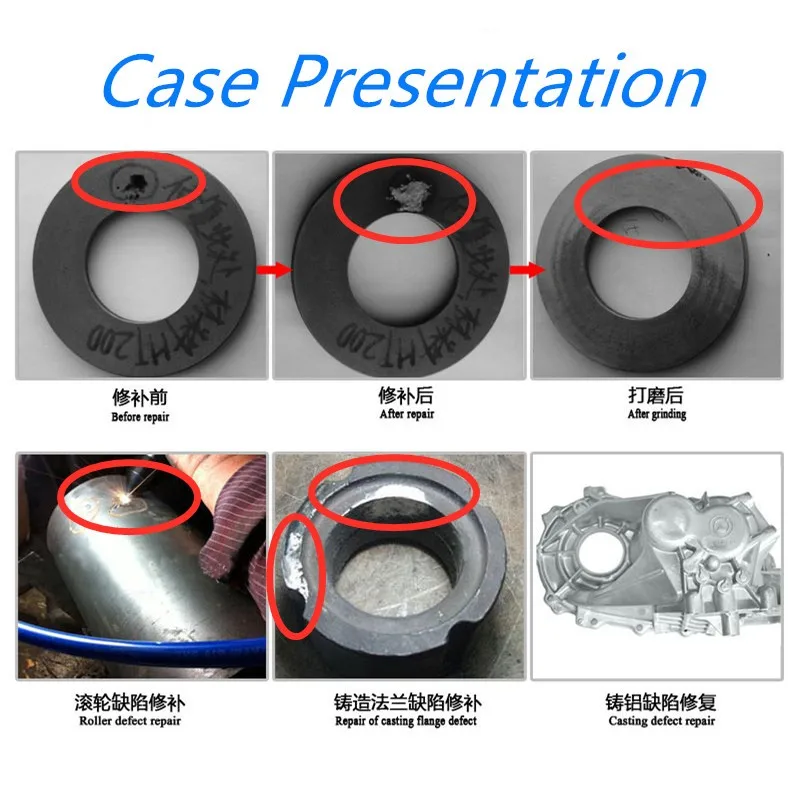

Case Show

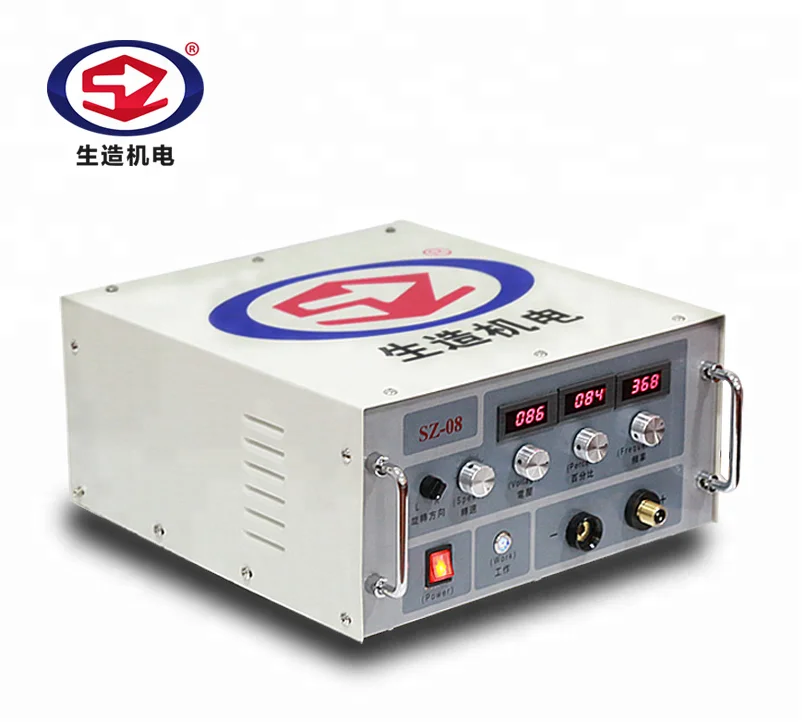

Product Show

Product Description

Manufacturing wholesale intelligent spark surfacing repair machine metal defects esd cold welding machines manufacturer direct sale

1. Principles

Electric-spark Overlaying Technology is releasing the high-energy power into the space between metal electrode and base metal instantaneously in high frequency. Through the gas ionization that between electrode material and parent metal to form multiple micro-arc channels and produce instantaneous high-temperature microcell on the surface of the parent metal, the electrode material subjected to micro electric field should be welded into the parent metal and form a metallurgical bond. Electro-spark technology is a repetitive and instantaneous high temperature – cooling process in microcell. Different from the welding matrix, no stress or deformation caused by temperature rise would take place.

2. Characteristic

(1) Advanced Technology: Unique Soft Switching Technology/ Accurate Output Control

(2) Energy-efficient: With the power of 1200W, the speed and effect of SZ-8100 are several times than that of 2000W.

(3) High Welding Strength: Due to the feature of high energy output on single point of SZ-8100, every single point of the welding material shall combine with the matrix in molten state to form a metallurgical bond that based on the enormous bonding forces.

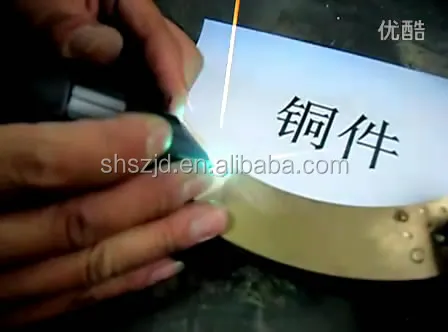

(4) High-effect Welding of Cu, Al: Welding work for high-conductivity metals like copper or aluminum is achievable due to the instantaneous output of high energy. Moreover, it overcame the fragile defects of common electro-spark deposition.

(5) No anneal or deformation: No need to preheat the base. The overlaying procedure is a repetitive instantaneous heat input-output process. No deformation, undercuts or residual stress caused by overheat would happen. Spot annealing neither.

(6) High Repairing Precision: Thickness of overlaying layer from several microns to millimeters. Small color deviation or no chromatic aberration could be seen after grinding and polishing process.

(7) Multi-purpose: Available for overlaying and surface strengthening etc. Welding work for ferrous metals ( iron ball/ gray iron/ stainless steel etc.) and non-ferrous metals ( copper/ aluminum etc.)

(8) Environmental Protection: Pollution-free Process.

(9) Usability: Accessible for anyone. Overlaying is allowed to inaccessible location.

(10) Efficiency: Immediate repairing on site to enhance productivity and save expenses.

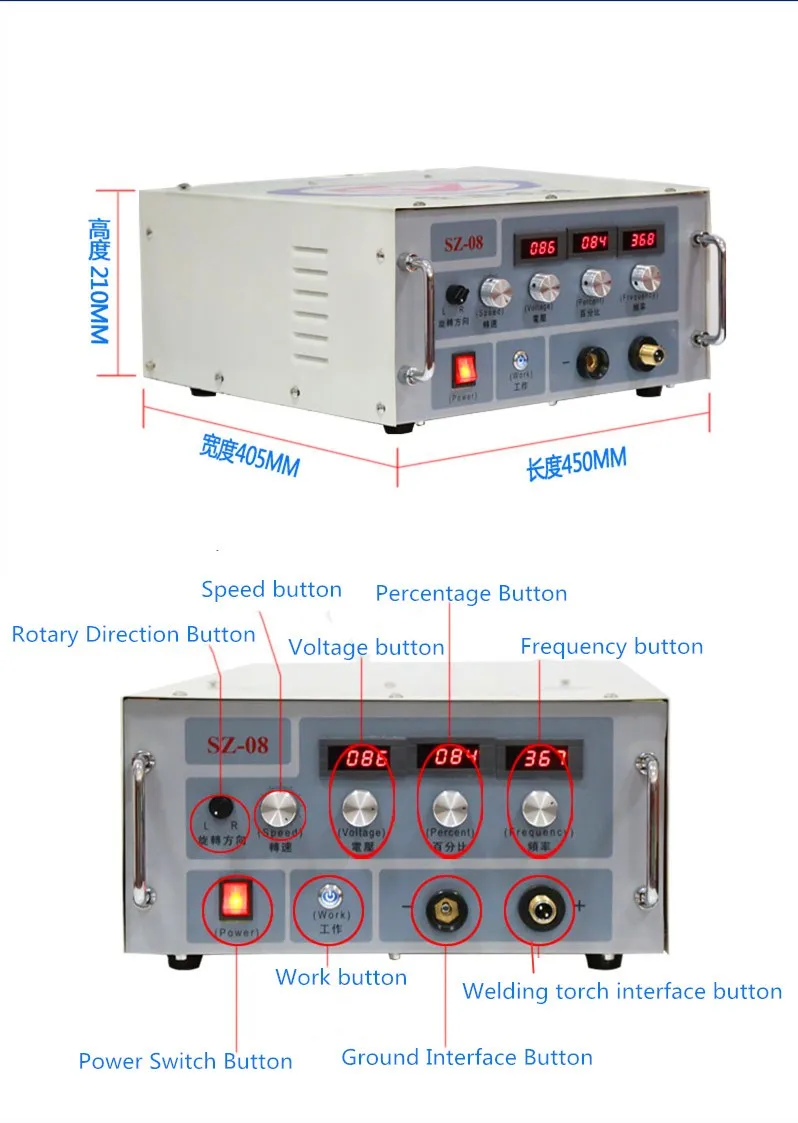

3. Parameters

Model	SZ-08	Input Voltage(V)	AC220V
Electrode size	1.0-3.2	Certificate	CE IOS9000
Spot Temperature	8000~1000°C	Frequency	50-500HZ
Power	1200W	Size	*485315365mm*
Warranty	1 years	Net Weight	15kg
MOQ	1 Piece	Port	Shanghai
