Буровая Установка трактора

Категория: Mine Drilling Rig >>>
Поставщик: Shaanxi,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.86 $*	0.20 $*
Aug-19-2025	0.48 $*	0.16 $*
Jul-19-2025	0.99 $*	0.13 $*
Jun-19-2025	0.59 $*	0.99 $*
May-19-2025	0.13 $*	0.89 $*
Apr-19-2025	0.63 $*	0.84 $*
Mar-19-2025	0.77 $*	0.18 $*
Feb-19-2025	0.83 $*	0.48 $*
Jan-19-2025	0.96 $*	0.56 $*

Характеристики

Mud pump hydraulic tower water well drilling rig price

Crawler type

Crawler drilling rig

Wheeled type

water well drilling rig1

Characters :

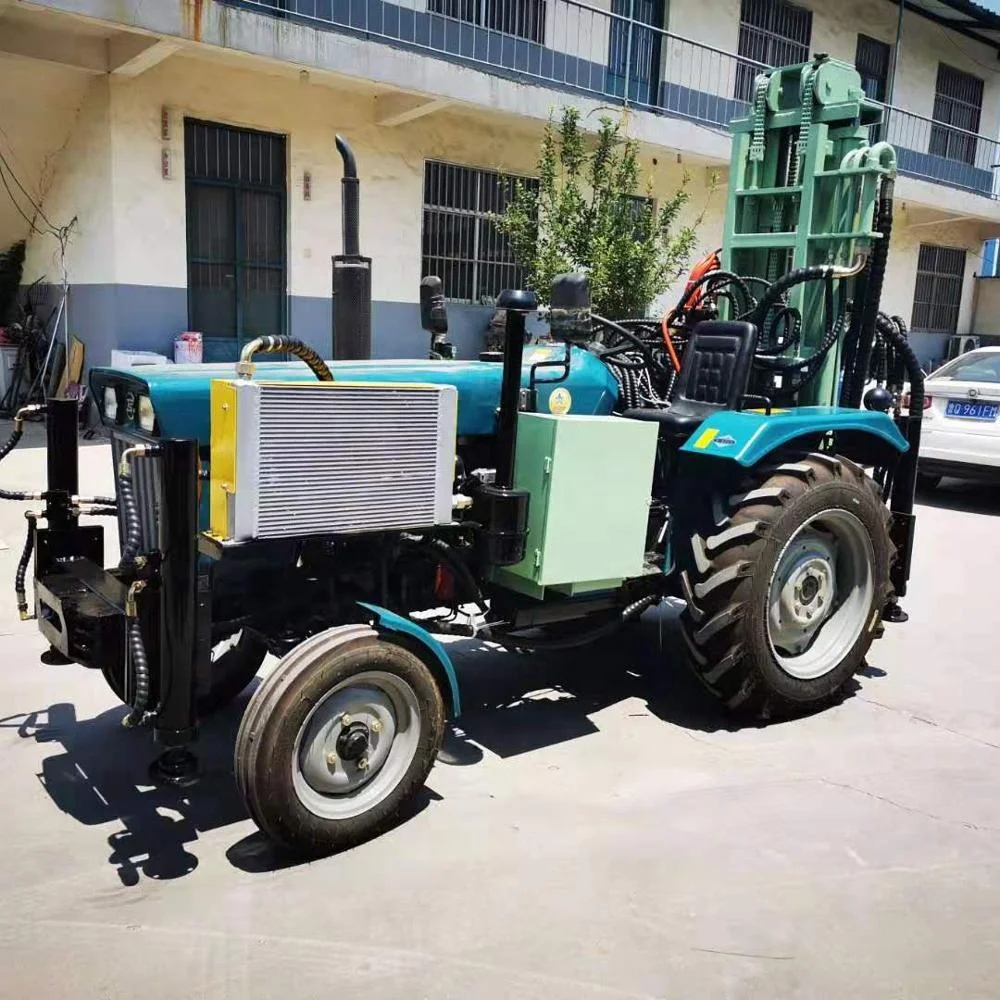

the rig is equipped with wheeled walking mechanism and hydraulic cylinder pillar, the whole machine is convenient to move, easy to adjust the level of the rig, the tower for hydraulic operation, convenient and reliable.

large installed power, with 2 reverse speed, easy to deal with accidents.

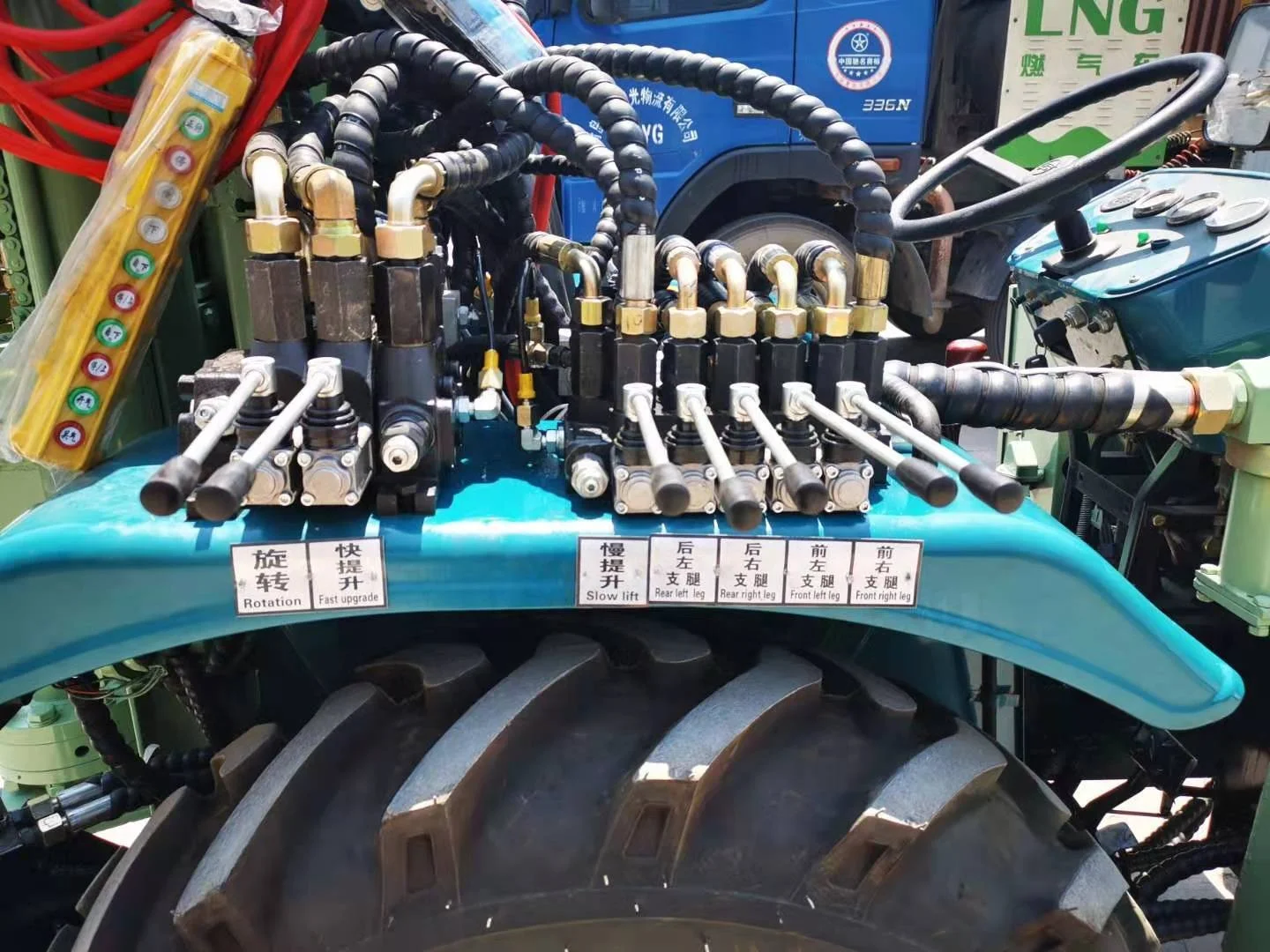

centralized control handle, reasonable and compact layout, easy operation, flexible and reliable.

with normally closed hydraulic chuck, convenient and flexible operation.It can realize independent operation of vertical shaft and hoist.

vertical shaft through hole diameter is large, can be replaced with large six active drill pipe.

XYW-200

Technological Parameters of core drilling machine

Drilling machine

Drilling depth : 200m

Maximum opening diameter: 75-300mm

Final hole diameter : 75mm

Active drill pipe: 53/59*4200mm

The pipe diameter : 50 and 60mm

Drilling inclination Angle : 90° ~ 75°

Supporting power (diesel engine): 16.6kW 2200r/min

Structural weight/size: 2800kg/2700*950*1770

Vertical shaft

Vertical shaft speed : 64, 128, 287, 557r/min

Vertical shaft stroke : 450mm

Hoist

Single rope lifting force : 24KN

Single rope lifting speed: 0.12, 0.22, 0.49, 0.95m/s

Diameter of reel: 140mm

Wire rope diameter : 13mm

The capacity of wire rope : 35m

Drilling tower

Rated load: 5t

Effective height: 6m

Tower leg specification: 89mm

Mud pump

Model: BW160

Flow : 160 l/min

The maximum pressure : 1.3mpa

Reciprocating frequency: 165 times /min

Diameter of suction pipe: 51mm*4.5m

Diameter of water outlet high-pressure pipe: 32mm*6m

Packaging & Shipping

6. package and shipping

Package way: container or as customers' request

Shipping way: by sea or air , railway etc

Delievery time ;15-20 days after the payment.

Our advantages

. Top techonology and guranty

Advanced automatic mloding production line from USA

Advanced NC machine

German TRUMPF flexible sheet metal processing system

Faq

Why choose us?

1), 100% spare parts can be supplied.

We can supply all spare parts: for air compressor, we can supply air filter, oil filter, oil core, belt and so on. for drilling rig, we can supply drill bit, drill rod, dth hammer, motor, joint etc, diesel engine parts. (Low Pressure, Middle Pressure, High Pressure)

2), Training is Free to every customer. Wherever you need us, for installation, maintainance, or proper use of our company machines, we will be right there for you. In addition, we provided one year warrantee to make sure your machine runs consistently.

3), We will recommend a suitable type for you and send you a best quotation.

A: What is the working pressure ( Mpa, Bar, PSI)?

B: What is the volume flow ( m3/min, CFM)?

C: What is the volume flow ( m3/min, CFM)?

D: What is the Power supply ( KW, HP)?

How to place an order:

1), Send inquiry

2), We will contact to you

3), Tell us your require model quantity or ask us other question you need to know

4), Send you the invoice

5), Wait for your deposit

6), Prepare your products, pack your products, delivery
