Расточные станки с ЧПУ для

Категория: Расточные станки >>>
Поставщик: Foshan,Uni,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.79 $*	0.63 $*
Aug-20-2025	0.59 $*	0.88 $*
Jul-20-2025	0.12 $*	0.74 $*
Jun-20-2025	0.40 $*	0.11 $*
May-20-2025	0.13 $*	0.59 $*
Apr-20-2025	0.48 $*	0.20 $*
Mar-20-2025	0.35 $*	0.93 $*
Feb-20-2025	0.64 $*	0.51 $*
Jan-20-2025	0.63 $*	0.80 $*

Характеристики

Product Description

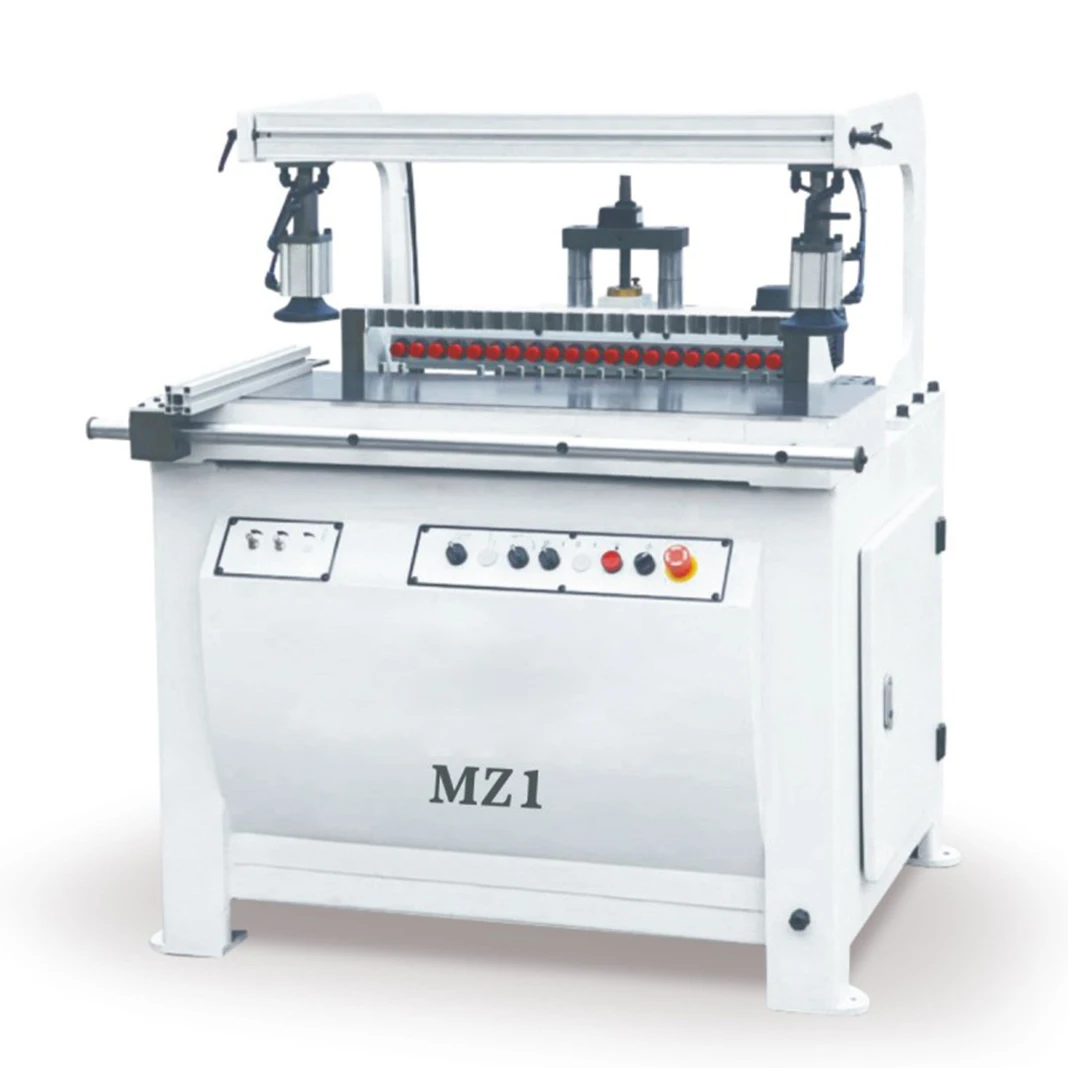

Name:	Woodworking Single-Head Drilling Machine
Model No.:	MZ1
Working Form:	Semi-automatic
Rated Power:	1.5kW
Dimension:	100010001350mm
Max. Processing Thickness:	60mm
Max. Processing Width:	Standard
Weight:	300kg
Speed:	2840r/min
Rated Voltage:	380V
Max. Borehole Diameter:	35mm(single drill); 13mm(multi-spindle drill)
Max. Borehole Depth:	60mm
Total Number of Rotating Shaft:	21
Assembly Aperture of Drill Joint:	10mm
Compressed Air Pressure:	0.5-0.6mpa

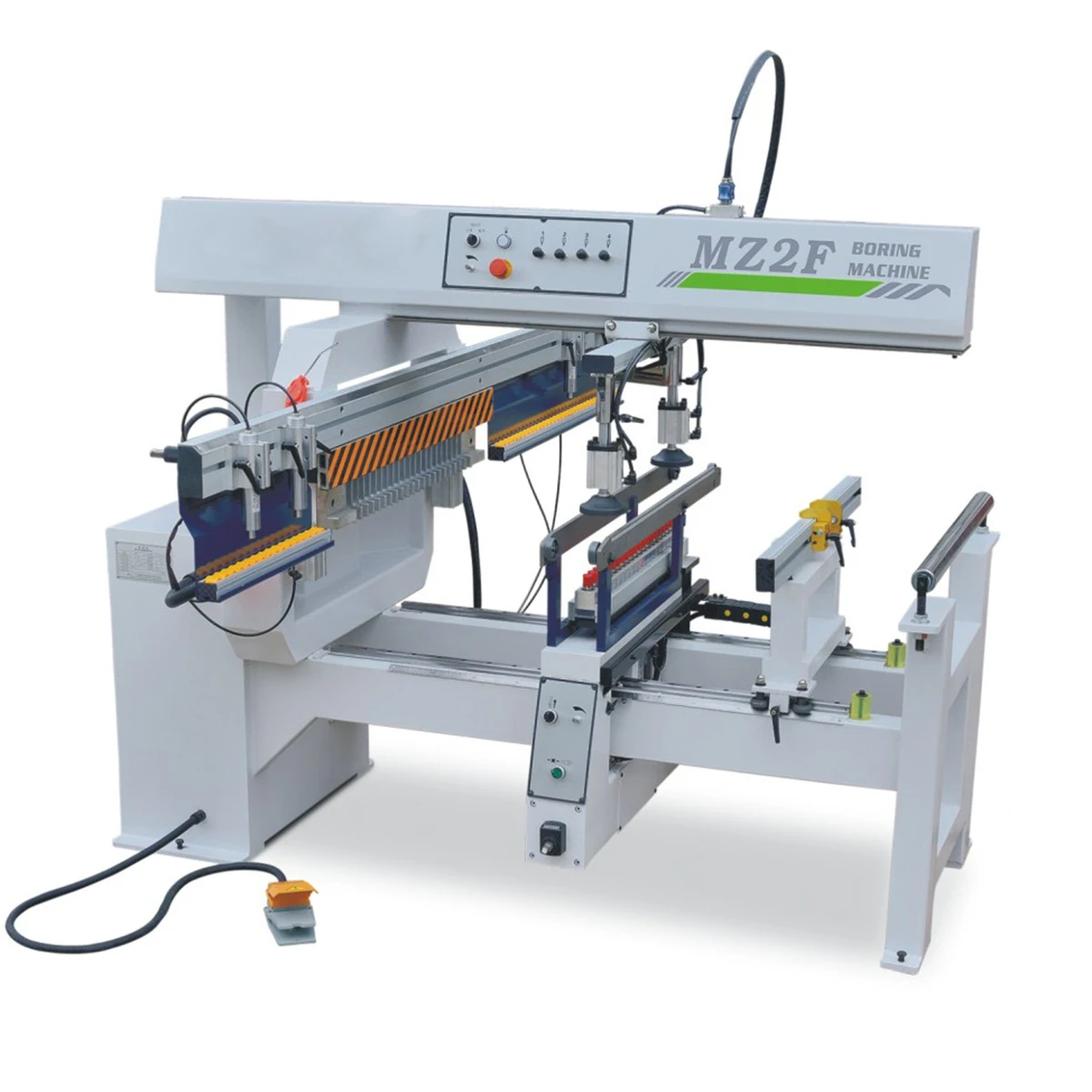

Name:	Woodworking Double-Head Drilling Machine
Model No.:	MZ2A	MZ2D	MZ2F
Working Form:	Semi-automatic
Rated Power:	3kW
Dimension:	135013001600mm	240025001450mm	200025001450mm
Max. Processing Length:	1700mm
Max. Processing Thickness:	60mm
Max. Processing Width:	640mm
Weight:	300kg	650kg	500kg
Speed:	2840r/min
Rated Voltage:	380V
Max. Borehole Diameter:	35mm(single drill); 13mm(multi-spindle drill)
Max. Borehole Depth:	60mm
Vertical Drill Range:		750mm	1000mm
Assembly Aperture of Drill Joint:	10mm			10mm
Total Number of Rotating Shaft:	21*2=42			21*2=42
Compressed Air Pressure:	0.5-0.6mpa			0.5-0.6mpa

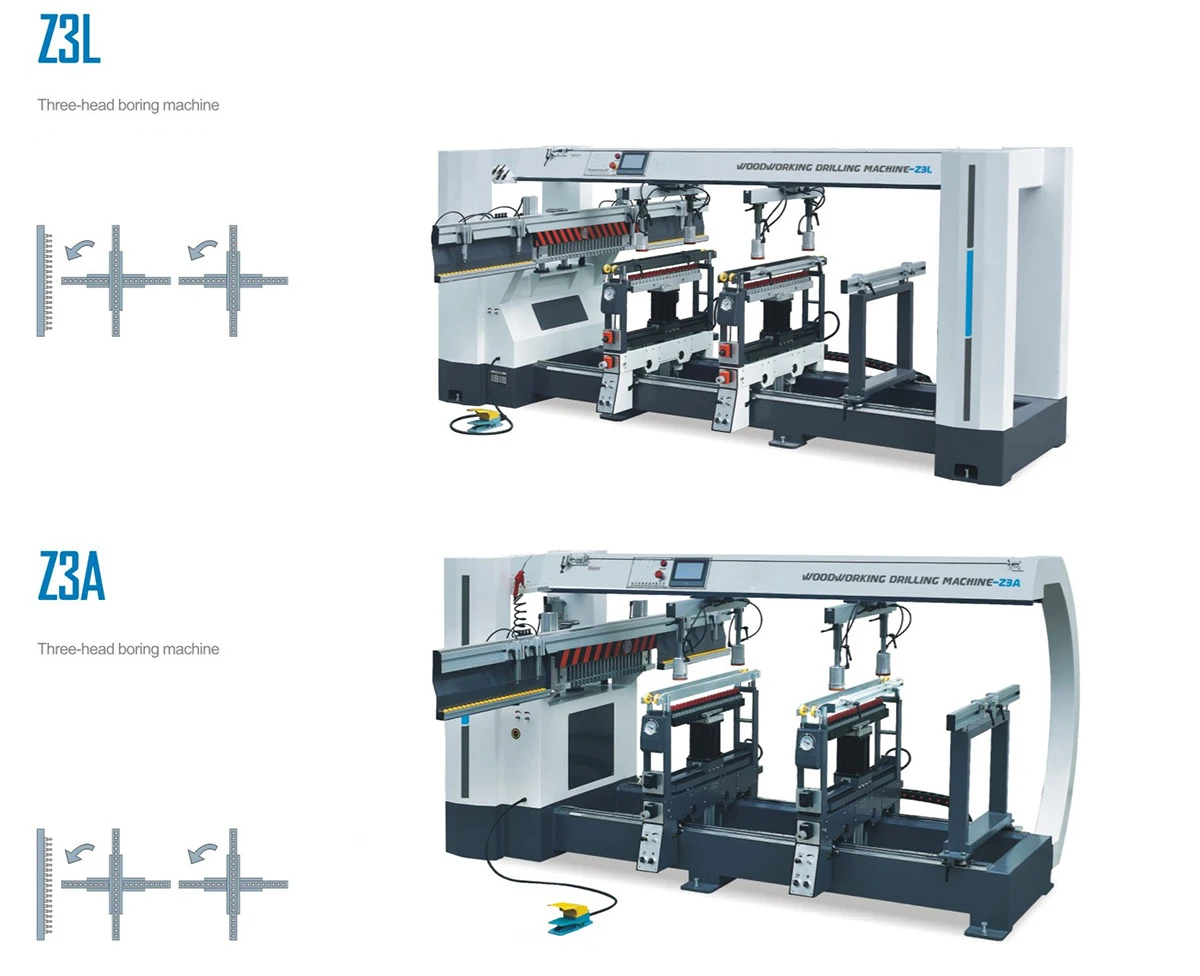

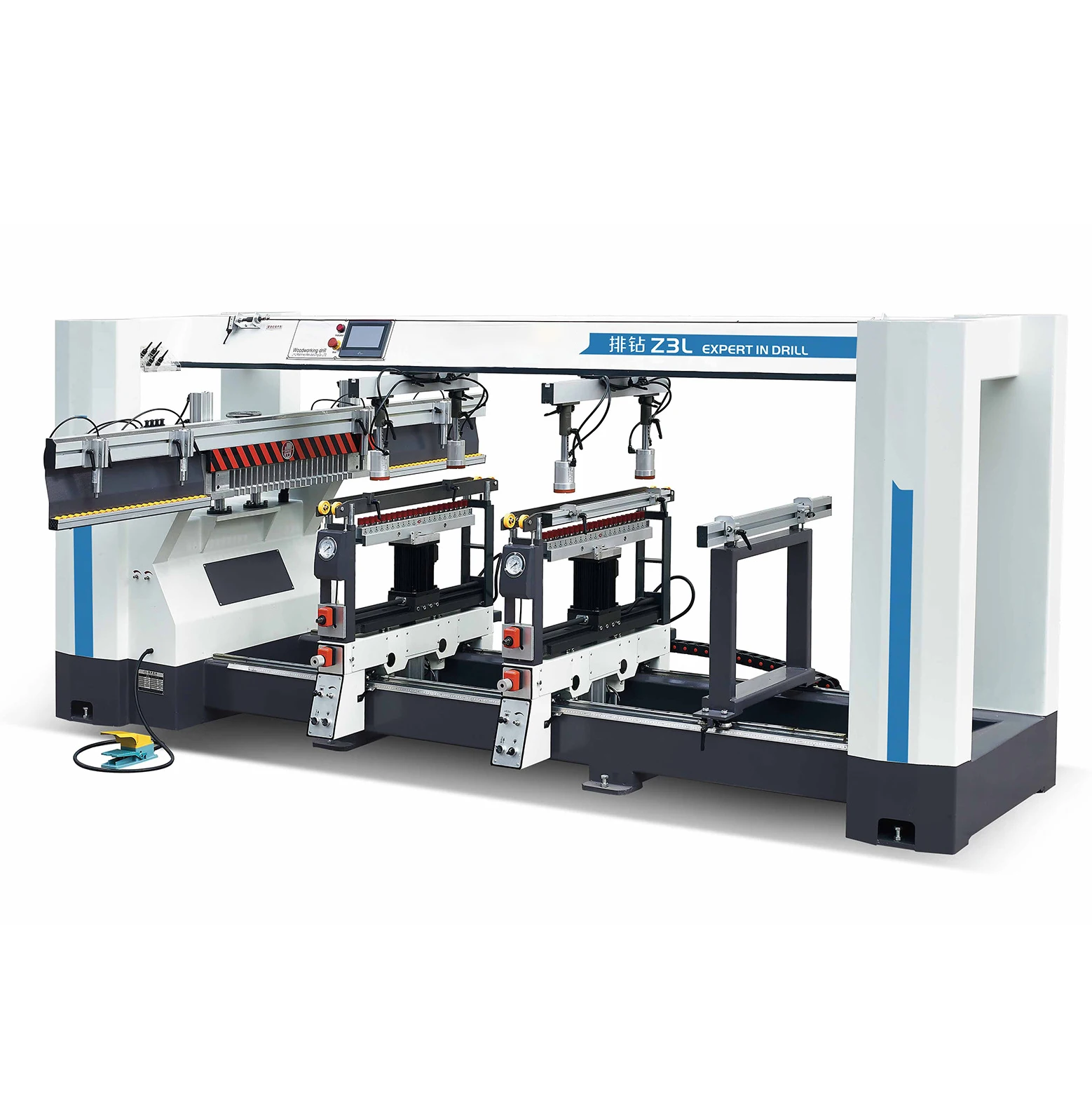

Name:	Woodworking Three-Head Drilling Machine
Model No.:	Z3A	Z3L
Working Form:	Semi-automatic or Automatic
Rated Power:	4.5kW
Dimension:	300025001560mm	375025001560mm
Max. Processing Length:	2000mm	2500mm
Max. Processing Thickness:	60mm
Max. Processing Width:	1300mm	640mm
Weight:	1250kg	1700kg
Speed:	2840r/min
Rated Voltage:	380V
Max. Borehole Diameter:	35mm(single drill); 13mm(multi-spindle drill)
Max. Borehole Depth:	60mm
Assembly Aperture of Drill Joint:	10mm
Max. Processing Hole Distance:	2040*640mm	2500*640mm
Total Number of Rotating Shaft:	21*3=63

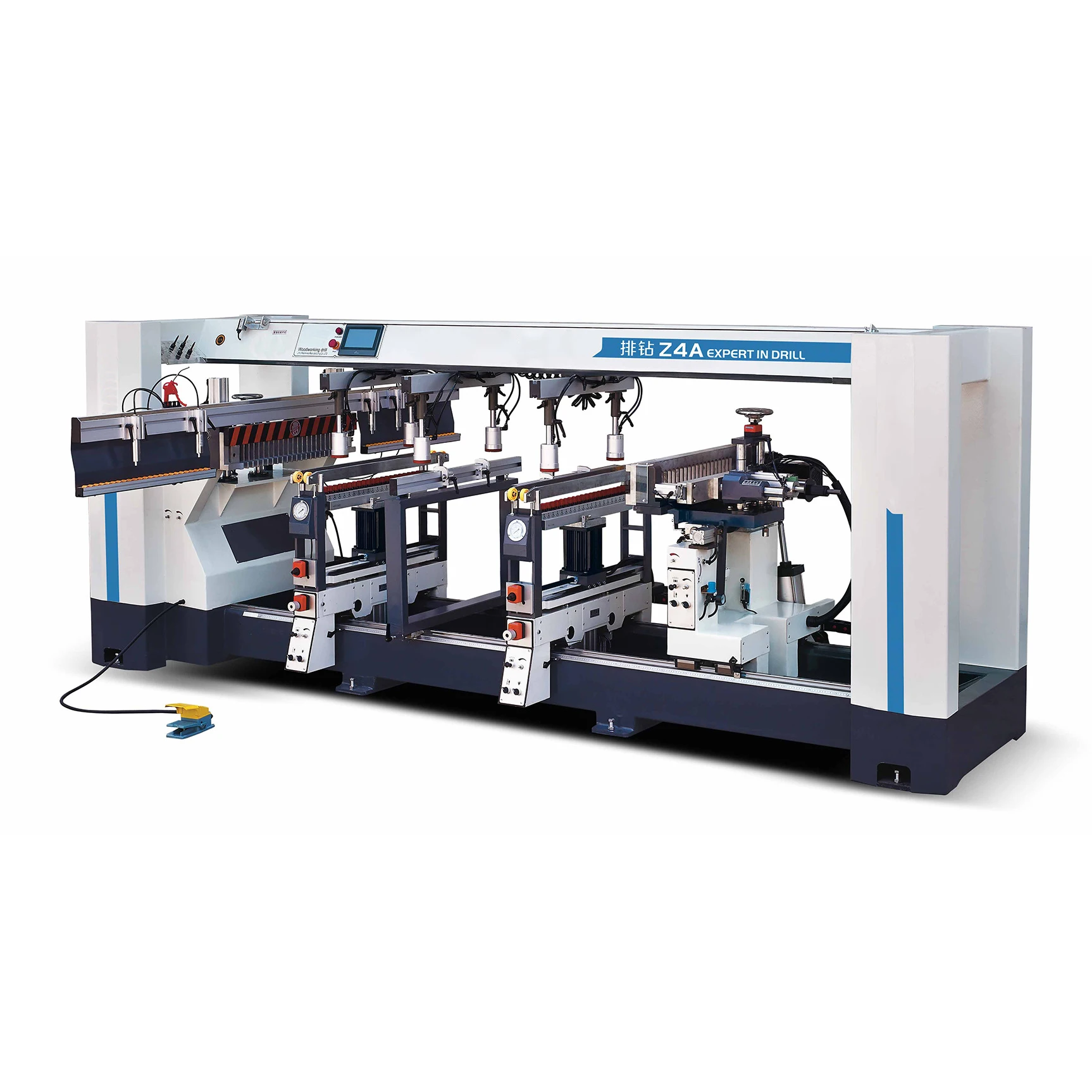

Name:	Woodworking Four-Head Drilling Machine
Model No.:	Z4A	Z4B
Motor Number:	1	2
Working Form:	Semi-automatic or Automatic
Rated Power:	6kW	9kW
Dimension:	395025001560mm
Max. Processing Length:	2700mm
Max. Processing Thickness:	60mm
Max. Processing Width:	640mm
Weight:	2000kg	2100kg
Speed:	2840r/min
Rated Voltage:	380V
Max. Borehole Diameter:	35mm(single drill); 13mm(multi-spindle drill)
Max. Borehole Depth:	60mm
Assembly Aperture of Drill Joint:	10mm
Max. Processing Hole Distance:	2700*640mm
Total Number of Rotating Shaft:	21*4=84	22*4=88

Name:	Six-Head Woodworking Drilling Machine
Model No.:	Z6A	Z6B
Motor Number:	1	2
Working Form:	Semi-automatic or Automatic
Rated Power:	9kW	15kW
Dimension:	435025001560mm
Max. Processing Length:	2600mm
Max. Processing Thickness:	60mm
Max. Processing Width:	640mm
Weight:	2800kg	3000kg
Speed:	2840r/min
Rated Voltage:	380V
Max. Borehole Diameter:	35mm
Max. Borehole Depth:	60mm
Assembly Aperture of Drill Joint:	10mm

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

We are an enterprise mainly engaged in the R&D, production and sales of woodworking equipment such as woodworking engraving machines, woodworking edge banding machines, and CNC drills.
The professional design scheme makes our products achieve a perfect combination of performance, precision and appearance. Over the years, we have accumulated a lot of valuable production experience, corrected some conventional defects of woodworking machinery, and overcome technical difficulties.
We can manufacture engraving machines, edge banding machines, and drills with different specifications to meet customers' needs.
