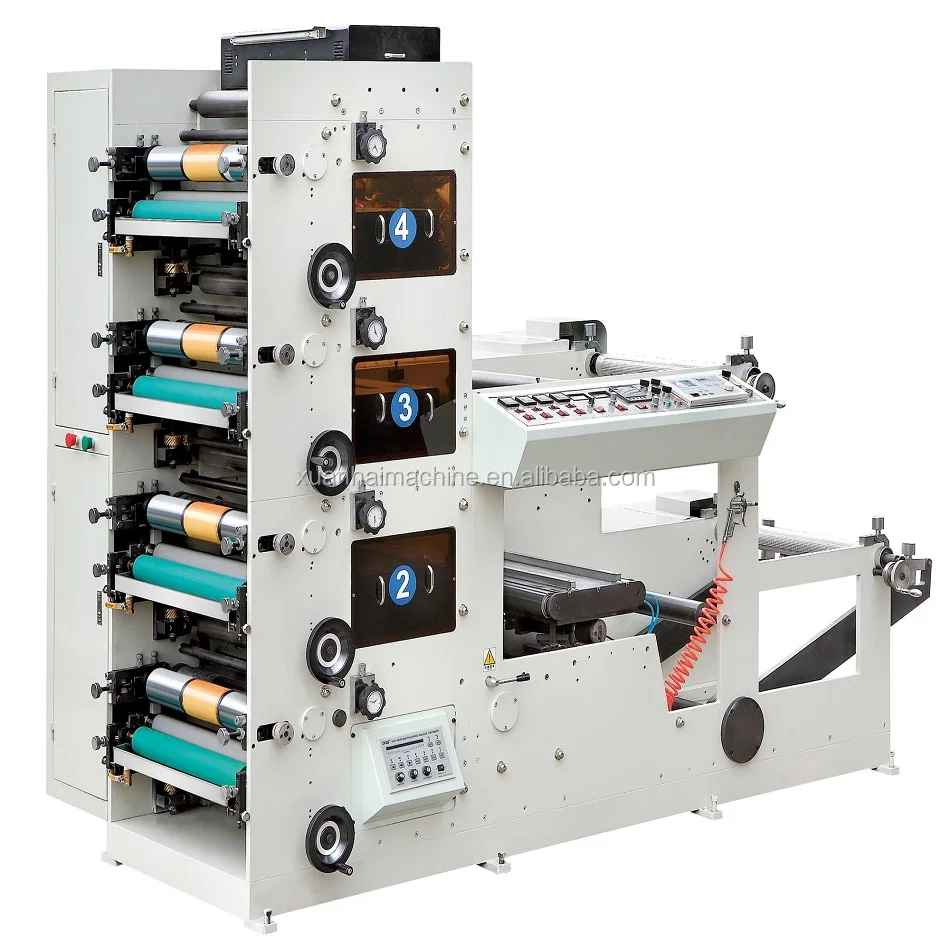

RY320 Self-adhesive Label Flexo Printing Die Cutting Slitting Rewinding Machine UV ink Printing Machine

Self-adhesive Label Flexo Printing Machine



Summaries：

1. The main motor adopts inverters.

2. Unwinder and rewinder are controlled by magnetic powder brake and clutch.

3. Unwinder system is controlled by auto-rectify sensor.

4. The machine adopts high quality ceramic anilox roller which is with long life and wear resisting and corrosion resistance.

5. The prining unit can register in 360 degrees.Each printing unit can independently gear and loosen,so other printing units can continue do printing.

6. The printing units are all equipped with a group of infrared dryers respectively .

7. Each IR dryer device of printing unit can interchange of UV dryer device.

8.The unwinder and rewinder all are with air shafts..

9. The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being dry and solid.

10. The roll feeding, printing, polising, auto infrared drying, lainating and rolling can be processed in one processing.

It is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal printing machine for the commercial bill to print high-Gradded free adhesive trademark.



Specification:



Model No.	RY-320	RY-450
Colors	4-6colors	4-6colors
Web maximum width	320mm	450mm
Max printing width	310mm	440mm
Printing length	175-320mm	175-320mm
Thickness of printing plate	1.7mm	1.7mm
Double faced adhesive tape	0.38mm	0.38mm
Max printing speed	10-60m/ min	10-60m/ min
Unwinder diameter	600mm	600mm
Rewinder diameter	550mm	550mm
Machine weight	2000kg	2300kg
Machine dimension	3000x1500x3000mm	3000x1700x3000mm
