Индукционный сварочный аппарат высокочастотный индукционный нагревательный

1. Equipment technical parameters

Input voltage: single phase 220V, 50or 60hz

Oscillating power: 15KVA

Oscillation frequency: 30-80KHZ

Cooling water requirement: 0.2MPA, 5L/min

Duty rate: 80%

Equipment volume (CM): Host: 46*20*44 18KG

2. Main applications and features:

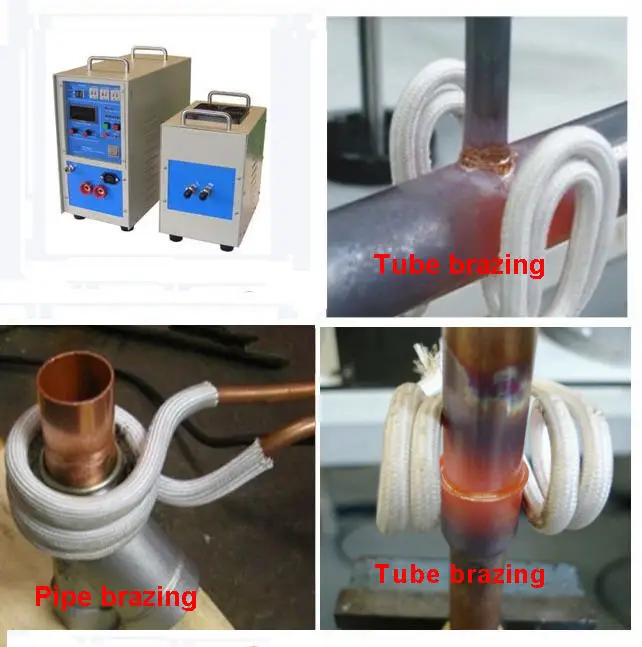

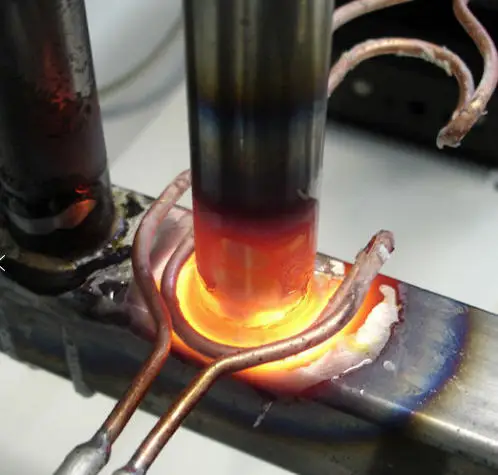

1) Brazing of tools, turning tools, milling cutters, etc.
2) Brazing of  diamond tools, diamond circular saw blades, thin-walled drill bits, etc.

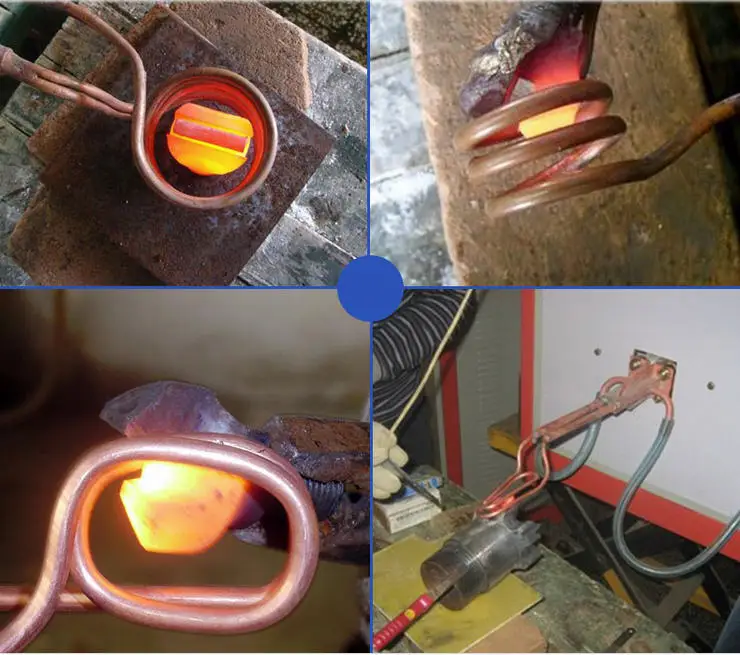

3) Heat treatment of small parts: annealing, quenching, tempering, preheating, hot fitting, etc.
4) Precious metals A small amount of smelting such as gold, silver, copper, etc.
5) 1KG small amount of stainless steel material smelting;

3, equipment installation requirements:
  1) input power line: 6mmm2 soft copper wire, 4mm2 soft copper wire;
  2) cooling water requirements: clean water, no impurities, not easy to lead to pipe blockage or structure, inlet water temperature 25-36 ° C ';
  3) Cooling water source: tap water, simple pump water tank circulating water, using our company's special chiller (see website chiller series for details).


4, performance and characteristics:

  Using imported Fuji power components and high-quality components to ensure high-quality equipment quality

  Small body weight, high efficiency and energy saving

  Overcurrent, overvoltage, under water, overheat protection circuit

  Exquisite design, 304 stainless steel screws, 304 stainless steel handlebars, no paint stripping, stripping phenomenon, preferred exporter

 Split type equipment: main unit, transformer consists of two parts, the intermediate connecting cable is 2 to 6 meters long; flexible movement can be realized without reducing the power loss of the equipment, especially suitable for automatic production lines or dirty environments;
