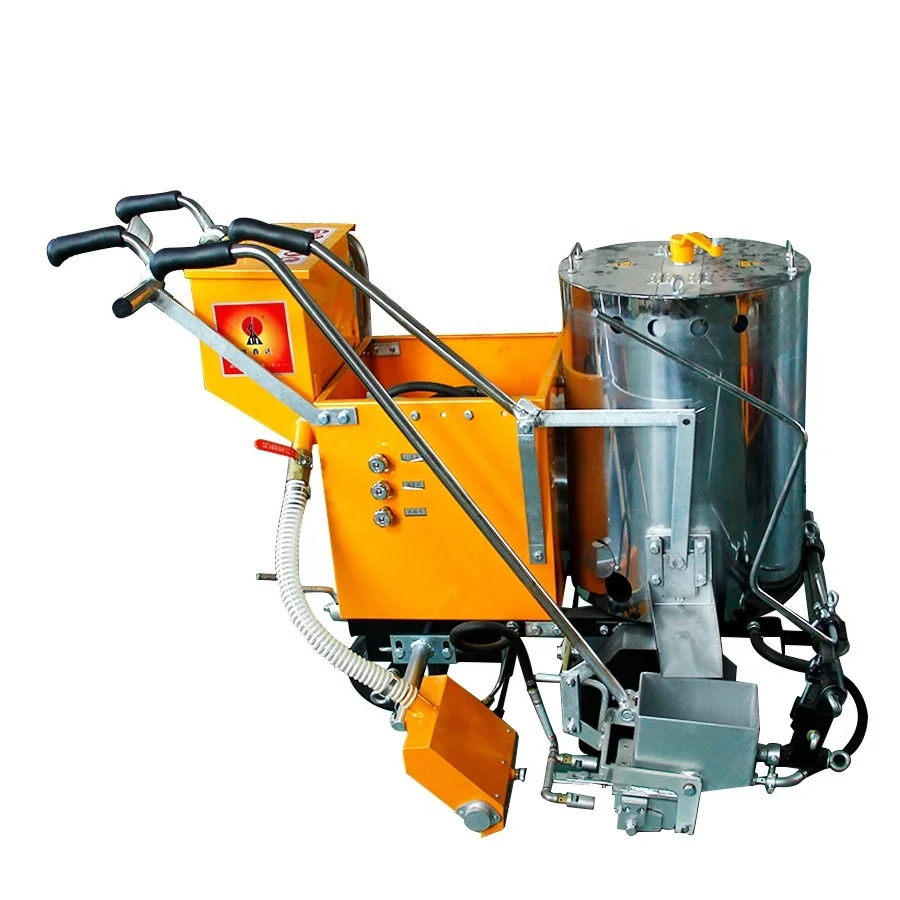

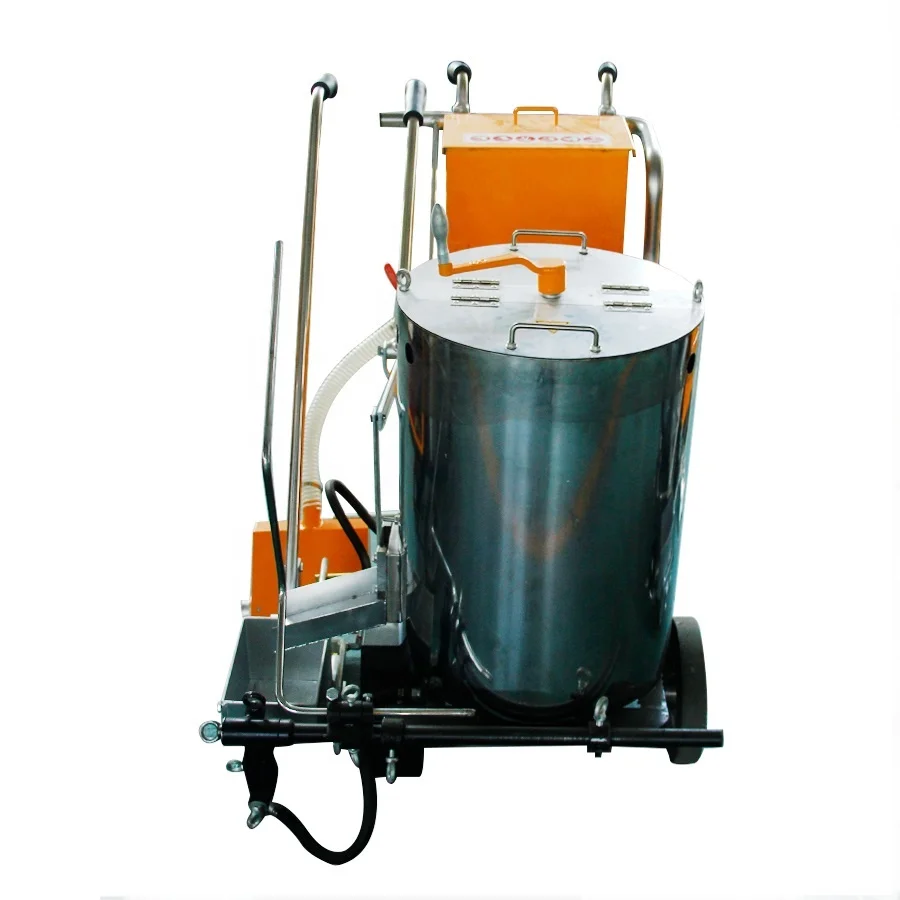

2021WDL860 Hand push style zebra stripes pavement road thermoplastic lines marking

Thermoplastic road marking machine is the key equipment used in thermoplastic road marking construction,it need to work together with thermoplastic preheater.

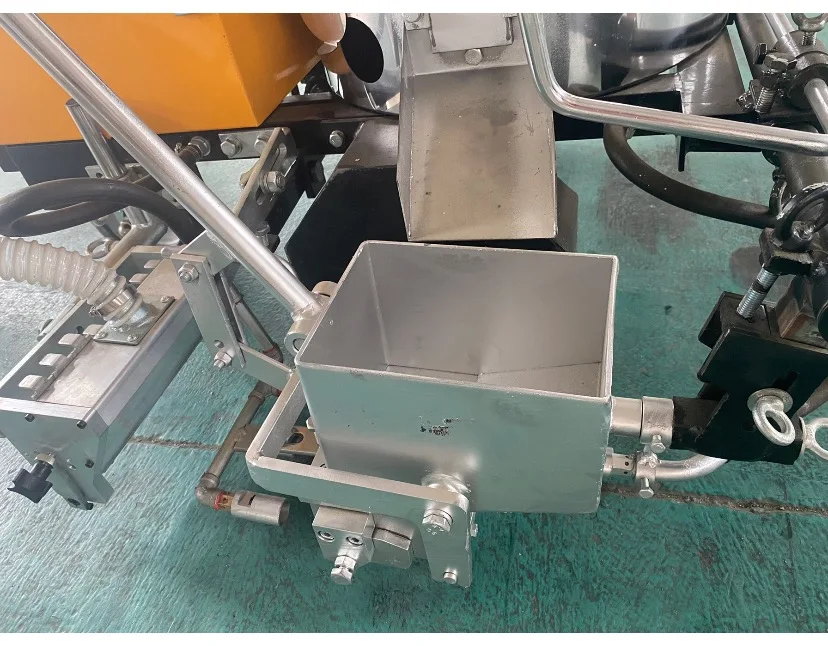

The marking shoe is made of high-precision cast iron,which can make the road line orderliness,uniform thickness and more beautiful.
The grounded knife of marking shoe can adapt to different kinds of road.
The glass beads dispenser can dispense glass beads automatically.
The paint tank has double layer of stainless steel,which can keep warm and insulate against heat,it can help save energy and avoid form scalding.
The machine has advantage of high efficiency,high quality,easy to operate and convenient for maintenance.
If you have a lot of work,you can connect it with our boost vehicle,which can help you save workforce and improve efficiency.

Marking equipment

high-precision integrated marking shoe,screeding type,standard configuration: 150mm

Grounded blade

Inlaid hard alloy,and also have pure alloyed grounded blade for your choice

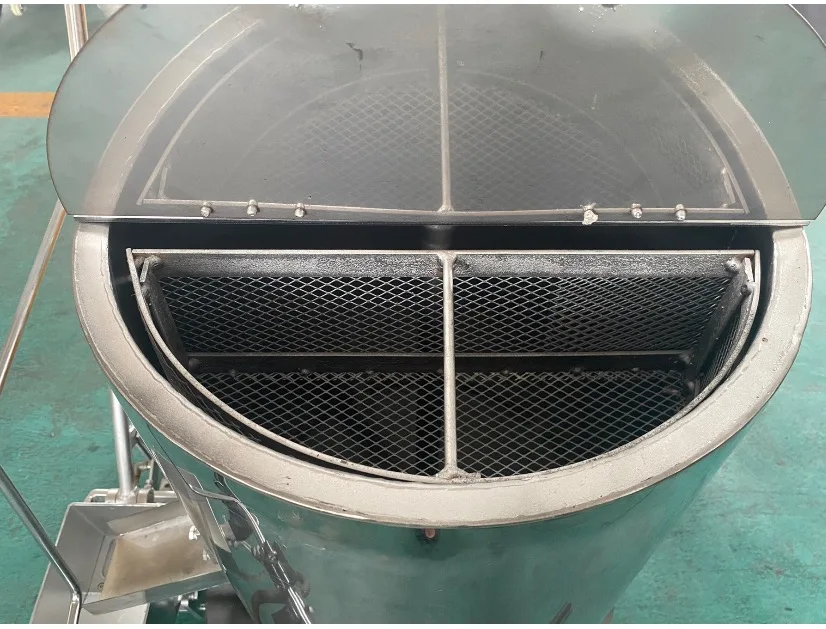

Paint container

Double layer stainless steel,equipped with inserted dismountable manumotive stirring device,the container is removable &
interchangeable for quick color changes

Glass beads container capacity

10kg

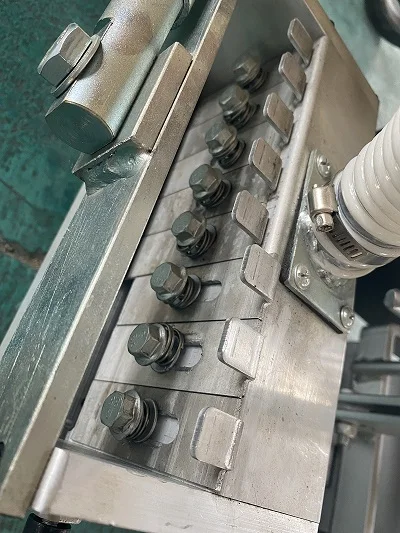

Glass beads container

Automatic spreader

Glass beads dispenser

100/150/200/250/300/400/450mm(optional)

Line thickness

1.0-3.0mm(adjustable)

Line marking width

50/100/150/200/250/300/400/450mm(optional)

Heating temperature

180~210℃

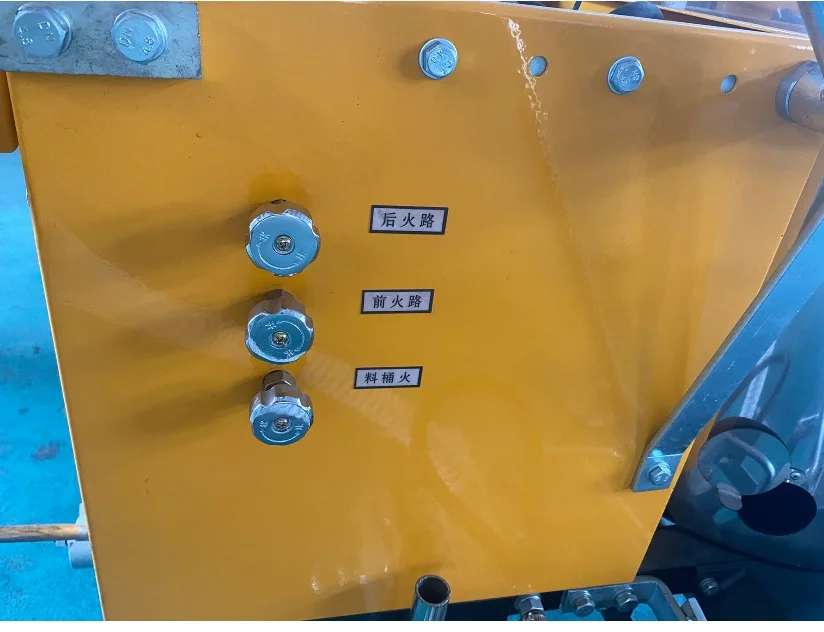

Heating Mode

Liquefied petroleum gas heating

Gas tank

15kg

Wheel

High temperature resistance soft rubber,rear wheel equipped with localiser to make the machine walk along the straight line

Speed

1.5km/h

Driving method

Hand-push

Machine Weight

126kg

Dimension

1150×850×950mm
