Kaishan KW180 глубина 300 м буровая установка для водяных скважин на
- Категория: Mine Drilling Rig >>>
- Поставщик: Quzhou,Jugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 20825.17 $* | 21866.68 $* |
| Aug-19-2025 | 20650.71 $* | 21683.27 $* |
| Jul-19-2025 | 17325.93 $* | 18191.37 $* |
| Jun-19-2025 | 20300.15 $* | 21315.51 $* |
| May-19-2025 | 17675.8 $* | 18559.20 $* |
| Apr-19-2025 | 19950.59 $* | 20948.10 $* |
| Mar-19-2025 | 19775.47 $* | 20764.70 $* |
| Feb-19-2025 | 19600.21 $* | 20580.38 $* |
| Jan-19-2025 | 19425.16 $* | 20396.63 $* |
Характеристики
Products Description

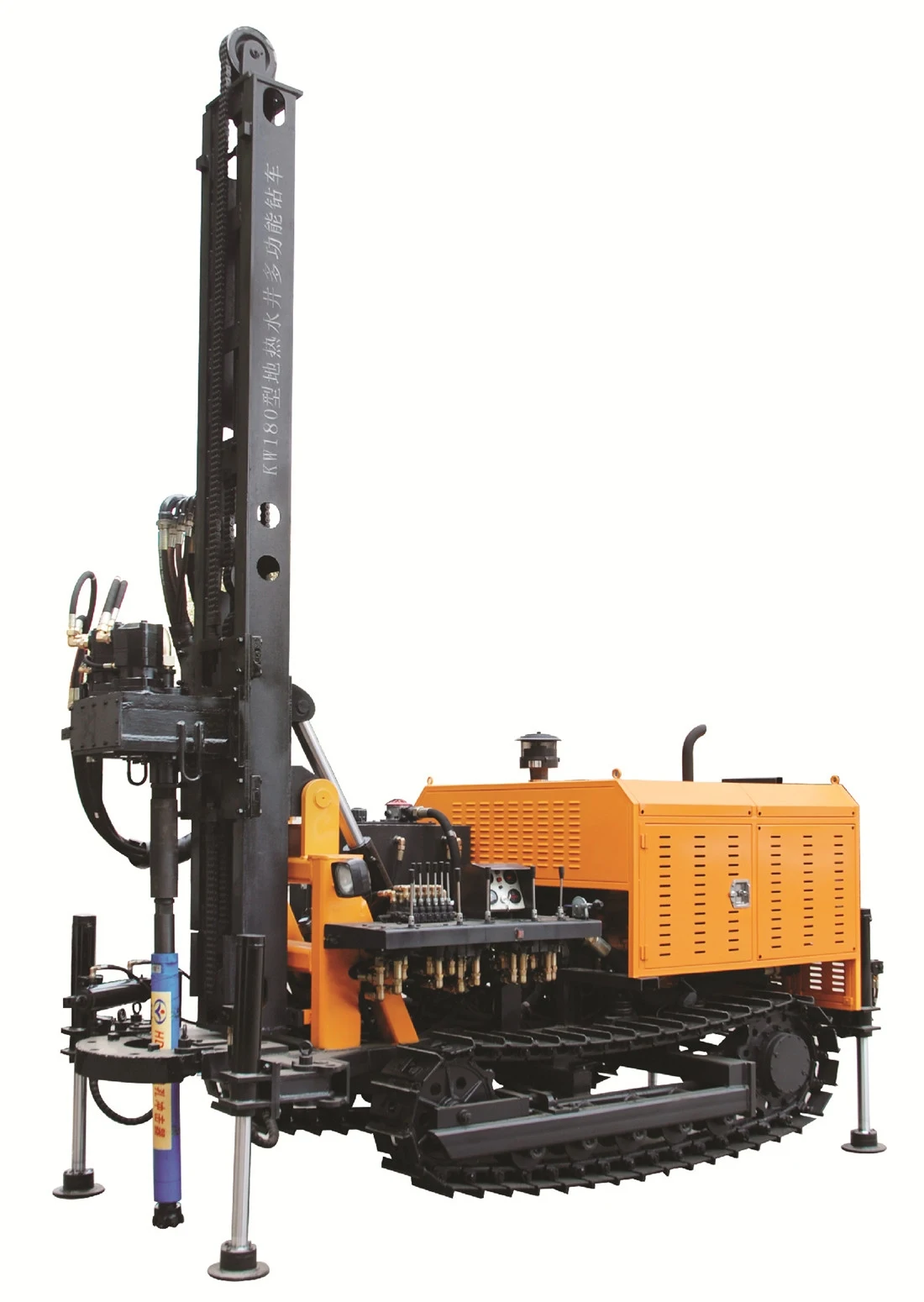

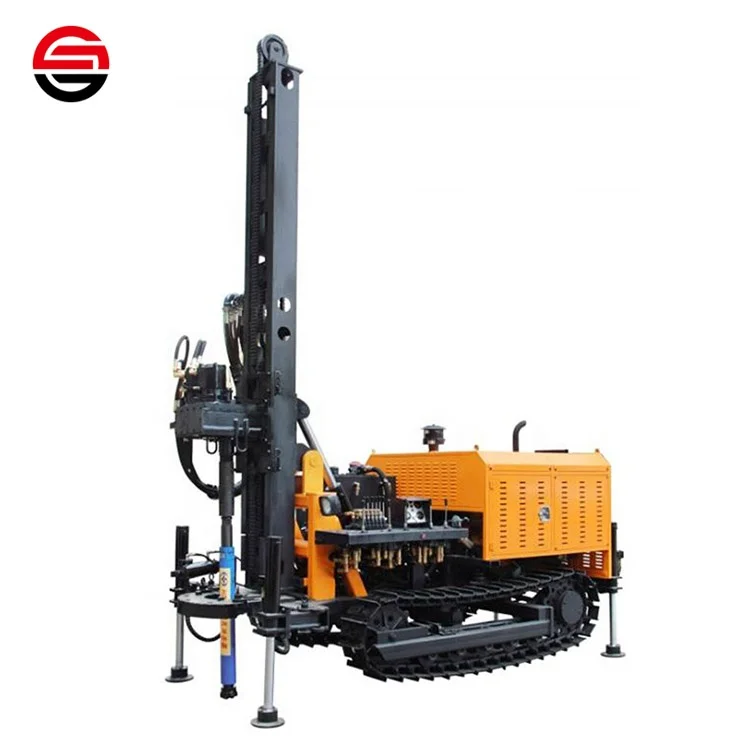

KW180 Water well drilling machine is a lightweight, efficient, multi-function device of surface drill rig.
The rig could drill in the different stratum, drilling up to 200mm in diameter.
Independent module design, allows drilling rig could be loaded on a truck to increase its mobility.
The two steps of rotating and pushing speed to meet the soil and rock different, combination need.
The rig could drill in the different stratum, drilling up to 200mm in diameter.
Independent module design, allows drilling rig could be loaded on a truck to increase its mobility.
The two steps of rotating and pushing speed to meet the soil and rock different, combination need.
Model | KW180 |
Feed stroke | 2m |
Supporting drilling rod | Φ76*2m or Φ89*2m/Φ76*2m or Φ89*2m |
Outer dimensions | 4600*1550*2350mm |
Drilling hardness | f=6-20 |
Drilling diameter | Φ115-202mm |
Maximum depth of drilling | 180m |
Weight of complete vehicle | 4500kg |
Ground clearance | 280mm |
Climbing capacity | 15° |
DTH hammer | K4/K5/K6 |
Air consumption | 19-30m³/min |
Supporting power | YCD4R23T8-80(59KW/2400r/min)/ Yuchai YCD4R23T8-80(59KW/2400r/min) |
Power parameters | 58KW/2200r/min |
Travelling speed | 0-2km/h |
Rotary torque | 4200Nm |
Rotary speed | 0-100rpm |
Lifting method | Oil cylinder+leaf chain |
Rated lifting force | 50KN |
Adcancing spped of sliding plate | 15-51m/s |
Lifting speed of sliding plate | 8-26m/s |
Volume of hydraulic oil tank | 200L |
Volume of diesel oil tank | 60L |
Drilling method | Down the hole hammer or mud, etc. |
Company Profile
Quzhou Jugong Machinery Co.,Ltd.specialized in machine R&D and manufacturing for 10 years. Our product cpvers air compressors,jack hammer,drill rig,drill rig,parts,booster,tunnel shotcreting machine and other machinery hardware product etc.
Our products are popular in more than 50 areas, such as Europe , South America, Southeast Asia, the middle East and etc.
We have advanced new design every year. We are always ready to provide quality products and good after-sales service for every customer. As Chinese professional machinery manufacturer and exporter, we sincerely hope to eastablish business relations with your esteemed corporations.
We have advanced new design every year. We are always ready to provide quality products and good after-sales service for every customer. As Chinese professional machinery manufacturer and exporter, we sincerely hope to eastablish business relations with your esteemed corporations.
Certifications
Our Service
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
