Product Description
Machine description:

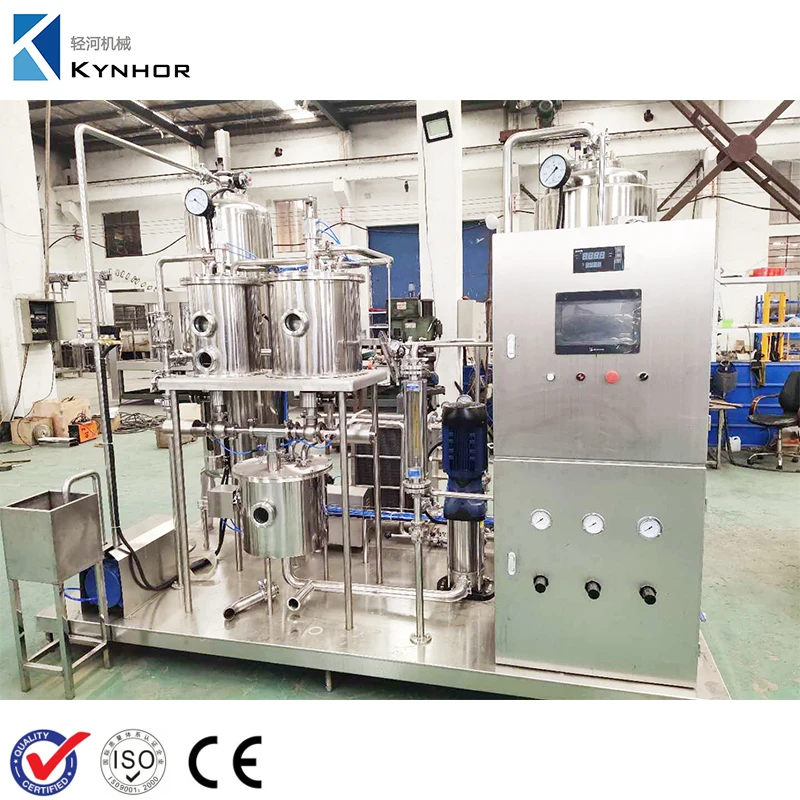

KYNHOR MACHINE Carbonation mixer mixing machine is designed and made for improving the proportion of water, syrup and carbonated dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency. Adopt carbon dioxide back flow deoxygenation, which can save carbon dioxide and deoxidize. High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of bottle, such as soda water, fruit juice, cola and other soft and hard drinks.
Products Structure and Working Procedure
(1). CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling system, air providing tank, and
necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure)
(2). Main working Procedure
a. Cooling water→multi-grade pump→oxygenating CO2→volume control
b. Cooling syrup→multi-grade pump→syrup tank→volume control
(a and b → multi-grade pump→static mixing device→
c. CO2 air resource→filter and pressure reducing→ tank→filling machine
necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure)
(2). Main working Procedure
a. Cooling water→multi-grade pump→oxygenating CO2→volume control
b. Cooling syrup→multi-grade pump→syrup tank→volume control
(a and b → multi-grade pump→static mixing device→
c. CO2 air resource→filter and pressure reducing→ tank→filling machine
Model | QHS-1500 | QHS-3000 | QHS-4000 | QHS-5000 | QHS-6000 | ||||
Capacity | 1000-2000 | 2500-3000 | 3500-4000 | 4500-5000 | 5500-6000 | ||||
Sugar water ratio | 1:3-1:6 | ||||||||
CO2 content | 1.5-2.5 | >2.5 | >3 | >3.5 | >3.5 | ||||
Cooling water entry temperature(℃) | 0-5 | ||||||||
Working pressure of carbonized and syrup tank(Mpa) | 0.05-0.15 | ||||||||
Working pressure of storage tank(Mpa) | 0.2-0.5 | ||||||||
Power(KW) | 1.5 | 3.7 | 4.5 | 5.6 | 6.2 | ||||
Dimension(mm) | 900x700x2000 | 1720x1140x2100 | 1860x1300x2100 | 2020x1500x2200 | 2020x1500x2200 | ||||
Weight(KG) | 500 | 1100 | 1300 | 1600 | 1800 | ||||
Would like to know more details , feel free to send us inquiry !
Auxiliary equipment
Pre-process system.
1. High-shear emulsifying tank + Plate heat exchanger
2. Mixing tank
3. UHT sterilizer + homogenizer machine + Buffer tank
4. Hot water system + Hot water tank
5. CIP cleaning system
Water treatment system.
1. Raw water tank + Raw water pump
2. Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3. Reverse Osmosis (one level)
4. UV sterilizer
5. Finished water tank + Pure water pump
Spray sterilization.
1. Mainly for bottle warming and sterilization
2. The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
3. Nozzles are manufactured using U.S. technology and spray water evenly
4. Conveyor belt adopts Rexnor technology, flat surface with small wear
5. Smooth and reliable operation with low energy consumption
Labeling Machine.
1/Sleeve Shrink Labeling Machine
2/Hot Melt BOPP Labeling Machine
3/Adhesive Labeling Machine
2/Hot Melt BOPP Labeling Machine
3/Adhesive Labeling Machine
This machine adopts international advance technology; Stick the label on the Glass or PET bottle,And then fix on the position which bottle body designated.It is controlled by mirco-computer;automatic detection and position.
This machine's structure is compact,and suitanble for the production line of different direction and different height.
Bottle Packaging Machine.
1/PE Film Packaging Machine
2/Carton Box Packaging Machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
CIP Washing System
The KYNHOR MACHINE CIP cleaning device is widely applicable to food industry,especially applicable to dairy, fruit juice and beverage etc. industries. During the food processing, cleaning and sanitation are of great importance, and measures shall be taken to prevent any pollution to food.
Would like to know more details , feel free to send us inquiry !
About Kynhor
Shanghai Kynhor Machinery Co., Ltd.
1. Standardized workshop of total 8,000 square meters.
2. The equipment will be tested and run for more than 12 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
3. 1 Year Warranty and 2 Years Spare parts for free .
4. Go through Alibaba.com to ensure the timely delivery and the safety of your funds .
Kynhor Service
Bottle Design Drawing
Whole Production Line Layout Design Drawing
Turn Key Project
7*24 Hours Service
Would like to know more details , feel free to send us inquiry !
Packing & Delivery
FAQ
Q.1.ARE YOU A MANUFACTURER OR TRADING COMPANY?
● Kynhor is a manufacturer with trading company who is registered in the Chinese Business Administration and has the right to operate and sell it legally.
● Kynhor cooperates with Alibaba who will supply you a lot of service to protect you .
● Kynhor has a professional engineer team who all have more than 25 years experience in beverage filling machine manufacturing .
Q.2.HOW TO VISIT OUR FACTORY?
● If you are interested in our products, you may visit our factory at any time , we can pick you up from the station or the airport near our city .
● Seeing is believing , you can see our machine quality after your visit .
Q.3.HOW TO ENSURE THE MACHINE QUALITY?
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Before shipping, the whole machine will run more than 12 hours to ensure the stable running in your factory
Q.4.HOW TO GUARANTEE YOUR FUNDS?
● We go through Alibaba.com Guarantee Service, which can protect your funds to be safe.
● We will send you pictures of the machine every week to ensure the delivery.
Q.5.KYNHOR MACHINE AFTER-SALE SERVICE
● We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
● When you finish the preparation conditions,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
● We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
● We provide 1 year warranty with spare parts free and life-long technical support .
Kynhor-Help Each Customer Make Professional Decision !
Would like to know more details , feel free to send us inquiry !
