Характеристики
High Quality Filed Fence Machine with Competitive Price
Product Description
Machine advantage
1. Mesh winding roller is easy to install and uninstall.
2. Frequency -adjustable motor--speed-adjustable, no inertia force and save 30% power
3. Liner guiding line--High feeding speed;
4. Pneumatic device to turn weft wire--high speed and easy maintenance;
5. Counterto calculate weaving length automatically;
6. Machine stopping automatically when weft wire used up.
7. Brand Low-voltages electronics;
8. Metal screen for safety operation;
9. Different mesh size in longitude and weft for choice
Technical parameter
| Items | ZQ-1490 | ZQ-1652 | ZQ-1880 | ZQ-2000 |
| Height | 1490mm | 1652m | 1880mm | 2000mm |
| Power | 5.5kw | 7.5kw | 7.5kw | 7.5kw |
| Speed | ≤45knok/min | ≤45knok/min | ≤45knok/min | ≤45knok/min |
| Line size | Min.75mm or Min. 50mm if required | |||
| Weft size | 50-500mm(adjustable) | |||
| Twine wire diameter | 1.8mm-2.5mm ( 300-500N/mm²) | |||
| Line wire diameter | 1.8mm-3.0mm ( 300-1400N/mm²) | |||
| Side wire diameter | 2.0mm-3.5mm | |||
| Weight | 3500kg | 3800klg | 3800kg | 4000kg |
| Overall dimension | 2.8*3.2*2.4m | 3.3*3.2*2.4m | 3.3*3.2*2.4m | 3.7*3.2*2.4m |
Machine details

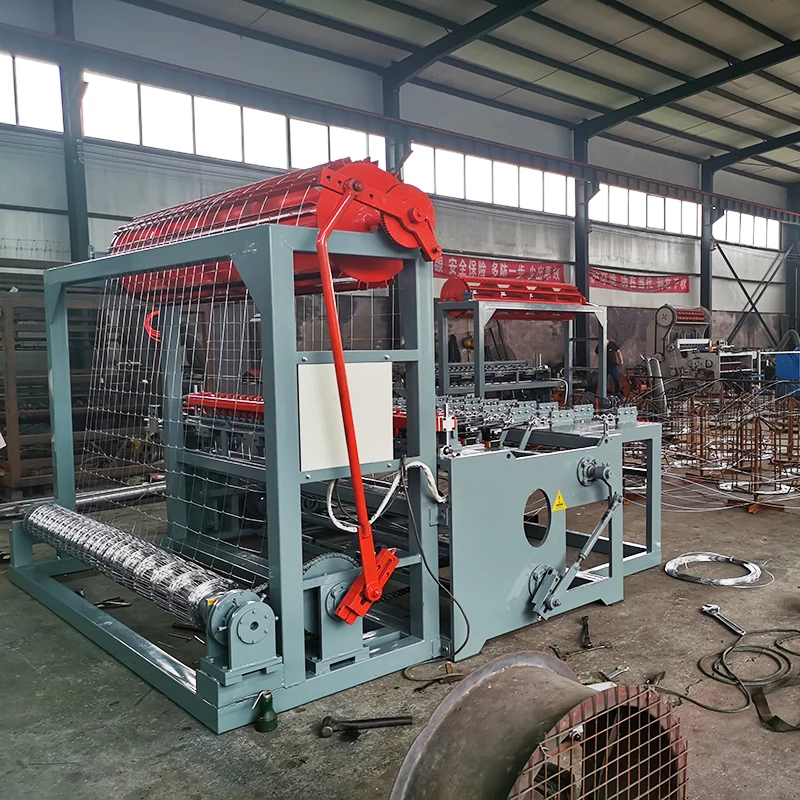

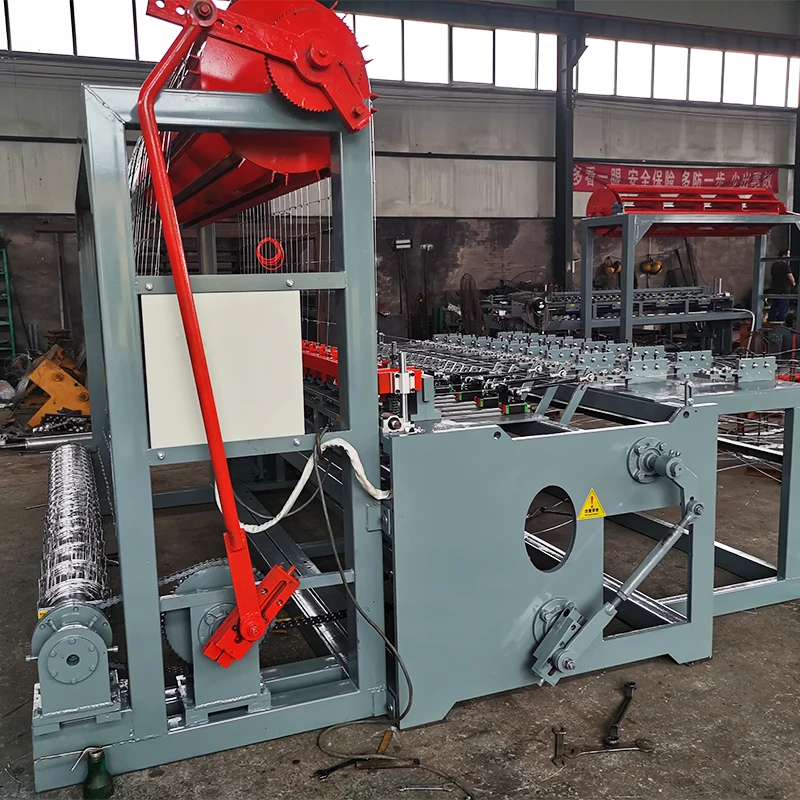

Hinge field fence machine, also named grassland fence machine; used to produce cattle fence, grassland fence.
Field fence machine adopts a frequency-adjustable-motor to drive the machine and uses a counter to calculate woven fence, easy operation.
| automatic wire feeding | straightening rolls for weft wire | linear rail feeding cross wire |
| pneumatic cutting and turning weft wire | automatic pulling mesh | automatically mesh rolled |
The Control System: The operation interface is simple and easy to understand. Equipped with Delta inverter and Schneider electronic components, adjustable working speed, saving 30% energy. Adopt Guomao reducer-China top brand |
Machine display
Packaging & Shipping
Related product
The machine can be customized as client's request
Company Information
Anping zhongqian wire mesh making machine Co.Ltd
Our client
Our machine is popular in India, United state,Pakistan,Kenya,Egypt,Russia,Uzbekistan,Mexico, Brazil, Australia, Thailand, Korea, Saudi Arabia, Morocco, Algeria,etc.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. We are warmly welcome clients from worldwide to visit our factory and cooperate with us
Q: Do you do OEM?
A:Yes
Q: I know nothing about the import, can you help me?
A: This will not be a problem. If you do not know how to import, our cooperated freight forwarder will help you to import. You only have to pay a small money to them and they will take careof everything. It is very easy and simple.
Q: What should i do if we feel hard to use the machine?
A: If you need ,at any time, we can send our engineers to your factory for training, debugging machine and maintenance.
Operating Instruction&Maintenance Manual attached with the machine.we will send you the solution by email or phone within 24 hours,When we receive your service repuest.
We can send you video for learning
Q:If the parts was broken, how about the solution?
A: 1)Non-artificial damage parts, within warranty period, can be provided free of charge
2)Custom-made parts with detailed drawing can be provided
