Плоская мембрана MBR для очистки

Описание и отзывы

Трекер стоимости

Характеристики

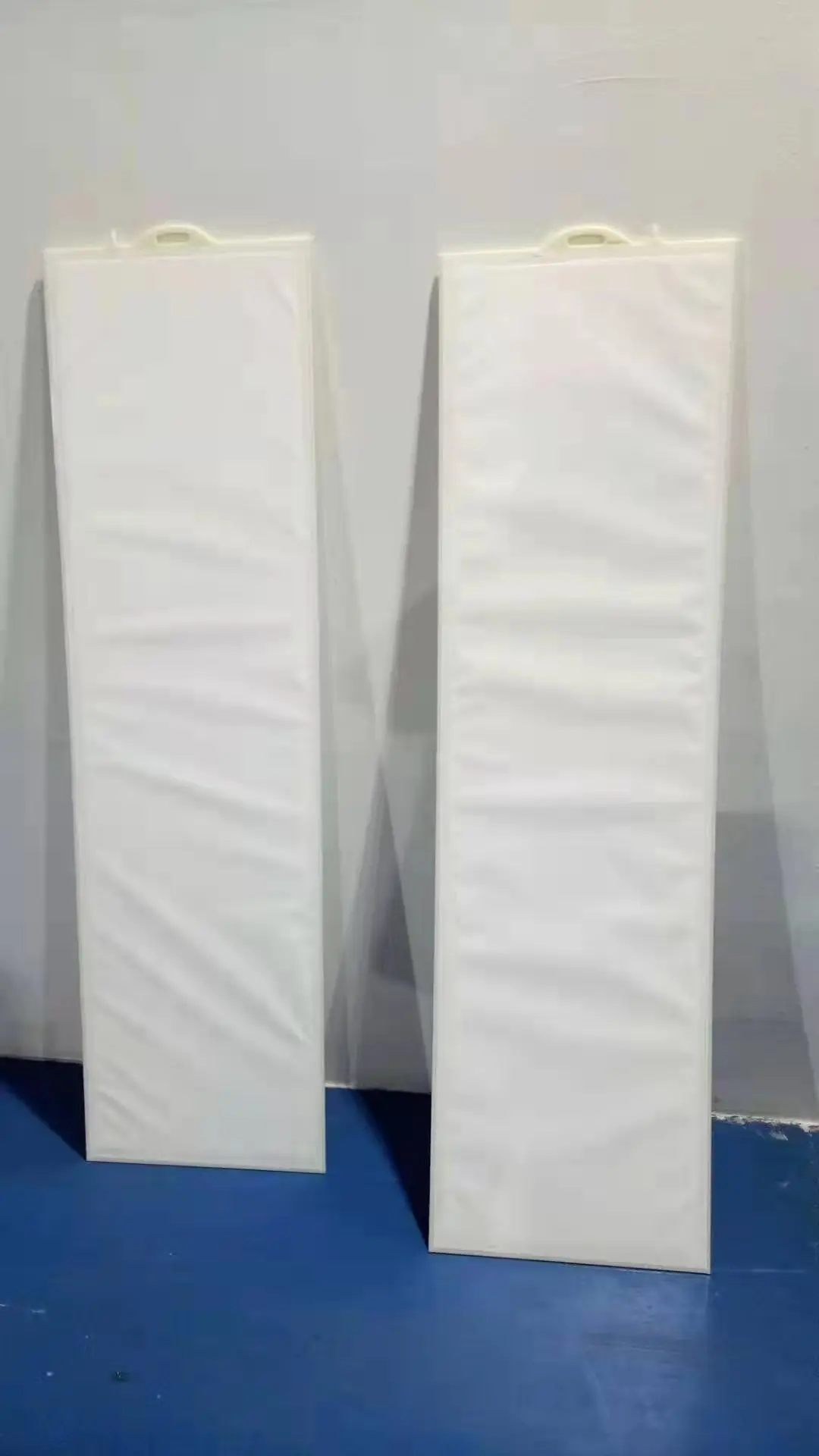

CNKHONG Flat Sheet MBR Element

   Relying on our years of experience in this field, we are renowned as the foremost manufacturer and supplier of CNKHONG Flat Sheet MBR Element. Our highly experienced team uses best quality PVDF for manufacturing this flat sheet. Integrated with advanced membrane fabrication technology, these membranes are designed with optimum pore sizes to get higher water flux. This CNKHONG Flat Sheet MBR Element is widely used in wastewater treatment plants. The water produced through this MBR is much higher and gets not affected by the fluctuation of feed water.

Features:

· Excellent chemical stability

· High mechanical strength

· Fouling resistance







 Membrane Bioreactor MBR sheet (pcs.)



Items	Standard type	Long type
Model	KH-MBRP-80-PVDF	KH-MBRP-150-PVDF
Size (LxWxT)	1000×490×7	1630×510×7
Membrane effective area (m²)	0.8	1.5
Weight (kg)	3	4.5
Permeate flux [L/ (pc.d)]	320-480	600-900
Membrane material	PVDF	PVDF
Membrane pore size (μm)	0.1	0.1
Plate material	ABS	ABS
Air flow rate [L/(min.pc)]	≥ 10	≥ 12
pH	2 ~ 13	2 ~ 13
Output turbidity (NTU)	< 1.0	< 1.0
Output SS (mg/1)	≤ 1.0	≤ 1.0
Chemical cleaning	~ 5,000mg/1 NaCIO	~ 5,000mg/1 NaCIO







Module*(All customized models are available by online inquiry)

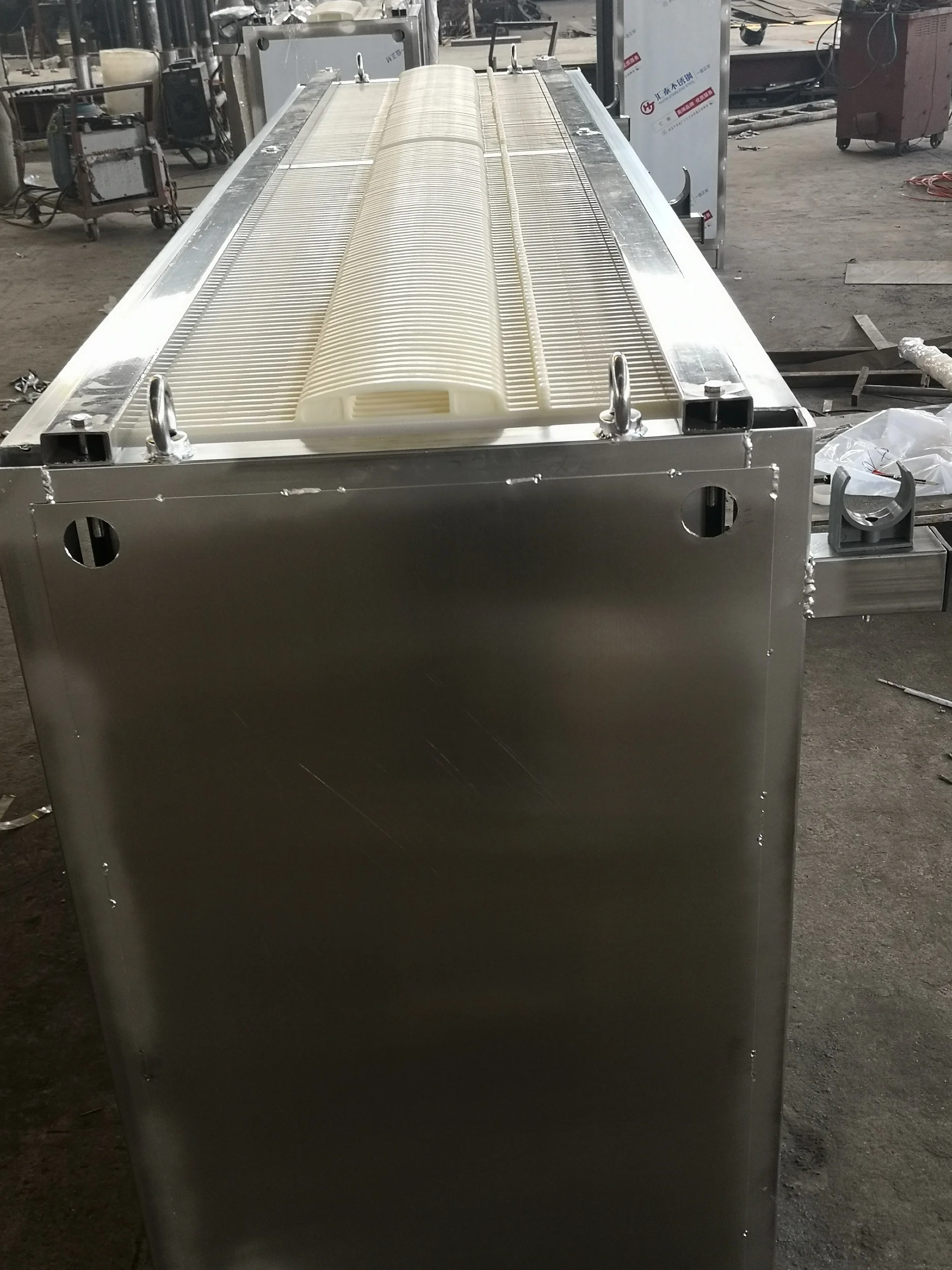

Membrane module	KH-MBRP80-120	KH-MBRP80-100	KH-MBRP150-120	KH-MBRP150-150
Flux(m3/d)	30-50	25-40	60-90	75-110
Number of membrane elements (pcs.)	120	100	120	150
Membrane effective area (m²)	96	80	180	225
Size (LxWxT)(mm)	1900×600×1700	1600×600×1700	1900×630×2500	2350×630×2500
Frame material	SUS304
Plate material	ABS
