Портативная Геологическая установка для бурения скважин с бензиновым
- Категория: Mine Drilling Rig >>>
- Поставщик: Jining,Luheng,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 13685.6 $* | 14369.45 $* |
| Aug-19-2025 | 13570.48 $* | 14249.78 $* |
| Jul-19-2025 | 11385.81 $* | 11954.49 $* |
| Jun-19-2025 | 13340.40 $* | 14007.2 $* |
| May-19-2025 | 11615.8 $* | 12196.65 $* |
| Apr-19-2025 | 13110.71 $* | 13766.3 $* |
| Mar-19-2025 | 12995.15 $* | 13645.87 $* |
| Feb-19-2025 | 12880.39 $* | 13524.69 $* |
| Jan-19-2025 | 12765.42 $* | 13403.42 $* |
Характеристики
Product Description
Portable gasoline petrol engine geological water well drilling rig
HWL30Z crawler DTH drilling rig with compact size light weight mateiral is suitable for drilling borehole on narrow space , portable for mountain drilling, the rotatry rig optimizes the design concept with “high speed, efficiency and low maintainace cost” as the starting point, effectively guarantees drilling hole efficiency, solves the difficulty of relocation in mountain construction, and reduces field labor intensity and construction risk.
Product Paramenters
Portable gasoline petrol engine geological water well drilling rig
Model | HWL30Z |
Drilling depth | 30 m |
Drilling diameter | 75-90 mm |
Torque | 800-900 n.m |
Drill speed | 0-135 r/min |
Feeding force | 5500-6000 N |
Drilling machine engine power | 26Kw |
Air consumption | 3.5m3/min |
Air compressor working pressure | 8bar |
Detailed Images
The rock drilling rig has the following features:
* all-terrain crawler tracking, with large driving force and high reliability;
* The DTH drilling rig adopts a combination of frames for quick assembly and disassembly and manual relocation;
* The crawler drilling machine is fully hydraulically driven to accommodate a variety of terrains, drilling operations in all weather conditions;
* Hydraulic quick drill rod design eliminates the need for rigs, winches and gearboxes for easier operation and better safety;
* The drilling rig adopts gear pump, load-sensitive multi-way valve and shaft distribution cycloid motor to form a hydraulic system, which has strong pollution resistance and reliable use;
* The derrick, base, engine frame, power head housing, etc. are made of high-quality materials to better meet the requirements for the light weighting of the rig during the disassembly;
* The engine is equipped with a heavy-duty air filter that adapts to various harsh environments in the field;
* It has the functions of saving energy, miniaturization and low cost ;
* The rig uses an oil cooler to cool the hydraulic fluid for use in areas with high ambient temperatures.
* all-terrain crawler tracking, with large driving force and high reliability;
* The DTH drilling rig adopts a combination of frames for quick assembly and disassembly and manual relocation;
* The crawler drilling machine is fully hydraulically driven to accommodate a variety of terrains, drilling operations in all weather conditions;
* Hydraulic quick drill rod design eliminates the need for rigs, winches and gearboxes for easier operation and better safety;
* The drilling rig adopts gear pump, load-sensitive multi-way valve and shaft distribution cycloid motor to form a hydraulic system, which has strong pollution resistance and reliable use;
* The derrick, base, engine frame, power head housing, etc. are made of high-quality materials to better meet the requirements for the light weighting of the rig during the disassembly;
* The engine is equipped with a heavy-duty air filter that adapts to various harsh environments in the field;
* It has the functions of saving energy, miniaturization and low cost ;
* The rig uses an oil cooler to cool the hydraulic fluid for use in areas with high ambient temperatures.

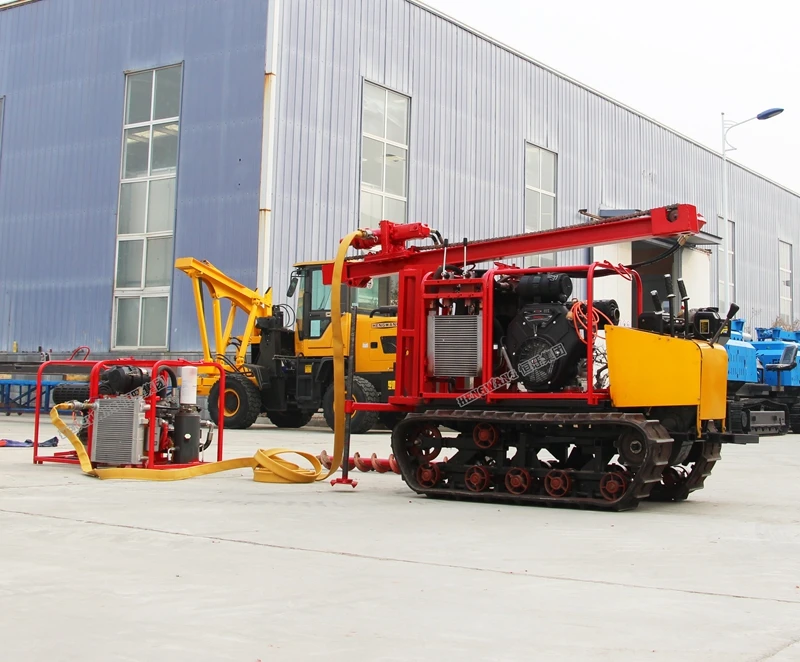

Drilling rig tracked chassis
Adopting all-terrain crawler walking, the DTH drilling rig is able to track on variety of terrain mountains with powerfull driving system.

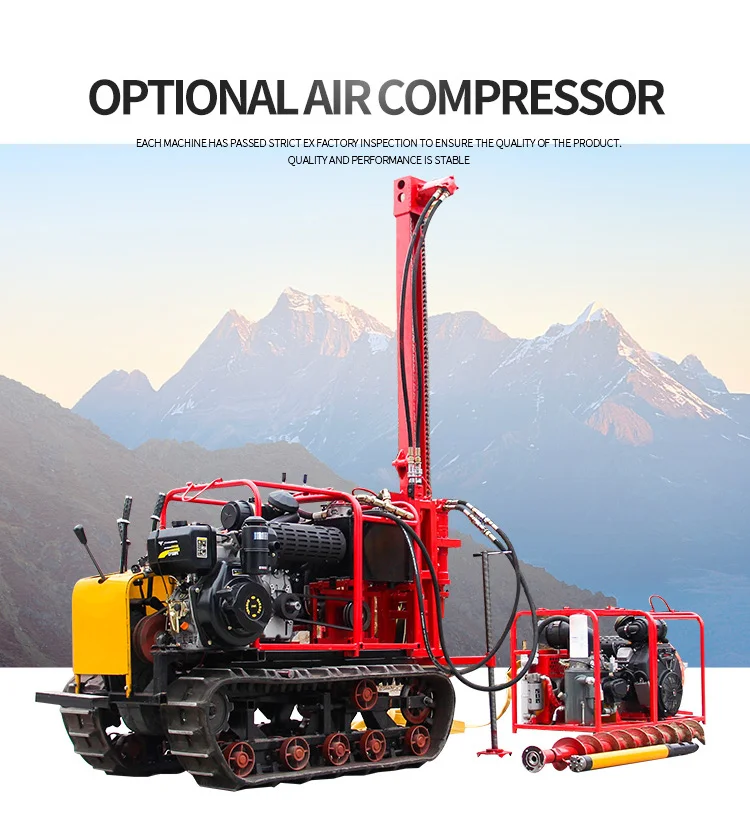

Powerful gasoline for mini drilling machine
The swivel drilling equipment equipped with gasoline engine.Easy movable save labor.

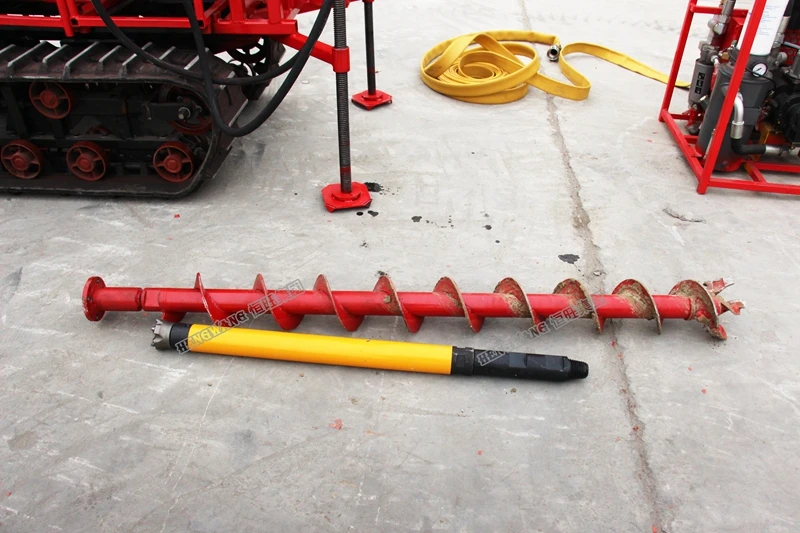

small size portable DTH drill rig power head
powerful drill hammer with torque 800-900N.m,rotary speed 0-135r/min

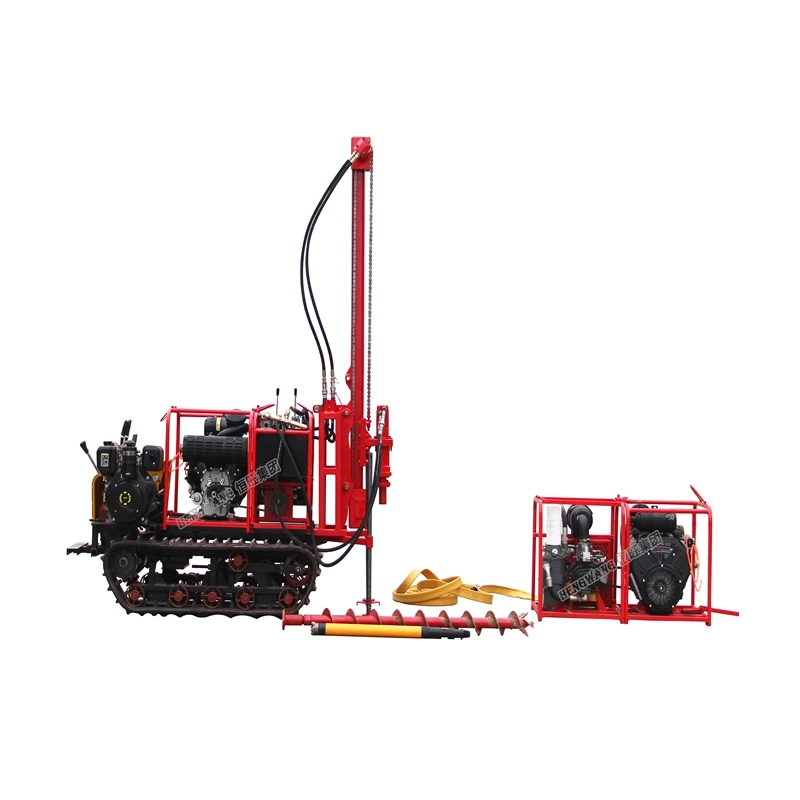

mountain track chassis drilling rig hydraulic system
hydraulic system consist of gear pump,multi-way valve and axial flow cycloid motor.
Other type of small size rotary drilling rig as follows
Related Products
Company Introduction
Jining Luheng Machinery Equipment Co.,Ltd. belongs to shandong hengwang group is located in Jining City, Shandong Province. We are specialized in manufacturing pile driver,drilling rig,construction machinery. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially in the Middle East, Africa and South America.
Portable gasoline petrol engine geological water well drilling rig
Portable gasoline petrol engine geological water well drilling rig
FAQ
Q1.What is the main function of our drilling rig?
Ans.:main function is water well drilling, blast hole drilling, micro-pile hole drilling.
Q2. What is your terms of payment for mini rotary drilling rig?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery for crawler DTH drilling machine rig?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our drilling machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have records for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: We keep good quality and competitive price to ensure our customers benefits;
Q10.Do you have any certificates for your mini rock drilling machine?
Ans.: All of our products coming with the certificates of CE, ISO9001.
