Стальная машина для полировки квадратных труб для алюминиевых труб
US $46000-$50000
0-30 м/с бак и Шлифовальная головка полировальная машина автоматическая нержавеющая
- Категория: Станок для полировки металла >>>
- Поставщик: Anhui,Advanced,Grinding,Tools,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 11900.82 $* | 12495.44 $* |
| Aug-20-2025 | 11800.38 $* | 12390.80 $* |
| Jul-20-2025 | 9900.73 $* | 10395.91 $* |
| Jun-20-2025 | 11600.13 $* | 12180.1 $* |
| May-20-2025 | 10100.94 $* | 10605.29 $* |
| Apr-20-2025 | 11400.9 $* | 11970.81 $* |
| Mar-20-2025 | 11300.41 $* | 11865.63 $* |
| Feb-20-2025 | 11200.83 $* | 11760.36 $* |
| Jan-20-2025 | 11100.35 $* | 11655.60 $* |
Характеристики

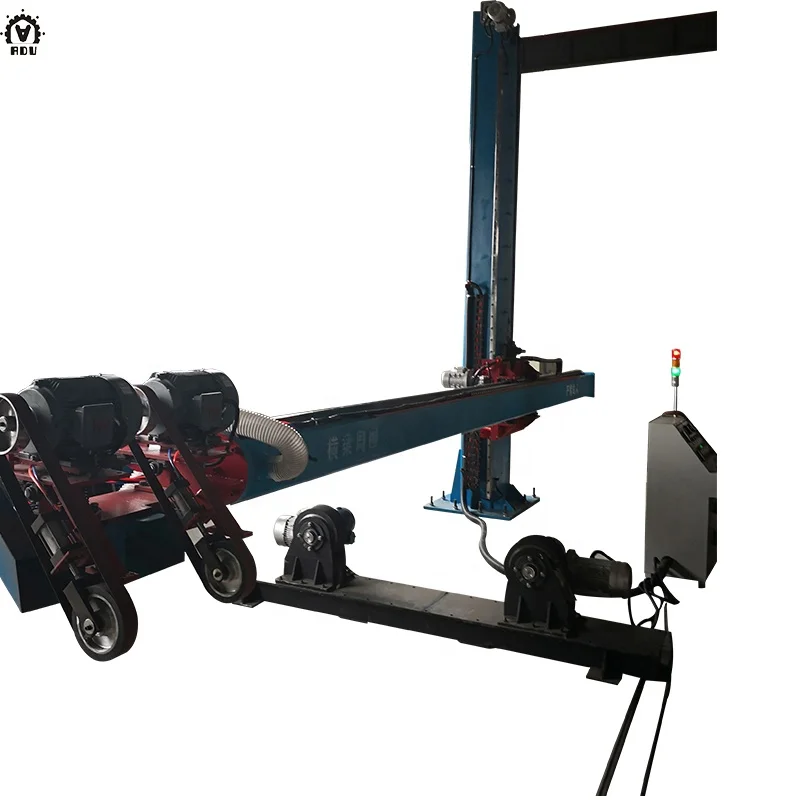

The automatic stainless steel tank and dished head polishing buffing machine

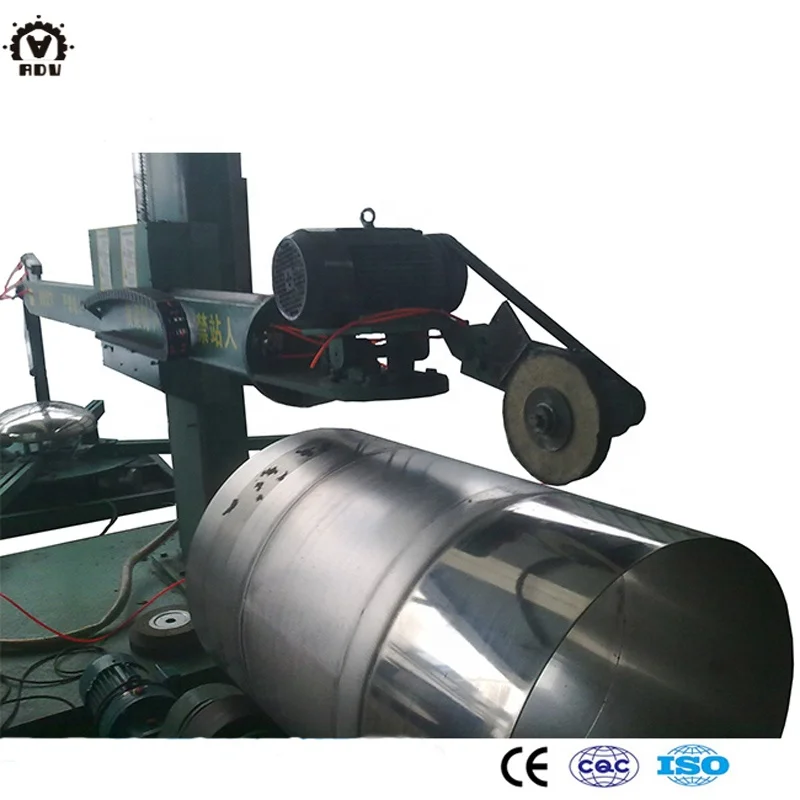

Dish head polishing head:
1. The dish head polishing head can polish and grind the inside and outside the tank.
2. According to the grinding and polishing requirements of the workpiece, the grinding head can be equipped with an abrasive belt or a buffing wheel.
3.Adaptive constant floating structure, can be adapted to the workpiece ovality ≤50mm.
There are two floating cylinders at the grinding head end (one polishing floating cylinders and other belt
tensioning cylinder)
Specifications
| Product name | The automatic stainless steel tank and dished head polishing buffing machine |
| Workpiece diameter range | 219mm-3000mm |
| Workpiece length range | <3000mm |
| Workpiece Max weight | <5T |
| Workpiece thickness range | 3-5mm |
| Buffing wheel motor power | 4-11kw(Speed controllable) |
| Abrasive belt size | 1880*50mm/2100*100mm |
| Abrasive belt line speed | 0-30m/s |
| Machine dimension(L*W*H) | 5500*1600*2900 mm |
| Machine weight | 3000kg |
| Polishing material | Abrasive belt, Flap wheel, hemp wheel, cloth wheel |
Product Description
The machine is designed for tank external and internal grinding and polishing. It has VFD control, PLC control, and CNC control according to your different requirements on productivities. The available standard diameter for the tank is 220-3200mm or customized.

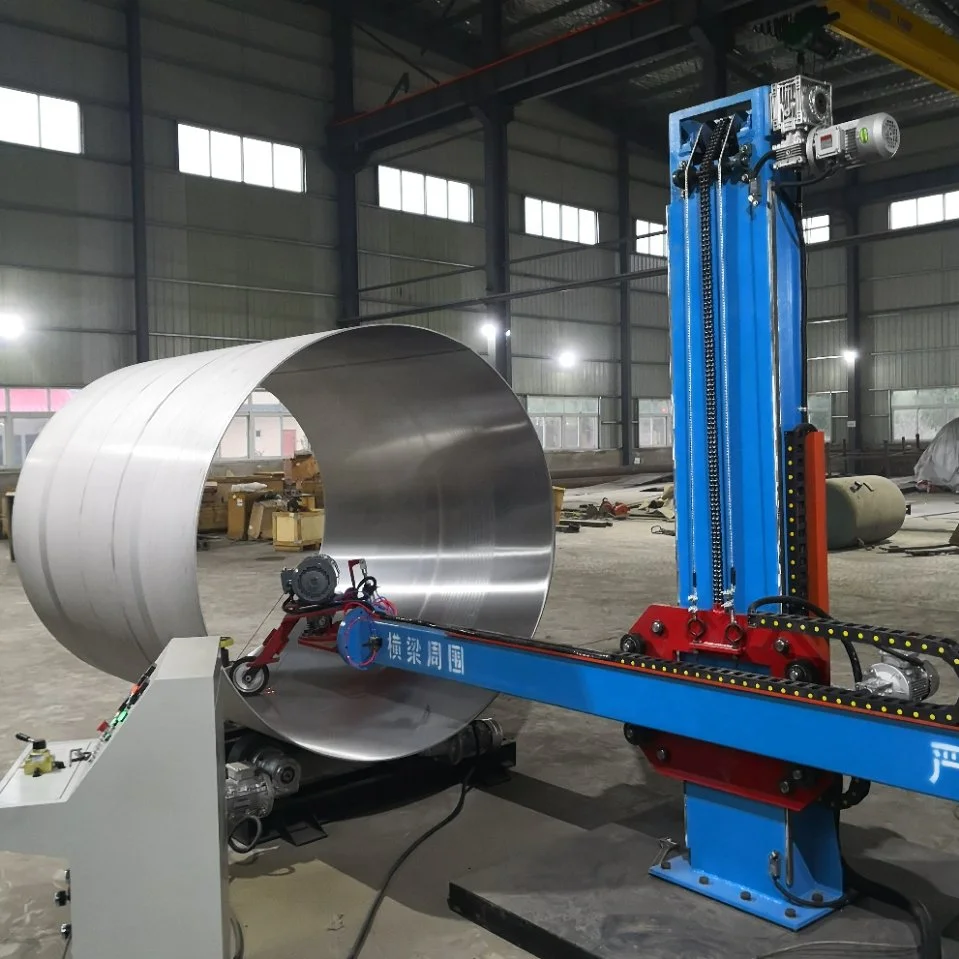

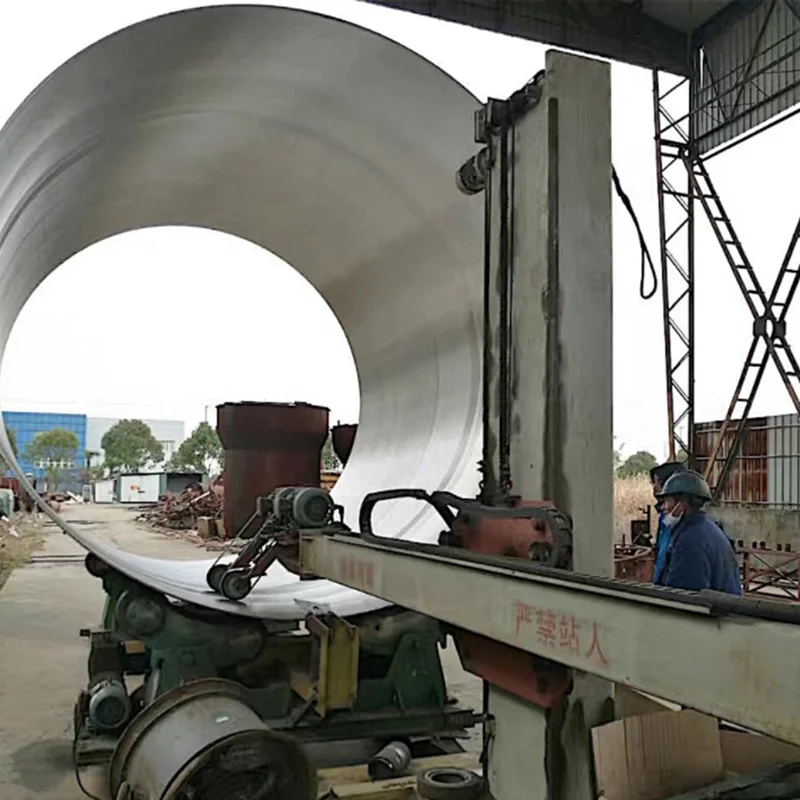

Machine working:

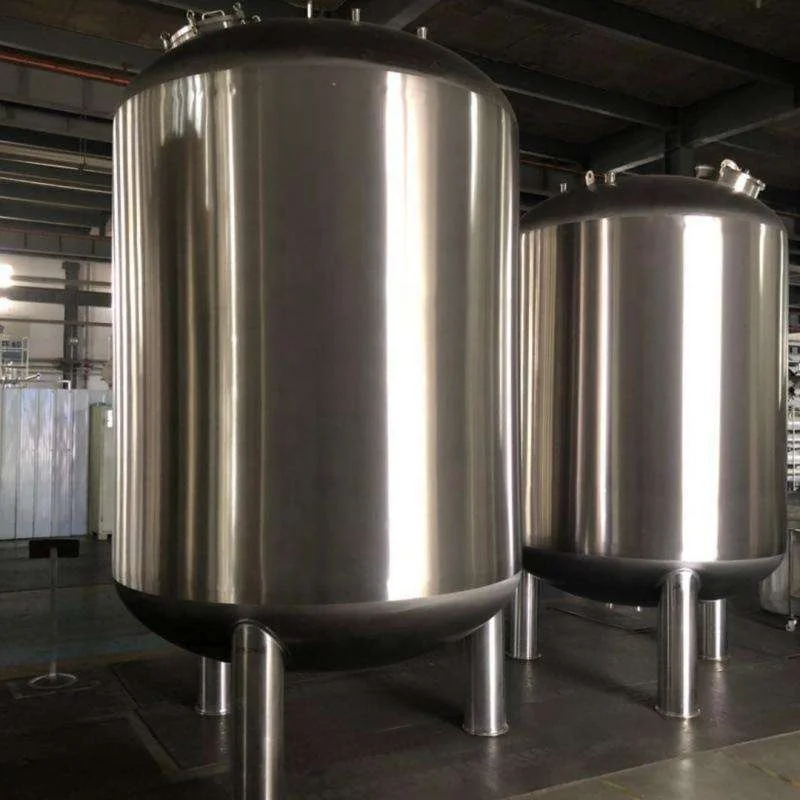

Finished products:(hairline or mirror finishing)
Applications:
The machine is mainly used for chemical, food, biological, water treatment, pharmaceutical, dyeing and finishing, pressure vessels and other fields:
1. Food, chemical stainless steel tank body
2. medical disinfection cabinet, filter
3. all kinds of cars with cylinder head and head
4. a variety of large-scale transmission pipe end of the tube, outside the weld
5. nuclear reactor and similar high-pressure heavy-duty container, the outer surface of grinding and polishing
6.nuclear reactor and similar high-pressure heavy-duty container, the outer longitudinal, ring weld grinding and welding root cleaning
Packaging & Shipping
1, Automatic stainless steel tank and dished head polishing buffing machine is packed with waterproof film for the first step.
2, Automatic stainless steel tank and dished head polishing buffing machine is packed in wooden cartons.
Photos of packing:
Our Services
1, Overseas after-sales service is available.
2, Two years warranty.
3, Foundation drawings, manual book, electric wiring diagram, electric manual book, and maintenance book, etc. provided.
4, We visit each country every year for free technical instructions.
Our overseas service photo show:
Company Information
Sales Department and Production Department:
OUR CERTIFICATES:
WE OWNED MORE THAN 50 PATENT RIGHTS:
Exhibition
FAQ
Have 1, How many years been a factory?
25 years.
2, Your advantages?
We have many mature and hot products, at the same time, we are the only manufacturer who can design polishing machines for all different shapes in China.
3, What's your aim for the "ADV” brand?
To be the most famous brand all around the world within 5 years
4, The countries which your machine sent to?
America, Japan, Korea, Germany, Romania, Italy, Spain, Malaysia, Vietnam, Thailand, India, etc.
Our machines will speak for themselves.
