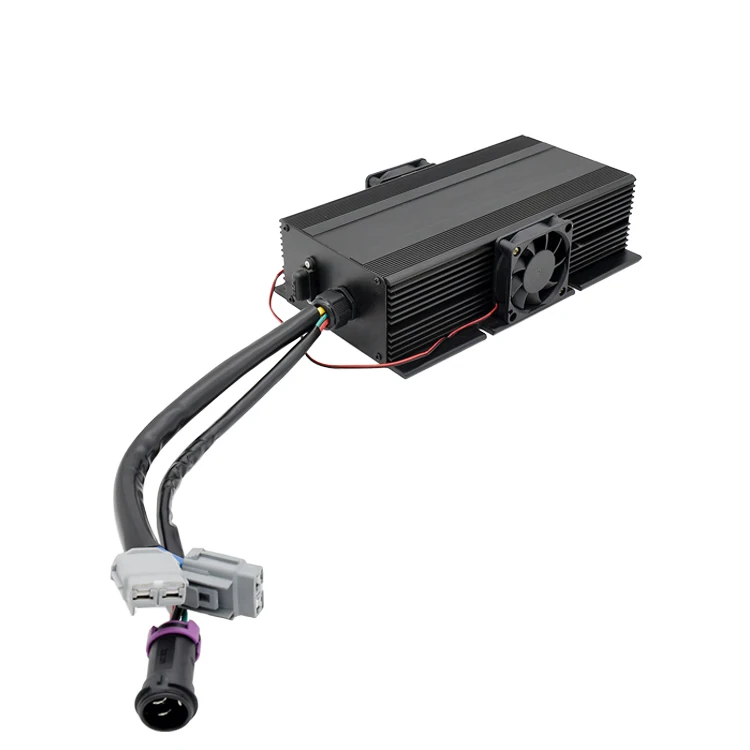

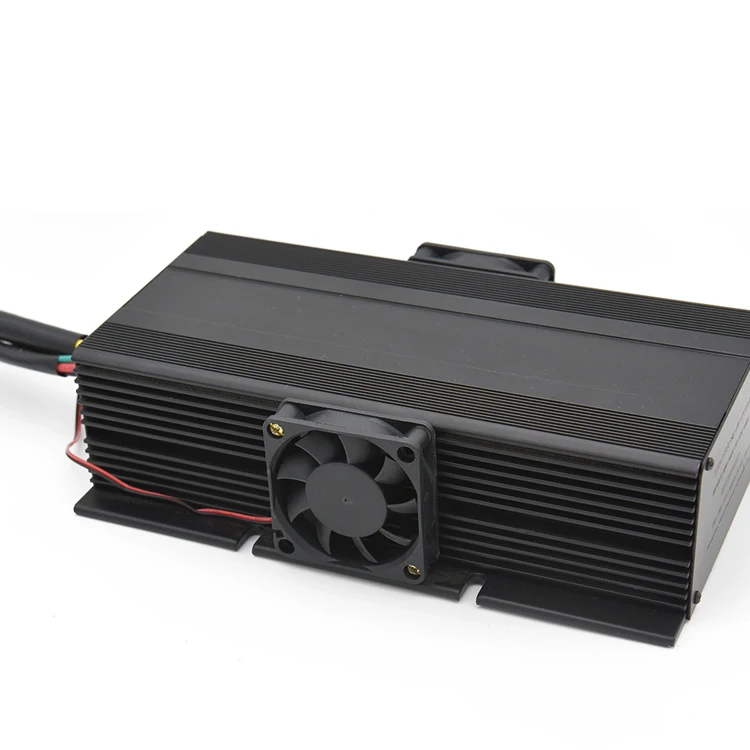

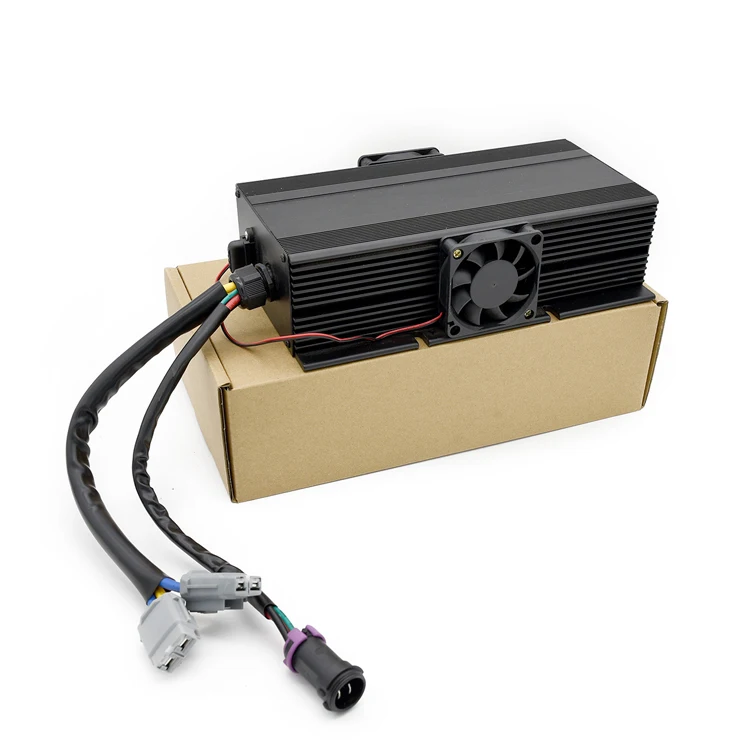

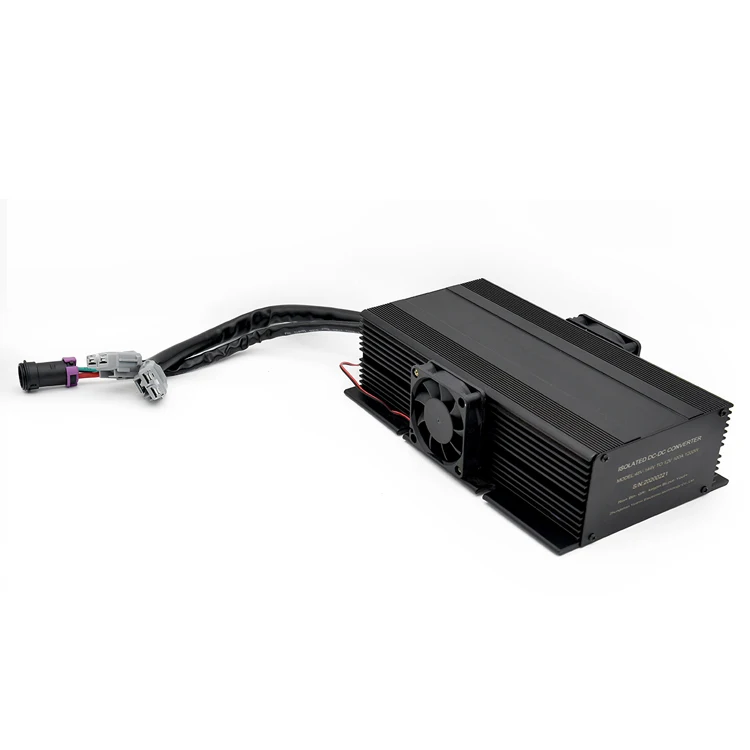

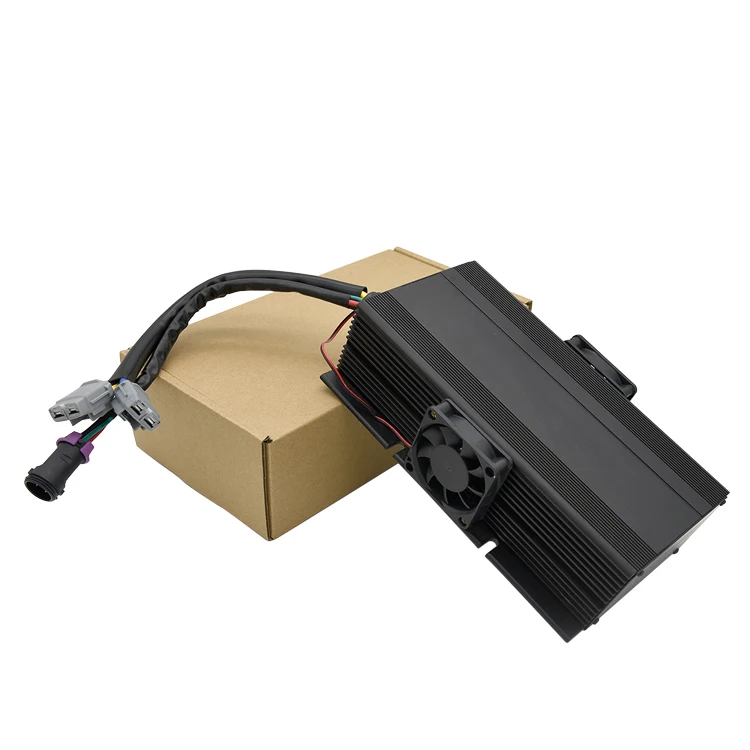

Изолированный понижающий преобразователь постоянного тока для связи с солнечной системой 48 В-120 В до 12 в 60 А 720
- Категория: DC/DC преобразователи >>>
- Поставщик: Zhongshan,Yuanxi,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 144.85 $* | 147.66 $* |
| Jul-18-2025 | 116.71 $* | 118.47 $* |
| Jun-18-2025 | 141.87 $* | 144.84 $* |
| May-18-2025 | 140.39 $* | 143.58 $* |
| Apr-18-2025 | 112.26 $* | 114.6 $* |
| Mar-18-2025 | 138.56 $* | 141.60 $* |
| Feb-18-2025 | 137.11 $* | 140.59 $* |
| Jan-18-2025 | 136.94 $* | 139.59 $* |
Характеристики
| Product parameter | |
| Input voltage | DC 48V-120V |
| Output voltage | DC 12V |
| Weight | 3.75KG |
| Output Current | 60A |
| Power | 720W |
| Size | 242*140*66MM |
| Function | Temperature protection 95℃ |
| Input reverse connection protection(replacing fuse) | |
| Overcurrent protection | |
| Short-circuit protection | |
| Overvoltage protection | |
| Output protection | Temperature protection 95°C |
| OverCurrent Protection | |
| Short-Current Protection | |
| Overvolatage protection | |
| Waterproof | IP55 |
| Storage temperature | -40℃-60℃ |
| Working temperature | -25℃-55℃ |
| Isolated Step dowm DC converter for more product models | |||
| Current | Power | Input Voltage | Output Voltage |
| 5A | 60W | 48V-120V | 12V |
| 10A | 120W | 48V-120V | 12V |
| 20A | 240W | 48V-120V | 12V |
| 25A | 300W | 48V-120V | 12V |
| 30A | 360W | 48V-120V | 12V |
| 40A | 500W | 48V-120V | 12V |
| 50A | 600W | 48V-120V | 12V |
| 60A | 720W | 48V-120V | 12V |
| 70A | 840W | 48V-120V | 12V |
| 80A | 960W | 48V-120V | 12V |
| 90A | 1080W | 48V-120V | 12V |
| 100A | 1200W | 48V-120V | 12V |
