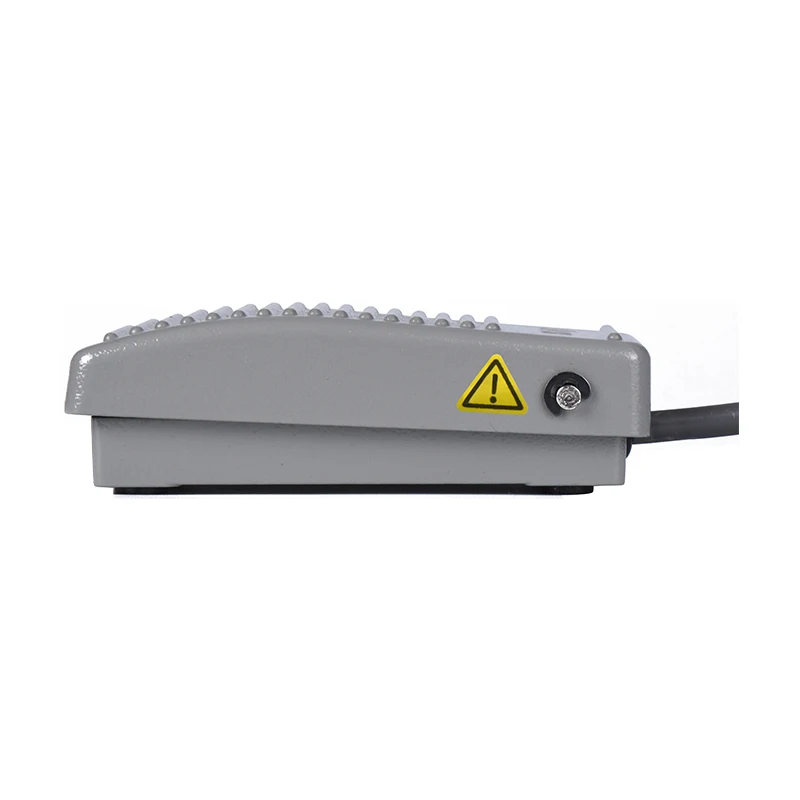

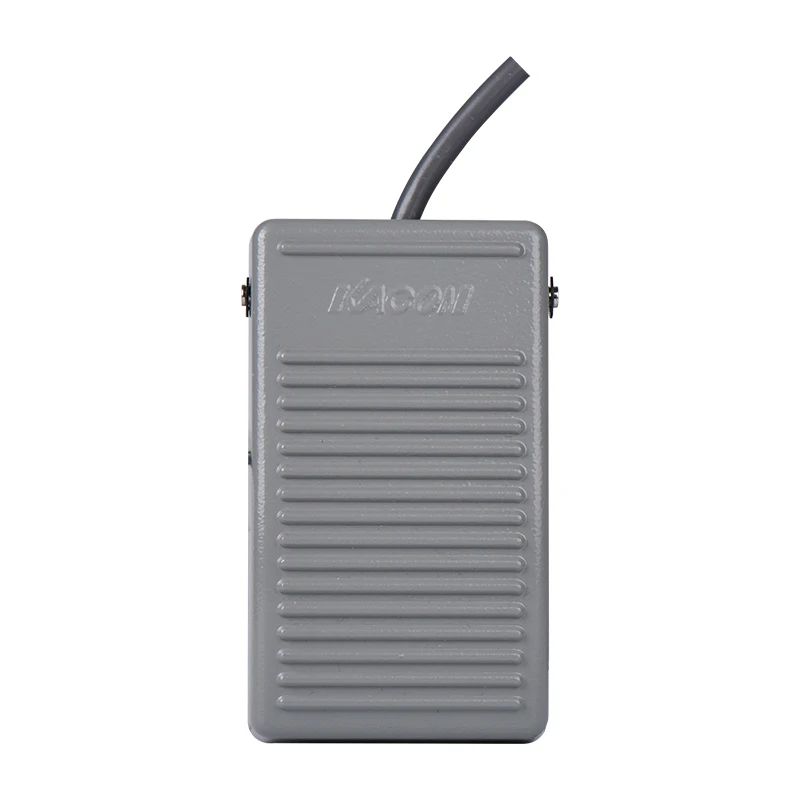

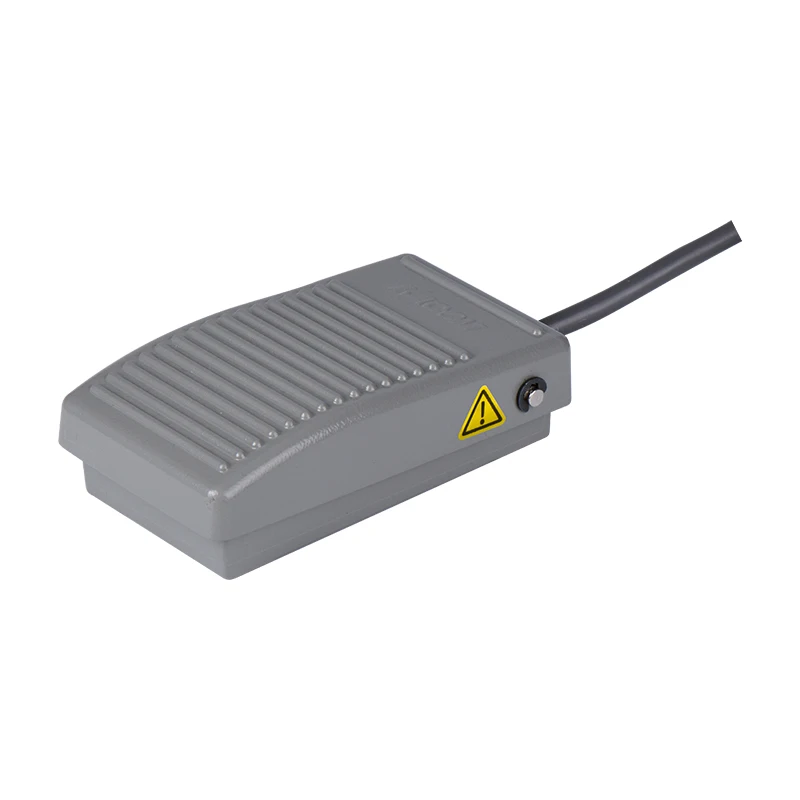

Kacon IP54 HRF-MD4 алюминиевый литой ножной переключатель средней

Kacon IP54 HRF-MD4 алюминиевый литой ножной переключатель средней

Категория: Другие переключатели >>>
Поставщик: Yueqing,Xijie,Electric,Co.,Ltd.,[Zhejiang,China]Yueqing

Цена:435,56 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	552.14 $*	563.89 $*
Jul-16-2025	448.12 $*	457.47 $*
Jun-16-2025	544.71 $*	555.84 $*
May-16-2025	539.17 $*	550.1 $*
Apr-16-2025	431.48 $*	440.24 $*
Mar-16-2025	531.93 $*	542.0 $*
Feb-16-2025	526.75 $*	537.63 $*
Jan-16-2025	522.71 $*	532.8 $*

Характеристики

Cable Outlet.jpg

Specification

Part Number	HRF-MD4
Contact Form	1C(1a+1b)
Rated Current	10A 250VAC
Built-in Switch	V15F-01C(CE,UL certified) + 24k gold plate
Material	Aluminium Alloy
Cable outlet	0.5mm² × 3 Wire × 2m
Certification	CE, CCC
Degree of Protection	IP54
Contact Resistance	<50mΩ
Insulation Resistance	above 100mΩ at 500VDC
Withstand Voltage	≥2000VAC(one minute)
Mechanical Life	above 10⁶times
Electrical Life	above 10⁵times
Operating Temperature	-25℃ ~ +70℃
Operating Humidity	45%≤85%RH

Dimension

Contact Form

Circuit Drawing-1C.jpg

Part Number Description

HRF-HD, MD Series Part Number Description
HRF- 1, 2, 3, 4
1, Type	M : Medium Duty Type	H : Heavy Duty Type
2, Material	No mark : Plastic	D : Die-Casting
3, Safety Cover (H type only)	N : top	NX : top + side	NS : top + side + front
3, Safety Cover (H type only)	LX : top + side + safety kick lever
4, Operator Type	No mark : Momentary	3 : Maintained
