Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
TURBO-4L Лучшие продажи 4 полости станок для выдувания ПЭТ бутылок машина
- Категория: Выдувная машина >>>
- Поставщик: Taizhou,Waton,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.85 $* | 0.61 $* |
| Aug-16-2025 | 0.28 $* | 0.6 $* |
| Jul-16-2025 | 0.24 $* | 0.57 $* |
| Jun-16-2025 | 0.5 $* | 0.68 $* |
| May-16-2025 | 0.76 $* | 0.12 $* |
| Apr-16-2025 | 0.49 $* | 0.51 $* |
| Mar-16-2025 | 0.2 $* | 0.0 $* |
| Feb-16-2025 | 0.88 $* | 0.91 $* |
| Jan-16-2025 | 0.41 $* | 0.95 $* |
Характеристики
Product Description
Models | Turbo-4L |
Theoretical Capacity | 5000-6000 BPH |
Mold Cavities | 4 |
Neck Size | 18-38 mm |
Max. Volume | 2000 ml |
Advantages | 1.Using touch screen, easy to operate, save space. 2.Mold fixed by drawer design, mold changeover can be easily done in half hour. |

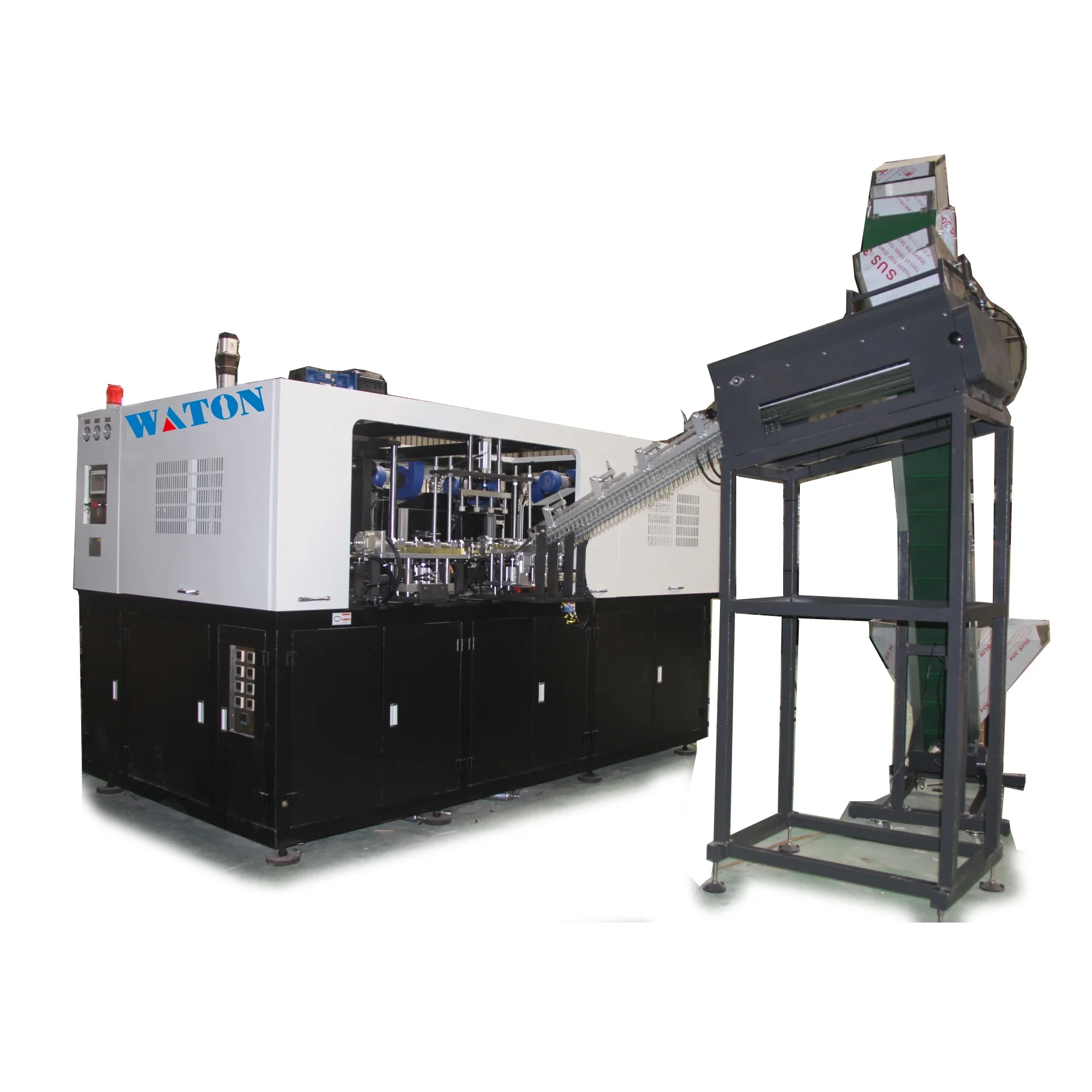

TURBO-4L 4 cavities linear full-auto stretch blow molding machine, is an full electric high speed PET blow molding machine independently developed by Waton Machinery. It can produce all kinds of bottles below 2000 ml, including food packaging bottles, edible oil bottles, soda and mineral water bottles, fruit juice bottles, wine bottles, cosmetics bottles and so on.
Full Electric, Higher Output, Lower Power Consumption.
Direction for use
1.We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
2.We will send the instruction book to you to let you install the machine. You can talk with our engineer by video chat or we will send the engineers overseas to help you.
Description of application effect
WATON Machinery designs the most suitable machine models according to the special requirements of customers, suitable for PET containers from 200ml~20L, including package for water, Carbonated Soft Drink, juice, milk, edible oil, beer, solid food, cosmetics, pharmaceuticals, etc.
Detailed Images

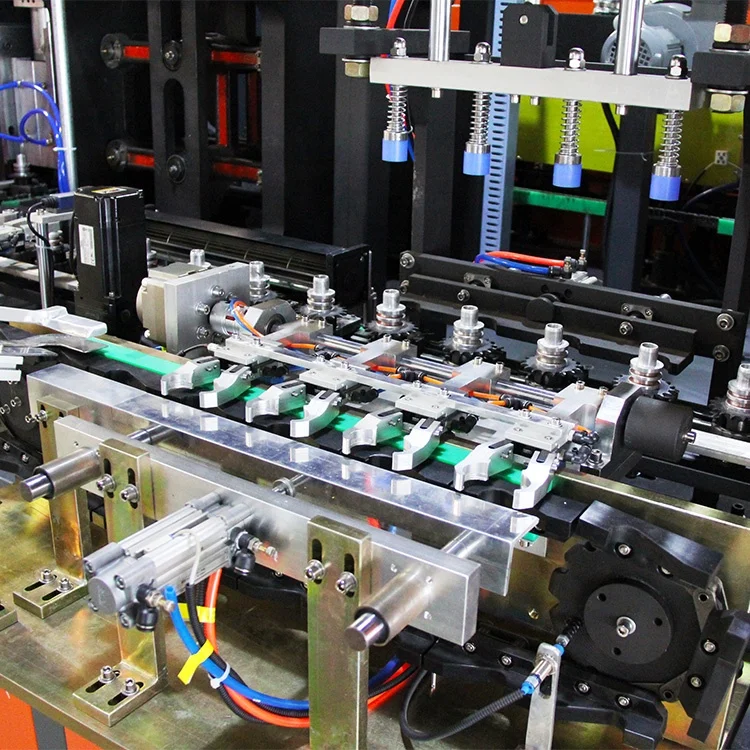

Preform Transfer System
preforms horizontal movements are driven by Servo Motor. Make preforms 6pcs as one unit, overall simplified stepping motion, achieve high-speed positioning and smooth motion. To complete one step cycle, the Servo Motor drive gear rotate only one-third of a turn. Speed of preform moving is 2 times of Cylinder Driven way.

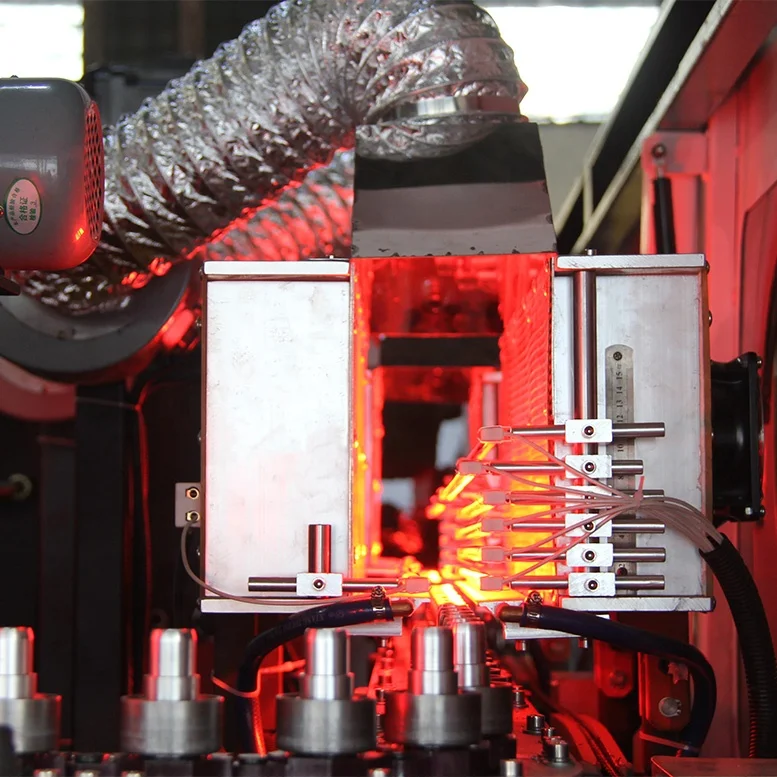

Efficiency Constant Temperature Oven
a.Use the most advanced high frequency Infrared Lamp, increase heating efficiency 30%－50%.
b.Each layer of lamp are separately controlled, with assistant ruler on machine.
c.Intelligent temperature control system.
b.Each layer of lamp are separately controlled, with assistant ruler on machine.
c.Intelligent temperature control system.
d.Preform self-rotation System, ensure every side of every preforms are heated evenly, which ensure quality of blown bottle.(thickness up to 4.5mm)
e.Neck Cooling in Oven.
f.Preform Necks are cooled by recycling water, which avoid neck deformation.
e.Neck Cooling in Oven.
f.Preform Necks are cooled by recycling water, which avoid neck deformation.

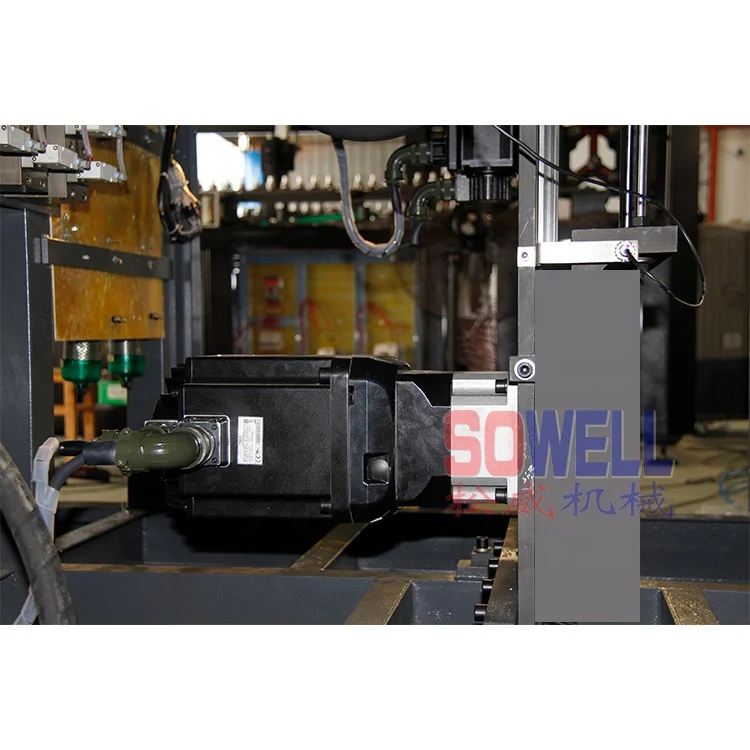

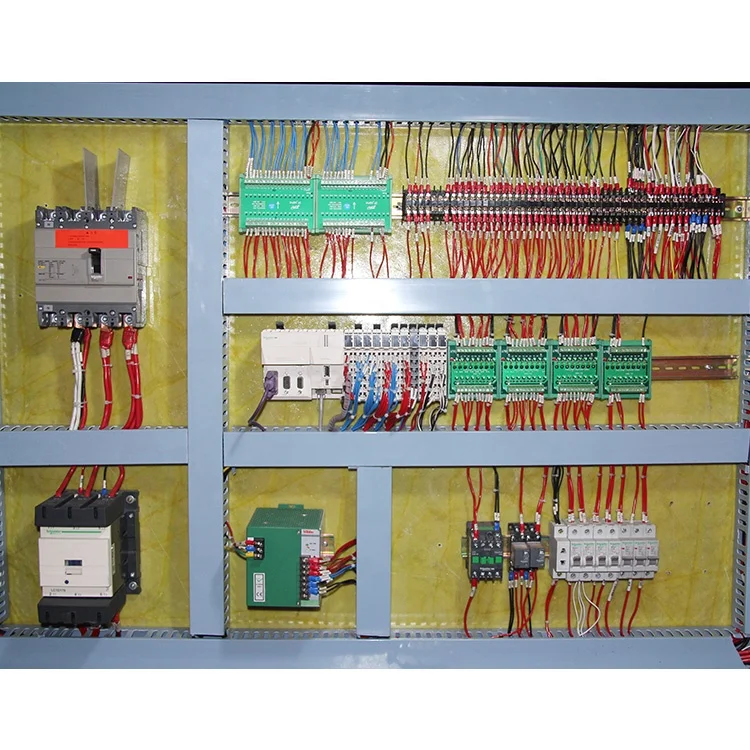

Schneider Servo motion control system
Using Schneider PLC Servo System, PTO system(Pulse/Train/Output servo positioning module) works on high speed positioning.

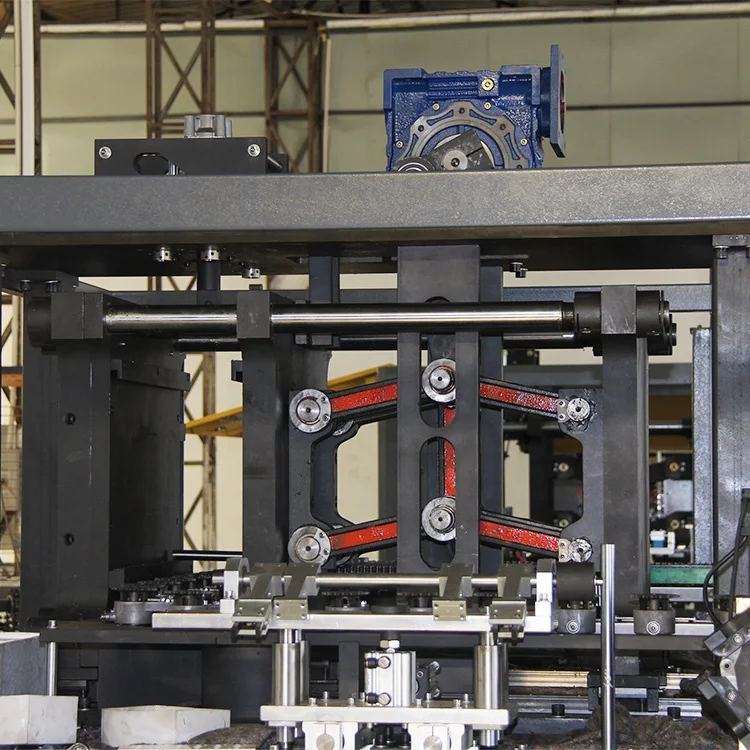

Mold Clamping System
The servo motor drives the rocker linkage, driving frame and the bottom mold opening and closing. Reaction time is reduced to 50% compared to traditional pneumatic model. Simple structure, no wear, longer use life.
Specifications
Models | TURBO-4S | TURBO-4L | TURBO-6S | TURBO-6L | TURBO-9S | ||
Theoretical Capacity(BPH) | 6,000~7,000 | 5,000~6,000 | 9,000~10,000 | 68000~9,000 | 12,000~13,000 | ||
Mold Cavities | 4 | 4 | 6 | 6 | 9 | ||
Bottle | Neck Size | 18-38mm | 18-38mm | 18-38mm | 18-38mm | 18-38mm | |
Max. Volume | 750ml | 2000ml | 750ml | 2000ml | 750ml | ||
Max. Diameter | 69mm | 105mm | 69mm | 105mm | 69mm | ||
Max. Height | 240mm | 330mm | 240mm | 330mm | 240mm | ||
Power | Heater qty | 21pcs | 32pcs | 28pcs | 48pcs | 42pcs | |
Heating Area | 3 | 4 | 4 | 6 | 6 | ||
Heating Power | 46KW | 70KW | 62KW | 106KW | 94KW | ||
Rated General Power | 58KW | 82KW | 75KW | 120KW | 110KW | ||
High Pressure Air Consumption(m3/min) | 3.0 | 3.0 | 5.0 | 5.0 | 8.0 | ||
Main Machine Size | 3000*1800*2200mm | 4200*2100*2400mm | 4200*2050*2400mm | 5800*2150*2400mm | 5800*2100*2400mm | ||
Main Machine Weight | 3200KGS | 5000KGS | 5500KGS | 7800KGS | 7500KGS | ||
Process Flow Chart
Related Products
Packing&Shipping
Standard package is foam film and wrap film, which is safe for export transportation, without worry about fumigation.
Company Introduction
WATON Machinery is a professional manufacturer of two-step linear full-electric high-speed automatic PET bottle blow molding machine, located in Taizhou City, Zhejiang Province. Our team has 20-years experience in PET stretch Blow Molding Machine manufacturing. Since establishment, we have been committed to be a trustworthy and reliable partner, providing customers with high efficiency, low energy consumption, stable operation of equipment and excellent services. Our offer service in:
√Automatic/Semi-auto Electric PET Blow Molding Machine
√Turnkey solution for PET bottle production line
√In-line service for PET bottle production line & Filling line.
√Automatic/Semi-auto Electric PET Blow Molding Machine
√Turnkey solution for PET bottle production line
√In-line service for PET bottle production line & Filling line.
Our Services & Strength
1.Two years warranty, lifetime maintenance.
2.As for installation, we will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
3.send you two years easy broken spare parts for free together with machines, shipping together.
FAQ
Q1: Where is your factory located? How can I visit there?
A1: Our factory is located in Shangnian Industrial Area, Huang Yan, Taizhou City, Zhejiang Province, China. All our clients, from home or abroad, are warmly welcome to visit us! From Shanghai to our city, it takes 3.5hrs by train, 45mins by air.
Q2: How long is the warranty period?
A2: All of products have two years warranty.
Q3: How can I install my machine when it arrives?
A3: We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
Q4: How long is the delivery time?
A4: Under normal conditions, products are delivered within 45 working days.
Q5: Where is the Shipping departure port?
A5: Ningbo or shanghai port.
Q6: What’s the payment
A6: T/T, L/C,Western Union, paypal.
Q7: What are your main brand of electrical components?
A7: Main parts in the products come from world famous manufacturers such as Mitsubishi, Schneider, Omron etc.
Q8: Which country do you export your machines already?
A8: We have exported Blow Molding Machine to USA, Canada, Australia, Mexico, Russia, Thailand, Indonesia, Vietam, Africa, the Middle Eastarea etc.
Q9. What products does your company offer by yourself?
A9: We are specialized in PET Blow Molding Machine, PET Blow Mold, hot-runner PET Preform Mold.
