Термоизолированная вакуумная панель VIP для медицинского
- Категория: Other Heat Insulation Materials >>>
- Поставщик: Suzhou,Junyue,New,Material,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.25 $* | 0.76 $* |
| Aug-19-2025 | 0.15 $* | 0.87 $* |
| Jul-19-2025 | 0.27 $* | 0.17 $* |
| Jun-19-2025 | 0.71 $* | 0.63 $* |
| May-19-2025 | 0.20 $* | 0.12 $* |
| Apr-19-2025 | 0.11 $* | 0.25 $* |
| Mar-19-2025 | 0.82 $* | 0.91 $* |
| Feb-19-2025 | 0.35 $* | 0.95 $* |
| Jan-19-2025 | 0.9 $* | 0.31 $* |
Характеристики
We provide customized services and samples, please contact us for specific prices.Welcome to your inquiry!
Product Description

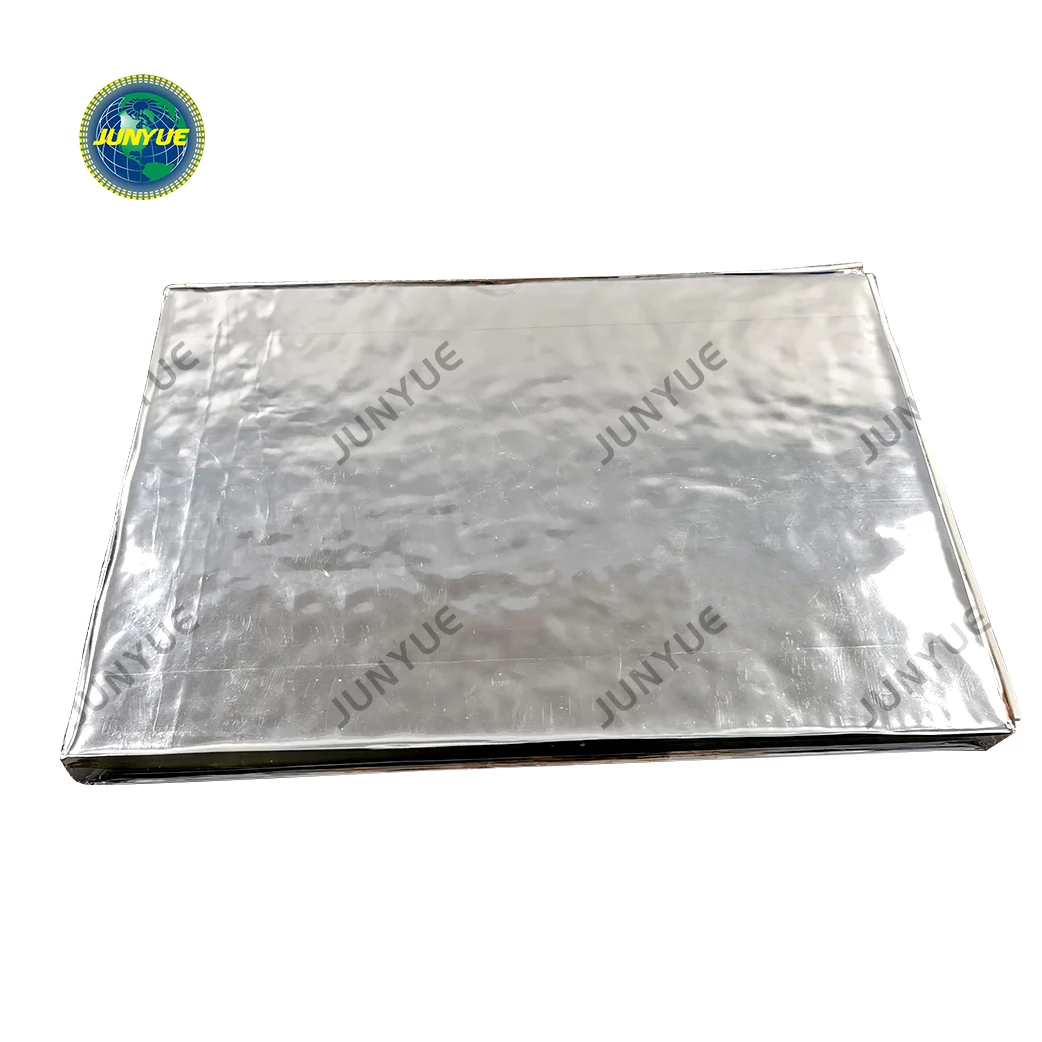

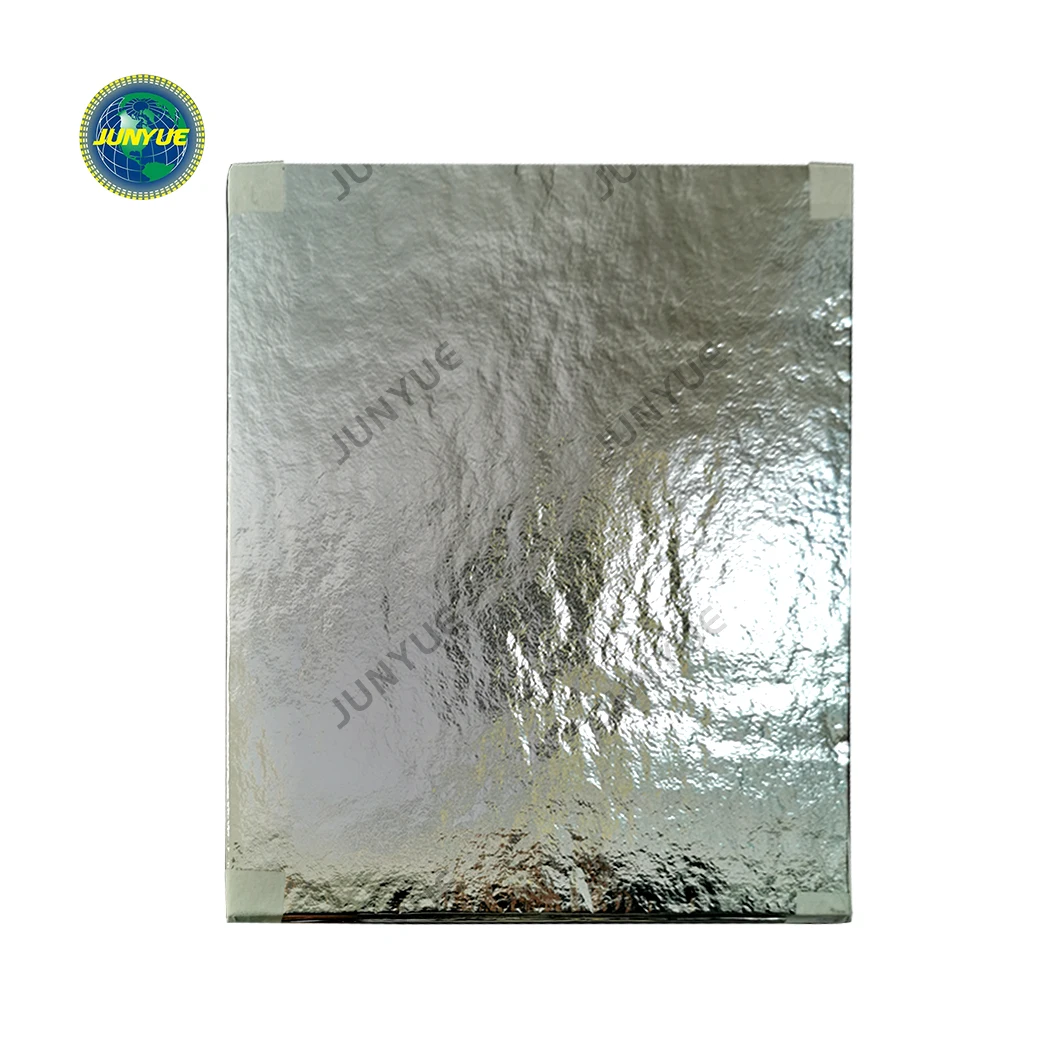

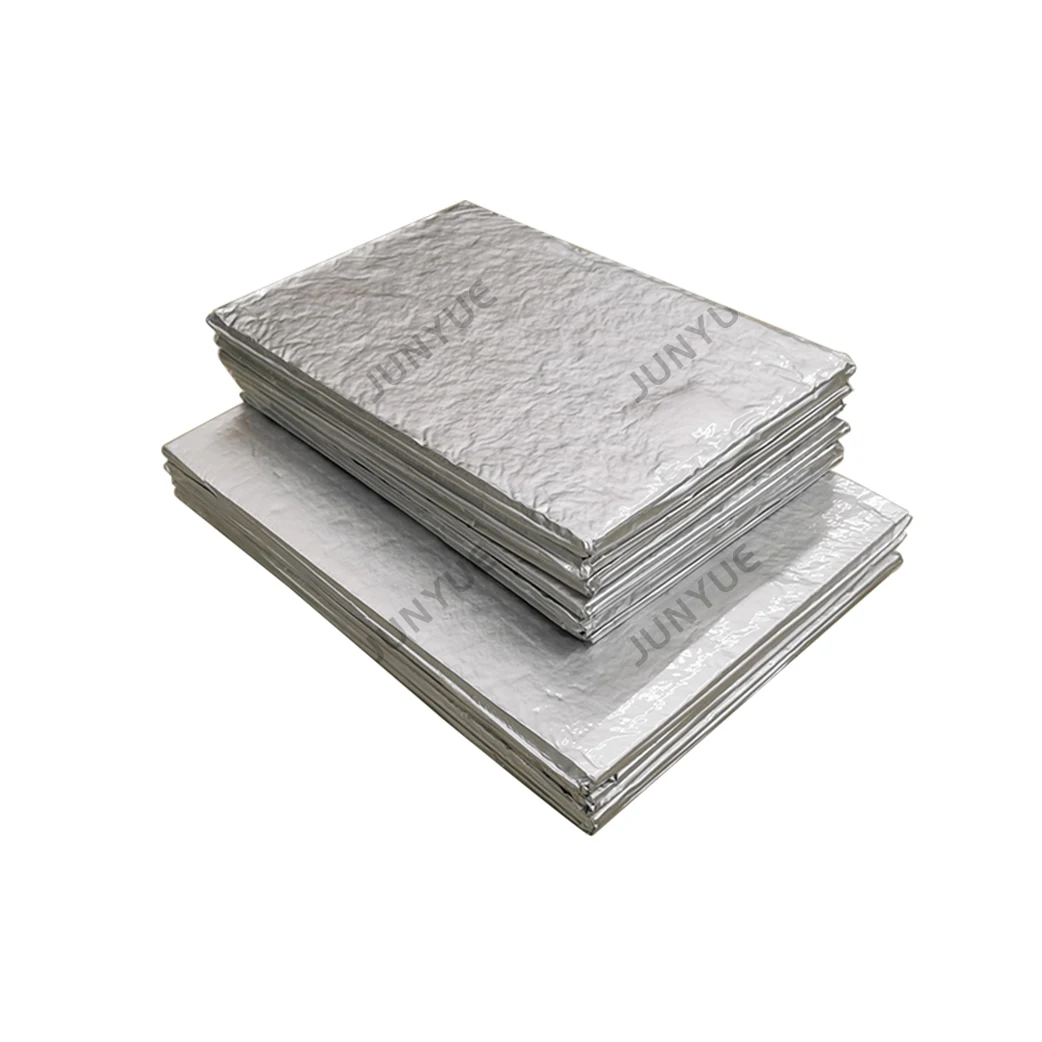

Vacuum insulation panels
Advanced Thermal Insulation
They provide excellent performance thermal insulation in a thin, light weight design great for saving up areas space. that require high R-Value insulation or to meet energy standards without increasing thickness.Whether used stand alone or in combination with other materials, or as part of a composite panel, VIPs reliably deliver energy savings.
Features:
. Thermal conductivity of 0.002W/mK - 0.005W/mKClass a fire and smoke rating for building products
. Non-toxic materials and over 99% recycled content
. Mold, fungi and rodent resistant
. Adhesive, adhesive tapes, sprays common install methods
. Non-toxic materials and over 99% recycled content
. Mold, fungi and rodent resistant
. Adhesive, adhesive tapes, sprays common install methods
Technology:
Vacuum Insulation Panels do more with less. About 90% of a VIP’s performance is a result of the inner vacuum. In a vacuum, heat can not travel through the air by conduction or convection. This limited ability for heat to travel in the vacuum is what gives vacuum insulation panels such a high thermal insulating performance and R-value.
Product Paramenters
project | parameter |
Length | 50~1750 (mm) |
Width | 50~1750 (mm) |
Thickness | 6~50（mm） |
Density | 240-300 (KG/M3) |
Normal size | Normal size can be customized |
Warpage (thickness ≤10mm) | ≤5mm |
Warpage (thickness ＞10mm) | ≤3mm |
Diagonal difference（length≤1500mm） | ≤5mm |
Diagonal difference（length＞1500mm） | ≤10mm |
Operating temperature | -70-80 ℃ |
Thermal conductivity of central area | ≥2.0mw/（m·k） |
Service life | ≥15 (years) |
Puncture strength | ≥15N |
Thermal conductivity after puncture | ≥35mw |
Burning class | According to core material requirements |
Tensile strength perpendicular to the surface | ≥80kpa |
Thickness change rate after puncture | ≤10% |
Application | Refrigerators and other household appliances, aerospace, navigation, automotive, and other industries |
Core material
Glassfiber Core VIPs consist of a unique fiberglass core encased in a laminate envelope made of several optional layers that includes nylon, woven, aluminum layer. An adsorbent is contained between the fiber glass material and the exterior film to capture moisture molecules and any gases. Together, the adsorbent and outer film maintain the integrity of the vacuum over many years, ensuring a reliably long product life.
Fumed VIPs consist of a unique combination, mainly on fumed silica, a nano-porous silica materials. With largest pore up tp 300 nm, fumed VIP board insulate performance up to ten times better than conventional insulation materials. Barrier film envelop is consisted of food grade and high density film. All the components are highly biodegradable and recyclable.
Features and applications
the advantages of small volume, relatively thin thickness, light weight,suitable for energy saving products,
Due to the excellent aging performance of glass fiber material it can be used in refrigerators and other household appliances to ensure electrical and life.
Due to the heat preservation and sound absorption effect of the vacuum insulation board ensure that the thickness of the inner wall of the home appliance is halved, while ensuring the effect of halving the energy consumption.
Products are widely used in refrigerators and other household appliances, aerospace, navigation, automotive, and other industries
plant construction and engineering
freezers
new buildings
hot water tanks
appliances
laboratory devices
vehicle bodies
refrigerators
warehouse containers
container
household
medical engineering
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Company Profie
As a leading manufacturer of thermal insulation materials, Suzhou Junyue New Material Technology Co., Ltd. was established in 1999 and is headquartered in Suzhou. The product line includes aluminum foil bubble insulation materials, aluminum foil foam (EPE / XPE) insulation materials, aluminum foil woven fabrics, VIP vacuum insulation panels, cold chain refrigerators, aerogel insulation materials, etc.
FAQ
1.Are you the factory or trading company?
We are a manufactory of foam insulation, Bubble insulation and aerogel,vip vacuum insulated panel. factory locates in Suzhou, owns 120000SQM.
2.Does your company accept customization?
Of course. We accept ODM service.
3.What's the advantage of your Multilayer insulation?
Fiber free and environmentally friendly.Increases your energy efficiency, Lower energy use both for heating & cooling. Reduces the
load on your cooling andheating system, good vapor barrier protection.
4.What is difference between aluminum foil insulation and metalized insulation ?
Pure aluminum foil insulation has dim surface, Metalized insulation has shinny surface.
Pure aluminum foil insulation can be fire retardant but Metalized insulation can not but be.
Pure Aluminum have Longer service life than metalized insulation.
5.What information should I let you know to get a completed quotation?
1)What kind of materials.
2)The size of the film(length*width*height),including the thickness.
3)Printing colors. Original printing picture or drawings will be best.
4)The order quantity.
5)Is standard bag or special design.
6.How about the products packing?
We are a manufactory of foam insulation, Bubble insulation and aerogel,vip vacuum insulated panel. factory locates in Suzhou, owns 120000SQM.
2.Does your company accept customization?
Of course. We accept ODM service.
3.What's the advantage of your Multilayer insulation?
Fiber free and environmentally friendly.Increases your energy efficiency, Lower energy use both for heating & cooling. Reduces the
load on your cooling andheating system, good vapor barrier protection.
4.What is difference between aluminum foil insulation and metalized insulation ?
Pure aluminum foil insulation has dim surface, Metalized insulation has shinny surface.
Pure aluminum foil insulation can be fire retardant but Metalized insulation can not but be.
Pure Aluminum have Longer service life than metalized insulation.
5.What information should I let you know to get a completed quotation?
1)What kind of materials.
2)The size of the film(length*width*height),including the thickness.
3)Printing colors. Original printing picture or drawings will be best.
4)The order quantity.
5)Is standard bag or special design.
6.How about the products packing?
Normally we packed in cartons ,but we can pack as client's requirements.
7.What's the quotation and payment terms?
1)We quote EXW, FOB, CIF price.
2)TT 30% deposit in advance, balance should be paid before delivery.
3)We accept TT, LC, Paypal, Western Union etc.
8.How do I get a sample and how long?
1)For standard products, we will send you one for free if we have in stock.
2)For customized sample, we need to charge the cost.
3)1 day for sample in warehouse, 5-15 days for customized sample.
7.What's the quotation and payment terms?
1)We quote EXW, FOB, CIF price.
2)TT 30% deposit in advance, balance should be paid before delivery.
3)We accept TT, LC, Paypal, Western Union etc.
8.How do I get a sample and how long?
1)For standard products, we will send you one for free if we have in stock.
2)For customized sample, we need to charge the cost.
3)1 day for sample in warehouse, 5-15 days for customized sample.
Purchase Notes
1. Width and length can be customized according to customer requirements
2. The online price is for reference only, the size and size requirements are different, the price is different, please call to confirm the specific price
3. Normally we packed in cartons ,but we can pack as client's requirements.
4. 100% factory direct sales
2. The online price is for reference only, the size and size requirements are different, the price is different, please call to confirm the specific price
3. Normally we packed in cartons ,but we can pack as client's requirements.
4. 100% factory direct sales
