Мини-кольца-скольжения ветряной турбины 4 схемы 10 А 300 об/мин кольцо-скользящее в виде капсулы диаметр 22

Описание и отзывы

Трекер стоимости

Характеристики

Description



The M220A-0410 miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The M220A-0410 unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.



Specification



Circuits	4
Current Rating	10A
Voltage	240/380VAC
Electrical Noise	≤15mΩ
Working Speed	0~300 RPM
Contact	Precious metal
Wire Size	17# silver plated copper UL, Teflon
Lead Wire Length	Rotor:300mm; Stator:300mm
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54



Main Application

• Electric devices


• Medical facility


• Industrial machinery


• LED industry


• Medical equipment


• Process control equipment



Outline Drawing

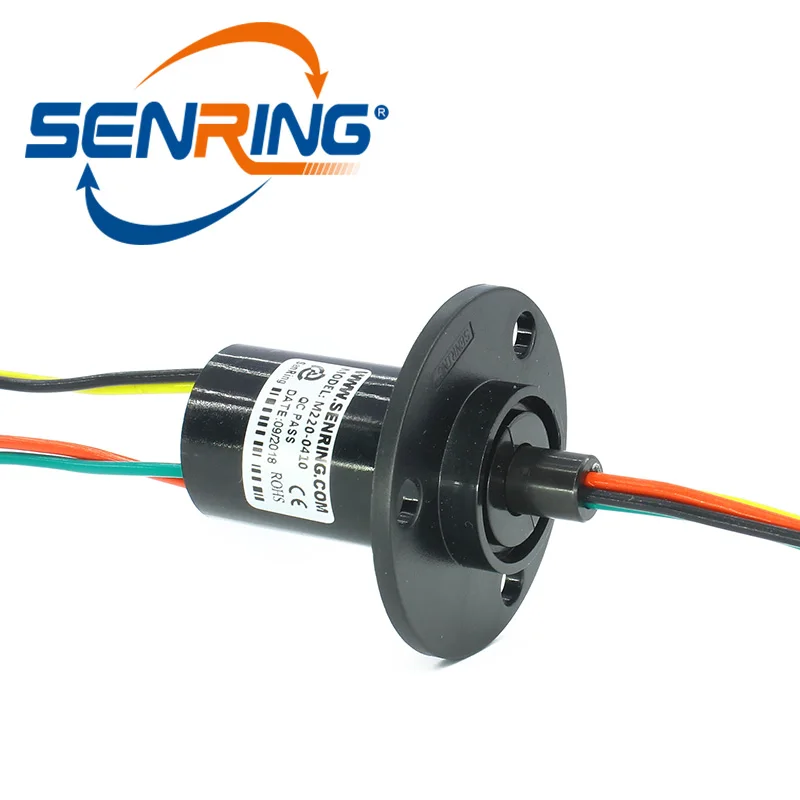

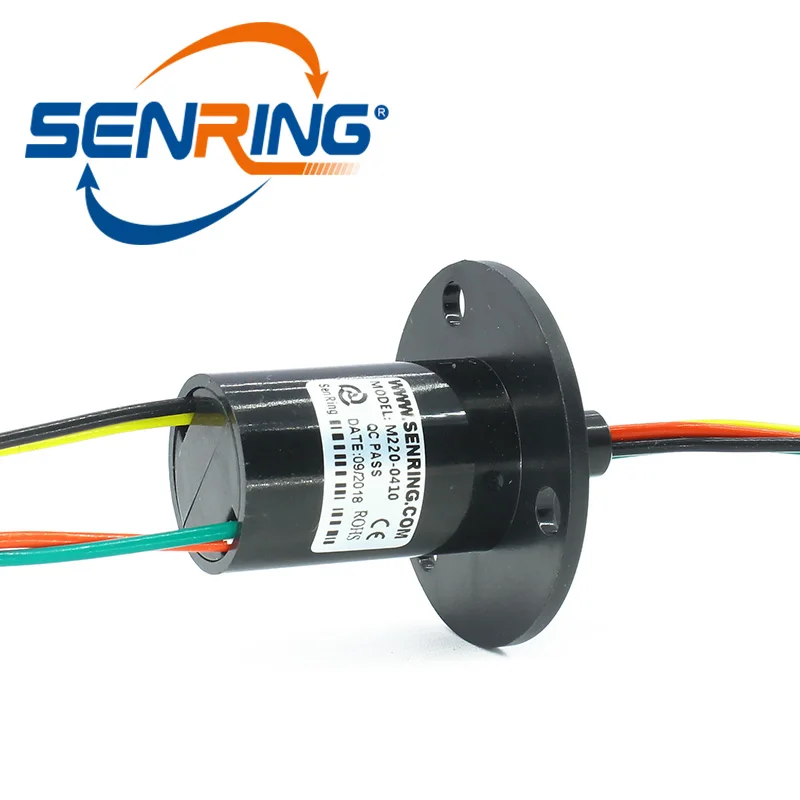

Product Display



PS:

         Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.





Company Introduction

          Senring Electronics Co.,Ltd, founded since 1996, is a leading manufacturer of slip rings, who has been committed to developing and manufacturing a large variety of industrial slip rings applied to many fields. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary Joint, Fiber Optic Slip Ring, Separate Slip Ring, Pancake Slip Ring are off-the-shelf units. Besides of these, customization is supported to cater to different application in that electrical rotary joints can be designed exclusively for Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth. All the products have been secured by our quality management system, certificated by the IS09001:2008/ ISO14001:2015.







SenRing general slip ring models are applied in many applications and equipments,providing system solutions for worldwide.

It involves wind power,controller and industrial turntable,robot,engineering machinery,CCTV video mornitoring,medical equipment,military radar and so on...
