Машина для переработки полиэтиленовой Пленки LDPE переработка
- Категория: Веревка для сушки >>>
- Поставщик: Jiangsu,Mooge,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 95200.18 $* | 99960.42 $* |
| Aug-19-2025 | 94400.42 $* | 99120.45 $* |
| Jul-19-2025 | 79200.81 $* | 83160.30 $* |
| Jun-19-2025 | 92800.7 $* | 97440.12 $* |
| May-19-2025 | 80800.89 $* | 84840.79 $* |
| Apr-19-2025 | 91200.40 $* | 95760.15 $* |
| Mar-19-2025 | 90400.88 $* | 94920.46 $* |
| Feb-19-2025 | 89600.58 $* | 94080.2 $* |
| Jan-19-2025 | 88800.62 $* | 93240.92 $* |
Характеристики
Product Overview
This HDPE film washing machine plastic mulching film recycling machine is designed and manufactured by MOOGE TECH, which is widely used for waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag, etc.
The waste dirty material go through crushing, friction washing, washing, dewatering, hot air drying process will turn to be clean flakes for pelletizing.
The line can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.
The waste dirty material go through crushing, friction washing, washing, dewatering, hot air drying process will turn to be clean flakes for pelletizing.
The line can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.
Products Description
We have 300-1000 kg/h ME Series Efficient plastic recycling machine.and We can design the layout according to your requirements .
Model | Capacity | Installed Power | Water Supply | Manpower | Area Required |
ME-300 | 300 kg/hr | 190 KW | 6-8 m3/hr | 2 Person | 40*5*5 M |
ME-500 | 500 kg/hr | 260 KW | 8-10 m3/hr | 2 Person | 40*5*5 M |
ME-1000 | 1000 kg/hr | 500 KW | 10-15 m3/hr | 2-3 Person | 50*8*5 M |
Features At-A-Glance
Conveyor Belt with Metal Detector
Function :Feeding material and detection the metal
Semi-Automatic model For ferrous and non-ferrous Its installed on the sorting conveyor Once there is metal passing it,
it will alarm and stop the sorting conveyor, after pick out the metal then start it again Precision for Ferrous >2.5mm
Precision fornon-Ferrous>3.2mm
Plastic Crusher Machine
Function :crushing the material into small flakes
With water inlet do wet crushing
This series blades are more wider, it will save
the blades cost
Use the big roller bearing ensure its long time
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use
Machine up chamber is higher and covered by belt no flakes pop out
Friction washing loader
Function: Friction washing with water to remove the dirty and loading up it
Up and down both mounted with bearing design
With water injection system to cleaning the screen
Bottom with water drain system
Washing off the dirty and loading the material out to next step processing
Up and down both mounted with bearing design
With water injection system to cleaning the screen
Bottom with water drain system
Washing off the dirty and loading the material out to next step processing
Floating washing tank
Function: Floating Washing separate the sand, soil and other dirty The roller is specially made can have more
Roller Speed adjust by inverter
The roller is specially made can have more washing for lakes but less water take out
Bottom with conical design easy and better drain out the dirty and maintenance
With platform one set on the side of the tank
Roller Speed adjust by inverter
The roller is specially made can have more washing for lakes but less water take out
Bottom with conical design easy and better drain out the dirty and maintenance
With platform one set on the side of the tank
High speed dewater machine
Function: take out dirty and remover water
With the roller bearing and fixed outside of
rotor for long use life
Bearing is “NSK” Brand Japan
With water to washing the screen
Clean the screen with a rotating brush
Bottom with dirty water drain out
With water to cooling the bearing house
The chamber is easy to opening to maintenance
Inside with mesh layer, mesh diameter: 3 mm
With water spray system to clean the mesh
With the roller bearing and fixed outside of
rotor for long use life
Bearing is “NSK” Brand Japan
With water to washing the screen
Clean the screen with a rotating brush
Bottom with dirty water drain out
With water to cooling the bearing house
The chamber is easy to opening to maintenance
Inside with mesh layer, mesh diameter: 3 mm
With water spray system to clean the mesh

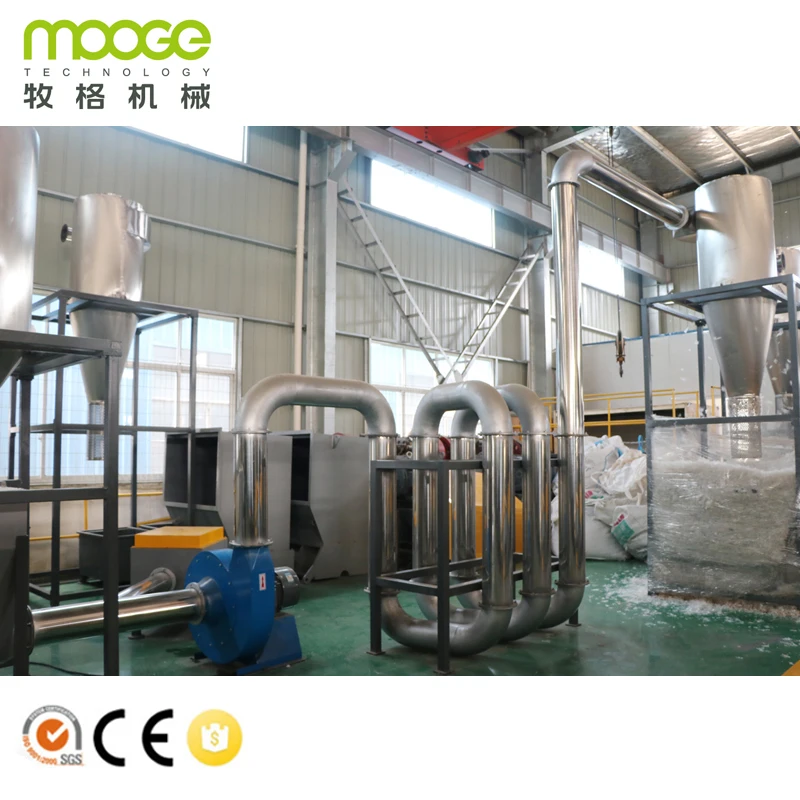

Hot air dryer system
Function:drying the material
heating by electricity box
Drying pipe: 1 set
Heating power box: 1 set
Heating power: 48KW
Drying pipe diameter: 219mm
Drying pipe length: 15m
Blower power: 7.5KW
Heating power box: 1 set
Heating power: 48KW
Drying pipe diameter: 219mm
Drying pipe length: 15m
Blower power: 7.5KW
Customer Onsite
ME-300 PE film recycling line in Ecuador
ME-500 plastic PE film washing machine in Myanmar
ME-500 HDPE film recycling machine in Mexico
ME-1000 HDPE film recycling washing line in Brazil
Company Profile
MOOGE TECH is a professional machine manufacturer dedicated to designing and developing the high technology plastic machine with more than 10 years' experience. Our developing concept is do better and better.
We attend the CHINAPLAS every year (in Shanghai and Guangzhou) and take with our machine for test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Please kindly contact with us in advance if you also have time to attend and sincerely welcome to our booth for visit and discuss about detailed issues.
We attend the CHINAPLAS every year (in Shanghai and Guangzhou) and take with our machine for test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Please kindly contact with us in advance if you also have time to attend and sincerely welcome to our booth for visit and discuss about detailed issues.
Product packaging
1- For the loose cargo we will packing by Wooden box
2- For the Full container loading we are packing the machine by film and some on pallet accordingly
3- We can shipping the goods by air or by sea
4- We will send pictures of cargo loading to our client to check and keep recording
5- we can send cargo to client’s warehouse to loading
3- We can shipping the goods by air or by sea
4- We will send pictures of cargo loading to our client to check and keep recording
5- we can send cargo to client’s warehouse to loading
Our Service
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
In order to match your requirement and provide you a proper quotation, please advise:
• What material do you want to recycling? PE film/PP bag? HDPE/PP bottle? PET bottles? or other plastic?
• What capacity (kg/h) do you want?
• What is the final size (mm) of flakes you want?
• Other special requirements about the pet bottle plastic recycling machine?
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
In order to match your requirement and provide you a proper quotation, please advise:
• What material do you want to recycling? PE film/PP bag? HDPE/PP bottle? PET bottles? or other plastic?
• What capacity (kg/h) do you want?
• What is the final size (mm) of flakes you want?
• Other special requirements about the pet bottle plastic recycling machine?
