Зарядное устройство PowMr гибридный солнечный инвертор кВт 5 220 В переменного тока максимальный Контроллер заряда солнечной батареи 500 постоянного Wi-Fi GPRS
- Категория: Solar Inverter >>>
- Поставщик: Shenzhen,Hehejin,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.47 $* | 0.79 $* |
| Aug-17-2025 | 0.36 $* | 0.52 $* |
| Jul-17-2025 | 0.55 $* | 0.88 $* |
| Jun-17-2025 | 0.42 $* | 0.95 $* |
| May-17-2025 | 0.60 $* | 0.10 $* |
| Apr-17-2025 | 0.25 $* | 0.85 $* |
| Mar-17-2025 | 0.95 $* | 0.51 $* |
| Feb-17-2025 | 0.42 $* | 0.8 $* |
| Jan-17-2025 | 0.84 $* | 0.27 $* |
Характеристики

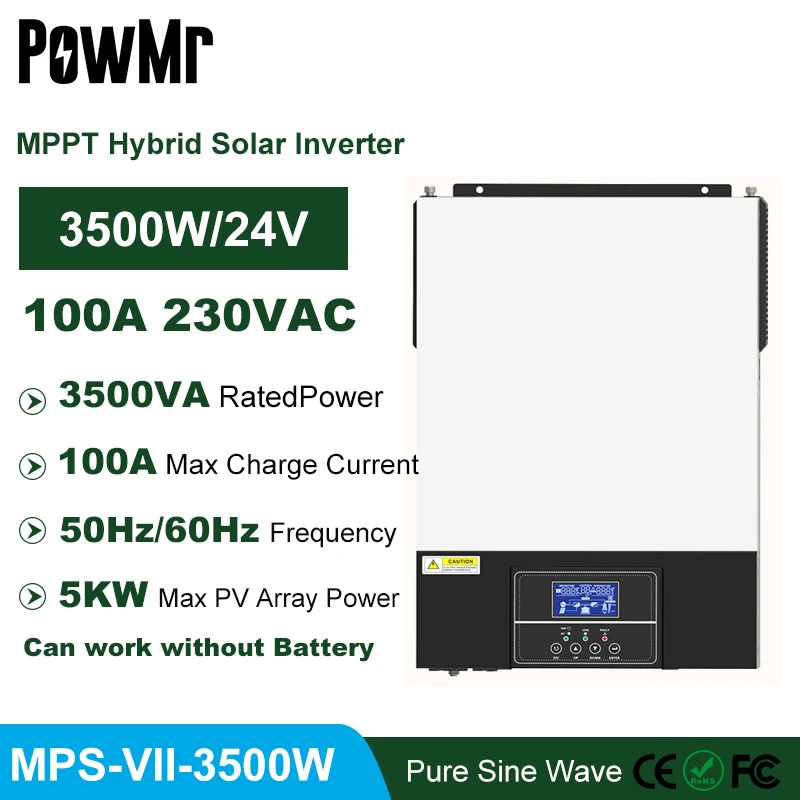

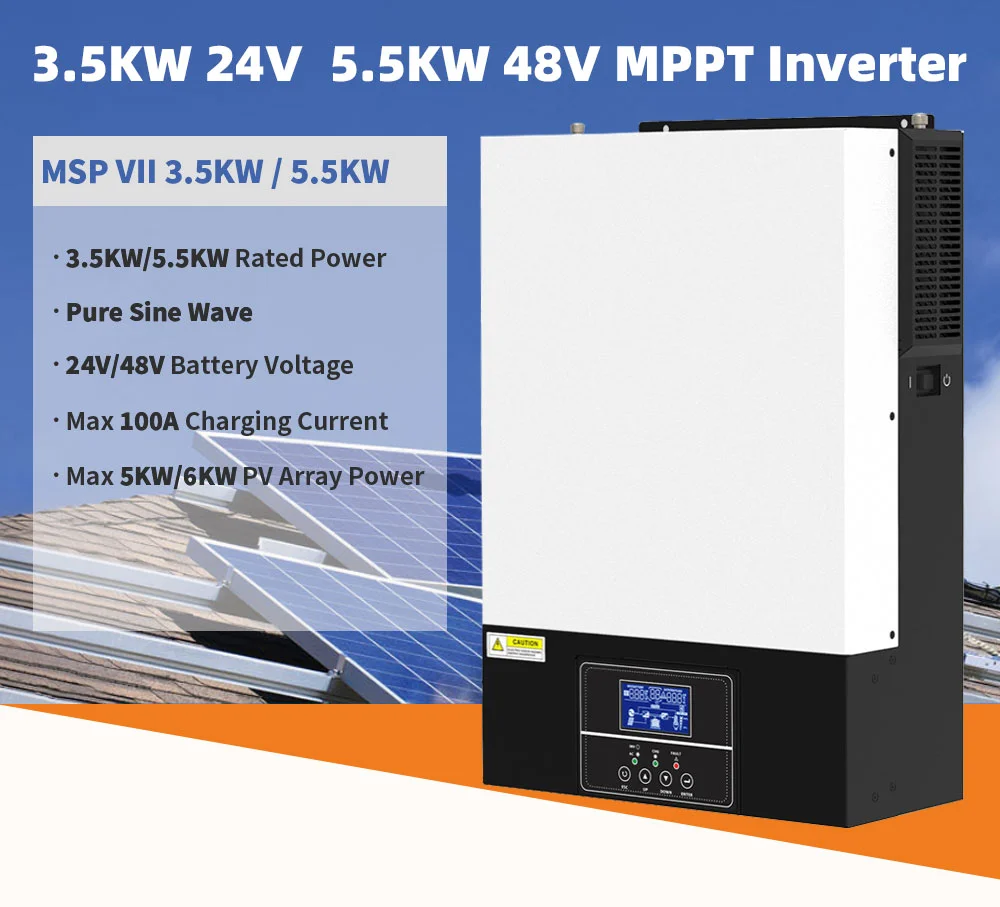

3.5KW 5.5KW 220VAC Solar Hybrid Inverter Charger MPPT Solar Charge Controller Max PV 500VDC can Charge Li Battery WIFI GPRS Monitor Optional
Brief Instruction

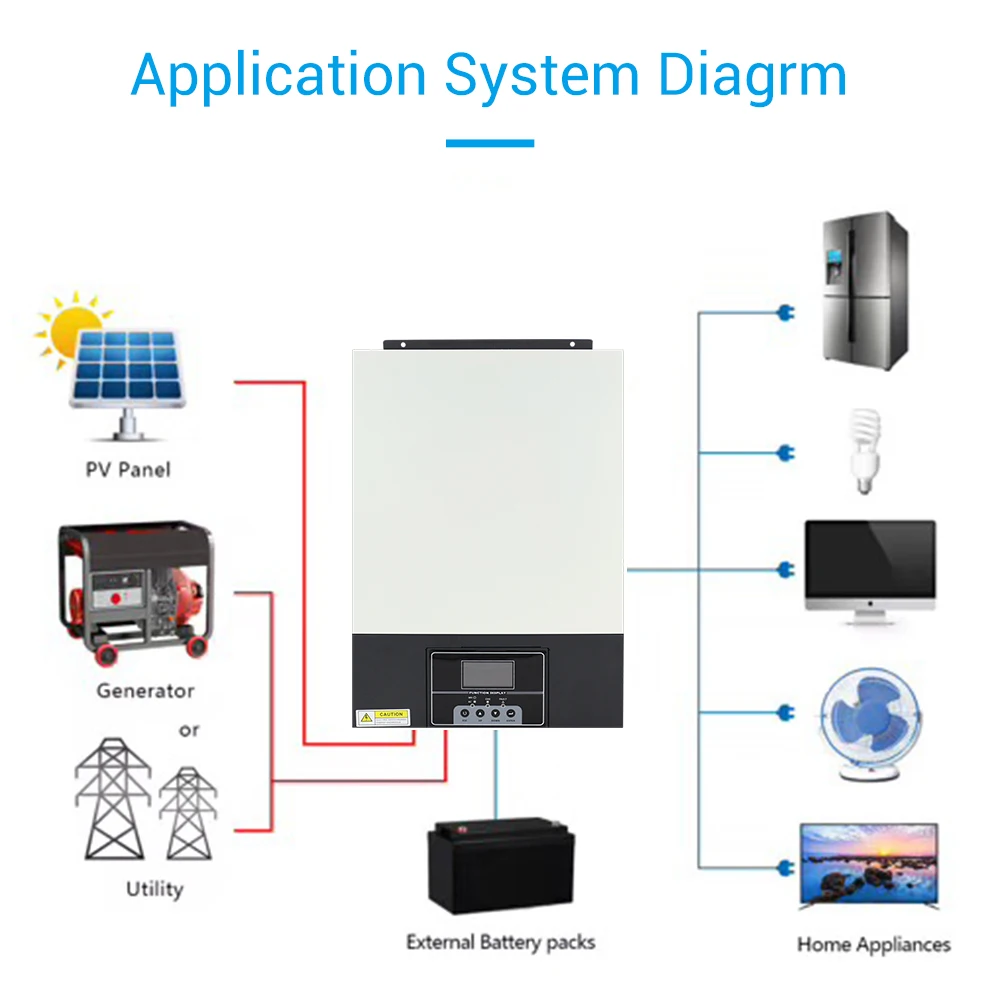

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications
NOTE 1: This is a wide voltage Hybrid inverter. The voltage that starts to connect to the solar panel must be above 150V for the Hybrid inverter to work normally.
NOTE 2: This Hybrid Inverter supports the WIFI function but without the WIFI Monitor.
Feature
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
PV Module Selection.
Specification

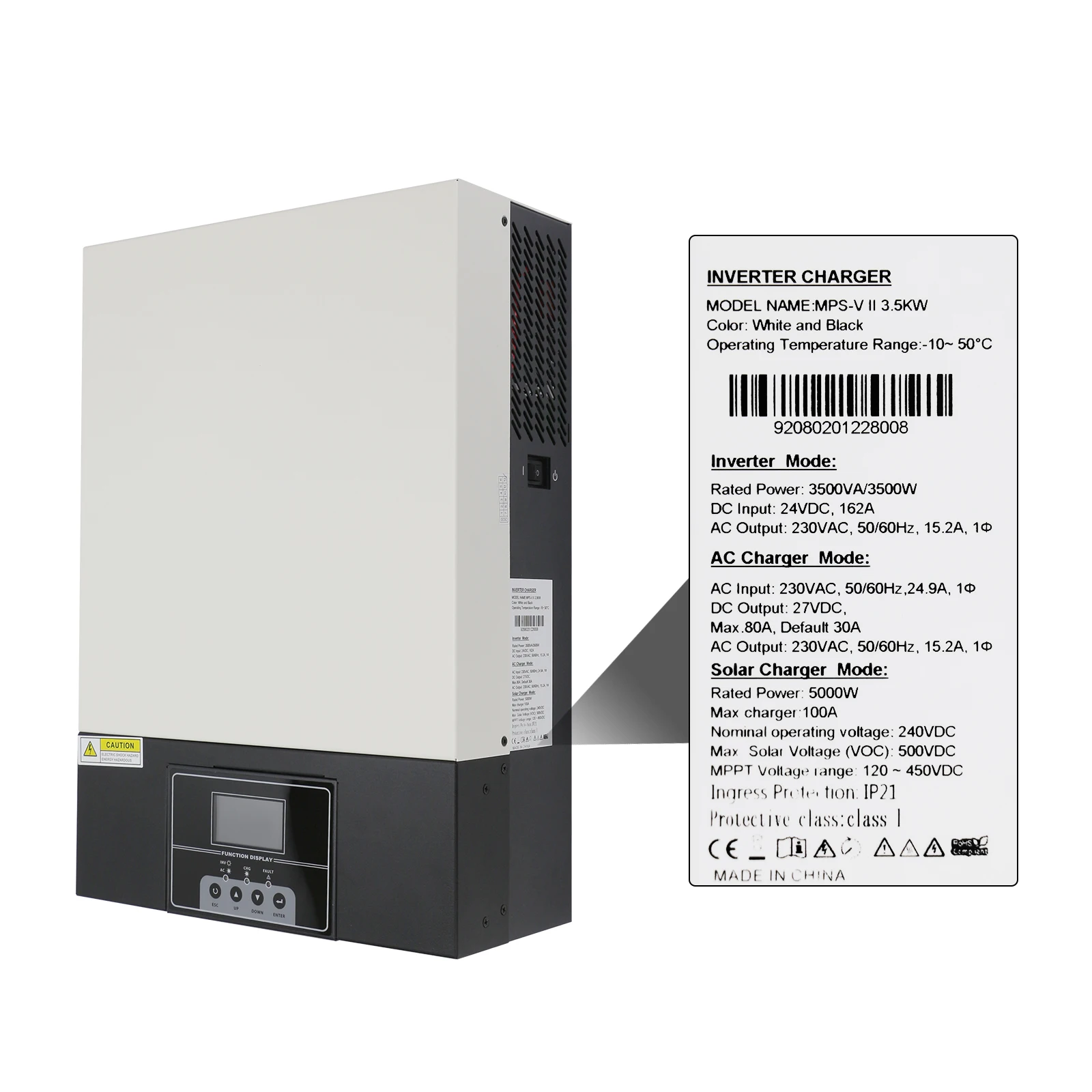

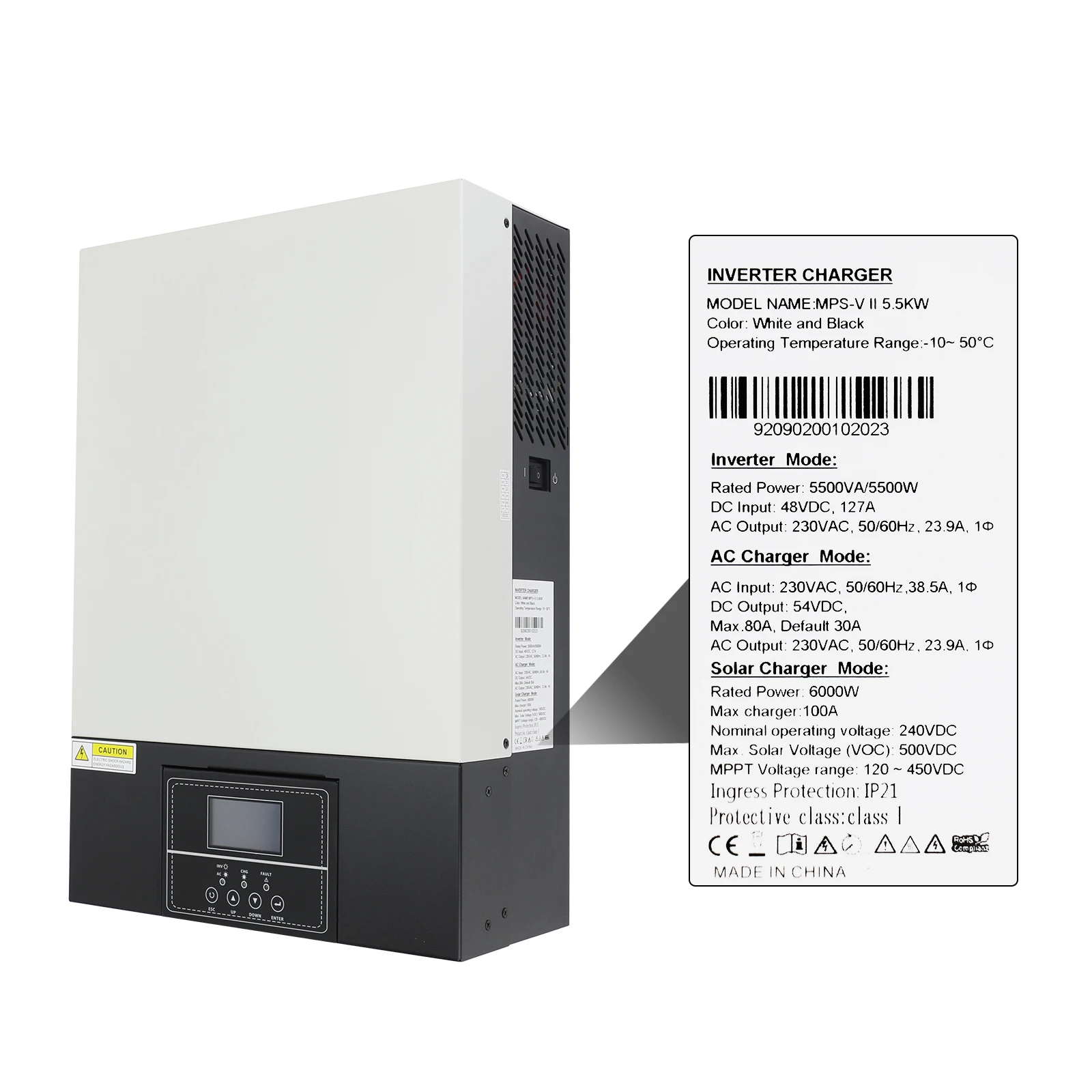

Model | MPS-VII-3500W-24V | MPS-VII-5000W-48V |
Rated Power | 3500VA/3500W | 5500VA/5500W |
Input | ||
Voltage | 230VAC | 230VAC |
Frequency Range | 50Hz/60Hz(Auto sensing) | |
Output | ||
AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |
Output Voltage Waveform | Pure Sine Wave | |
Transfer Time | 10ms(For Pensonal Computers); 20ms(For Home Appliances | |
Battery & AC Charger | ||
Battery Voltage | 24VDC | 48VDC |
Floating Charge Voltage | 27VDC | 54VDC |
Overcharge Protection | 33VDC | 63VDC |
Maximum Charge Current | 100A | 100A |
Solar Charger | ||
Maximum PV Array Power | 5000W | 6000W |
MPPT Range @ Operating Voltage | 120~450VDC | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Charging Current | 100A | 100A |
Maximum Efficiency | 98% | |
Physical | ||
Dimension,D*W*H(mm) | 138*302*440 | |
Net Weight(kgs) | 11.5 | 12.5 |
Communication Interface | USB/RS232/GPRS/WIFI | |
Operating Environment | ||
Mumidity | 5% to 95% Relative Humidity(Non~condensing) | |
Operating Temperature | -10℃~50℃ | |
Storage Temperature | -15℃~60℃ | |
Installation
Product Overviews
