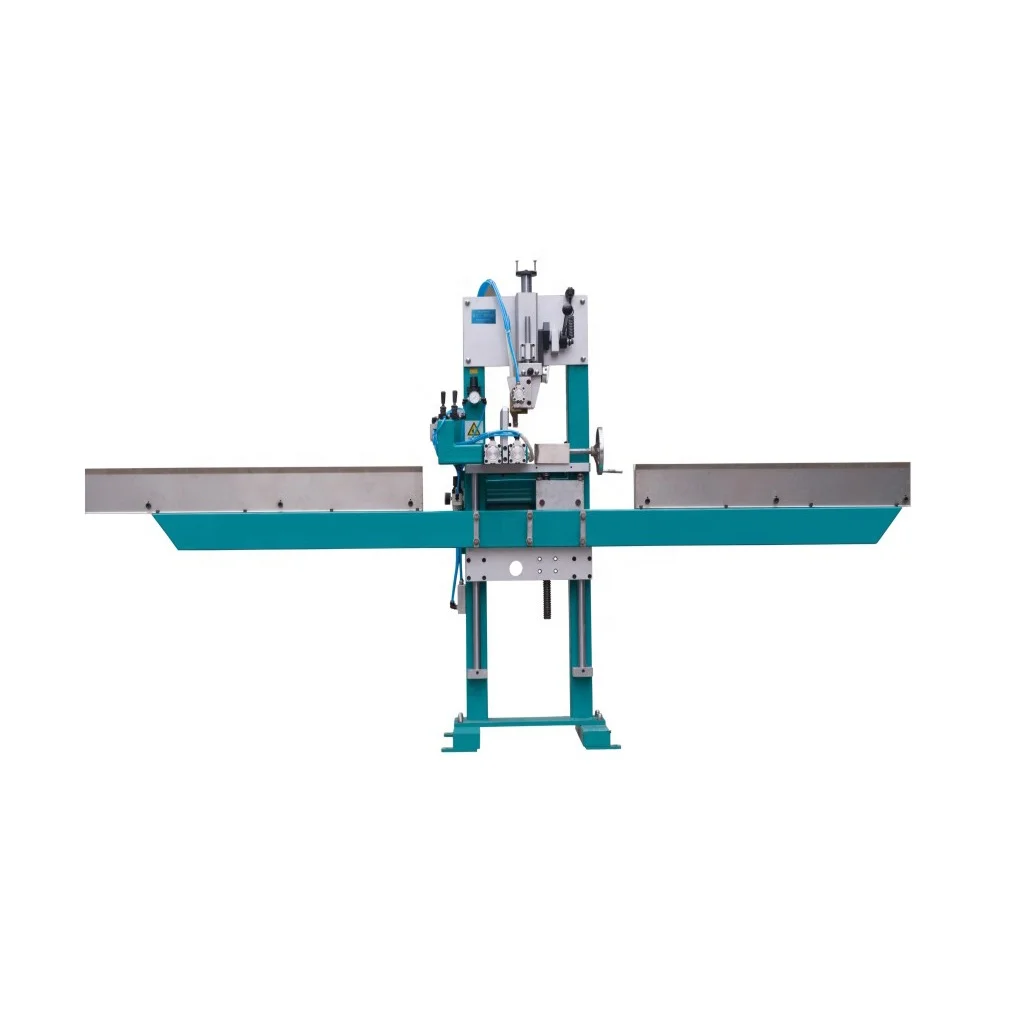

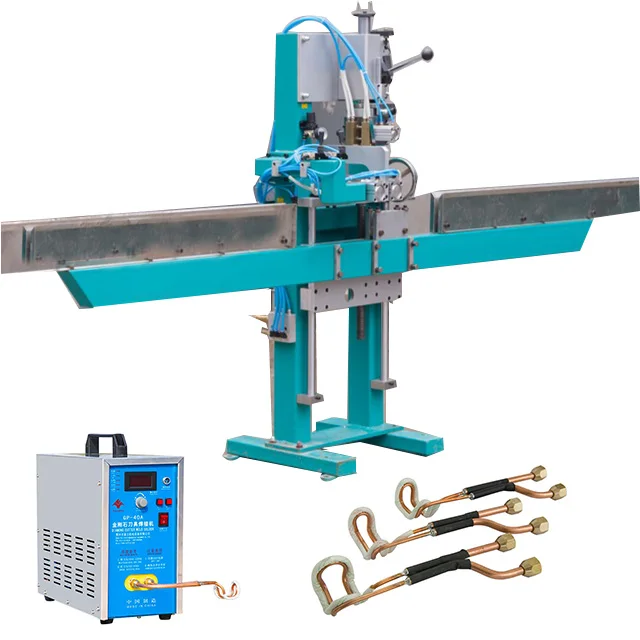

gangsaw segments induction brazing machine

 Features:

- The saw blanks are hold by dual cylinders , as to keep the welding precision also reduce the saw blanks’ stress damage during the welding .

- The segments clamp is mechanical centered , ensuring the symmetry and precision of the welding .

- Easy to operate , any healthy labor can be qualified to operate after simple training.





After-sale service:

·    12 months warranty period

·    Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we will provide replacement parts after detecting the faults.

·    If any big quality problems occurs during the guarantee period, we will send maintenance

·    technician to provide visiting service after checking with the customer and charge for a favorable price.

.   We provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.

. The above mentioned are only basic aftersale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.

Parameters:

Model	FL-PHHJ-200mm		Welding Rate	3-9s/pcs
Welding Range	Band saw Blades		Air Pressure	0.3-0.6Mpa
Verticality	less than ±0.3mm		Water Pressure	≥0.2mpa  flow 2-5L/min
Parallelism	less than ±0.3mm		Voltage	220v ,50Hz
Size	L1500*W850*H750MM		Net Weight	220KG

Other size of brazing application range upon to customers to be customized .
