Модернизированный электрический стартер дизельного генератора ChangZhou 20
- Категория: >>>
- Поставщик: Jiangsu,Jitian,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1556.84 $* | 1587.36 $* |
| Jul-18-2025 | 1262.24 $* | 1287.80 $* |
| Jun-18-2025 | 1531.4 $* | 1562.8 $* |
| May-18-2025 | 1519.94 $* | 1549.21 $* |
| Apr-18-2025 | 1213.27 $* | 1237.50 $* |
| Mar-18-2025 | 1495.73 $* | 1525.84 $* |
| Feb-18-2025 | 1482.16 $* | 1512.27 $* |
| Jan-18-2025 | 1470.58 $* | 1499.87 $* |
Характеристики

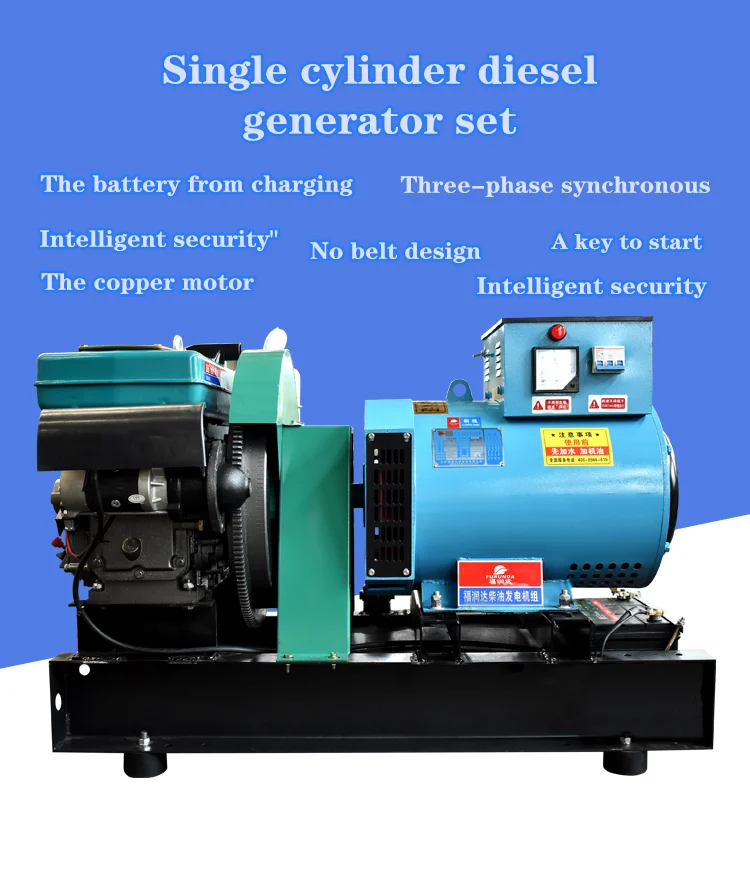

Product Description
New diesel New upgrade
1. one-button start
2. Copper motor
3. Battery self-charging
4. Three-phase ynchronization
5.Strapless design
6.Smart security
Generator parameters | Model | 20KW |
Rated frequency (HZ) | 50 | |
Rated voltage (V) | 380/220 | |
Standby power (KW) | 20KW | |
Common power (KW) | 16KW | |
Rated current (A) | 28 | |
Rated speed (r/min) | 1500 | |
DC transmission | 12V/60A | |
Phase | Three phase/single phase | |
Noise level [dB@7m] | 120 dB | |
Appearance size (L*W*H) (cm) | 140*70*95 | |
Net weight (kg) | 380 | |
Engine parameters | Matching engine model | XD25M |
structure type | Single cylinder water cooling | |
Bore and stroke (mm) | 115/120 | |
Displacement (ml) | 1250 | |
Engine speed (r/min) | 2200 | |
Compression ratio | 17:01 | |
Rated power (kw/r) | 15.7 | |
Lubrication system | Pressure splash | |
Lubrication grade | CD10W.30、CD15W-40 | |
Start the system | 12V start motor | |
Battery capacity | 12V/60AH | |
Fuel type | summer 0#；winter -10# | |
Fuel tank capacity (L) | 40L | |
Continuous working time (H) | 10h |
Carbon brush
The effect of carbon brush, is wanted by the operation of the motor rotor current, and with the slip ring connection piece of import on the rotor coil, carbon brush and alignment and smoothness of the connection, the size of contact area, affect their life and reliabilityDiesel fuel filter
Electric start suite.
Start the motor, the key switch, the self-charging rectifier, and the battery will be charged during the operation of the machine. "(Ordinary machines do not carry self-charging, and you have to buy a charger to charge the battery.)High flow air filter
Air filter can provide clean air for the inside of a machine, to avoid the floating dust suction cylinder in order to lead to the acceleration of the piston and cylinder wear and damage.
Cylinder block
We choose the cylinder block has a sturdy, long life, strong power, etc." Meet the needs of customers on the great degree.
Water tank, oil tank
Generating sets of tank and tank we adopt high quality material, to ensure the unit can be normal operation, to avoid the inferior materials and affect your use
