USB-кабель для зарядки паяльная машина USB-коннектор проводов Автоматическая фабричная производства кабеля передачи

Описание и отзывы

Трекер стоимости

Характеристики

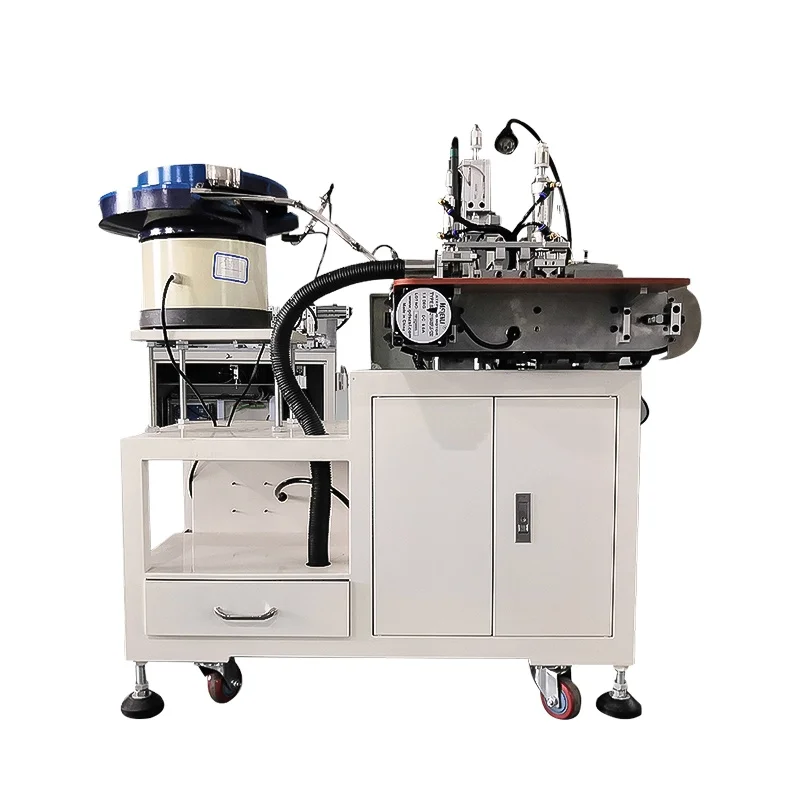

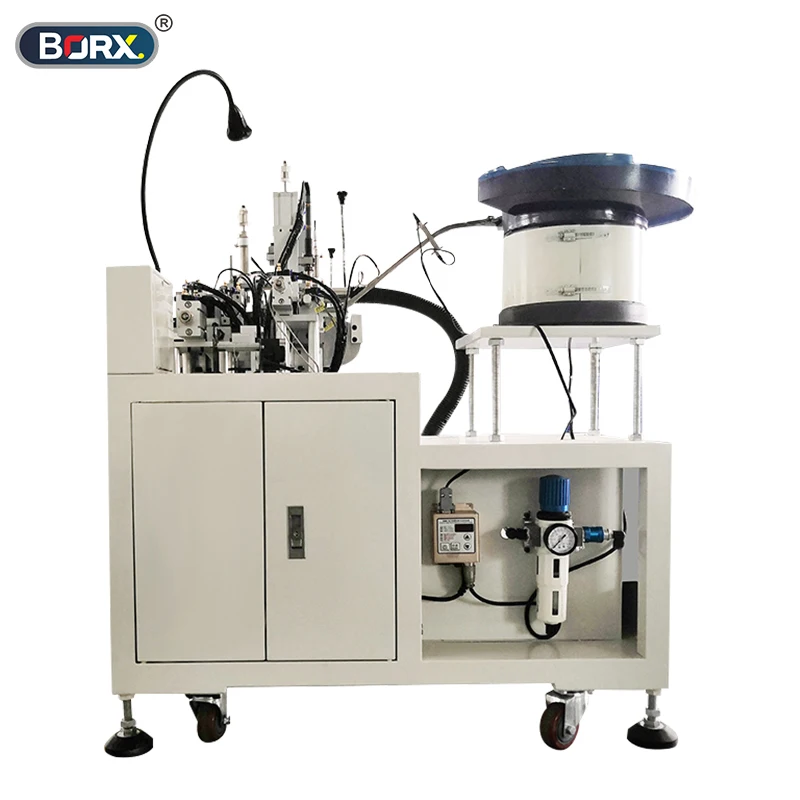

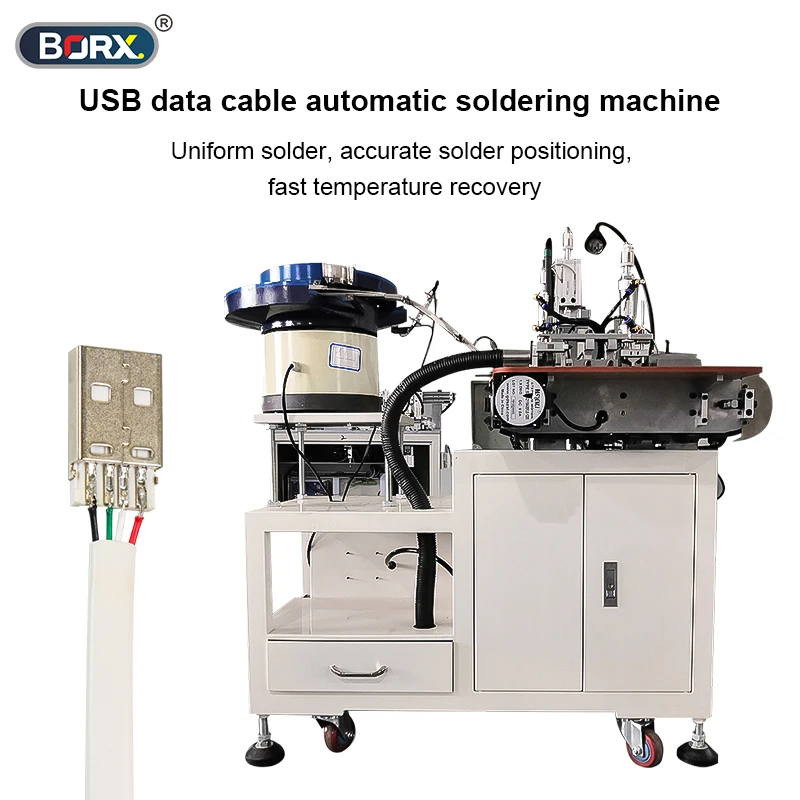

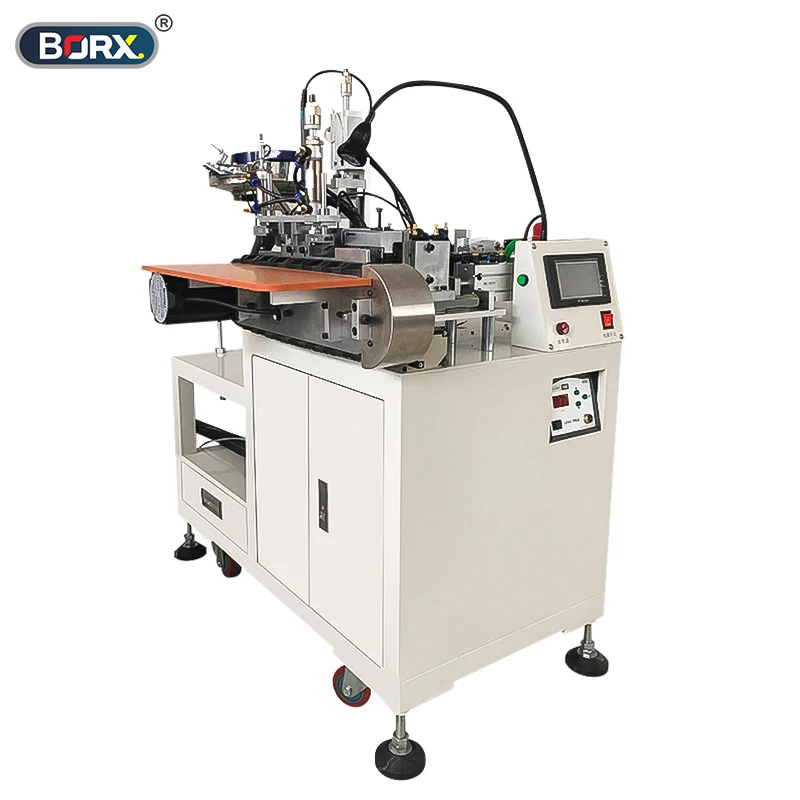

Automatic USB charging cable soldering machine USB wire connector soldering factory producing data cable machine

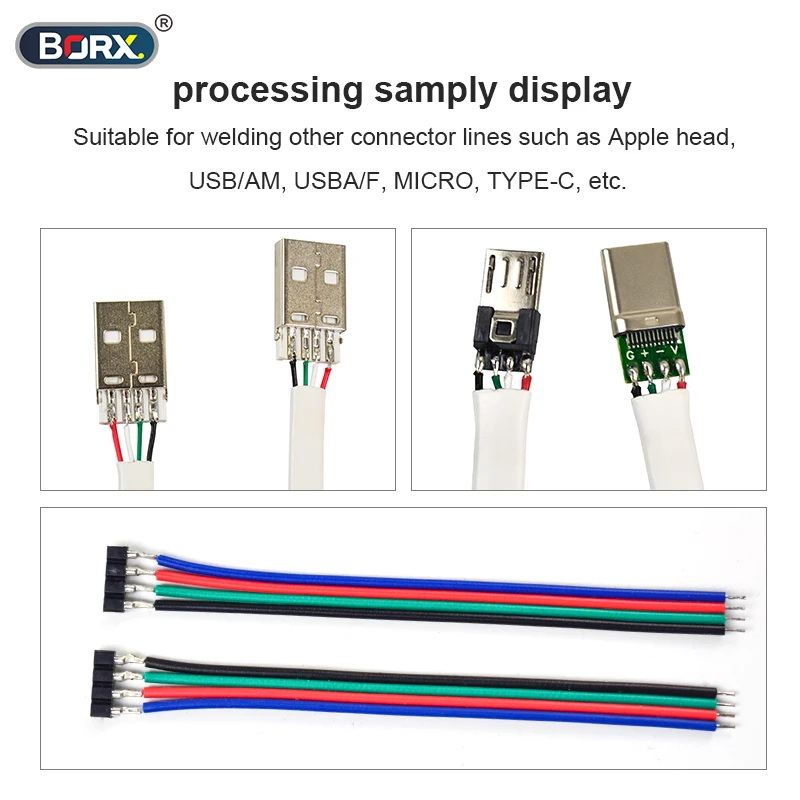

• This soldering machine is use for soldering  usb cable wire with different usb connectors.Just like  usb A , USB AM , Micro , Micro Female , Type c , lightning , 3in1 cable adapter


• Automatic feeding of vibrating disc, cutting, stripping and soldering all combine together Low defective and high efficiency .


• High productivity 1200-1500pcs/h, 4 times than soldering by hands, one machine can replace 4 workers.


• Taiwan airtac air cylinder, Japan Tsubiki chain, high stability of the machine, easy to operate


• Constant temperature soldering iron temperature display.


• BORX-06 is all debugged and used immediately after unpacking, easy to operate and can be directly operated on duty.

Name	USB automatic soldering machine
Power supply	220V
Type of welding terminals	Apple head, USB A/M, USB A/F, Mirco,  TYPE-C
Capacity	1200-1500pcs/h
Working pressure	0.4-0.8MPA
Detection device	Fiber inspection
Dimension	1100*600*1100
Weight	160KG
Warranty	1 Year
After-sales service	Engineers
