3D Marker CNC Metal Plastic Printer Logo Fiber Laser Engraving Printing Marking Machine 30W 50W
- Категория: Аппарат для лазерной гравировки >>>
- Поставщик: Liaocheng,Ray,Fine,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 682853.43 $* | 716996.74 $* |
| Aug-17-2025 | 677115.15 $* | 710971.25 $* |
| Jul-17-2025 | 568088.48 $* | 596492.61 $* |
| Jun-17-2025 | 665638.64 $* | 698920.56 $* |
| May-17-2025 | 579564.53 $* | 608542.71 $* |
| Apr-17-2025 | 654162.90 $* | 686870.74 $* |
| Mar-17-2025 | 648423.24 $* | 680844.26 $* |
| Feb-17-2025 | 642685.80 $* | 674819.83 $* |
| Jan-17-2025 | 636947.60 $* | 668794.41 $* |
Характеристики

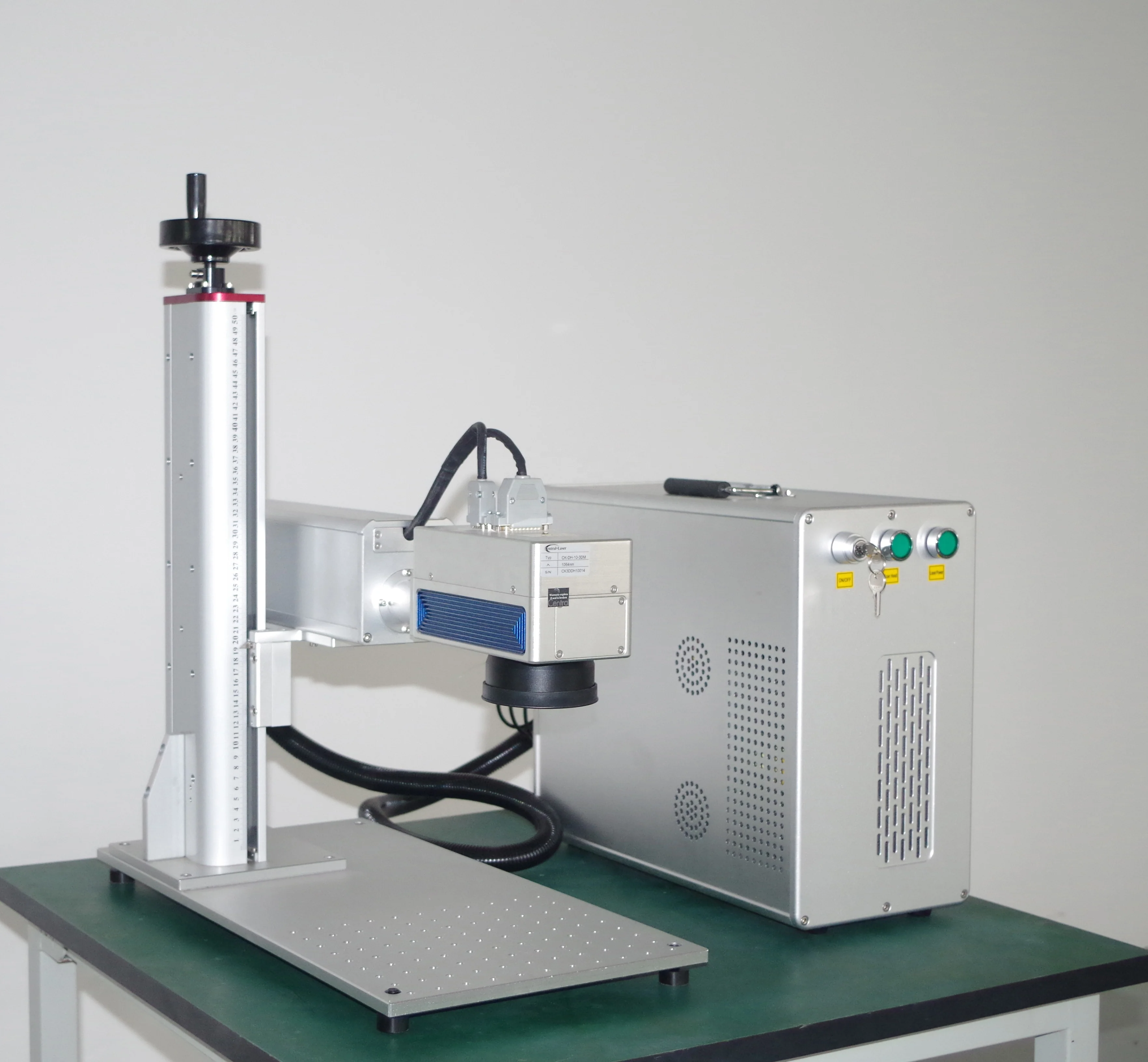

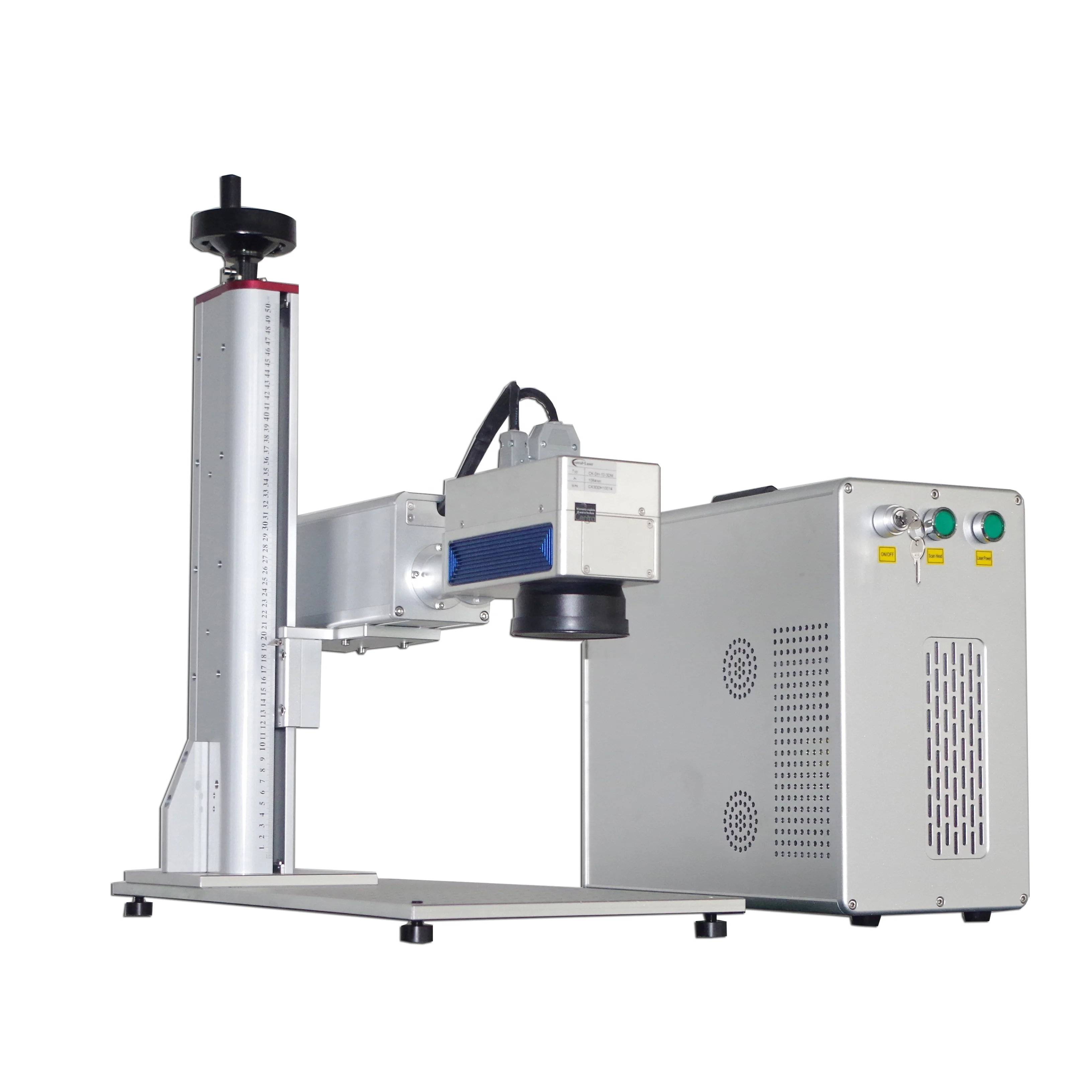

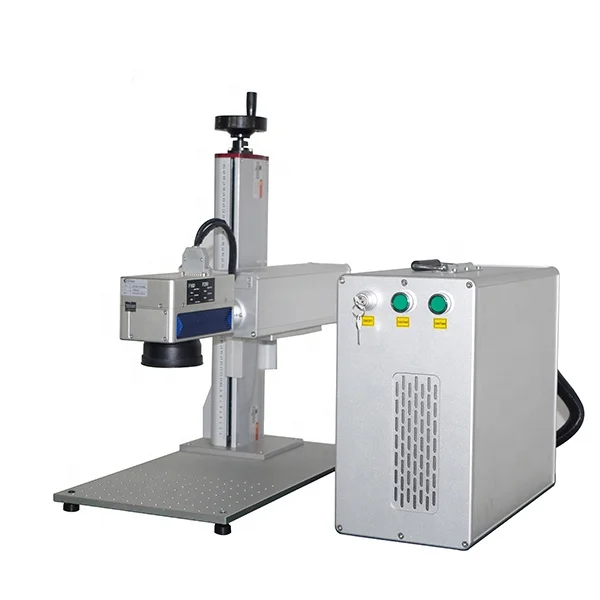

3D 30W 50W 60W laser marking engraving machine
Our advantage
![]()
3 axis dynamic focus system
It can automatically adjust the focal length of the laser beam in real time, so that the focused spot remains uniform at different positions on the surface of the processed workpiece, so as to achieve precise laser processing of 3D curved surfaces, and any pattern can be engraved.
![]()
High quality marking area
A single engraving range can reach 200mm×200x90mm large format, with more fine spots and good engraving effects
![]()
Control Foftware
The marking software is powerful and compatible with files from Coreldraw, AutoCAD, Photoshop and other software;
Support STL, PLT, PCX, DXF, BMP, etc., and SHX and TTF fonts can be used directly;
Support automatic encoding, printing serial number, batch number, date, barcode, QR code, automatic number skipping, etc.
Machine parameters
![]()
Model | RF-3D-30W / RF-3D-50W / RF-3D-60W | ||||
Laser type | Fiber laser | ||||
Laser source | China JPT | ||||
Laser Wavelength | 1064nm | ||||
Max Single pulse energy | 0.8~1.5 mj | ||||
Marking speed | 7000mm/s | ||||
Marking area | 100*100*30mm and 200*200*90mm | ||||
Control software | MM3D software on XP/WIN7/WIN8/WIN10 | ||||
Working voltage | AC220V 50HZ, AC110V 60HZ | ||||
Cooling type | Air cooling | ||||
Operating parameter | 0-40℃ | ||||
Machine weigh | 60KG | ||||
Detailed Images
![]()
![]()

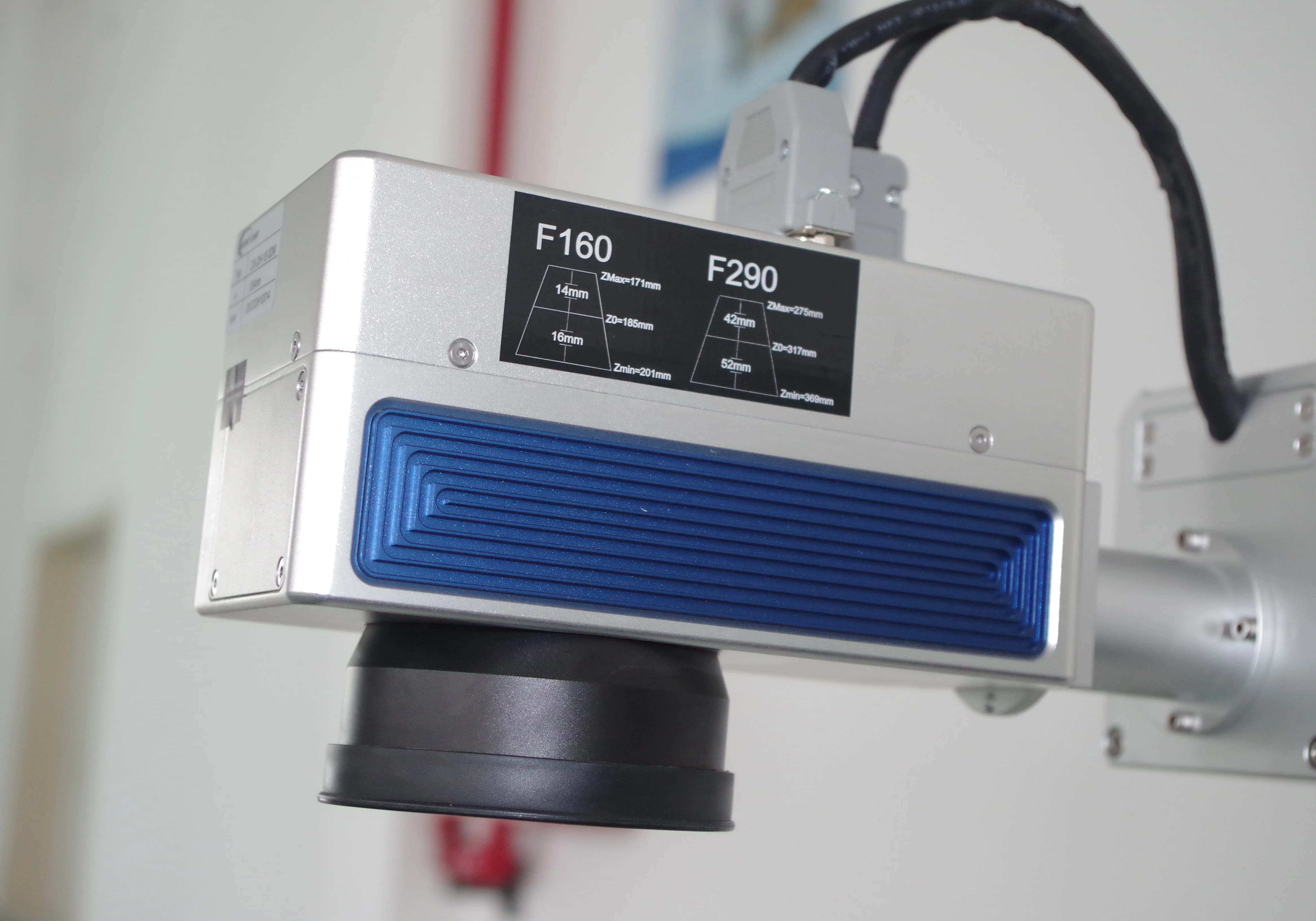

3D laser scanning head
High speed scanning, High precision, High stability working
![]()
![]()
JPT laser Advantages
1. JPT LP series is a fiber laser that uses a direct electrical modulation semiconductor laser as a seed source (MOPA) solution.
2. JPT LP series has perfect laser characteristics and good pulse shape control ability.
3. Compared with Q-switched fiber lasers, the LP series lasers have more flexibility, can achieve lower and higher frequencies, and have a smaller opening delay.
4. Compared with the M series products, the seed source uses waveform compensation, the amplified pulse distortion is corrected, and the output pulse energy is higher.
Sample show

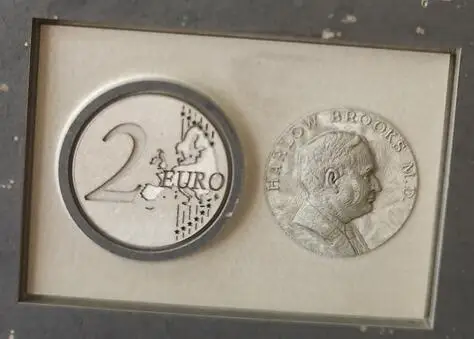

Engraved metal
Engraving plastic

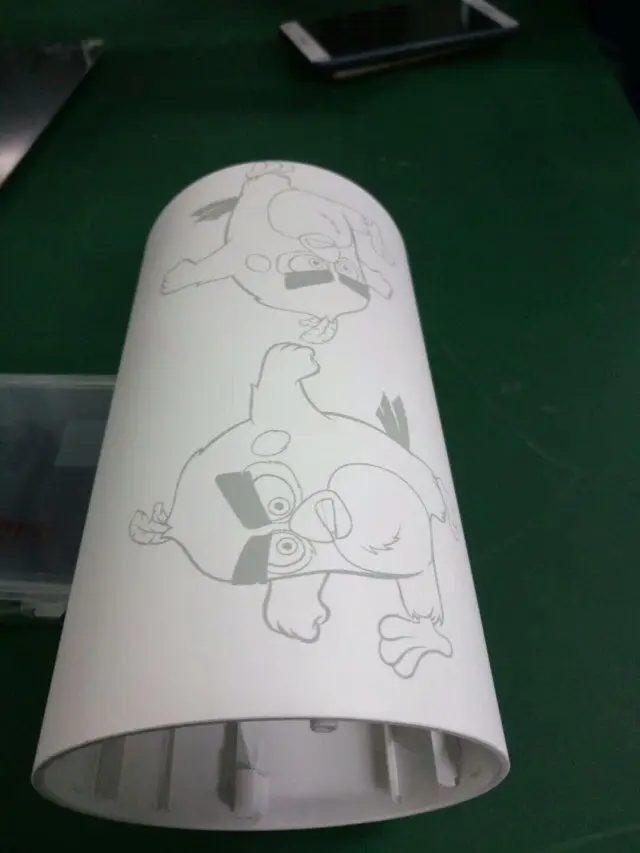

Curved Surface marking
Metal deep engraving
Mold carving
![]()
![]()
![]()
![]()
![]()
![]()
Package and Shipping
![]()
![]()
![]()
Shipping way : FedEx / TNT / DHL , air shipping to door
1.Free accessories
2.Clean the machine and disinfect it
3.Wrap the machine with a waterproof membrane
4.Wrap the machine with pearl cotton
5.Plywood wooden case packing machine
Optional Accessories
Small jewelry rotary $200USD
For carving jewelry rings and bracelets
80mm rotary $200USD
For carving cylinders and ring curved surfaces
Pen rotary table $300USD
Manual XY table $150USD
