Product Description
Product Application
Open type fixed table for machine body, compact structure,beautiful outlook and high rigidity;
Turn-key type rigid clutch,flexible movement and reliable performance, double key structure for 100T and plus to effectively
overcome the bounce that happened in the course of stamping;
Crankshaft arranged in horizontal direction, simple structure and conveninet for adjustment and maintenance;
Crank-down type protective device to prevent damage of machine tool due to overload;
Rectangular hexagon guide rails for 125T plus,high precision in guiding;slide block fitted with balancing device for 80T plus to
enhance the stability and precision of machine tools;
Electrical adjustment for die set height for 200T plus,digital display,convenient for adjustment and high precision.
Turn-key type rigid clutch,flexible movement and reliable performance, double key structure for 100T and plus to effectively
overcome the bounce that happened in the course of stamping;
Crankshaft arranged in horizontal direction, simple structure and conveninet for adjustment and maintenance;
Crank-down type protective device to prevent damage of machine tool due to overload;
Rectangular hexagon guide rails for 125T plus,high precision in guiding;slide block fitted with balancing device for 80T plus to
enhance the stability and precision of machine tools;
Electrical adjustment for die set height for 200T plus,digital display,convenient for adjustment and high precision.
Parameters | J23-6.3 | J23-10 | J23-16 | J23/J21-25 | J23/J21-40 | J23/J21-63 | J23/J21-80 | J21-100 | J21-125 |
Nominal pressure | 63KN | 100KN | 160KN | 250KN | 400KN | 630KN | 800KN | 1000KN | 1250KN |
Nominal pressure stroke | 2mm | 2mm | 2mm | 2.5mm | 6mm | 6mm | 7mm | 7mm | 8mm |
slide stroke | 35mm | 45mm | 55mm | 65mm | 90mm | 110mm | 120mm | 140mm | 150mm |
stroke frequency | 170 times/min | 145 times/min | 120 times/min | 55 times/min | 45 times/min | 50 times/min | 38 times/min | 38 times/min | 35 times/min |
Die height | 150 mm | 180 mm | 220 mm | 270 mm | 320 mm | 360 mm | 440mm | 480mm | 500mm |
Die height Adjustment | 30mm | 35mm | 45mm | 55mm | 65mm | 80mm | 90mm | 100mm | 100mm |
Distance between slider center and machine | 110 mm | 130 mm | 160 mm | 200 mm | 350 mm | 260 mm | 350mm | 380mm | 390mm |
Vertical columns distance | 150 mm | 180 mm | 220 mm | 270 mm | 340 mm | 350 mm | 450 mm | 560mm | 550mm |
Slider bottom size | 140*120mm | 170*150mm | 220*180mm | 250*220mm | 300*220mm | 300*260mm | 430*360mm | 540*480mm | 540*480mm |
Size of handle hole | 30*55mm | 30*55mm | 40*60mm | 40*60mm | 50*70mm | 50*70mm | 60*75 mm | 60*75 mm | 60*75 mm |
Size of worktable | 310*200mm | 370*240mm | 450*300mm | 560*370mm | 700*460mm | 760*480mm | 950*650mm | 1080*710mm | 1100*720mm |
Thickness of worktable | 20mm | 35mm | 40mm | 50mm | 65mm | 80mm | 100mm | 120mm | 130mm |
Max.inclination angle | 45° | 35° | 35° | 30° | 30° | 30° | 20° | 15° | 13° |
worktable height | 750mm | 730mm | 750mm | 800mm | 850mm | 810mm | 850mm | 850mm | 860mm |
Size | 780*620*1530mm | 900*665*1658mm | 1150*847*1910mm | 1345*950*2130mm | 1721*1335*2488mm | 1810*1350*2740mm | 2060*1715*3290mm | 2254*1790*3625mm | 2200*1790*3590mm |
power of electric motor | 0.75 KW | 1.1KW | 1.5KW | 2.2KW | 5.5KW | 5.5KW | 7.5KW | 11KW | 11KW |
weight | 420KG | 595KG | 1095 KG | 1830 KG | 3600 KG | 4200 KG | 8020KG | 10800 KG | 12000 KG |

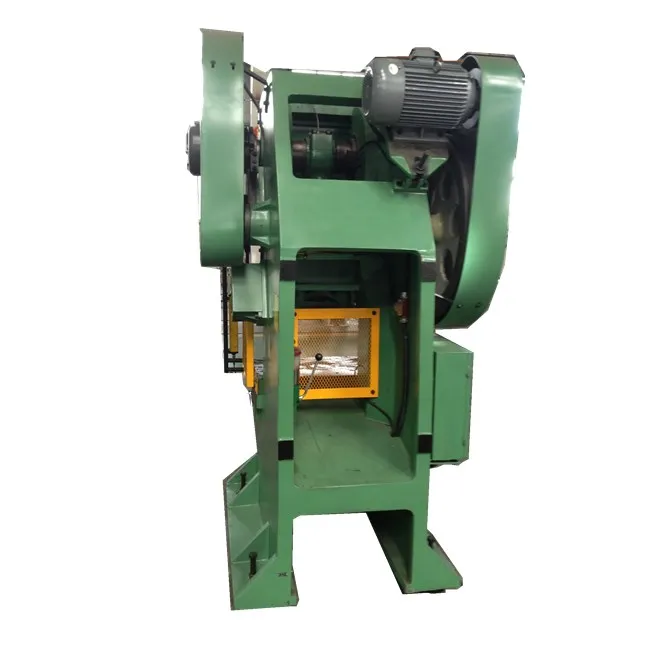

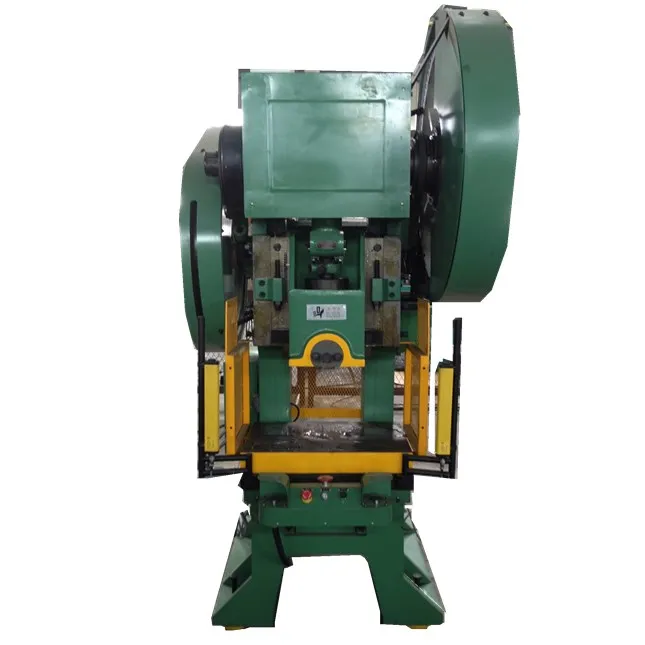

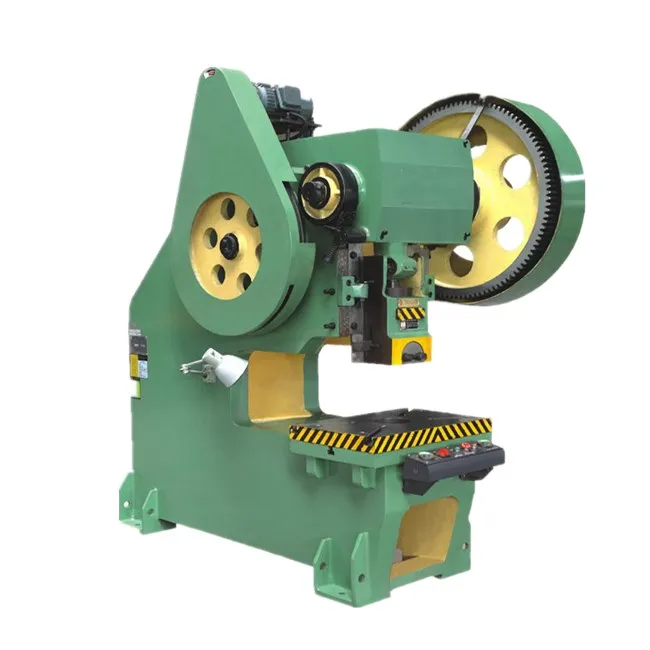

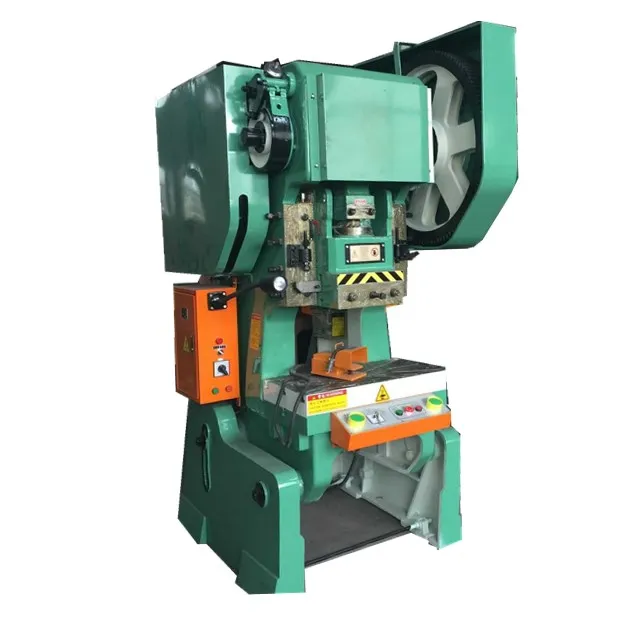

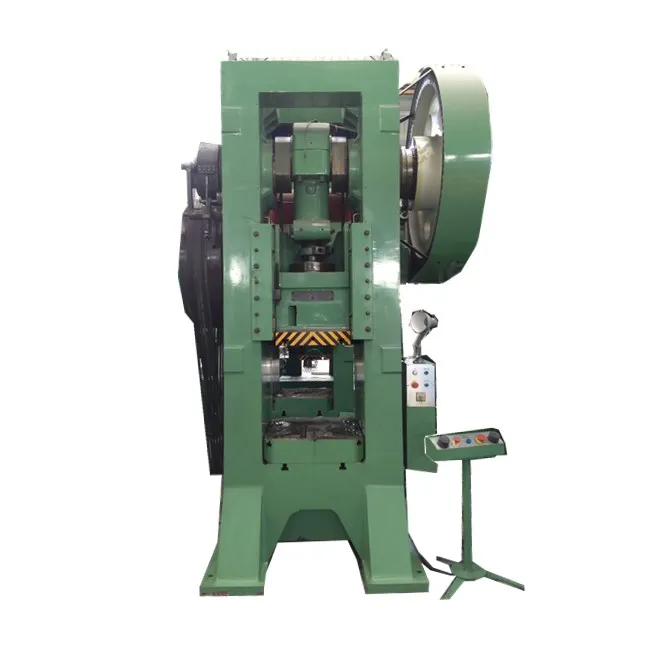

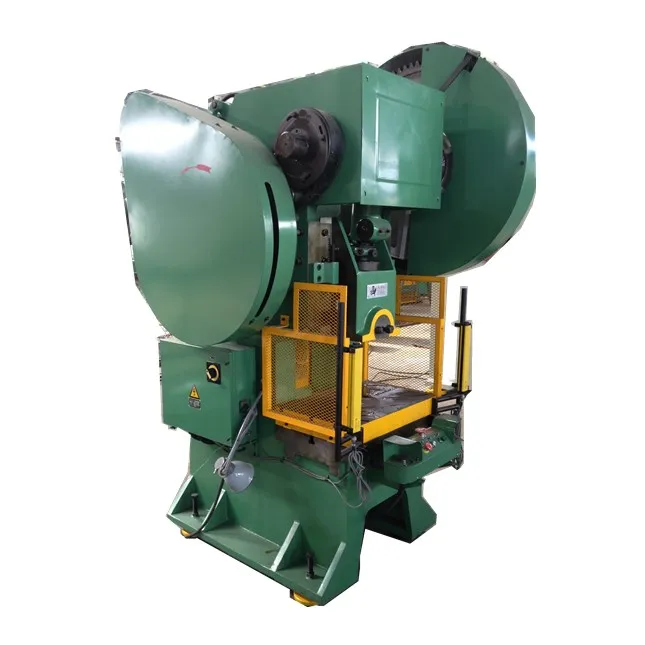

Machine Detalies
Company Profile
BESCO started Production of CNC equipment began in 1997,and matched production linefrom 2002.
And all the times our company put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include:
Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers" as our target, hope to create the best future with old and new customers.
And all the times our company put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include:
Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers" as our target, hope to create the best future with old and new customers.
Certifications
Factory Photo
Our Advantages
1. Our guarantee time is one year, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely.
2. Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.
2. Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer.
