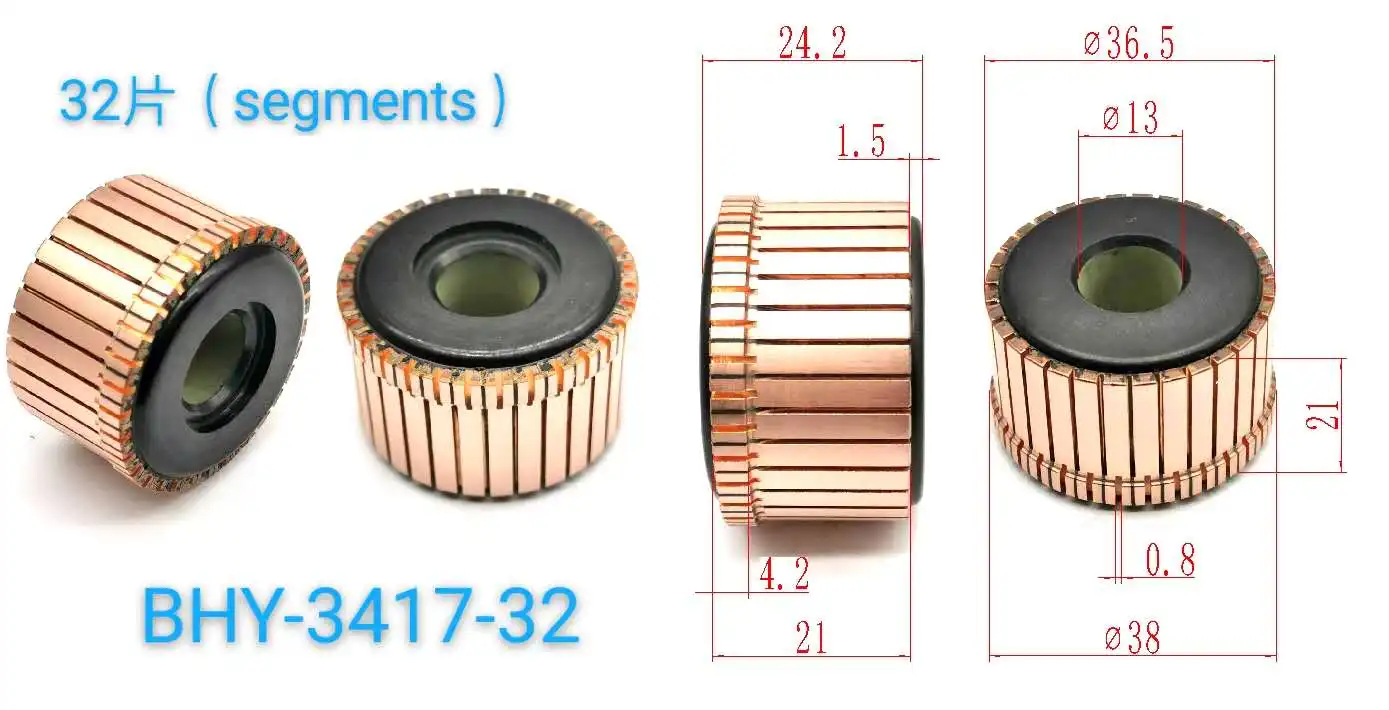

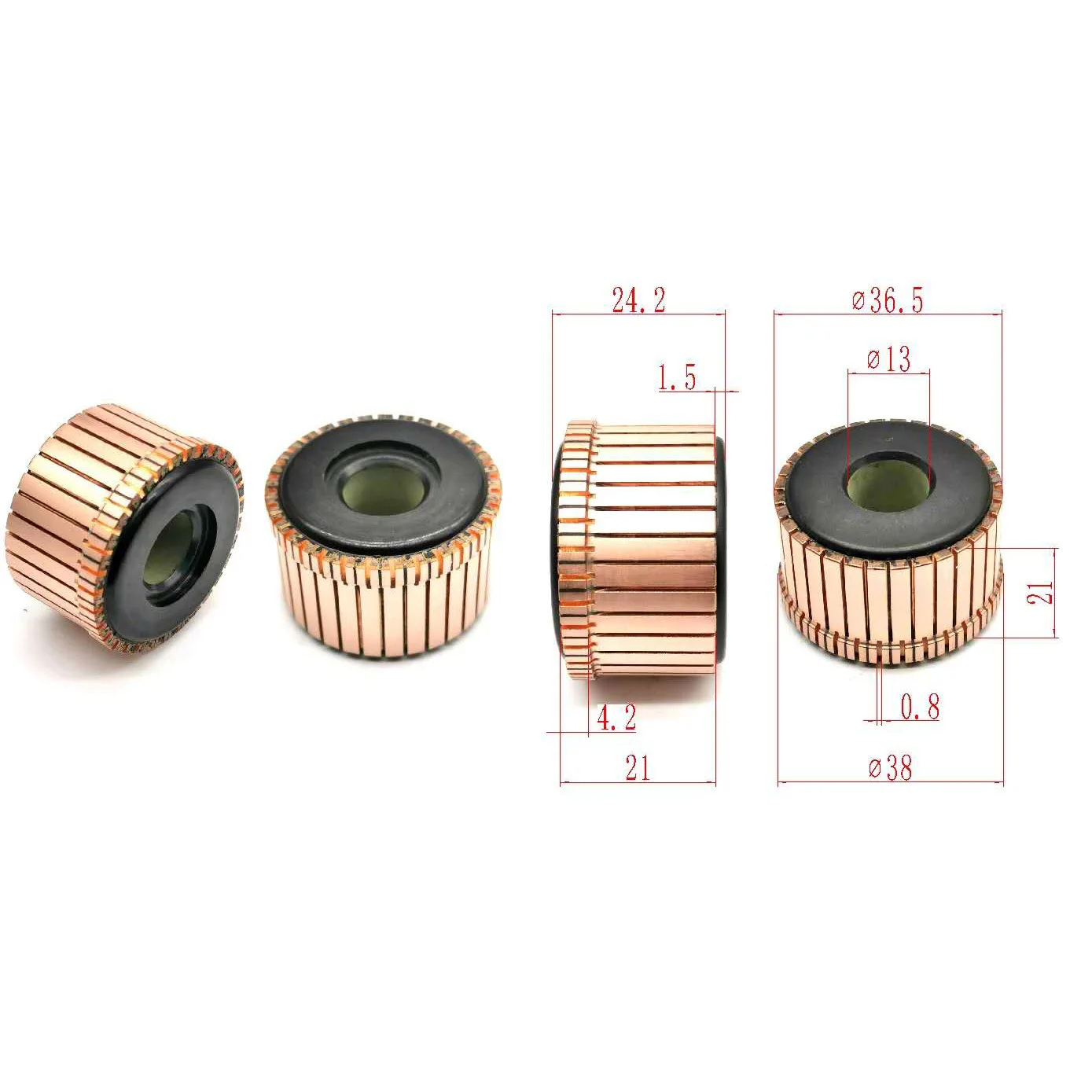

OD36.5 * ID13 H24.2-32 паз коммутатор для электрического сверла Электроинструмент. Высокое качество и бесплатные
- Категория: Other Motor Accessories >>>
- Поставщик: Nantong,Bestar,Auto,Parts,Co.,ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.46 $* | 1.70 $* |
| Jul-16-2025 | 1.88 $* | 1.37 $* |
| Jun-16-2025 | 1.54 $* | 1.69 $* |
| May-16-2025 | 1.6 $* | 1.62 $* |
| Apr-16-2025 | 1.73 $* | 1.18 $* |
| Mar-16-2025 | 1.85 $* | 1.52 $* |
| Feb-16-2025 | 1.4 $* | 1.74 $* |
| Jan-16-2025 | 1.41 $* | 1.22 $* |
Характеристики
products description
Technical parameter
Material | 0.03% or 0.08%silver/ Copper/ bakelite CN6551 | ||||
Structure | Segmented hook/ groove commutator | ||||
Usage | AC/DC motor spare parts | ||||
Voltage | 12V 24V 48V 60V | ||||
Sample | Free(In Stock ) | ||||
Delivery | 5-30 wokingdays | ||||
Packing | Plastic box/carton/pallet/customized | ||||
Term of trade | FOB shanghai/ ningbo/....... | ||||
Transport | By sea/ air/ train/Fedex/Dhl...... | ||||
Payment | T/T ,paypal ,western union...... | ||||
Production capacity | 1,000,000pcs/month | ||||
Service& Warranty | Best service for all customers, with 12 months' warranty | ||||
1. To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole(depth 1.4± 0.1, width 0.5± 0.05 ) should be tolerated. | ||||||
2. Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1 min, there will be no breakdown or sparl. | ||||||
3. Spin Test: Under 180±2 ℃ , 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003. | ||||||
4. Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V. | ||||||
Product Uses
1.Commutator for household machines : hair dryer, mixer, vacuum cleaner, washing machine, source juice machine whisk, juicer, soymilk, and for other household appliances
2. commutator for automotive motor industry:Starting , generator , Wiper , Air conditioner , electric window driving , Seat adjustment , Mirror motor , Electronic brake , Radiator fan , electronic steering, headlight steering , Blower fan,heater fan Cooling water tank radiator ,and for other auto eletronic machines .
3.Commutator for power tools : Weeding machine, electric drill, angle grinder, electric saw, hammer, cutting machine, electric saw, planer and for other electrical tools .
4. Commutator for other industry : Pump, car batteries, motorcycle, yacht pumps, toys, electric door, fitness equipment, aerial photography and so on.
