Горячая Распродажа автоматический Пробивной станок с револьверным отверстием для металлического
- Категория: Punching Machines >>>
- Поставщик: Maanshan,Durmapress,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 62475.3 $* | 65599.81 $* |
| Aug-17-2025 | 61950.0 $* | 65048.43 $* |
| Jul-17-2025 | 51975.73 $* | 54574.78 $* |
| Jun-17-2025 | 60900.86 $* | 63945.70 $* |
| May-17-2025 | 53025.93 $* | 55676.50 $* |
| Apr-17-2025 | 59850.39 $* | 62843.47 $* |
| Mar-17-2025 | 59325.32 $* | 62291.74 $* |
| Feb-17-2025 | 58800.72 $* | 61740.75 $* |
| Jan-17-2025 | 58275.70 $* | 61189.80 $* |
Характеристики
Product Description

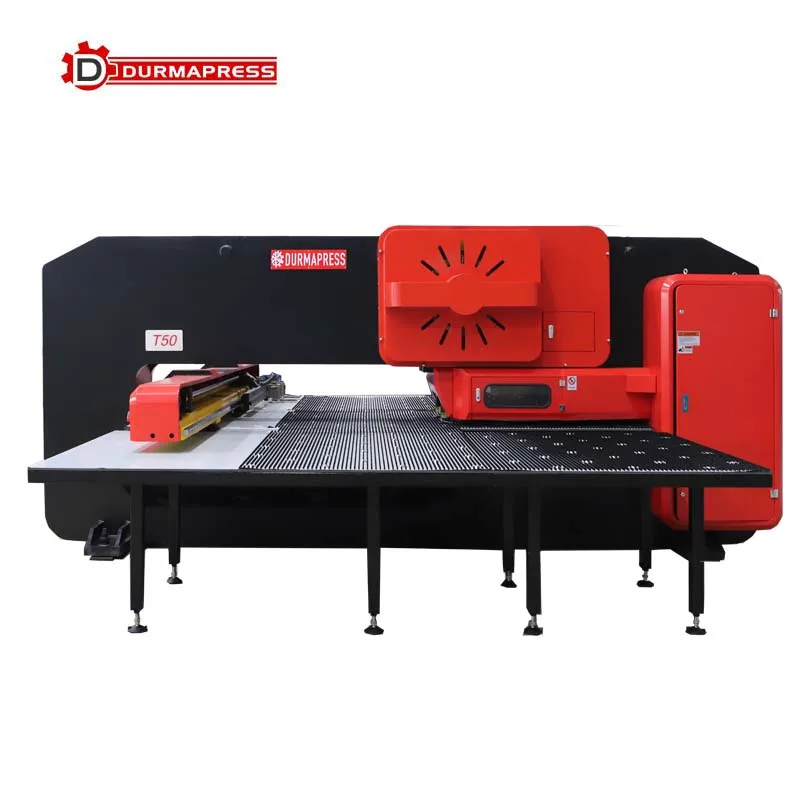

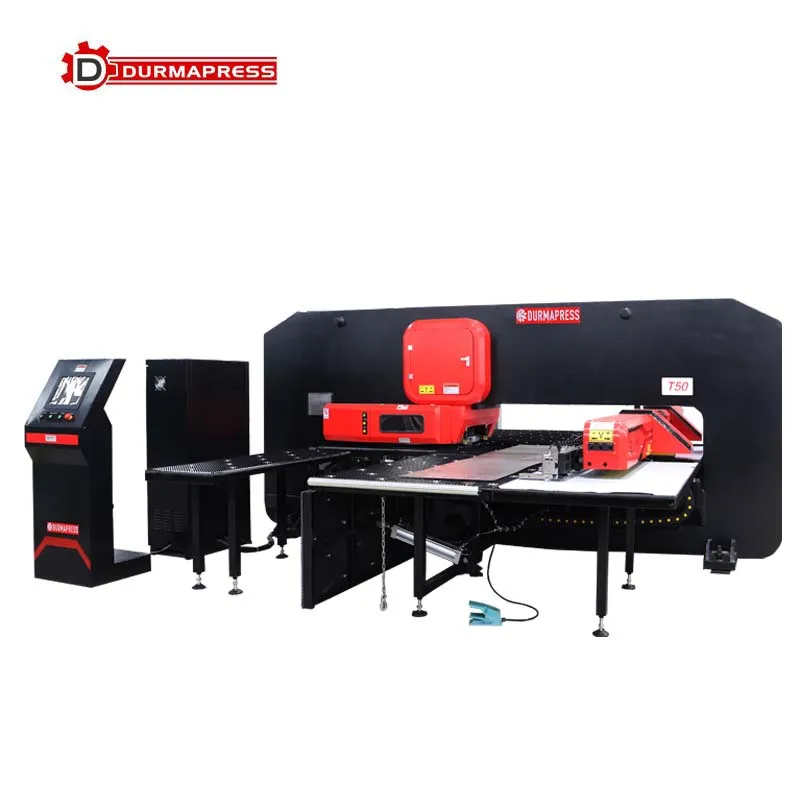

CNC Turret Punch Press Machine
T30series turret punch press optimal choice for customers who want a fully functional turret punch machine with a very
attractive price. It has various functions such as punching, forming, marking, and so on.
The large lead balls crew and linear guide way of high precision are equipped for driving.
The CNC system of the first-class internationally ensures the reliability.
Clutch with international quality ensures the high reliability of the machine.
The imported main pneumatic components with famous brands consummate the quality.
The turret with the bushing is processed in pairs to make sure the coaxiality of the punch and die, so the service life of the
tooling together with the turret is largely extended.
attractive price. It has various functions such as punching, forming, marking, and so on.
The large lead balls crew and linear guide way of high precision are equipped for driving.
The CNC system of the first-class internationally ensures the reliability.
Clutch with international quality ensures the high reliability of the machine.
The imported main pneumatic components with famous brands consummate the quality.
The turret with the bushing is processed in pairs to make sure the coaxiality of the punch and die, so the service life of the
tooling together with the turret is largely extended.
Model | 300 | ||||
Punch force | 300 | KN | |||
Transmission | Mechnical | ||||
Max.sheet size | 1250*5000 | MM | |||
Max.sheet thickness | 6.35 | MM | |||
Max.punching stroke | 32 | MM | |||
Turret Station | 16A 10B 2C 2D | PCS | |||
Turret Speed | 30 | RPM | |||
Overall Dimension | 4800*5200*2300 | MM | |||
CNC Controller System
Processing graphics real-time display,
convenient and intuitive
high integration, data reading
fast transmission
strong anti-jamming ability.
Main Features
1) Mechanical transmission
2) 16/24/32 stations for optional
3) large and seamless working table
4) "O" type mono-block rigid body structure.
5)Minimum energy consumption.
2) 16/24/32 stations for optional
3) large and seamless working table
4) "O" type mono-block rigid body structure.
5)Minimum energy consumption.
Detailed Images

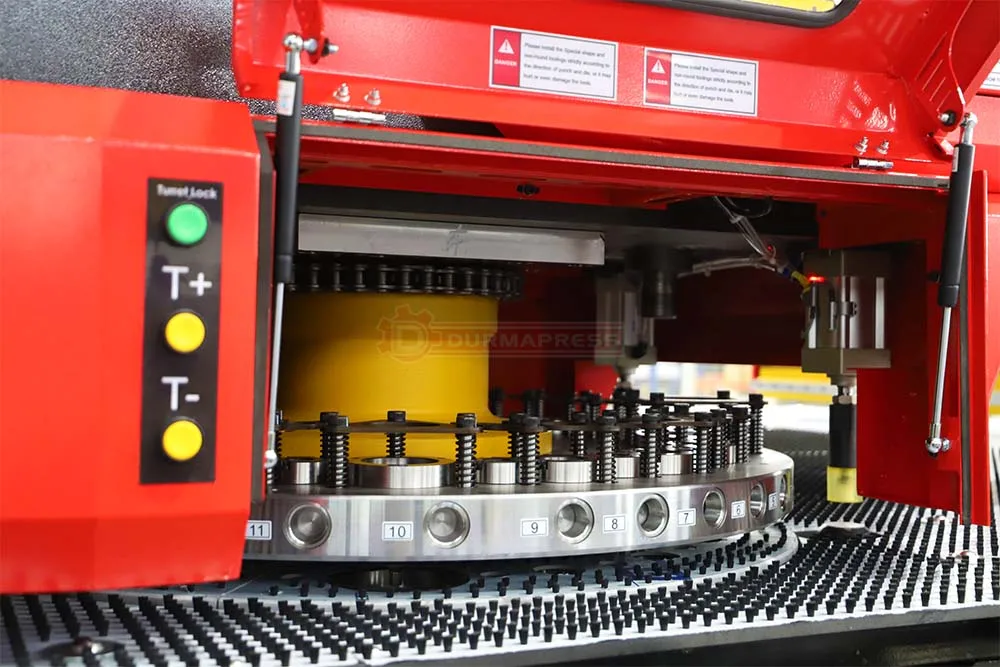

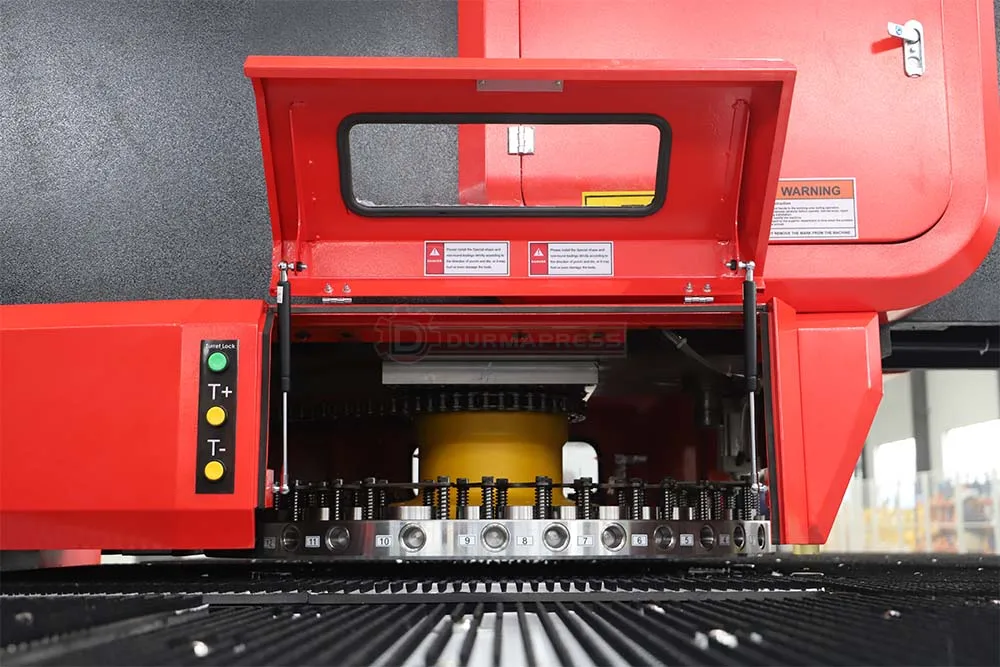

Turret Punch Moulds
A tool station in a punch press that rotates.Any time you rotate a punch and die to an angle within a 360 degree range
Standard Brush Worktable With Steel Balls
Adopt high density soft brush ,ensure the material move stably with low noise ,and reduce scratching equipped with steel balls ,prolonging the service life

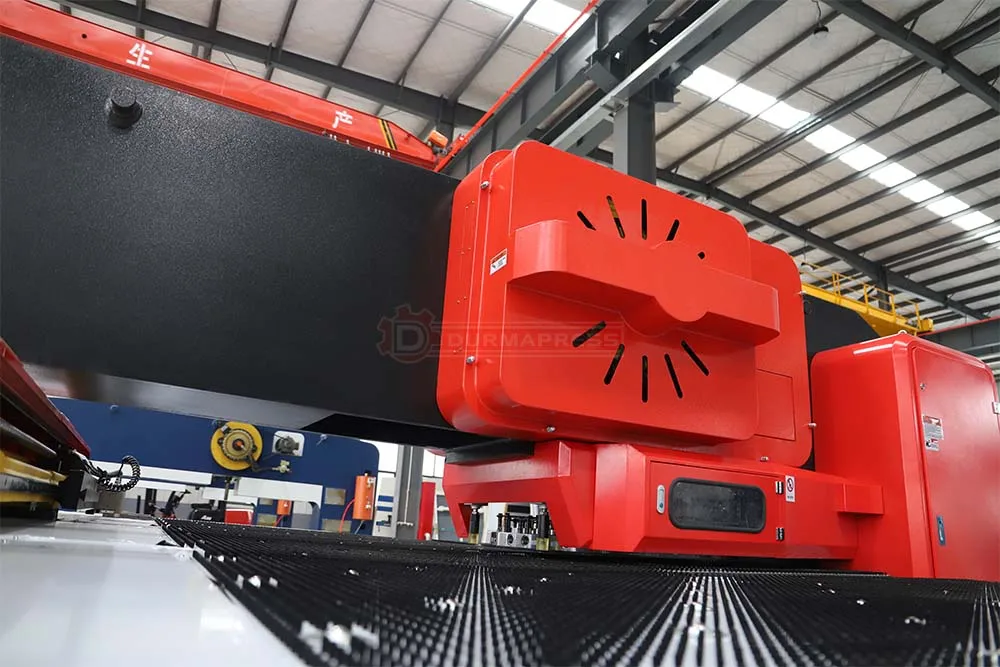

The Machine Frame
The body adopt integrated fuselage, widened design, disposable welding, tempering, disposable forming that Ensure the hardness and service life of the machine

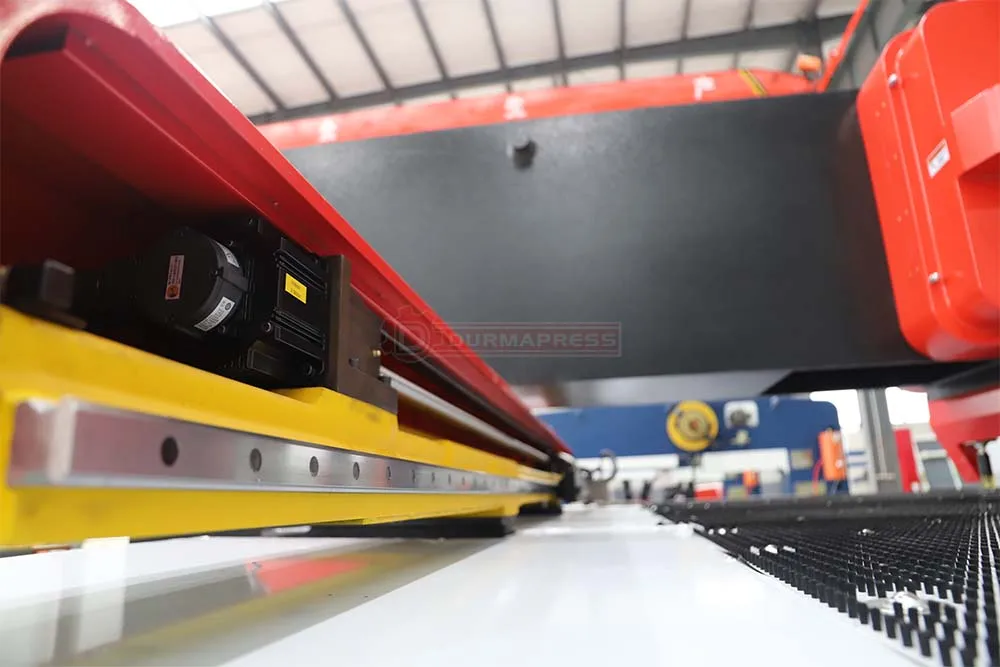

The Machine Clamp
The pneumatic floatable clamps reduce the deformation of the plate. With long clamps carriage, strong rigidity, clamps can move
easily, The clamp self-protection function makes no dead area for punching on sheet.
easily, The clamp self-protection function makes no dead area for punching on sheet.
Related Products
Our Company
Our Service
Our Service
1.Installation Services
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician
to our company to learn how to operate machines.
3.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. Machine warranty is 5 years.
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician
to our company to learn how to operate machines.
3.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. Machine warranty is 5 years.
Packing & Delivery
FAQ
Q: How to get a accurate quotation from us ?
A:Please provide us the details of material , max thickness and max width .
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the video directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
