Лидер продаж скользящее кольцо размер отверстия 12 мм миниатюрный внешний диаметр 35 6 проводов каждая 5А вращение
- Категория: Electrical Contacts and Contact Materials >>>
- Поставщик: Shenzhen,Senring,Electronics,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 57.90 $* | 58.78 $* |
| Jul-19-2025 | 46.91 $* | 47.27 $* |
| Jun-19-2025 | 56.75 $* | 57.20 $* |
| May-19-2025 | 56.48 $* | 57.33 $* |
| Apr-19-2025 | 45.49 $* | 46.68 $* |
| Mar-19-2025 | 55.6 $* | 56.76 $* |
| Feb-19-2025 | 54.67 $* | 55.91 $* |
| Jan-19-2025 | 54.37 $* | 55.14 $* |
Характеристики

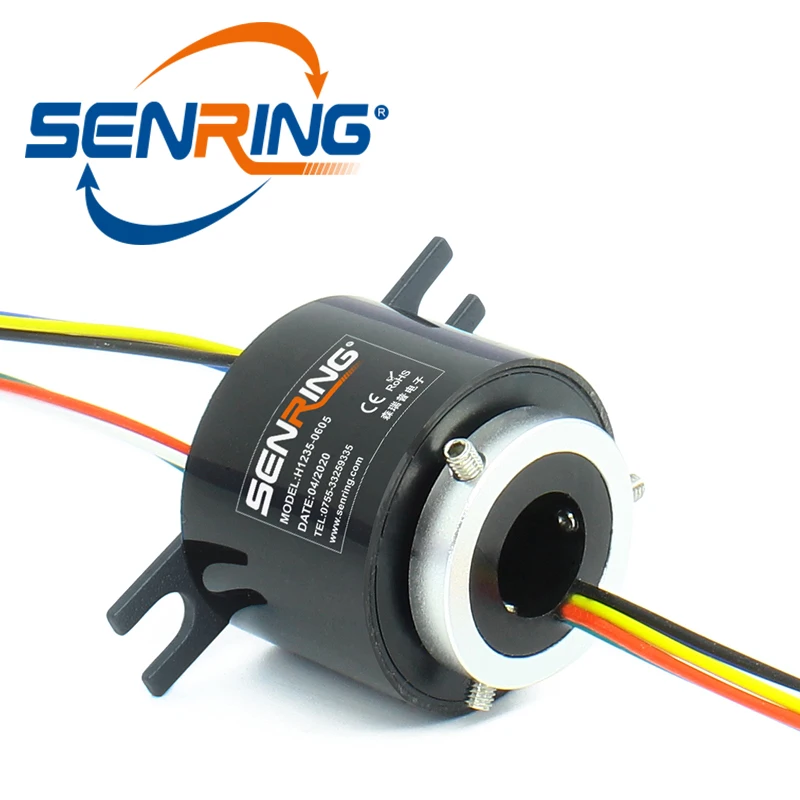

Senring mini H1235-0605 used for rotating device for transmit any signals/power
hole size 12mm
OD 35mm
6 wires each 5A
Specification
| Circuits | 6 |
| Current Rating | 5A |
| Voltage | 220VAC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Wire Size | 22# silver plated copper UL, Teflon |
| Lead Wire Length | Rotor:300mm; Stator:300mm |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
Main Application
- Electric devices
- Medical facility
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment
Outline Drawing
Product Display
PS:
Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.
Company Introduction
Senring Electronics Co.,Ltd, founded since 1996, is a leading manufacturer of slip rings, who has been committed to developing and manufacturing a large variety of industrial slip rings applied to many fields. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary Joint, Fiber Optic Slip Ring, Separate Slip Ring, Pancake Slip Ring are off-the-shelf units. Besides of these, customization is supported to cater to different application in that electrical rotary joints can be designed exclusively for Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth. All the products have been secured by our quality management system, certificated by the IS09001:2008/ ISO14001:2015.
SenRing general slip ring models are applied in many applications and equipments,providing system solutions for worldwide.
It involves wind power,controller and industrial turntable,robot,engineering machinery,CCTV video mornitoring,medical equipment,military radar and so on...
