80-тонный контейнер из алюминиевой фольги Китая silverинженер с профессиональной командой технического
- Категория: Punching Machines >>>
- Поставщик: Shanghai,Silver,Engineer,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 83300.11 $* | 87465.44 $* |
| Aug-18-2025 | 82600.9 $* | 86730.54 $* |
| Jul-18-2025 | 69300.76 $* | 72765.97 $* |
| Jun-18-2025 | 81200.87 $* | 85260.18 $* |
| May-18-2025 | 70700.51 $* | 74235.41 $* |
| Apr-18-2025 | 79800.59 $* | 83790.38 $* |
| Mar-18-2025 | 79100.32 $* | 83055.27 $* |
| Feb-18-2025 | 78400.60 $* | 82320.9 $* |
| Jan-18-2025 | 77700.54 $* | 81585.74 $* |
Характеристики
Products Description

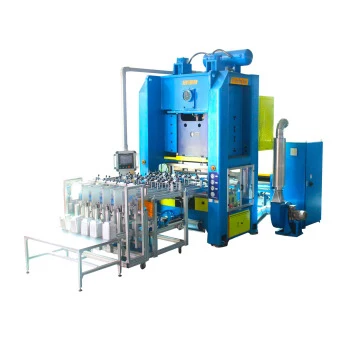

Complete Automatic Aluminium Foil Container Making Machine
Model: SEAC-80/130AS (Four Cavities or Six Cavities Capacity !)

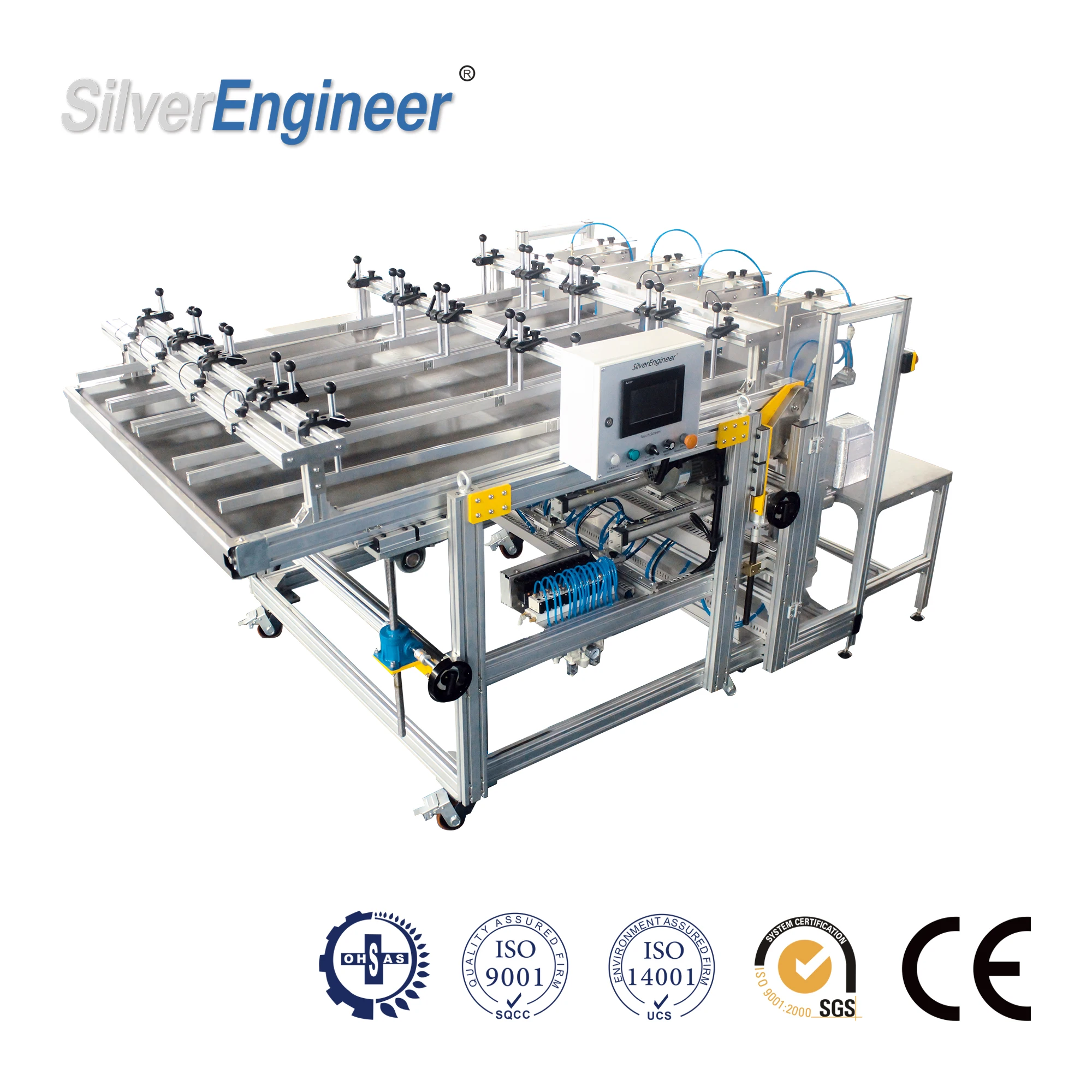

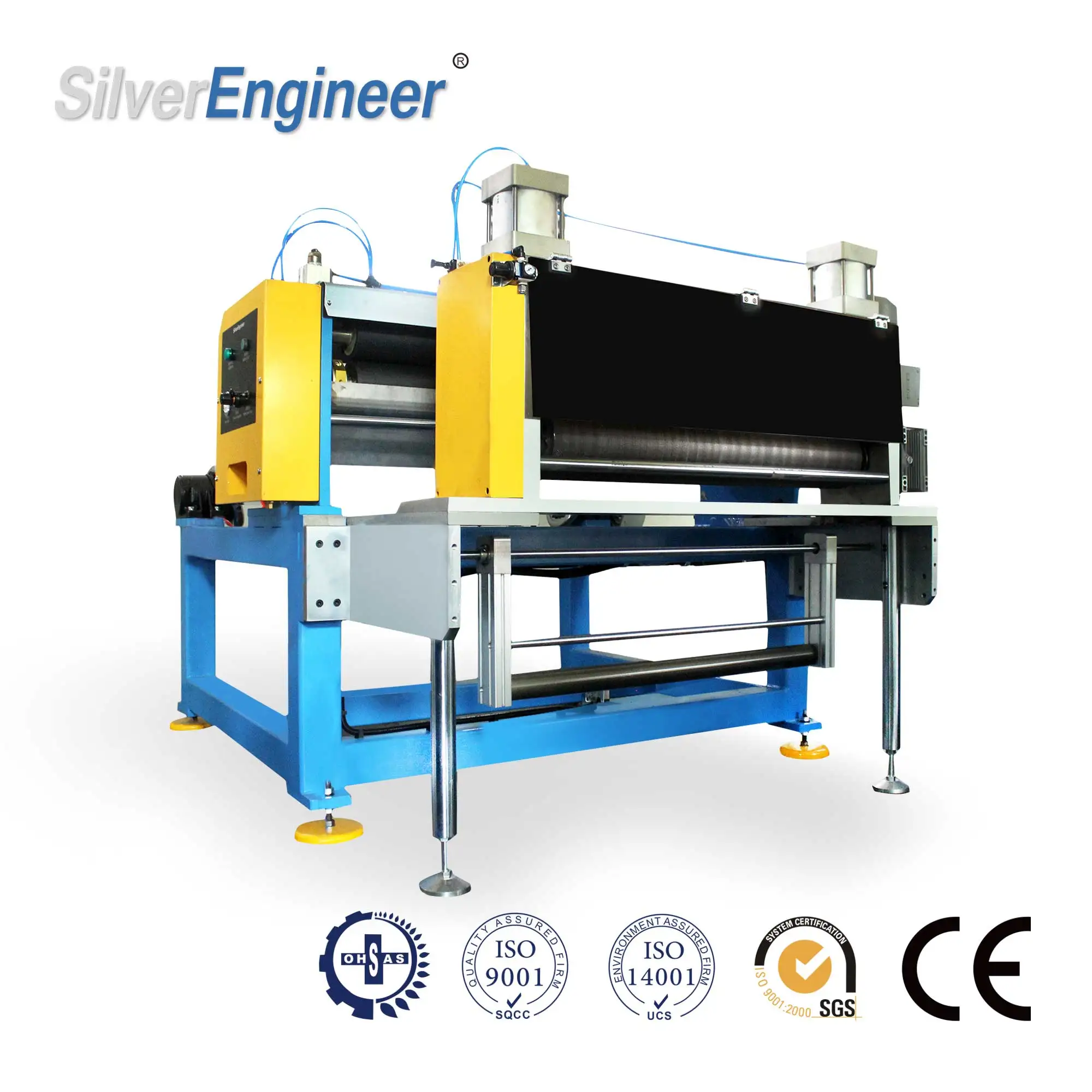

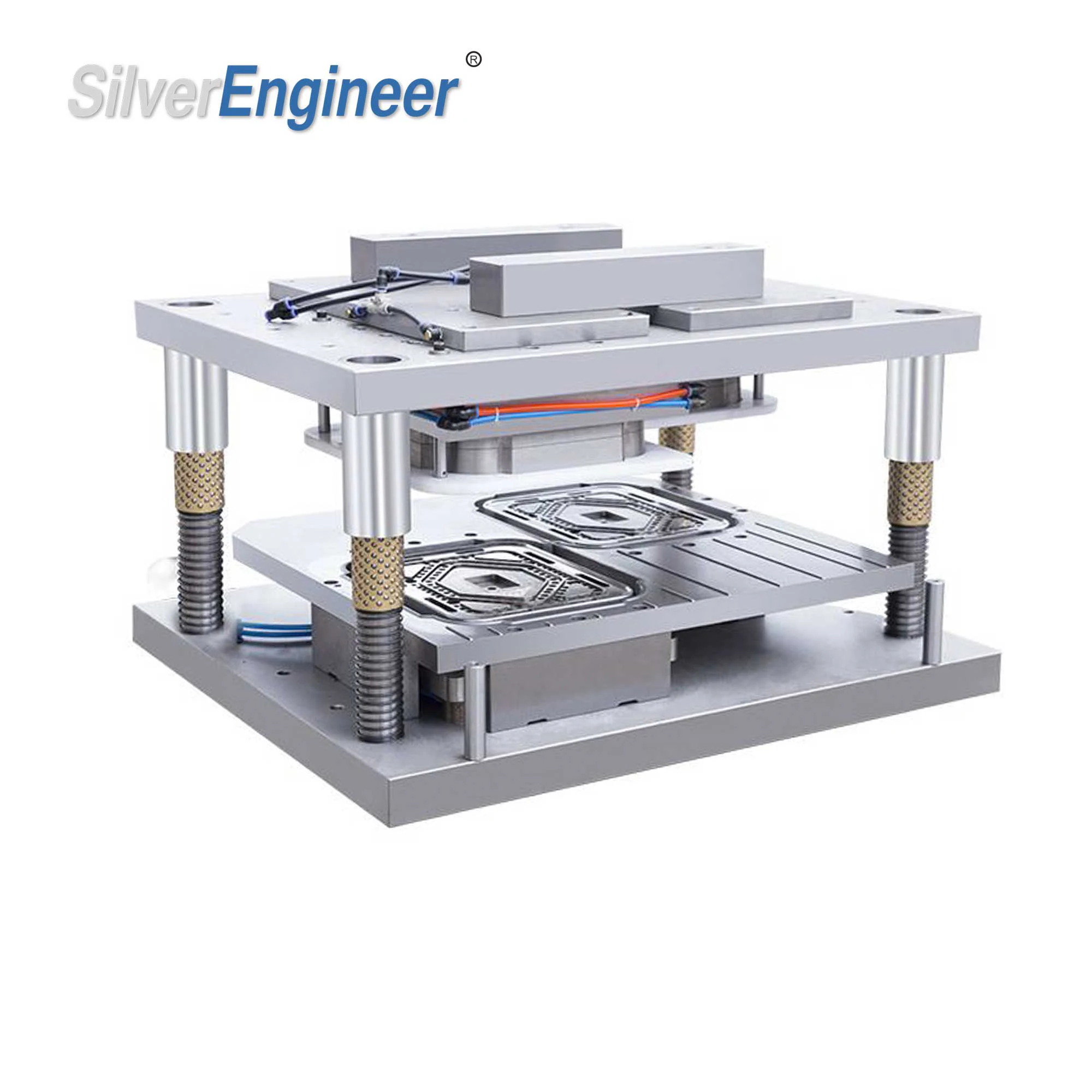

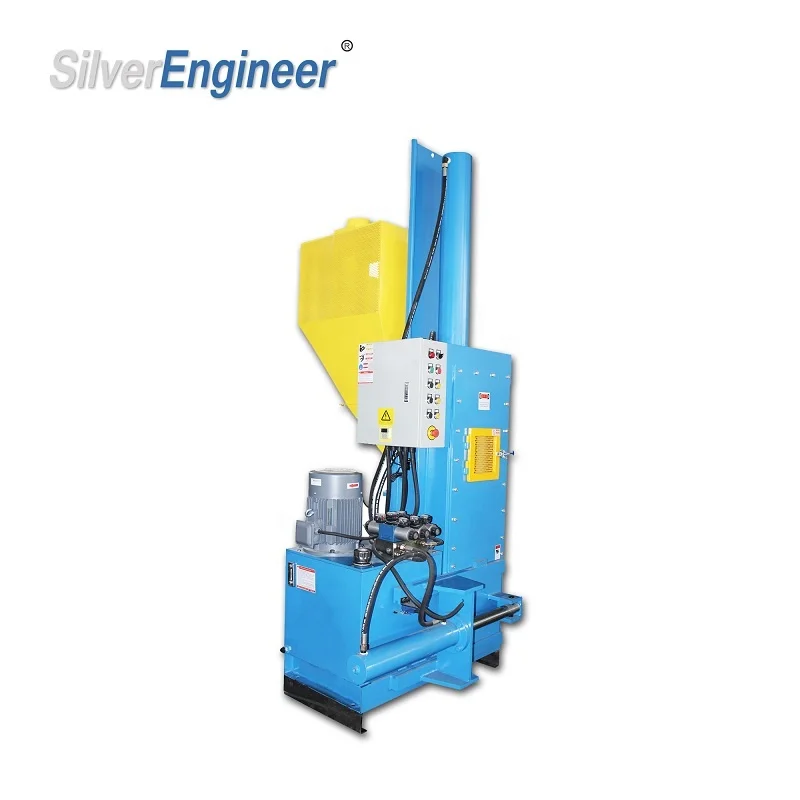

Units: Automatic Feeder+Automatic 80Ton H Type Press+Cavities Mould+Auto Stacker+Scrap Sucker & Auto Presser.
It fit for all common size Aluminum Foil Container production requested. The Big capacity could to cover big range of size
products. Lower power requested than other old model machines.
Specification:
1. Raw material: Aluminum foil; Thickness: 0.030mm ~0.280mm;
Alloy: 8011,8006,3003,3005; Temper O to H24;
2. Good Japan's Inverter, PLC and 10inch Touch Screen control system;
3.Max. width of Aluminum foil: 1220mm;
4.Max. diameter of Aluminum foil: 1000mm;
5. Core diameter of Aluminum foil: 76mm(152mm as Optional );
6. Working speed: 40-75 times/min;
7. Total Power: 14kw+2kw+2.5kw+3kw;
8. Compressed air needed: 0.5- 0.8 Mpa, 0.4m3/min;
9. Install dimension: 7100*2600*3600mm;
Technical Data:
Max. mould size: 1480*1000*500mm;
Slide block stroke:150-260mm ; (Offer Stroke adjustable system as option!)
Automatic mould adjust unit: 0.5kw;
Work plate dimension: 1500*1000mm;
Mould handle hole dimension: 80*80mm(Diameter*Depth);
Power: 4P, 380/220V, 50/60Hz;
Net weight: 13,000kg.
SEAC-80AS is the four cavities or five cavities capacity model production line for AFC.
Complete automatic level upgrade your factory capacity, lead your company be higher level competition and situation.
Model: SEAC-80/130AS (Four Cavities or Six Cavities Capacity !)
Units: Automatic Feeder+Automatic 80Ton H Type Press+Cavities Mould+Auto Stacker+Scrap Sucker & Auto Presser.
It fit for all common size Aluminum Foil Container production requested. The Big capacity could to cover big range of size
products. Lower power requested than other old model machines.
Specification:
1. Raw material: Aluminum foil; Thickness: 0.030mm ~0.280mm;
Alloy: 8011,8006,3003,3005; Temper O to H24;
2. Good Japan's Inverter, PLC and 10inch Touch Screen control system;
3.Max. width of Aluminum foil: 1220mm;
4.Max. diameter of Aluminum foil: 1000mm;
5. Core diameter of Aluminum foil: 76mm(152mm as Optional );
6. Working speed: 40-75 times/min;
7. Total Power: 14kw+2kw+2.5kw+3kw;
8. Compressed air needed: 0.5- 0.8 Mpa, 0.4m3/min;
9. Install dimension: 7100*2600*3600mm;
Technical Data:
Max. mould size: 1480*1000*500mm;
Slide block stroke:150-260mm ; (Offer Stroke adjustable system as option!)
Automatic mould adjust unit: 0.5kw;
Work plate dimension: 1500*1000mm;
Mould handle hole dimension: 80*80mm(Diameter*Depth);
Power: 4P, 380/220V, 50/60Hz;
Net weight: 13,000kg.
SEAC-80AS is the four cavities or five cavities capacity model production line for AFC.
Complete automatic level upgrade your factory capacity, lead your company be higher level competition and situation.
FAQ
Q:Are you manufacturer?
A:Silver Engineer established in 2007 and in leading place in Aluminum foil container industry.
Q: Do you accept customized orders?
A: Yes, you send your drawings, we provide you with excellent designed products.
About any further detail, please feel free to contact us.
Q: Is the aluminium foil container safe, any taste, clean?
A: Yes, aluminum foil container high temperature 300 degrees, and be used in traditional Oven or Microwave oven.we use aluminum
foil food grade aluminum foil, stable performance, non-toxic, safe and reliable.
Q: Is the aluminum foil container easy to break ?
A: Our aluminum foil container are well designed in structure, 20% of extra endurance compare to normal design.
Q: Do you offer free samples?
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on
your side if you'd like to have our samples.
A:Silver Engineer established in 2007 and in leading place in Aluminum foil container industry.
Q: Do you accept customized orders?
A: Yes, you send your drawings, we provide you with excellent designed products.
About any further detail, please feel free to contact us.
Q: Is the aluminium foil container safe, any taste, clean?
A: Yes, aluminum foil container high temperature 300 degrees, and be used in traditional Oven or Microwave oven.we use aluminum
foil food grade aluminum foil, stable performance, non-toxic, safe and reliable.
Q: Is the aluminum foil container easy to break ?
A: Our aluminum foil container are well designed in structure, 20% of extra endurance compare to normal design.
Q: Do you offer free samples?
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on
your side if you'd like to have our samples.
