Осциллирующий режущий станок с ЧПУ из пенополистирола ткани
Осциллирующий режущий станок с ЧПУ из пенополистирола ткани
Осциллирующий режущий станок с ЧПУ из пенополистирола ткани
Осциллирующий режущий станок с ЧПУ из пенополистирола ткани
Осциллирующий режущий станок с ЧПУ из пенополистирола ткани
Осциллирующий режущий станок с ЧПУ из пенополистирола ткани
Осциллирующий режущий станок с ЧПУ из пенополистирола ткани

Осциллирующий режущий станок с ЧПУ из пенополистирола ткани


Поделиться:


Цена:9 000,00 $ - 10 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 10710.8 $* 11246.1 $*
Aug-20-2025 10620.5 $* 11151.59 $*
Jul-20-2025 8910.12 $* 9356.18 $*
Jun-20-2025 10440.17 $* 10962.99 $*
May-20-2025 9090.35 $* 9545.53 $*
Apr-20-2025 10260.91 $* 10773.17 $*
Mar-20-2025 10170.81 $* 10679.35 $*
Feb-20-2025 10080.33 $* 10584.43 $*
Jan-20-2025 9990.51 $* 10490.88 $*

Характеристики



Product Description




1.Fast
Maximum cutting speed: 1200mm / s
MVIP CNC knife cutting machine is 3-5 times faster than traditional manual cutting.
2. Material savings
The machines are computerized, precise and save material.
3. Compatible
The fabric knife cutting machines support any design software that can generate files in DXF or PLT format. For example: AutoCad, Coreldraw, AI, etc.
4. User friendly
All sharp turns can be controlled on the machine.
Free training is provided in our company or on your site. We assure you that you can operate the machine.
5. Environment-friendly
The knife cutting machine is no smell pollution, no smoke pollution.
The knife blades can be re-used for lower cost , and Energy saving.
6. Functional
Oscillating knife foe leather cutting, Round knife for fabric cutting and Pneumatic knife for thick materials cutting


Specification


Item
Specification
X axis working
1600mm/1800mm/2100mm
Y axis
2500 mm/3000 mm/3500mm
Z  axis
50 mm/60 mm
Cutting head holder
Two sets , these two head holders can change automatically
Machine table
Flat adsorption Table of 4mm thickness cloth
Automatic feeding table
Yes but no automatic correction function
Driving system
Taiwan Delta servo driver and motor
Control system
RD control system
Instruction system
HP-GL /GP-GL compatible format
Transmission system
Taiwan PMI square rail and Taiwan SKS rack
Safety device
Using infrared sensors, responsive, safe and reliable
Travel speed
800-1200mm/s
Cutting speed
200-800mm/s(according to different cutting materials)
Cutting thickness
≤55mm(according to different cutting materials)
Repeated accuracy
≤0.1mm
Weight
1000kgs
Machine size
2800/3200/3700*1900/2000*1500mm
Power
220v/380v
Warranty
2 years


Detailed Images of the machine

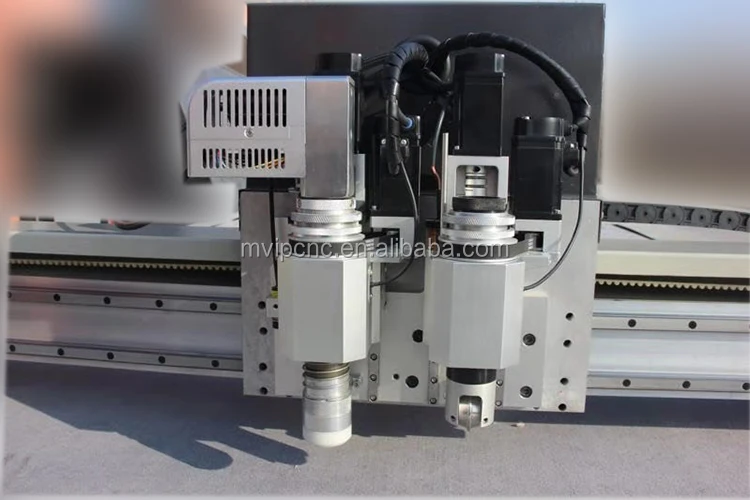

two sets of knife cutting head
English version . User friendly screen
9 kw air blower for strong adsorption power

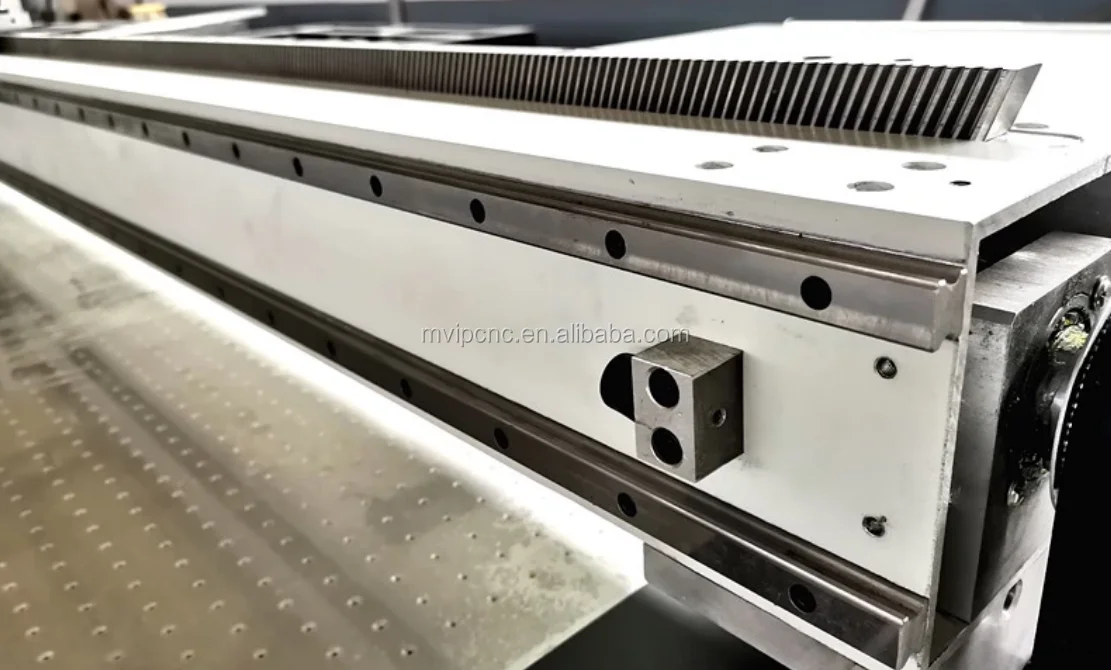

Taiwan PMI high precision guide rails
Oscillating knife and indication knife

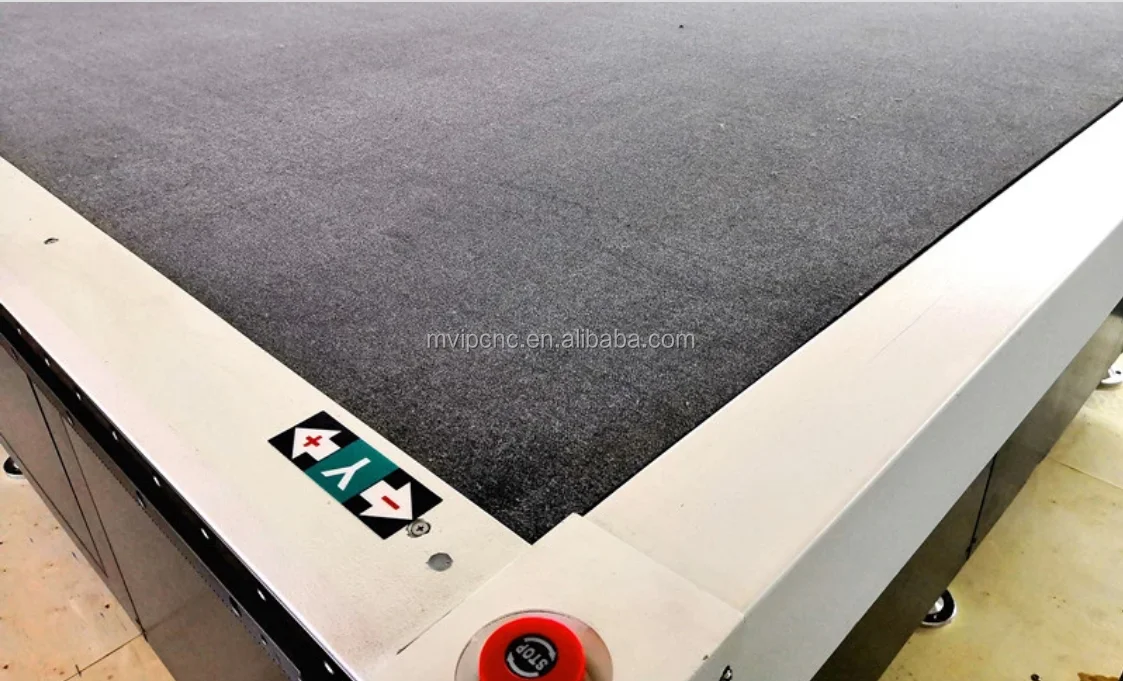

table cloth of 4mm thickness


Option part: cnc milling spindle which can cut MDF wood etc
Knife cutting head holder for different knife working
Indentation knife and pen mark


Application of the machine


Clothing tailoring
Leather cutting and punching
Fabric tailoring
Carton creasing cutting
Rubber cutting
EPE, insulation material cutting, etc.


Samples of the machine






Packing & Delivery




First : We clean the machine well , then brush oil on the guide rails , ball screw etc to prevent rust on the machines.
Second: package inside
Stretch film wrapped and fixed the moving parts of the machine
Then wrapped the whole machine with air cushion film to prevent damage.
Third: covered with plastic film.
Finally: package outside
wooden case fixed with screws not straight nails, strong belt for wooden case
We install steel tubes at the bottom of the wooden case to make the package stronger.
