Henan Shunzhi Непрямая теплопередающая сушилка гипсокартонная
- Категория: Tray Dryer >>>
- Поставщик: Henan,Shunzhi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 124332.29 $* | 126819.75 $* |
| Jul-18-2025 | 100836.91 $* | 102853.98 $* |
| Jun-18-2025 | 122374.55 $* | 124821.75 $* |
| May-18-2025 | 121395.95 $* | 123823.79 $* |
| Apr-18-2025 | 96920.99 $* | 98858.68 $* |
| Mar-18-2025 | 119437.87 $* | 121826.15 $* |
| Feb-18-2025 | 118458.97 $* | 120827.26 $* |
| Jan-18-2025 | 117479.81 $* | 119829.78 $* |
Характеристики
Shunzhi Group Advantage:
1. Over 200 employees, 98% professional technical personnel;
2. Factory size over 15,000 square meters;
3. 480 Inventions & Patents
4. Exported over 80 countries,300 global partners;
5. Rank Top10 in China Drying Industry;
6. Customize Drying Production Line.
1. Over 200 employees, 98% professional technical personnel;
2. Factory size over 15,000 square meters;
3. 480 Inventions & Patents
4. Exported over 80 countries,300 global partners;
5. Rank Top10 in China Drying Industry;
6. Customize Drying Production Line.
Shunzhi dryer is suitable for chicken manure, cow dung, feces organic fertilizer, sludge, bean dregs, starch residue, sauce residue, sprayed corn kernels, cassava residue, beer distiller's grains, lees, straw, pasture and other 20-85% moisture content of material Drying. All of our drying process technology according to the characteristics of each biomass material, the size of production, the application requirements, the cost control, the degree of automation, the site conditions etc.

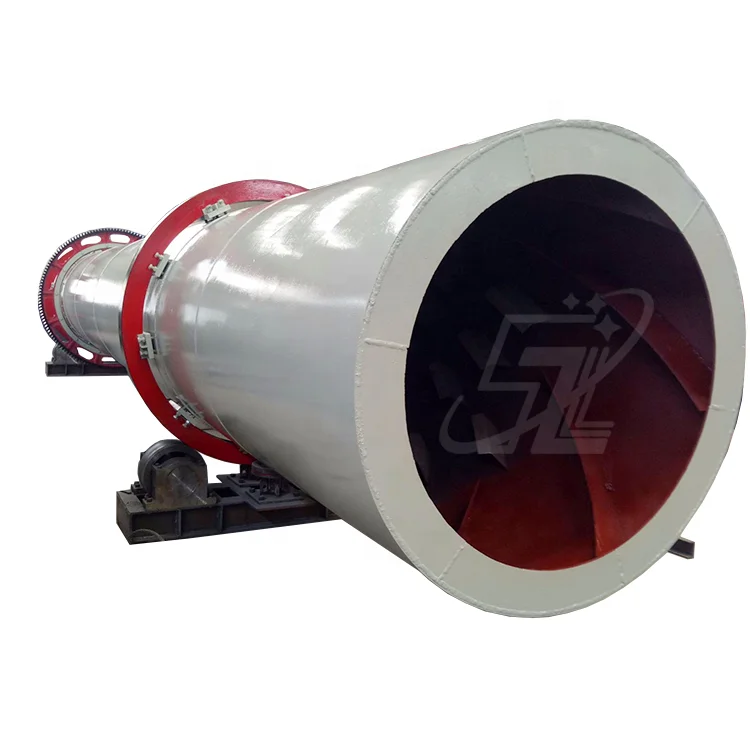

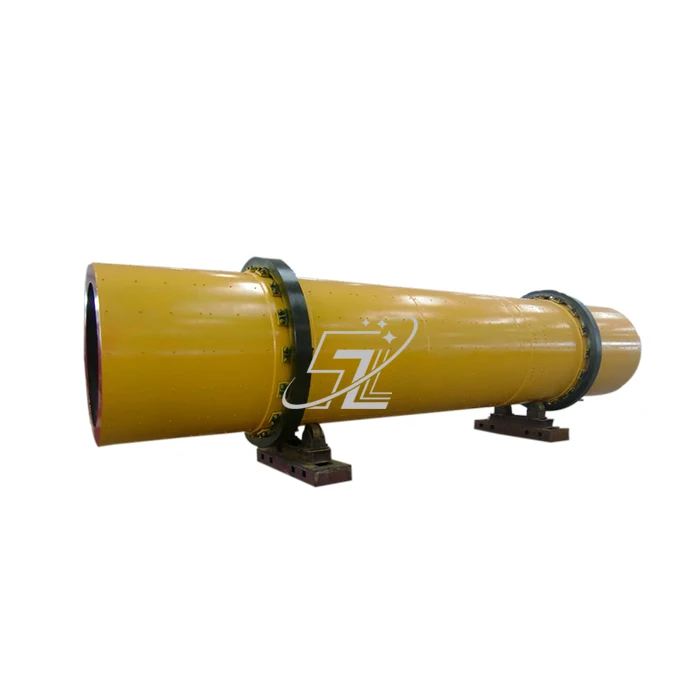

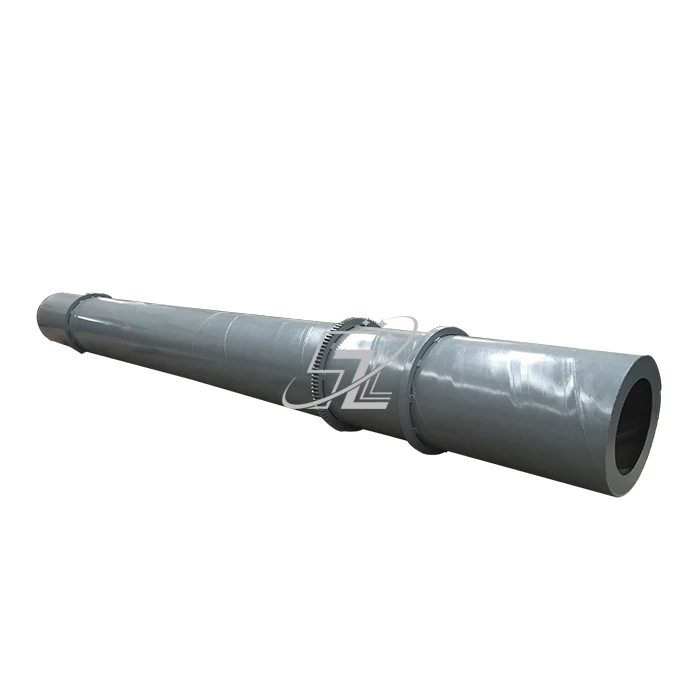

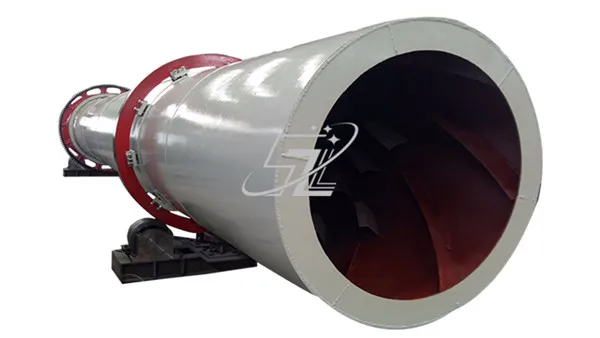

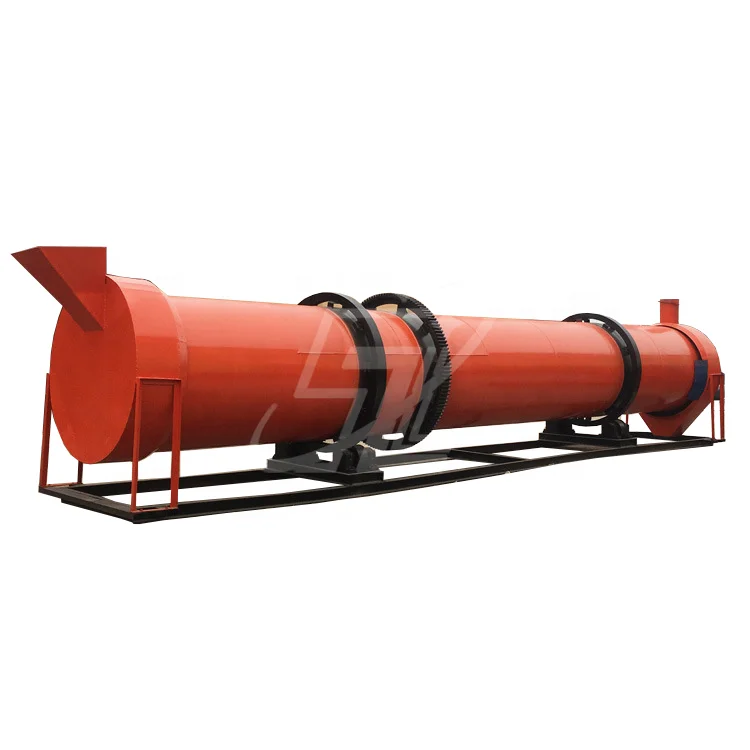

The raw materials are transported by the scraper conveyor to the inside of the rotary drum dryer. The front is equipped with a hot blast stove. The generated hot gas enters the dryer through the fire separation device, and the materials are dispersed by the low- speed rotating bending plate.
In order to allow high-temperature air to flow through the material and perform heat exchange, the drum dryer has a certain angle of inclination, and there is sufficient air volume to push the material forward. Finally, the dried material is discharged from the discharge port, and the temperature generated by the heat source enters the long refractory lining chamber to keep the temperature low. Add auxiliary air to the chamber to maintain low temperature levels.
In order to allow high-temperature air to flow through the material and perform heat exchange, the drum dryer has a certain angle of inclination, and there is sufficient air volume to push the material forward. Finally, the dried material is discharged from the discharge port, and the temperature generated by the heat source enters the long refractory lining chamber to keep the temperature low. Add auxiliary air to the chamber to maintain low temperature levels.
Below are Installation Sites of Our Customers:
After reach deals, Shunzhi engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.
After reach deals, Shunzhi engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.
Spec./m (Dia.×Length) | Shell Cubage (m³) | Capacity (t/h) | Installation Obliquity (%) | Highest Inlet Air Temperature (℃) | Main Motor (kw) | Weight (t) |
Φ1.2×8.0 | 9.0 | 1.9~2.4 | 3~5 | 700~800 | 7.5 | 9 |
Φ1.2×10 | 11.3 | 2.4~3.0 | 3~5 | 700~800 | 7.5 | 11 |
Φ1.5×12 | 21.2 | 4.5~5.7 | 3~5 | 700~800 | 15 | 18.5 |
Φ1.5×14 | 24.7 | 5.3~6.6 | 3~5 | 700~800 | 15 | 19.7 |
Φ1.5×15 | 26.5 | 5.7~7.1 | 3~5 | 700~800 | 15 | 20.5 |
Φ1.8×12 | 30.5 | 6.5~8.1 | 3~5 | 700~800 | 18.5 | 21.5 |
Φ1.8×14 | 35.6 | 7.6~9.5 | 3~5 | 700~800 | 18.5 | 23 |
Φ2.2×12 | 45.6 | 9.7~12.2 | 3~5 | 700~800 | 22 | 33.5 |
Φ2.2×14 | 53.2 | 11.4~14.2 | 3~5 | 700~800 | 22 | 36 |
Φ2.2×16 | 60.8 | 13.0~16.2 | 3~5 | 700~800 | 22 | 38 |
Φ2.4×14 | 63.3 | 13.5~16.9 | 3~5 | 700~800 | 37 | 45 |
Φ2.4×18 | 81.4 | 17.4~21.7 | 3~5 | 700~800 | 37 | 49 |
Φ2.4×20 | 90.4 | 19.3~24.1 | 3~5 | 700~800 | 45 | 54 |
Φ2.4×22 | 99.5 | 21.2~26.5 | 3~5 | 700~800 | 45 | 58 |
Φ2.6×24 | 127.4 | 27.2~34.0 | 3~5 | 700~800 | 55 | 73 |
Φ3.0×20 | 141.3 | 30.1~37.7 | 3~5 | 700~800 | 75 | 85 |
Φ3.0×25 | 176.6 | 37.7~47.1 | 3~5 | 700~800 | 75 | 95 |
Φ3.2×25 | 201 | 42.9~53.6 | 3~5 | 700~800 | 90 | 110 |
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
