MTK7628 3G 4G беспроводной CPE со слотом для sim-карты ethernet openwrt
- Категория: Wireless Networking >>>
- Поставщик: Lanbowan,Communication,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 72.19 $* | 73.54 $* |
| Jul-19-2025 | 59.3 $* | 60.37 $* |
| Jun-19-2025 | 71.37 $* | 72.2 $* |
| May-19-2025 | 71.82 $* | 72.38 $* |
| Apr-19-2025 | 56.13 $* | 57.46 $* |
| Mar-19-2025 | 70.90 $* | 71.31 $* |
| Feb-19-2025 | 69.13 $* | 70.33 $* |
| Jan-19-2025 | 68.67 $* | 69.62 $* |
Характеристики
Product Description
Features
LTE300M5 is high-performance 4G LTE Router .
LTE300M5 is ideal for any situations where a wireless network is needed, or wherever conventional Internet access is
unavailable.Designed for residential and SOHO/SMB consumers,LTE300M5 delivers multi-service user experience, provides advanced data services and mobile service resilience in a single box solution.
LTE300M5 is ideal for any situations where a wireless network is needed, or wherever conventional Internet access is
unavailable.Designed for residential and SOHO/SMB consumers,LTE300M5 delivers multi-service user experience, provides advanced data services and mobile service resilience in a single box solution.
Product Paramenters
Product code | LTE300M5 |
Architecture | MIPS |
CPU | MTK7628 |
LTE category | 4 (150Mbps Downlink, 50Mbps Uplink) |
LTE/3G/2G bands | LTE-FDD:B1/B3/B5/B7/B8/B28 LTE-TDD:B40 WCDMA:B1/B5/B8 GSM:850/900/1800/1900 |
Dimensions | 260*110*60mm |
Size of RAM | DDR2 128MB |
Storage size | 16MB |
Storage type | FLASH |
Tested ambient temperature | -20°C to 70°C |
Wireless 2.4 GHz Max data rate | Max 300Mbps |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 5dbi |
Wireless 2.4 GHz chip model | mtk7628 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
10/100 Ethernet ports | 1 |
LED | Power,WAN,LAN1,LAN2,Wi-Fi,LTE |
Supported input voltage | 9V - 30V |

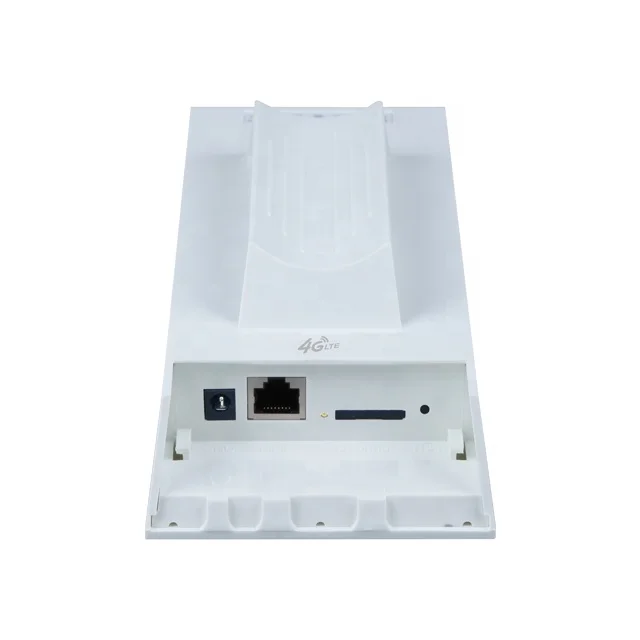

Interface | 1 SIM card slot 1 Micro SD card slot 1 10/100M WAN port 1 10/100M WAN/LAN port 1 10/100M LAN port |
WAN | Support Multi Wan Interface PROTO: PPPoE,Dynamic IP, Static IP |
LAN | Support Mult Lan Interface |
DHCP | Server, Client, DHCP Client List |
PPPOE | Server, Client, Client List |
Port Forwarding | Port Map |
Firewall Security | Input ACL, forward ACL |
DDNS | Support |
VPN Pass-Through | PPTP, L2TP |
Static Router | Support |
Tools | Ping Route trace Net Mask Transform |
AC | Config Ap Parameter Ap upgrade |
Stream Ctrl | Stream distrib Wan load balancing |
Other Function | NTP Synchronize Web firmware upgrade Factory reset(Button or Web) Web System reboot |
