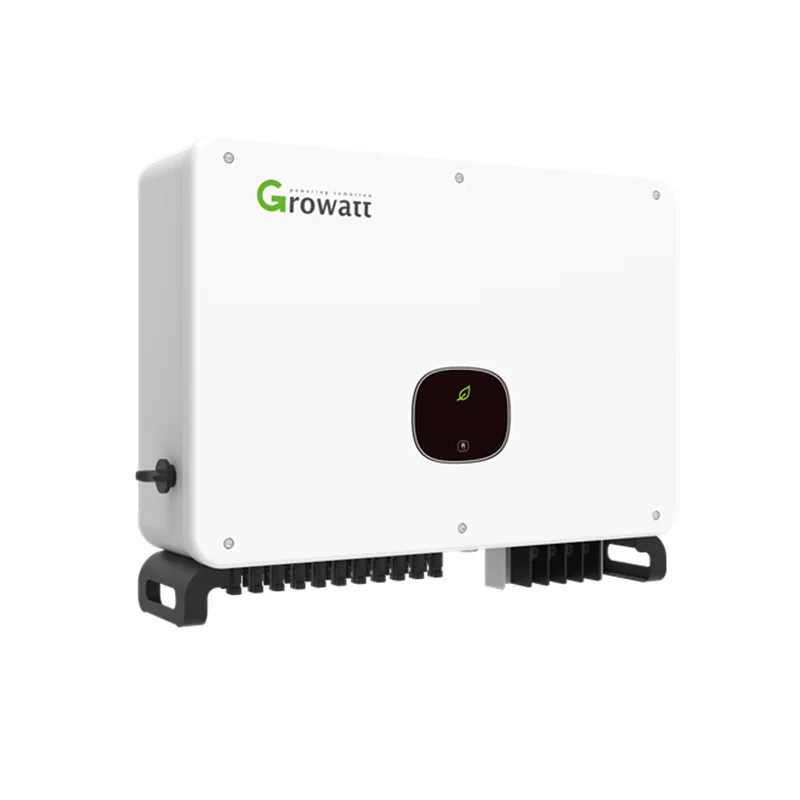

50 кВт 60 70 80 Growatt солнечный инвертор трехфазный внутрисетевой 380 В
- Категория: Солнечные инверторы >>>
- Поставщик: Jiangsu,Solarman,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.2 $* | 0.41 $* |
| Aug-17-2025 | 0.73 $* | 0.49 $* |
| Jul-17-2025 | 0.99 $* | 0.98 $* |
| Jun-17-2025 | 0.7 $* | 0.73 $* |
| May-17-2025 | 0.33 $* | 0.89 $* |
| Apr-17-2025 | 0.44 $* | 0.82 $* |
| Mar-17-2025 | 0.50 $* | 0.82 $* |
| Feb-17-2025 | 0.31 $* | 0.73 $* |
| Jan-17-2025 | 0.66 $* | 0.41 $* |
Характеристики
Product Description
Datasheet | ||||||||
Model Name | MAX 50KTL3 LV | MAX 60KTL3 LV | MAX 70KTL3 LV | MAX 80KTL3 LV | ||||
Input AC | ||||||||
Recommended max. PV power | 75KW | 90kW | 105kW | 120kW | ||||
Max. input voltage | 1100V | |||||||
Rated voltage | 585V/600V | |||||||
Start-up voltage | 250V | |||||||
MPPT voltage range | 200V-1000V | |||||||
Max. input current | 26A | 37.5A/37.5A/37.5A | 50A/37.5A/37.5A | 50A/50A/50A | ||||
Max. short circuit current | 32A | 44A | 55A | 55A | ||||
MPPT number/Max. input strings number | 6 | 6 | 7 | 7 | ||||
Output AC | ||||||||
Rated output power | 50kW | 60kW | 70kW | 80kW | ||||
Max. apparent output power | 55.5kVA | 66.6kVA | 77.7kVA | 88.8kVA | ||||
Rated grid voltage | 220V/380V, 230V/400V (340-440V) | |||||||
Rated grid frequency | 50/60Hz | |||||||
Max. output current | 80.5A | 96.6A | 112.7A | 128.8A | ||||
Power Factor | 0.8leading 0.8lagging | |||||||
THDi | <3% | |||||||
Efficiency | ||||||||
Max. efficiency | 98.7% | |||||||
EU efficiency | 98.5% | |||||||
Protection | ||||||||
DC reverse-polarity protection | Yes | |||||||
Short circuit protection | Yes | |||||||
Output over current protection | Yes | |||||||
Surge protection | Yes | |||||||
Grid monitoring | Yes | |||||||
Anti-islanding protection | Yes | |||||||
Temperature protection | Yes | |||||||
Integrated AFCI (DC arc-fault circuit protection) | Yes | |||||||
Integrated DC switch | Optional | |||||||
General Data | ||||||||
Dimensions (W*H*D) | 860/600/300mm | |||||||
Weight | 82KG | 82KG | 86KG | 86KG | ||||
Topology | Transformerless | |||||||
Self consumption | <1W (night) | |||||||
Operating ambient temperature range | -25 ~ +60°C | |||||||
Relative humidity | 0-100% | |||||||
Ingress protection | IP65 | |||||||
Cooling concept | Natural convection | |||||||
Max. operation altitude | 4000m | |||||||
Safety/EMC standard | IEC 62109-1/-2, IEC 62116, EN 61000-6-1/-2/-3/-4 | |||||||
Features | ||||||||
DC connection | H4/MC4(Optional) | |||||||
AC connection | Cable gland+OT terminal | |||||||
Display | OLED+LED/WIFI+APP | |||||||
Monitoring Platform
WiFi included in each package
With Growatt ShineWiFi-X connecting the Growatt inverter to WiFi, it‘s easier for owner to check their solar plant status on Mobile Phones or PC.

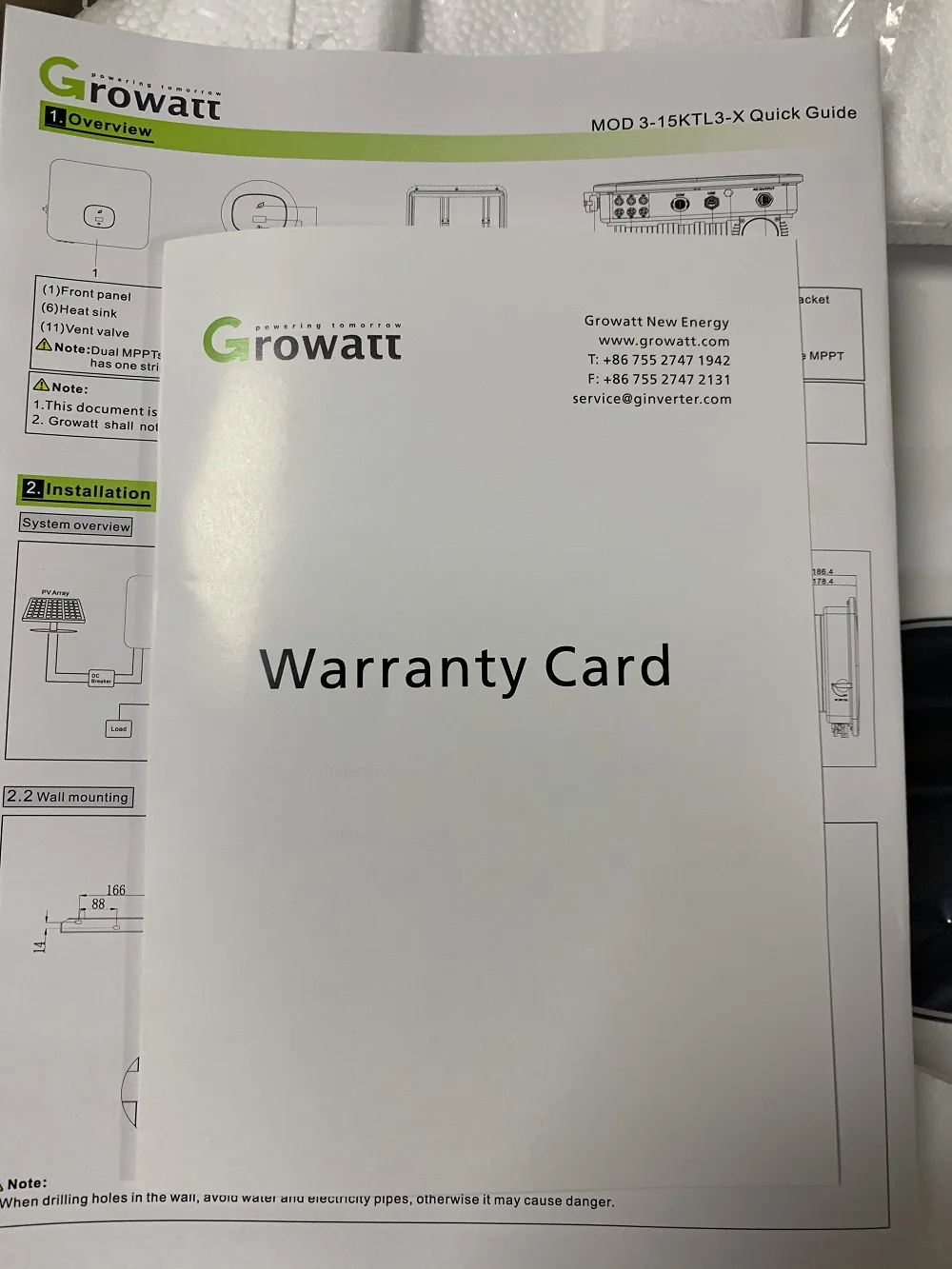

Packing & Delivery

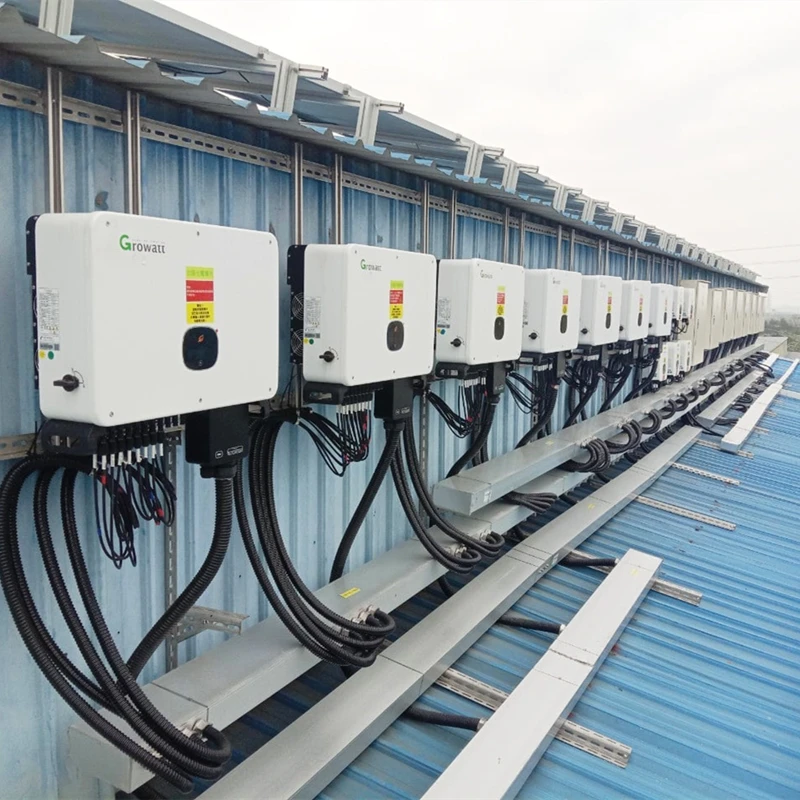

Feedback photo from Customer
Why choose us to purchase Growatt inverter
Diamond distributor
Solarman, as the diamond distributor of Growatt inverter, has been distributing Growatt inverters to more than 30 countries including Australia, South Africa, Sweden...
And has served more than 100 customers including professional solar installers and distributors.
Warranty service guaranteed
Solarman guarantees you for each piece of Growatt inverter you purchase from us will enjoy the basic warranty period of 5 years from installation date and extended 10 years warranty is also optional.
What service can we provide？
Better price
As the diamond distributor of Growatt inverters, we provide you much better price on the market.
Sample service
We provide sample service for each customer who is interested into our products but worried about quality before they place an official order.
Shipping service
We can offer you with door to door delivery for even one piece Growatt inverter that you purchase, sent by TNT,Fedex or UPS,DHL.
Contact us
