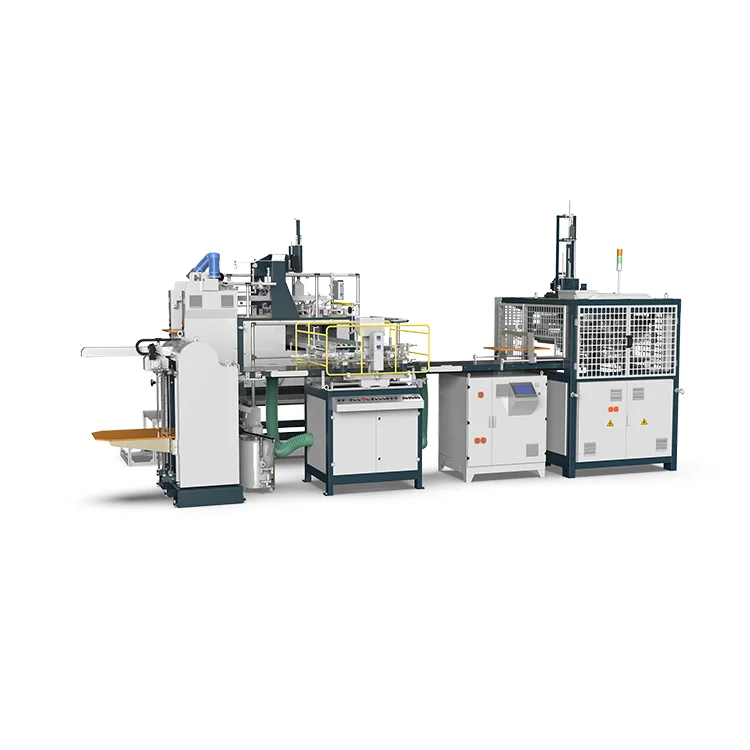

HM-ZD6418E Автоматическая/ручная коробка делая машину бумажная оборачивая машинное

Model

HM-ZD6418E

Greyboard Size

(D-Length, C=Width)

D(Max)

820mm

D(Min.)

124mm

C(Max.)

580mm

C(Min,)

92mm

Thickness(T)

1-3mm

Paper Size

B=Length, A=Width

A(Max.)

850mm

A(Min.)

180mm

B(Max.)

610mm

B(Min.)

95mm

Thickness

80-160gsm

Finished Box Size

L(Max.)

600mm

L(Min.)

100mm

W(Max.)

400mm

W(Min.)

50mm

H(Max.)

130mm

H(Min.)

12mm

Paper Corner Edge

E

10-125mm

Folding-in Depth

Folding-in Size R

15-100mm

Paper Stacker High Max.

750mm

Greyboard Stacker High Max.

850mm

Glue Tank Volume

40L

Air Supply

460L/min, 0.8MPa

Speed

≤30pcs/min

Power/Voltage

32kW/AC380V

Power Consumption

8Kw/h

Net Weight

6500kg

Machine Dimension

6800 x 4500 x 3300mm
