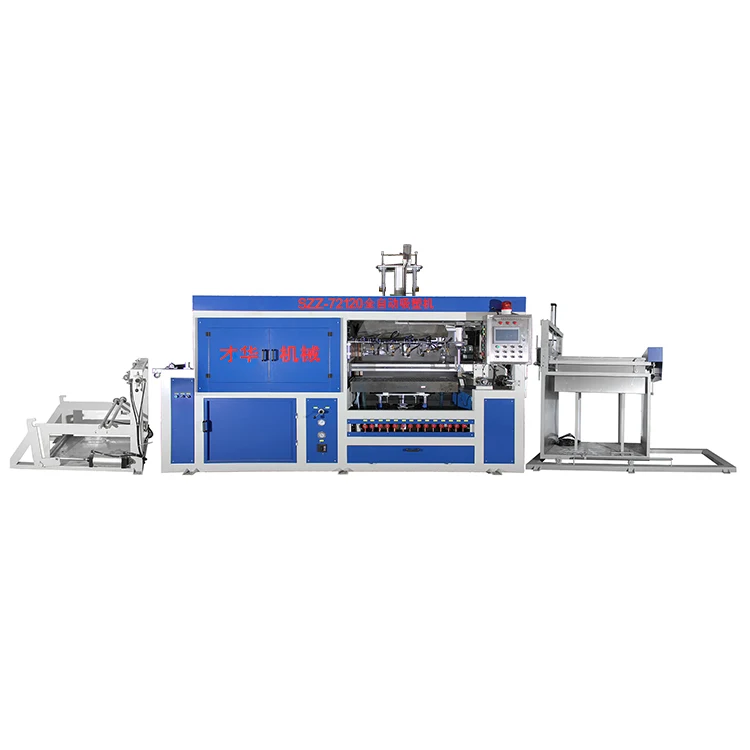

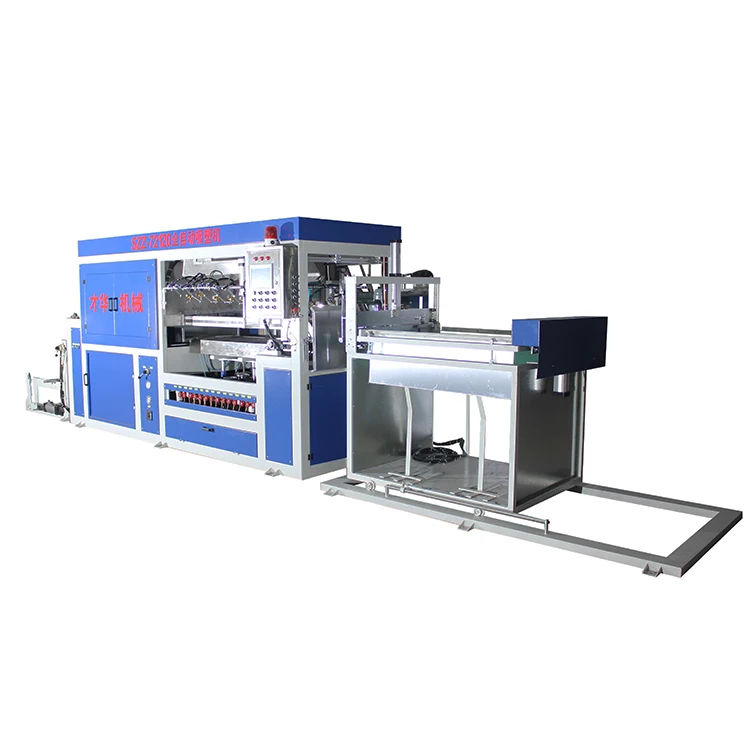

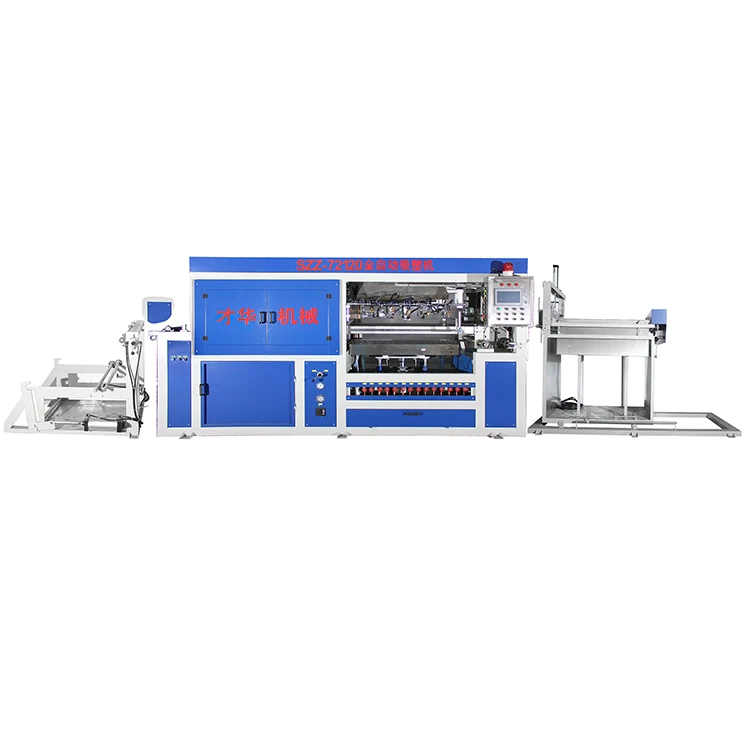

Горячая продажа полностью автоматическая SZZ-72120 машина для термоформовки пластиковых поддонов упаковки
- Категория: Оборудование для производства пластиковых изделий >>>
- Поставщик: Changzhou,City,Caihua,Packaging,Machinery,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 24990.96 $* | 26240.97 $* |
| Aug-19-2025 | 24780.26 $* | 26019.75 $* |
| Jul-19-2025 | 20790.99 $* | 21830.69 $* |
| Jun-19-2025 | 24360.42 $* | 25578.49 $* |
| May-19-2025 | 21210.97 $* | 22271.31 $* |
| Apr-19-2025 | 23940.92 $* | 25137.18 $* |
| Mar-19-2025 | 23730.26 $* | 24917.15 $* |
| Feb-19-2025 | 23520.56 $* | 24696.30 $* |
| Jan-19-2025 | 23310.16 $* | 24476.55 $* |
Характеристики
Products Description
Model | Forming length | Forming width | Forming height | Machine weight | Overall size |
SZZ-72120 | 650 ~ 1200mm | 360 ~ 720mm | 180mm | 3T | 7500 * 1400* 2400mm |
Machine Main Specification | Machine Main Part | ||||
Model | SZZ-72120 | Vacuum Pump | Germany Becker(100) | ||
Voltage | 380V 3P 50/60Hz | Relay | Japan IDEC | ||
Power | 30KW | Circuit Breaker | DELIXI(3P 100A) | ||
Max Forming Size | 720*1200MM | PLC | Delta （DVP32ES2） | ||
Max Forming Height | 200MM | Encoder Coder | Korea HRO | ||
Production Speed | 220-480Moulds/H | Nozzle | Taiwan 7-UP | ||
Material Thickness | 0.1-2MM | Magnetic Valve | Taiwan AIRTAC | ||
Machine Dimension | 7200*1700*2600MM | Air System | SNS | ||
Machine Net Weight | 3200KG | Touch Screen | MCGS | ||
Application
Suitable for PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc, the machine furnace produce heat to soften the plastic sheet, then vacuum pump sucks the plastic sheet down to the forming mould area to finish the forming, different forming mould enable to have different forming shape .Full automatic vacuum forming plastic egg tray making machine.
It's suitable for the blister packaging in toys, hardware, food, electronic products, medicine, commodity, etc. Full automatic disposable plastic food container vacuum forming machine.
It's suitable for the blister packaging in toys, hardware, food, electronic products, medicine, commodity, etc. Full automatic disposable plastic food container vacuum forming machine.
Main Features
1. Motor puller and inverter speed control, encoder controls puller length, automatic brake circuit, high puller precision, and maximum puller error does not exceed 1mm
2. Independent and precise temperature control: using far-infrared ceramic heating plate for heating, the temperature of each heating plate can be set and controlled separately, and the set temperature value and actual temperature value are directly displayed on the screen in digital form, and any A heating plate is turned off, which is more suitable for producing complex products.
3.Complete functions: there are multiple functions such as secondary upper mold, secondary vacuum, and vibration demolding, which are more suitable for producing difficult products.
4. Equipped with chiller, cold water nozzle and wide-mouth fan, which can ensure good cooling of the product, fast molding speed and high production efficiency.
5. Aluminum alloy chain guide, light weight, high strength, no deformation, no corrosion.
2. Independent and precise temperature control: using far-infrared ceramic heating plate for heating, the temperature of each heating plate can be set and controlled separately, and the set temperature value and actual temperature value are directly displayed on the screen in digital form, and any A heating plate is turned off, which is more suitable for producing complex products.
3.Complete functions: there are multiple functions such as secondary upper mold, secondary vacuum, and vibration demolding, which are more suitable for producing difficult products.
4. Equipped with chiller, cold water nozzle and wide-mouth fan, which can ensure good cooling of the product, fast molding speed and high production efficiency.
5. Aluminum alloy chain guide, light weight, high strength, no deformation, no corrosion.
Details Images
PLC CONTROL SYSTEM
Adopt plc control system, the equipment operating parameters can be set on the display screen, easy to operate, and the data is easy to store.
222

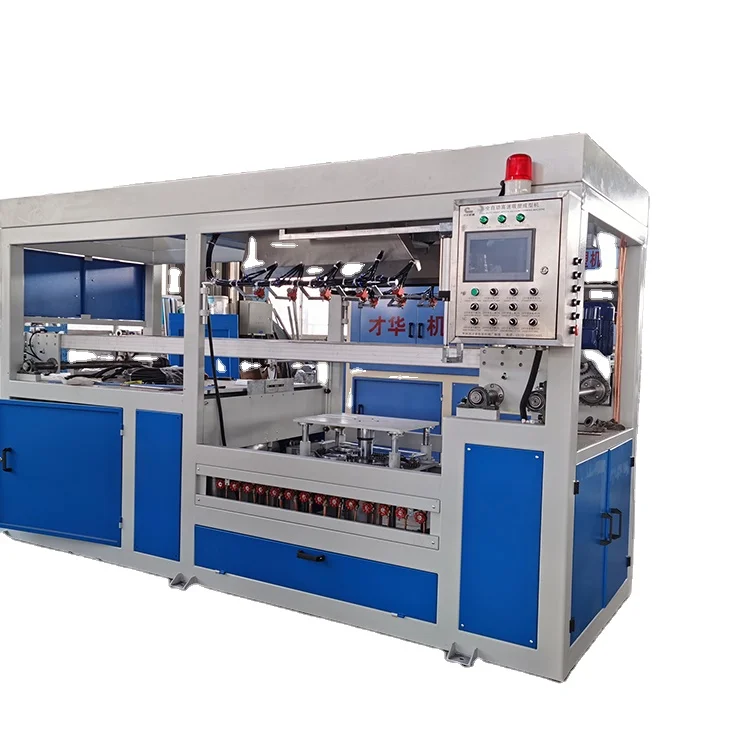

Forming system
The lower mold is vacuum formed, and the lower mold is equipped with a synchronous balancer to ensure the stable operation of the mold frame.
The lower mold is vacuum formed, and the lower mold is equipped with a synchronous balancer to ensure the stable operation of the mold frame.
Temperature control system
The heating furnace uses far-infrared ceramic heating, and the temperature control is one-to-one, which makes the temperature in the furnace area more uniform.
Sample
Customer Feedback
Related Product
Packing&Livery
！！！This device does not need to be packed in a wooden box, and the entire container is shipped.
PACKAGE: Standard export wooden case packing. Machine packing inside is plastic films and outside is fumigation wooden case. Our wooden case is very strong,it can bear long time shipping on the sea. And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.DELIVERY TIME: 3-30 days after confirming order,detail delivery date should be decided according to production season and order quantity.
For machines are big and heavy parcel, and different country with different delivery cost,So we suggest below delivery solution:
For machine is big and heavy parcel, and different country with different delivery cost. And the best delivery we suggest is by sea, so the delivery cost will be depended on your destination port. The price show on the website just the machine EXW price,please understand.
Company Profile
FAQ
What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
What is your term of delivery?
You can choose the one which is the most convenient or cost effective for you.
You can choose the one which is the most convenient or cost effective for you.
What is the power supply?
Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you.
Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you.
How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. If you just need sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
After price confirmation, you can require for samples to check our product’s quality. If you just need sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
How can we visit your company and machines?
Our factory is in Yaoguan Town, Changzhou City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.
Our factory is in Yaoguan Town, Changzhou City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.
what about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
Do you have any other model ? Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details andwe can custom make for you.
About The Warranty
One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Changzhou Caihua Packaging Machinery Factory would replace the parts freely, but the freight charge and the consumable parts
like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.
Honestly, it depends on the order quantity and the season you place the order.
Do you have any other model ? Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details andwe can custom make for you.
About The Warranty
One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Changzhou Caihua Packaging Machinery Factory would replace the parts freely, but the freight charge and the consumable parts
like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.
