Должны бренд EP3000 плюс солнечные ПВ инвертор 6KW 48V Инвертор постоянного тока в переменный преобразователь (1KW 2KW 3KW 4KW 5KW
- Категория: Solar Inverter >>>
- Поставщик: Must,Energy,(guangdong),Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.32 $* | 0.10 $* |
| Aug-19-2025 | 0.85 $* | 0.75 $* |
| Jul-19-2025 | 0.61 $* | 0.70 $* |
| Jun-19-2025 | 0.25 $* | 0.18 $* |
| May-19-2025 | 0.8 $* | 0.17 $* |
| Apr-19-2025 | 0.23 $* | 0.88 $* |
| Mar-19-2025 | 0.54 $* | 0.7 $* |
| Feb-19-2025 | 0.20 $* | 0.34 $* |
| Jan-19-2025 | 0.35 $* | 0.12 $* |
Характеристики

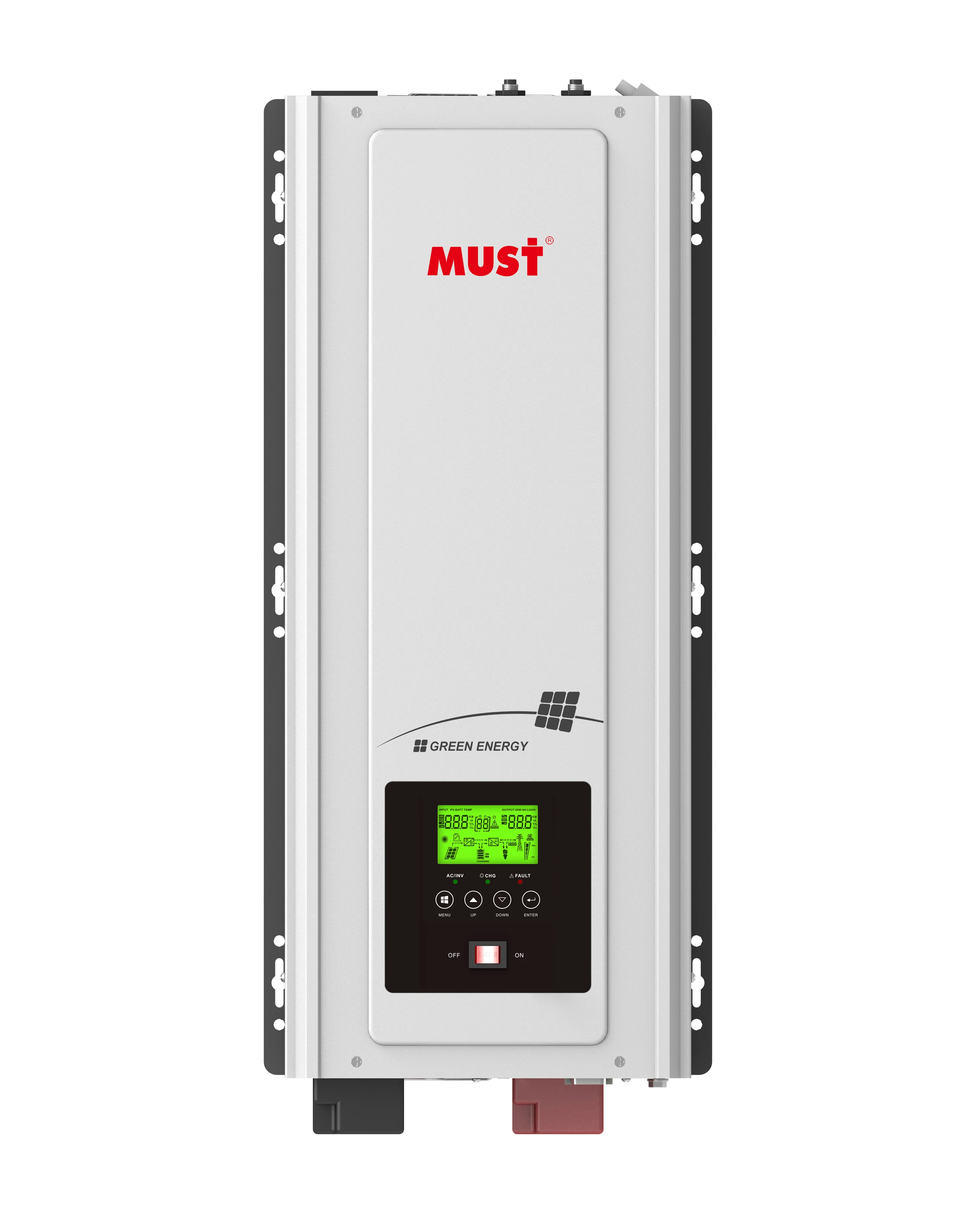

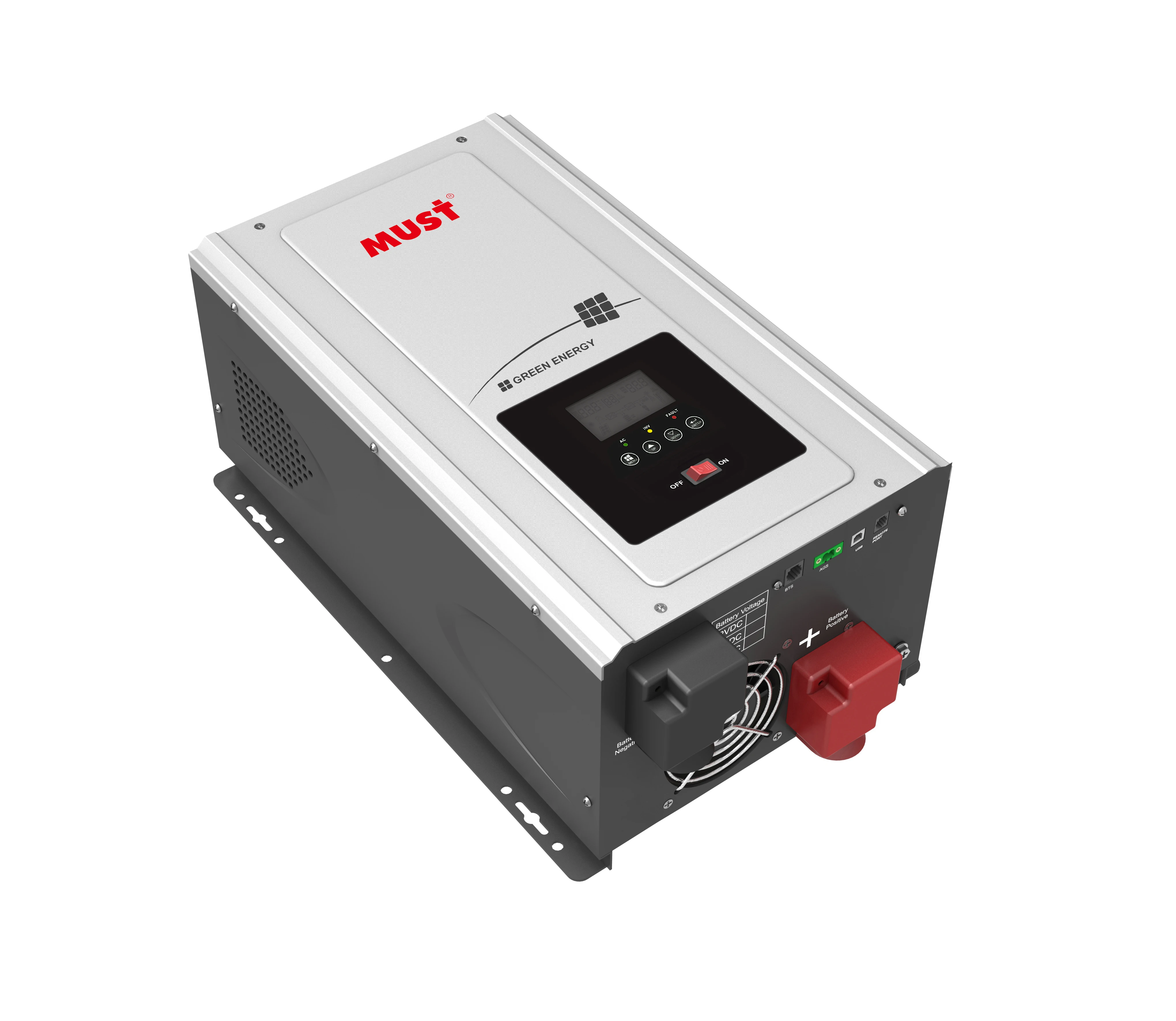

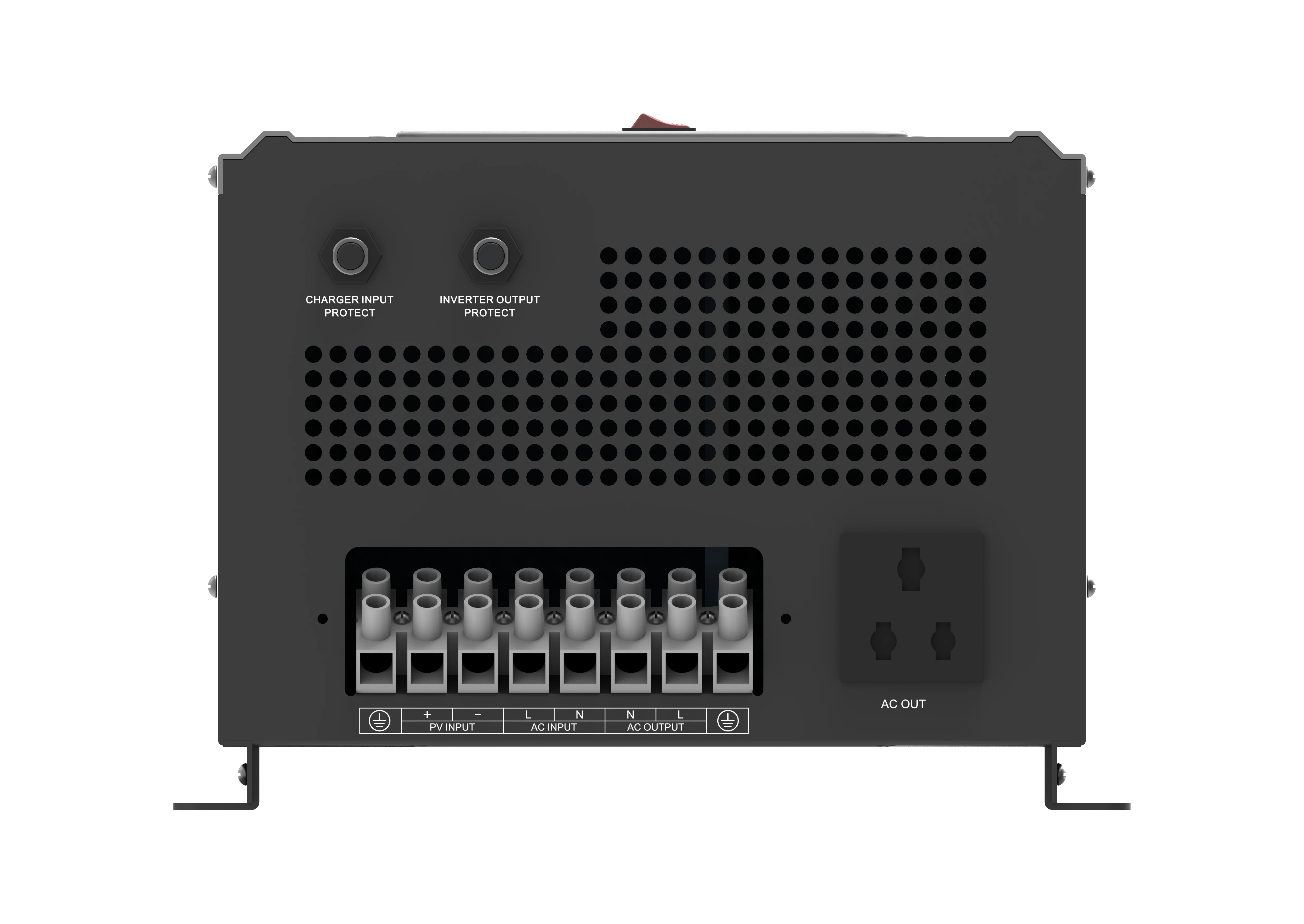

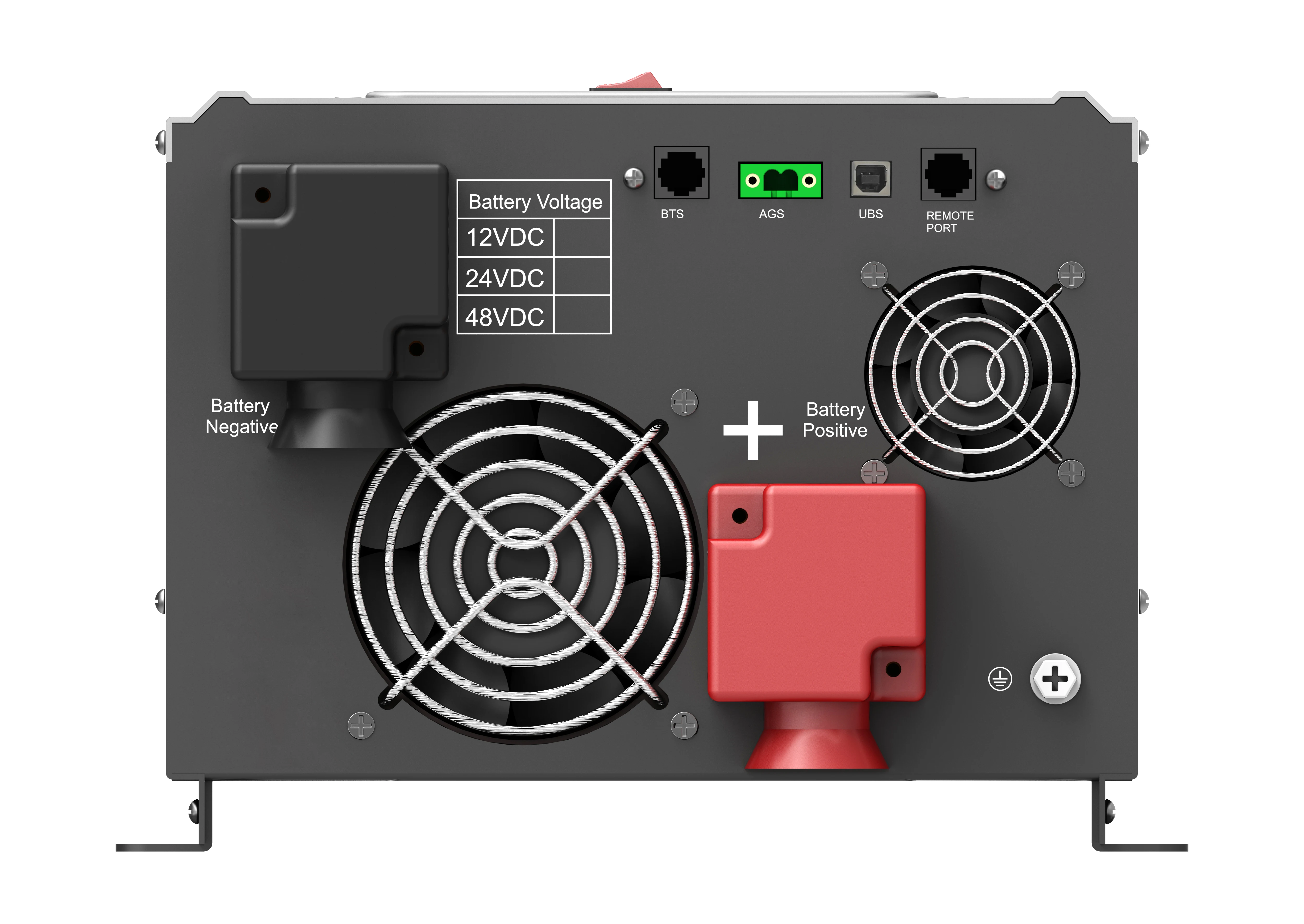

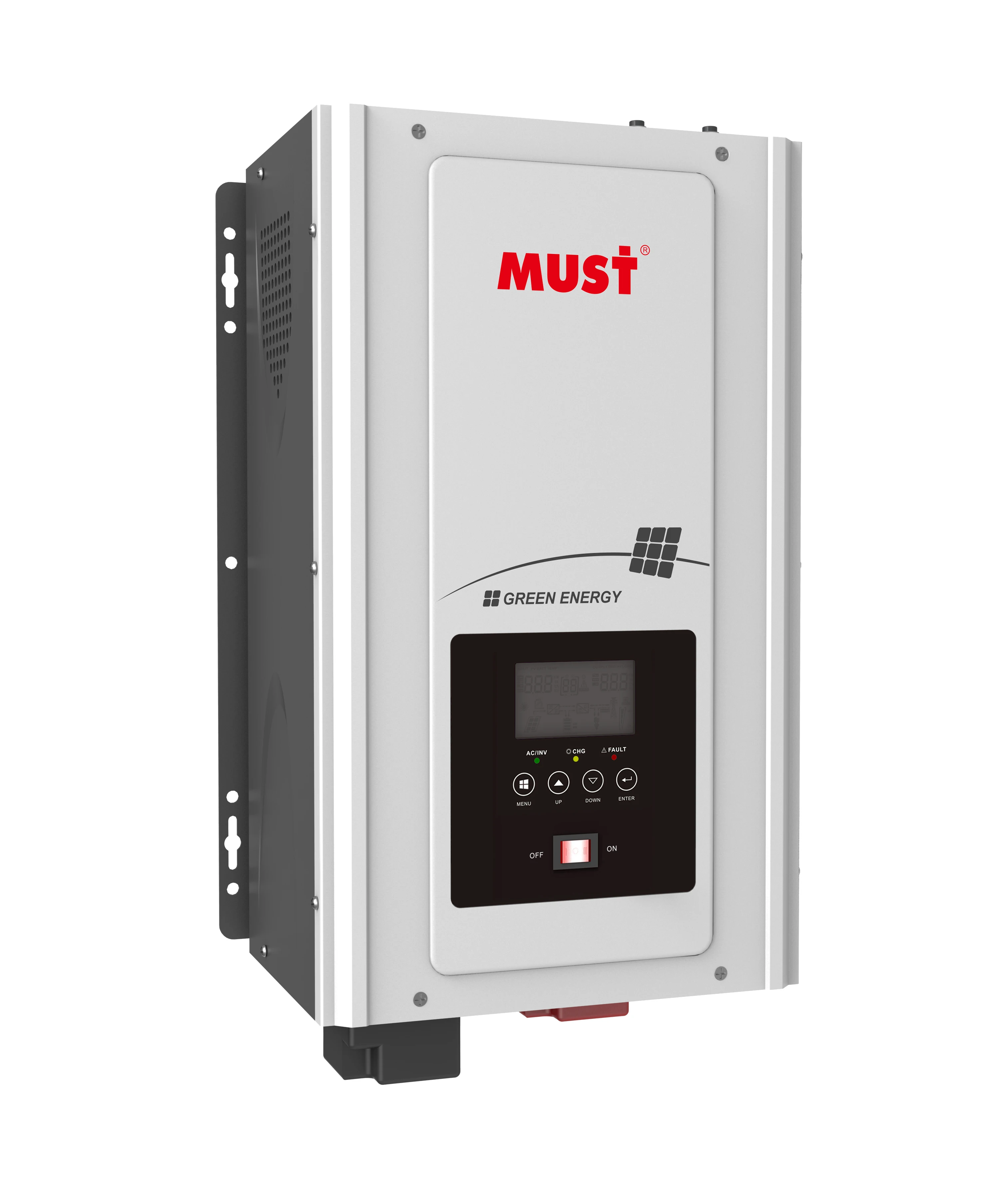

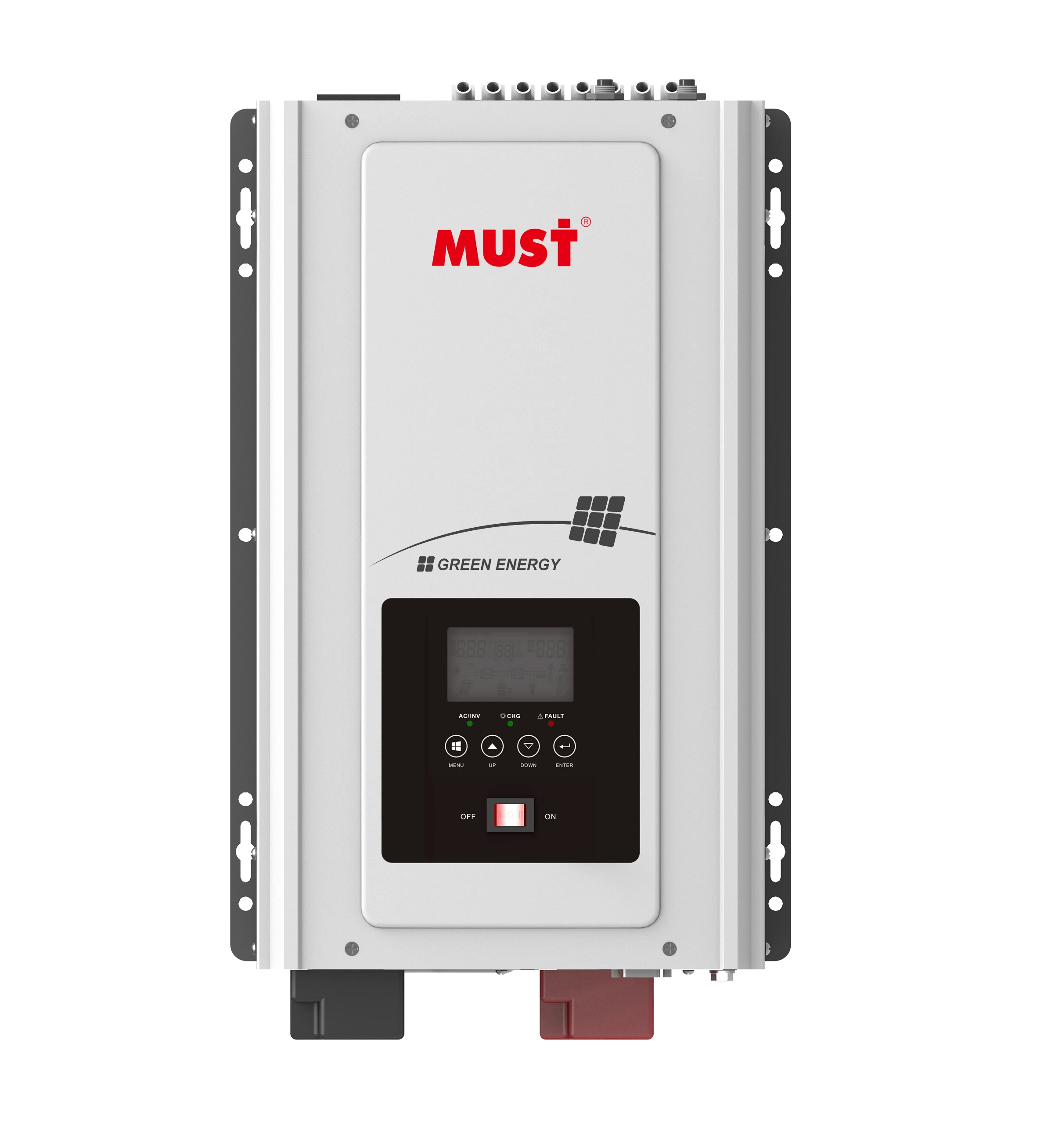

MUST Brand EP3000 Plus solar pv inverter 6KW 48V dc to ac converter (1KW 2KW 3KW 4KW 5KW 6KW optional)
Spec
| MODEL | EP30-1012 LV | EP30-1512 LV | EP30-1524 LV | EP30-2012 LV | EP30-2024 LV | EP30-3012 LV | EP30-3024 LV | EP30-3048 LV | EP30-4024 LV | EP30-4048 LV |
| Nominal Battery System Voltage | 12VDC | 12VDC | 24VDC | 12VDC | 24VDC | 12VDC | 24VDC | 48VDC | 24VDC | 48VDC |
| INVERTER OUTPUT | ||||||||||
| Reted Power | 1.0KW | 1.5KW | 2KW | 3KW | 4KW | |||||
| Surge Rating (20ms) | 3.0KW | 4.5KW | 6.0KW | 9.0KW | 12KW | |||||
| Capable Of Starting Electric Motor | 1HP | 2HP | ||||||||
| Waveform | Pure sine wave/ same as input (bypass mode) | |||||||||
| Nominal Output Voltage RMS | 100V/110V/120VAC (±10% RMS) | |||||||||
| Output Frequency | 50Hz/60Hz±0.3 Hz | |||||||||
| Inverter Efficiency(Peak) | >88% | |||||||||
| Line Mode Efficiency | >95% | |||||||||
| Power Factor | 1.0 | |||||||||
| Typical Transfer Time | 10ms(max) | |||||||||
| AC INPUT | ||||||||||
| Voltage | 120VAC | |||||||||
| Selectable Voltage Range | 80~135VAC(For Personal Computers) | |||||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) 40~80Hz | |||||||||
| BATTERY | ||||||||||
| Minimum Start Voltage | 10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||
| Low Battery Alarm | 10.5VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||
| Low Battery Cut off | 10.0VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||
| High Voltage Alarm | 16.0VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||
| High Battery Voltage Recover | 15.5VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC) | |||||||||
| Idle Consumption-Search Mode | <25W when power saver on | |||||||||
| CHARGER | ||||||||||
| Output Voltage | Depends on battery type | |||||||||
| Charger AC Input Breaker Rrating | 10A | 30A | 40A | |||||||
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC mode, *4 for 48VDC mode) | |||||||||
| Maximum Charge Current | 35A | 45A | 25A | 65A | 35A | 75A | 45A | 30A | 65A | 35A |
| BYPASS&PROTECTION | ||||||||||
| Input Voltage Waveform | Pure Sine wave (grid or generator) | |||||||||
| Nominal Input Frequency | 50Hz or 60Hz | |||||||||
| Overload Protection (SMPS Load) | Circuit breaker | |||||||||
| Output Short Circuit Protection | Circuit breaker | |||||||||
| Bypass Breaker Rating | 10A | 30A | 40A | |||||||
| Max Bypass Current | 30Amp | 40Amp | ||||||||
| MECHANICAL SPECIFICATIONS | ||||||||||
| Mounting | Wall Mount | |||||||||
| Dimensions (W*H*D) | 426*206*178mm | 601*206*178mm | ||||||||
| Net Weight (Solar CHG) kg | 16.5 | 17 | 21.1 | 20 | 26 | 24.5 | 24.8 | 38.2 | 35.8 | |
| Shipping Dimensions(W*H*D) | 570*335*300mm | 750*335*300mm | ||||||||
| Shipping Weight (Solar CHG) kg | 19.3 | 20 | 24.1 | 22.8 | 29.1 | 27.5 | 27.5 | 42.3 | 40 | |
| OTHER | ||||||||||
| Operation Temperature Range | 0°C to 40°C | |||||||||
| Storage Temperature | -15°C to 60°C | |||||||||
| Audible Noise | 60dB MAX | |||||||||
| Display | LED+LCD | |||||||||
| Standard Warranty | 1 year | |||||||||
Company Information
1. MUST Factory located in Huanan Chuanggu Science and Technology Park, Chancheng District, Foshan City. We are a high-tech manufacturer specializing in R&D, production, sales and service of industrial automation, new energy and power electronics related products.
2. MUST main products include: (UPS), Inverter, Photovoltaic Controller, Photovoltaic Inverter, Photovoltaic control inverter integrated machine, photovoltaic energy storage inverter, photovoltaic grid-connected inverter, Photovoltaic power generation system, photovoltaic pump system, microcomputer room system, dedicated loss converter, servo drive, servo motor, servo system
3. MUST's products have passed CE, SAA, SONCAP, SGS, Tell certification and other safety certifications, ISO: 9001, ISO: 14000 and other quality management system certification,
4. MUST products are exported to Spain, Italy, Russia, Australia, the Middle East, Ukraine, South Africa, Nigeria, Pakistan and other countries to provide customers with quality and efficient services.
Our Services
5kw 6kw 7kw 8kw Hybrid solar power Inverter for solar power system MPPT built inside
5kw 6kw 7kw 8kw Hybrid solar power Inverter for solar power system MPPT built inside
Packaging & Shipping
5kw 6kw 7kw 8kw Hybrid solar power Inverter for solar power system MPPT built inside
Certifications
5kw 6kw 7kw 8kw Hybrid solar power Inverter for solar power system MPPT built inside
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
