Три шпинделей 4 оси ЧПУ для резки древесины резьба по дереву
- Категория: Other Woodworking Machinery >>>
- Поставщик: Jinan,Huawei,CNC,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 6902.50 $* | 7247.30 $* |
| Aug-19-2025 | 6844.17 $* | 7186.0 $* |
| Jul-19-2025 | 5742.11 $* | 6029.31 $* |
| Jun-19-2025 | 6728.77 $* | 7064.89 $* |
| May-19-2025 | 5858.40 $* | 6151.94 $* |
| Apr-19-2025 | 6612.11 $* | 6943.36 $* |
| Mar-19-2025 | 6554.8 $* | 6882.97 $* |
| Feb-19-2025 | 6496.21 $* | 6821.84 $* |
| Jan-19-2025 | 6438.16 $* | 6760.1 $* |
Характеристики
three spindles 4 axis cnc wood cutting carving machine ATC

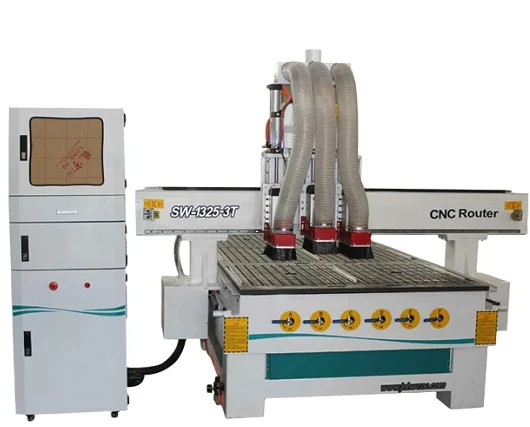

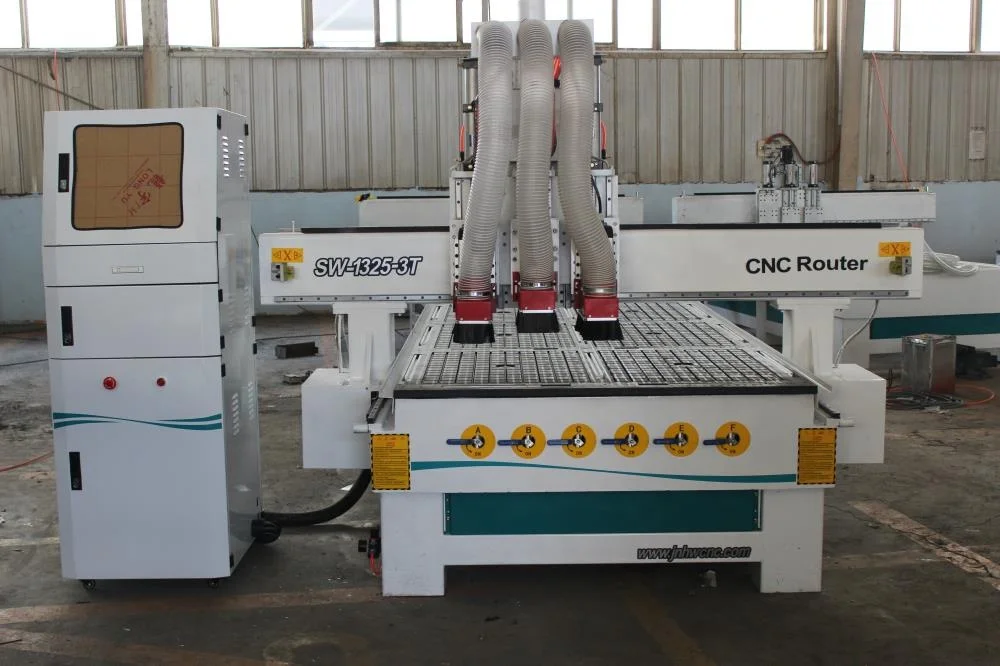

Machine show :
Parameter :
Size | Working Area(XY) | 1300*2500mm,1500*3000mm and more |
Working Area(Z) | 200mm or others | |
Accuracy | Positioning Accuracy | 0.03mm |
Repeatability | +/- 0.05mm | |
Control Part | 3 Axis Control Motor | Stepper Motor |
Controller | DSP remote controller( NC studio l Mach3 ) | |
Interface | USB | |
Spindle Motor | Output | 3kw,watercooling, 24000rpm/4.5kw/6kw or others |
Collet | ER20/ER25 | |
Table Structure | Material Hold Down | Vacuum Combined T slot |
Traverse System | Traverse System | Linear Guide on 3 axis, Rack and Pinion on Y, Ballscrew on Z |
Max. Traverse Speed | 30m/min | |
Power Source |
| 380V/3phase; 220V/3phase |
Optional | Vacuum pump | Watering or free-oil type |
ATC | Linear Type or Carrousel Type ATC | |
Dust Collecting System | Dust collector + Dust collector hood | |
Command Language |
| G code & PLT |
Application :
1.Furniture: plate,office furniture,doors,cabinets. Varies furinture products.
2.Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.
3.Board processing: Alumnium composite panel, iplastic chemical components,PCB, ,PP PE etc.
4.Decoration: Acrylic PVC MDF glass plastic and soft metals suchas copper and aluminum.
Packaging & Shipping
Delivery and Package:
Generally we will take care of your machine packages well like picture show.
Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet protection, at last we will make export standard strong
plywood case package according to your needs.
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
Together with our machine, there are english manual or guide video that show how to operate the machine.
If you have any question, we can talk by phone, email or skype.
2) If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem.
Free after sales service for lifetime, please feel free to contact us if your machine have any problem. we will give you 24 X 7 support by phone, email and skype.
3) This model is not suitable for me, do you have more models available?
Yes, we can supply many models. Replacement of some part, we can produce wood CNC engraving machine, marble CNC engraving machine, and etc. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
Our Services
A. Technical support:
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
B. After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc
C. Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare
parts at cost price. You will also get technical support and service all the lifetime.
Certifications
Company Information
JiNan Huawei CNC machinery Co.,Ltd specilized in raising the R&D capabilities of cnc & laser machine and engages to be the leading specialized company in the industry
Established in 2002, we have a professional team of unity, skill and strong sense of responsibility, having over 10 years experience, we create a set of precise and elegant engraving skills with modern high-tech means and advanced digital technology
Most components of cnc and laser machines can be produced and processed by ourseleves, which great guarantee on production efficiency, with the expanding scale, we have purchased several forkifts and large equipment to improve our processing technology to a higher leavel
