Детали лазерного модуля для лазерной гравировальной машины с ЧПУ «сделай сам» 0 5 Вт 2 3
- Категория: Запчасти для лазерного оборудования >>>
- Поставщик: Henan,Lunyee,Industrial,Automation,Equipment,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.71 $* | 0.17 $* |
| Aug-17-2025 | 0.2 $* | 0.1 $* |
| Jul-17-2025 | 0.85 $* | 0.65 $* |
| Jun-17-2025 | 0.0 $* | 0.22 $* |
| May-17-2025 | 0.52 $* | 0.82 $* |
| Apr-17-2025 | 0.13 $* | 0.33 $* |
| Mar-17-2025 | 0.0 $* | 0.13 $* |
| Feb-17-2025 | 0.40 $* | 0.30 $* |
| Jan-17-2025 | 0.74 $* | 0.89 $* |
Характеристики

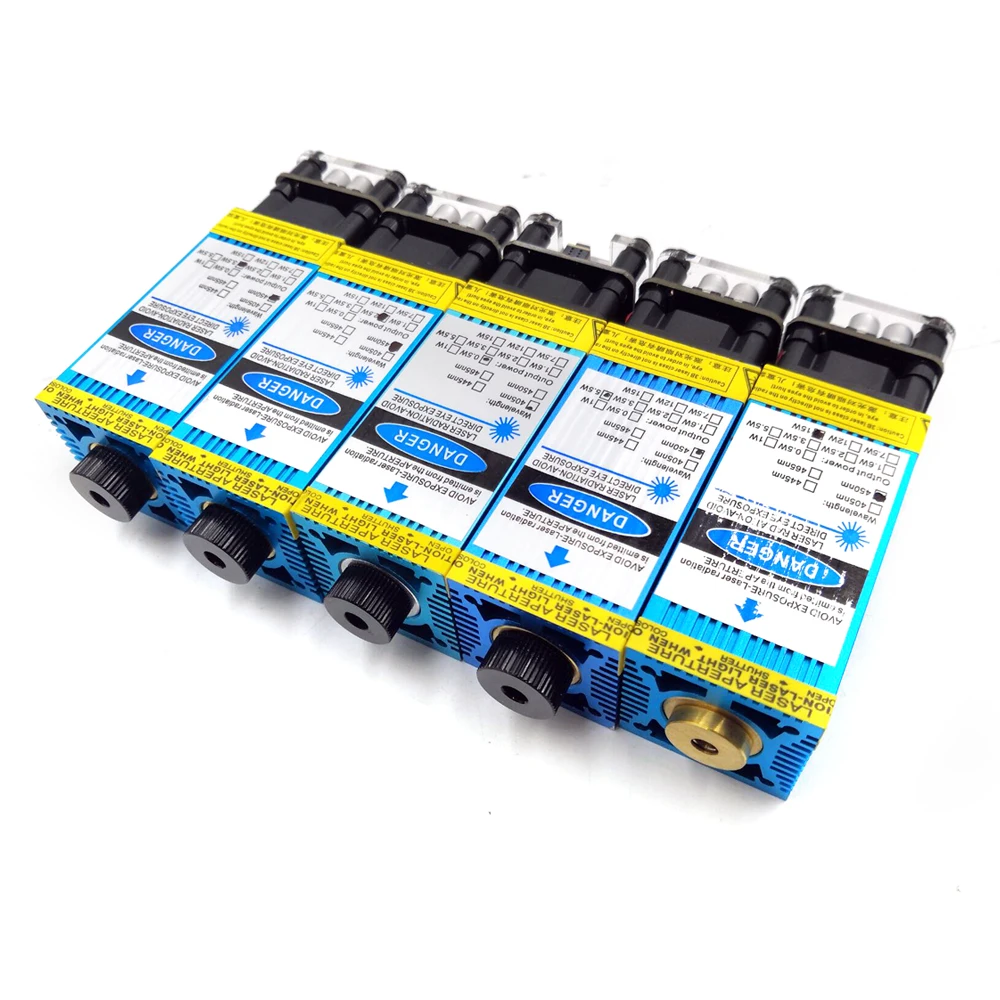

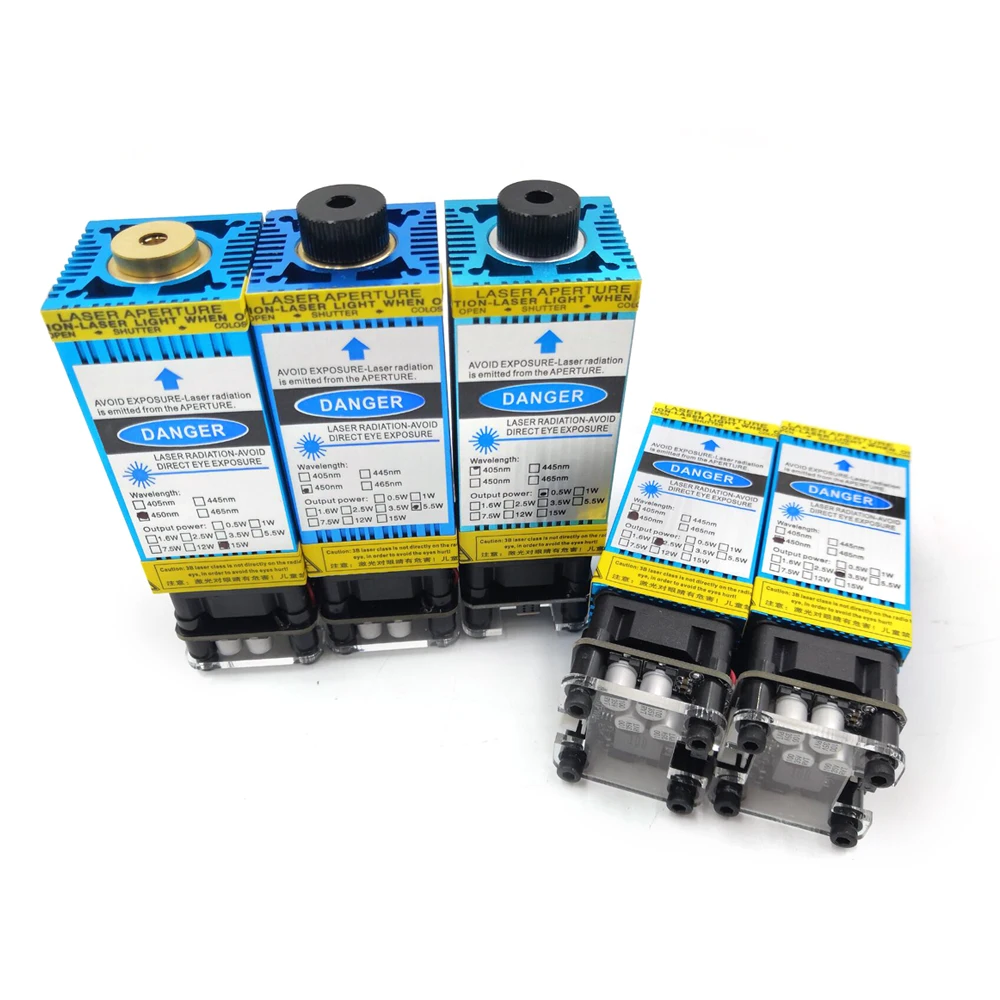

Product Show
450nm focusable blue 0.5w 2.5w 3.5w 5.5w 15w Laser Module Laser Engraver part DIY Laser Head with PWM
Parameters
Engraving distance | less than 3cm |
Wave length | 450NM |
Power | 0.5w/2.5w/3.5w/5.5w/15w |
Electric current | 3-5A |
Voltage | DC 12V |
Working temperature | +10 ~+40 |
Driver module | TTL |
Product Advantages
Can engrave on :wood,leather,bamboo,Painted anodized aluminum,Paper,card,MDF
Can cut :less than 3mm cork wood,0.5mm lather,less than 2mm MDF
Can cut :less than 3mm cork wood,0.5mm lather,less than 2mm MDF

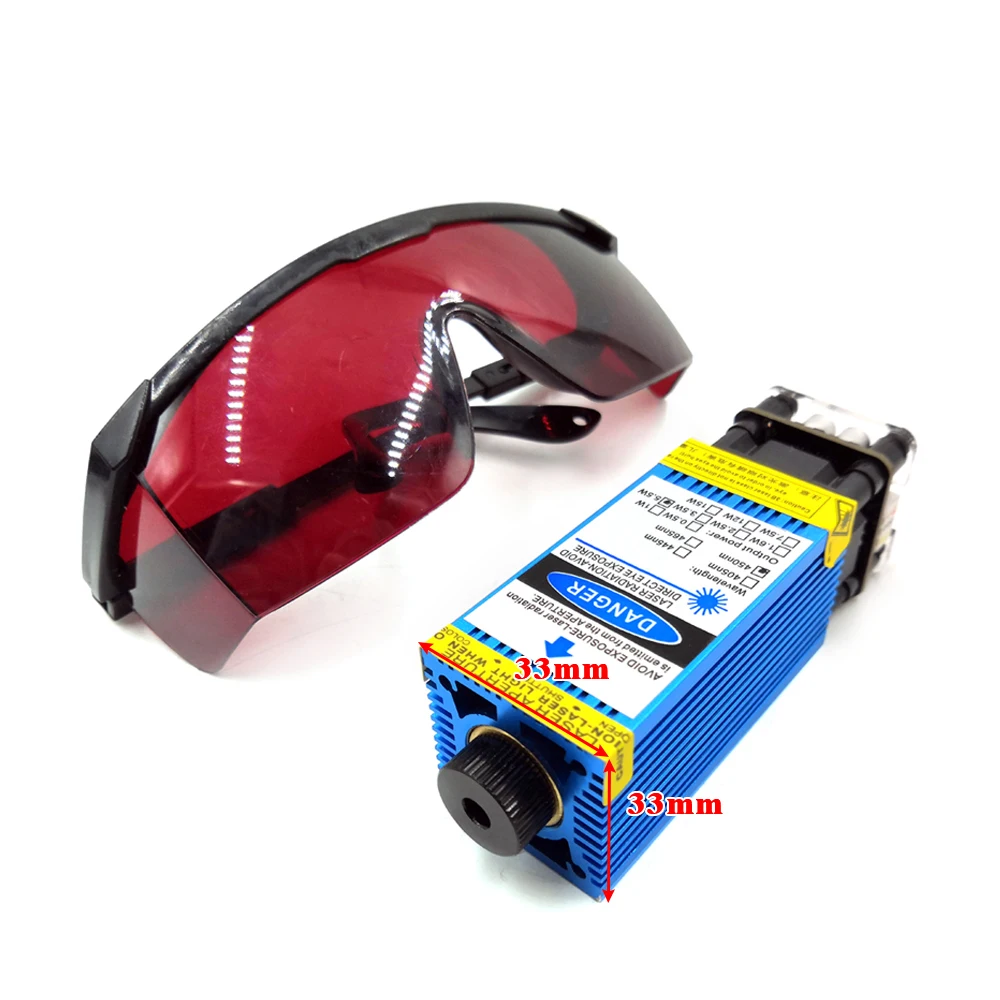

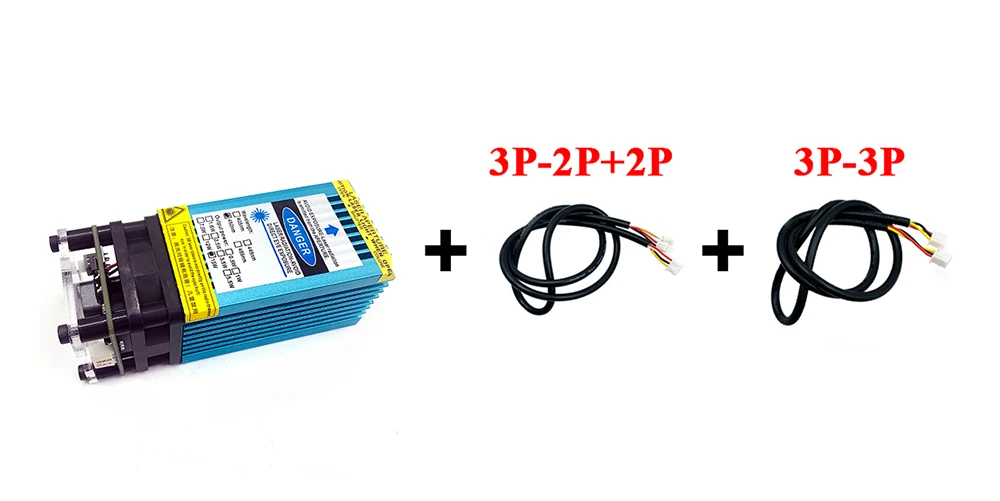

Product Details
Matters need attention
When you received your goods ,please test it in the first time!Test method ,as shown
below!
below!
Product Effects
Your satisfaction is our relentless pursuit，start your DIY engraving adventure！
Our Factory
FAQ

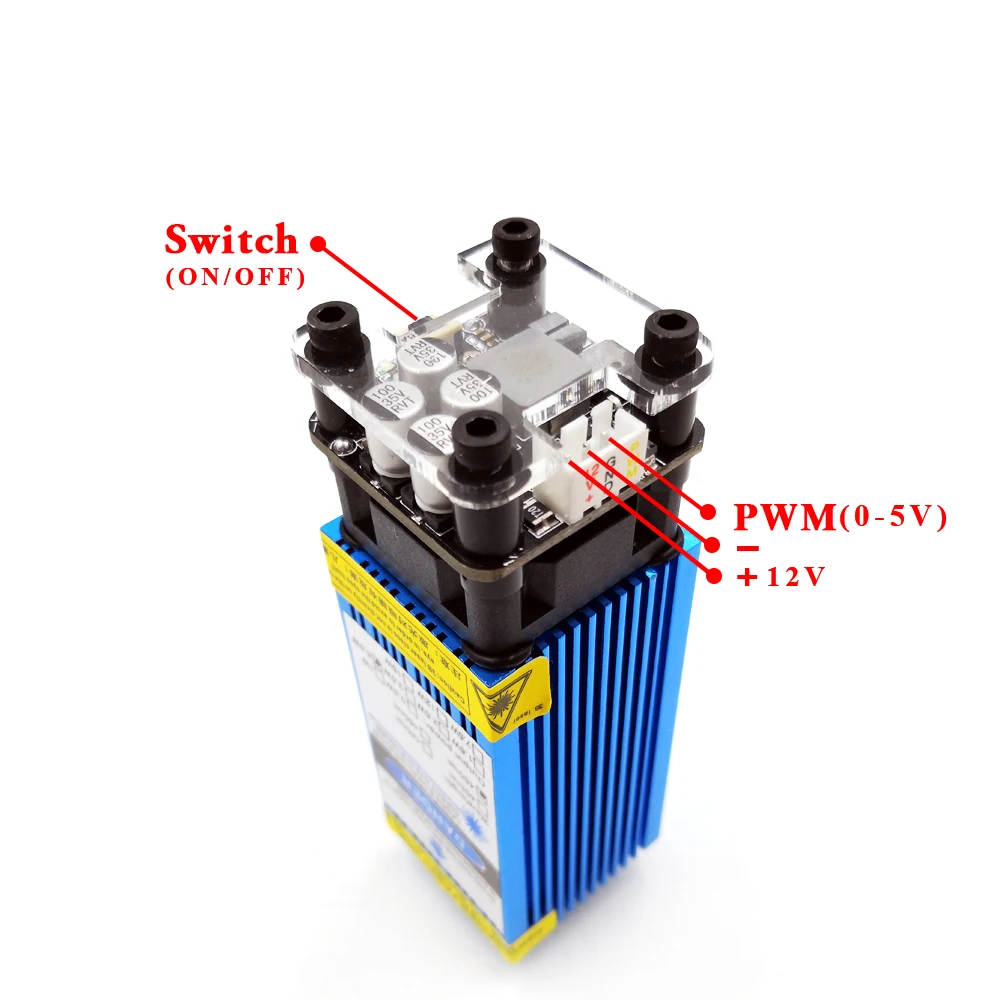

Q：Where is the TTL port? I can only see the PWM?
A：TTL and PWM is compatible you can only choose one of them. It means that you can connect this module's PWM port to the PWM (or TTL) port on the control board of your engraver. But make sure the voltage supply of that port is DC 5V.
Q：How can I connect this module to the my engraver?
A:If you don't need the PWM function, you can directly connect the power port to Motor Port (12V, GND) on your control
board and leave the PWM port unconnected.
User must read:
--Laser module power is relatively large, only for industrial use, to prohibit the exposure of the
eye, otherwise it will cause permanent blindness, the consequences at your own risk.
--Do not use in flammable and gas atmospheres to avoid fire and explosion.
--Prohibit children from exposure to this laser product.
--Do not open the module to avoid damage.
A：TTL and PWM is compatible you can only choose one of them. It means that you can connect this module's PWM port to the PWM (or TTL) port on the control board of your engraver. But make sure the voltage supply of that port is DC 5V.
Q：How can I connect this module to the my engraver?
A:If you don't need the PWM function, you can directly connect the power port to Motor Port (12V, GND) on your control
board and leave the PWM port unconnected.
User must read:
--Laser module power is relatively large, only for industrial use, to prohibit the exposure of the
eye, otherwise it will cause permanent blindness, the consequences at your own risk.
--Do not use in flammable and gas atmospheres to avoid fire and explosion.
--Prohibit children from exposure to this laser product.
--Do not open the module to avoid damage.
