Гуанчжоу GED C24 A3/A4 Размер 430 мм промышленного уровня мини виниловый плоттер с камерой контур Cut & 4 3 дюймовый

Описание и отзывы

Трекер стоимости

Характеристики

Guangzhou GED C24 A3/A4 size 430mm industrial level mini vinyl Cutter Plotter with Camera Contour Cut & 4.3 Inch Color Screen



Product Parameters



Model	GED-C24
Product Name	24 Inch Cutting Plotter with Laser Function
Max media width	720mm
Max cutting width	610mm
Indicate dimensions	950*160*180mm
Packing size	1000*320*280mm
Packing Gross weight	13kg
Max force	800g
db values	65
Number of heads	1
Floor stand	option
Auto contour cut	Laser Camera
CorelDRAW directly	Yes
Power supply, V/Hz	24V 1.5A

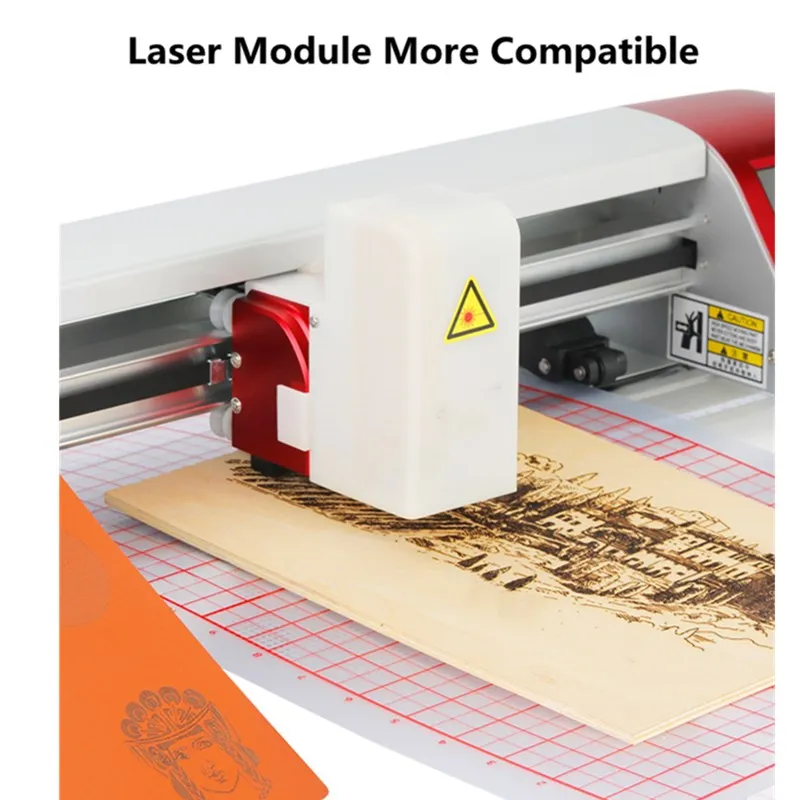

Laser engrave option	Yes
Scratch engrave option	Yes
Motor	stepper
Processor memory	128MB
Cutting precision	+/- 0.01mm
Repeat precision	0.082 mm
Max moving speed	700mm/s
Max cutting speed	600mm/s

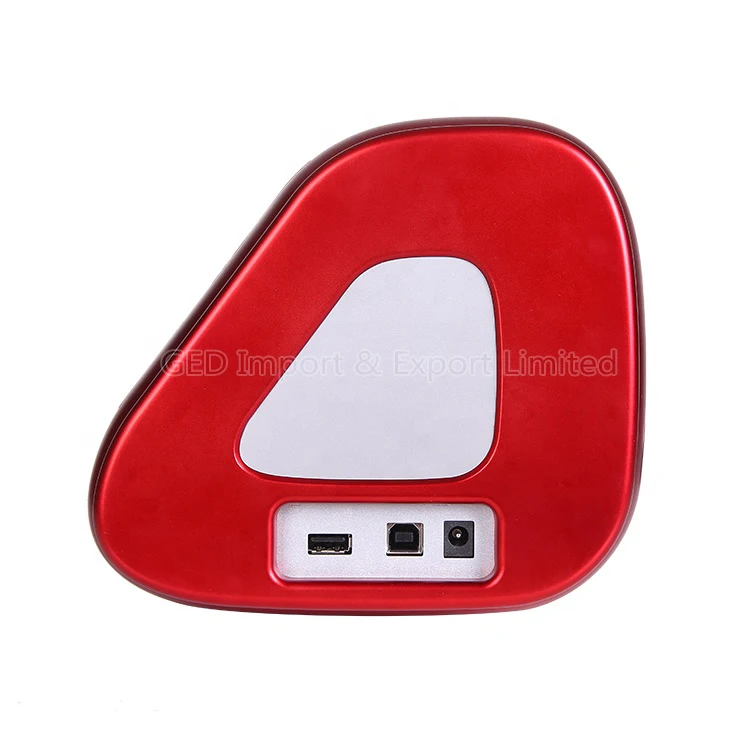

Connector interface	USB flash/ WIFI(option)/ USB cable
Power	< 100W
Working environment	+5°C - +35°C

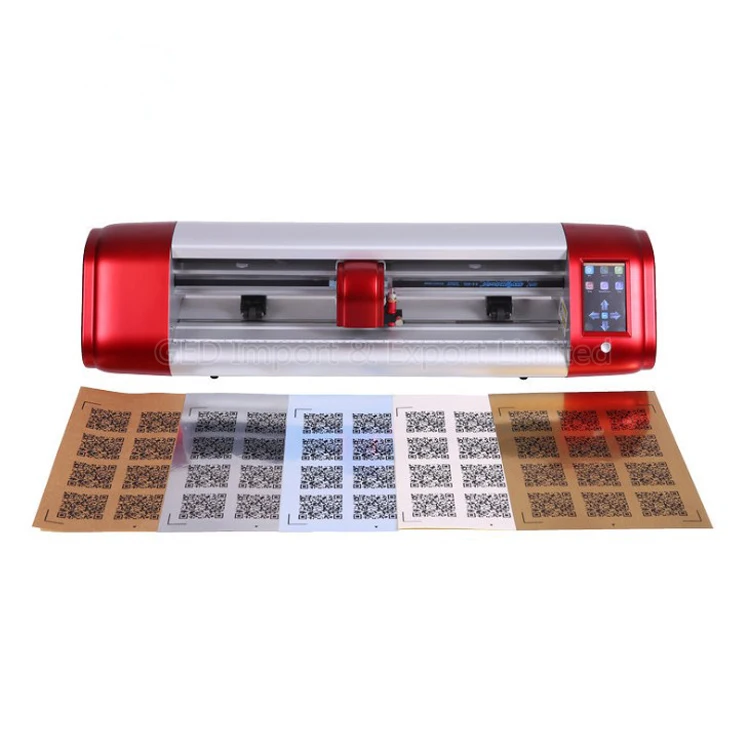

Product Show

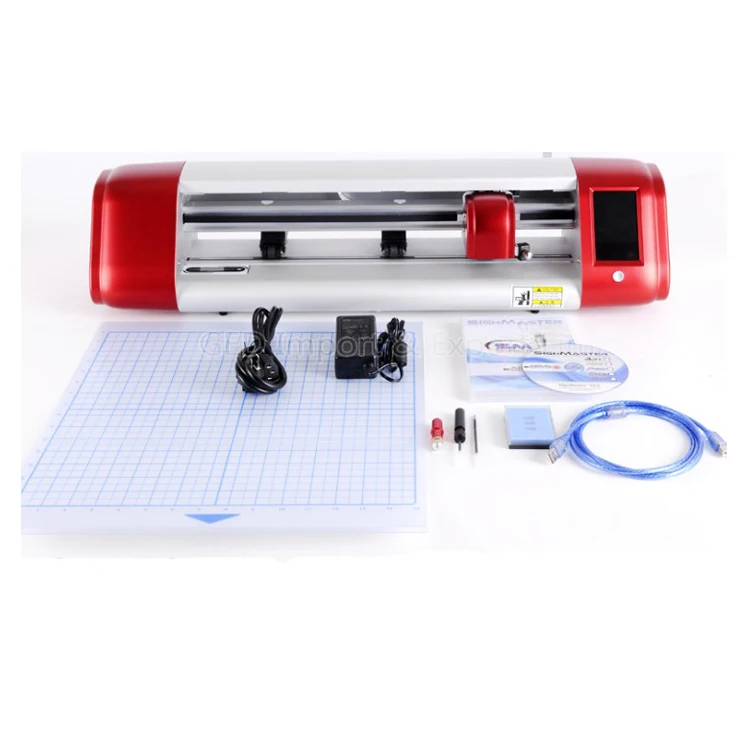

Standard Accessories





Optional Accessories

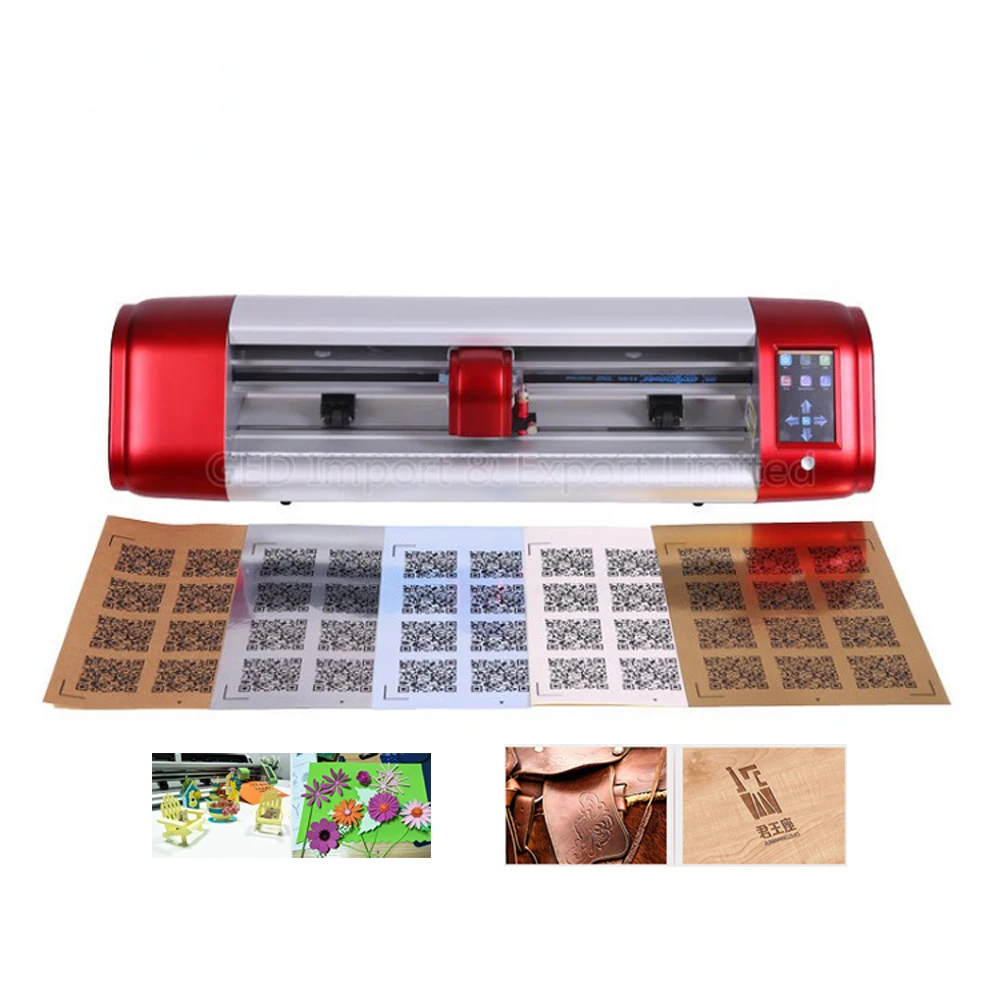

Sample Show



















Package and Shipping











Certification









 Our Quality & Service

1. One year warranty

2. We provide technical support at any time.

3. Customized colors and size are acceptable for production.

4. Engineer available to service machinery.

5. We could provide one stop service.

6. Whether you are after one machine or one hundred machines, we are always here to service you if you need.







If you need it , Please contact me anytime
