Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Полностью автоматическая машина для выдувания бутылок из ПЭТ 4000-4500bph 0
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Zhangjiagang,Navan,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 28560.10 $* | 29988.33 $* |
| Aug-19-2025 | 28320.46 $* | 29736.12 $* |
| Jul-19-2025 | 23760.71 $* | 24948.81 $* |
| Jun-19-2025 | 27840.22 $* | 29232.31 $* |
| May-19-2025 | 24240.33 $* | 25452.22 $* |
| Apr-19-2025 | 27360.59 $* | 28728.66 $* |
| Mar-19-2025 | 27120.49 $* | 28476.42 $* |
| Feb-19-2025 | 26880.71 $* | 28224.95 $* |
| Jan-19-2025 | 26640.78 $* | 27972.93 $* |
Характеристики
NAVAN Machine.
We produce NB series of fully automatic, semi-automatic PET blow molding machines and other 0.2L-2L Full Automatic Blow Molding Machine with output from 1000 to 8000 bottles per hour, which can satisfy different customers' requirements. Our products Certificated by CE. In order to meet customers’ specific requirements, factory offer product capacity ranges from 50ml to 30L, suitable for all kinds of PET bottles which contain mineral water, carbonated beverages, fruit juice, teas, edible oils cosmetics, detergents, and wide-mouth jar, etc. Navan Machinery is an ideal choice for large beverage factories, mineral water companies, and PET packaging enterprises.
Products Description

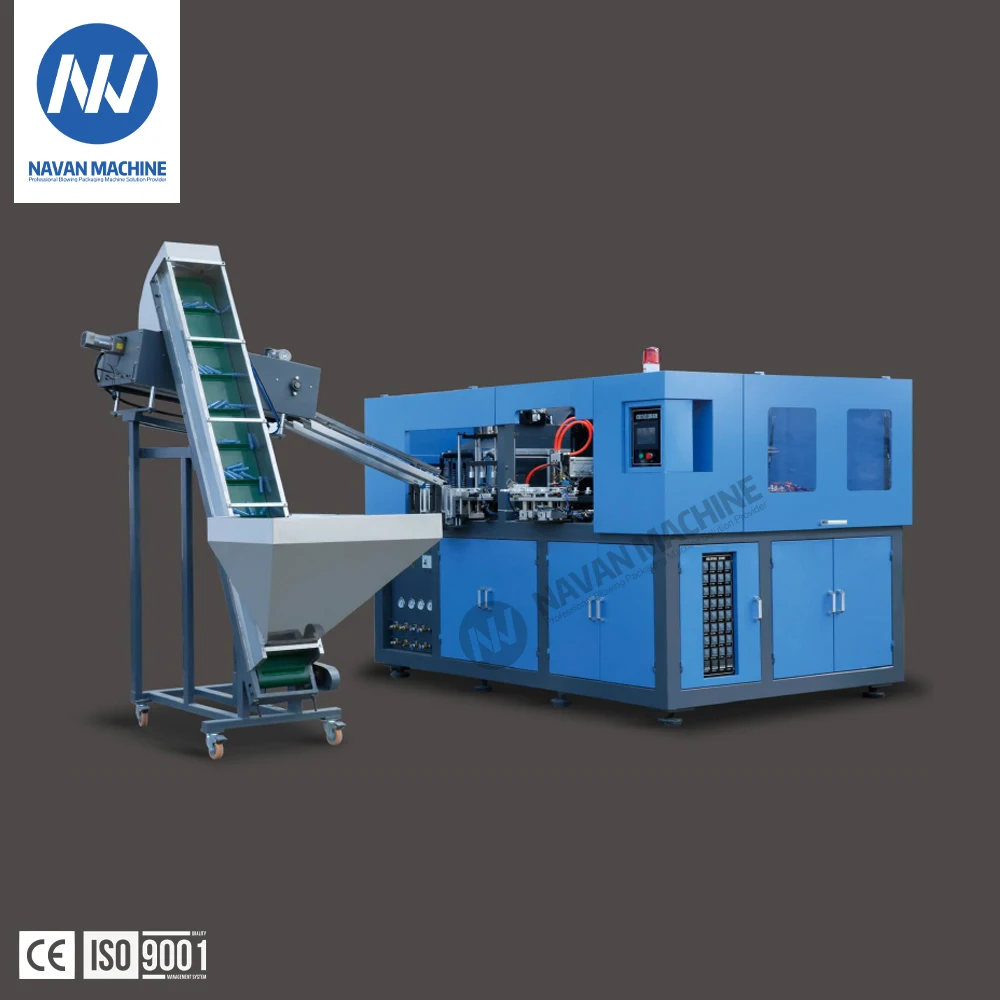

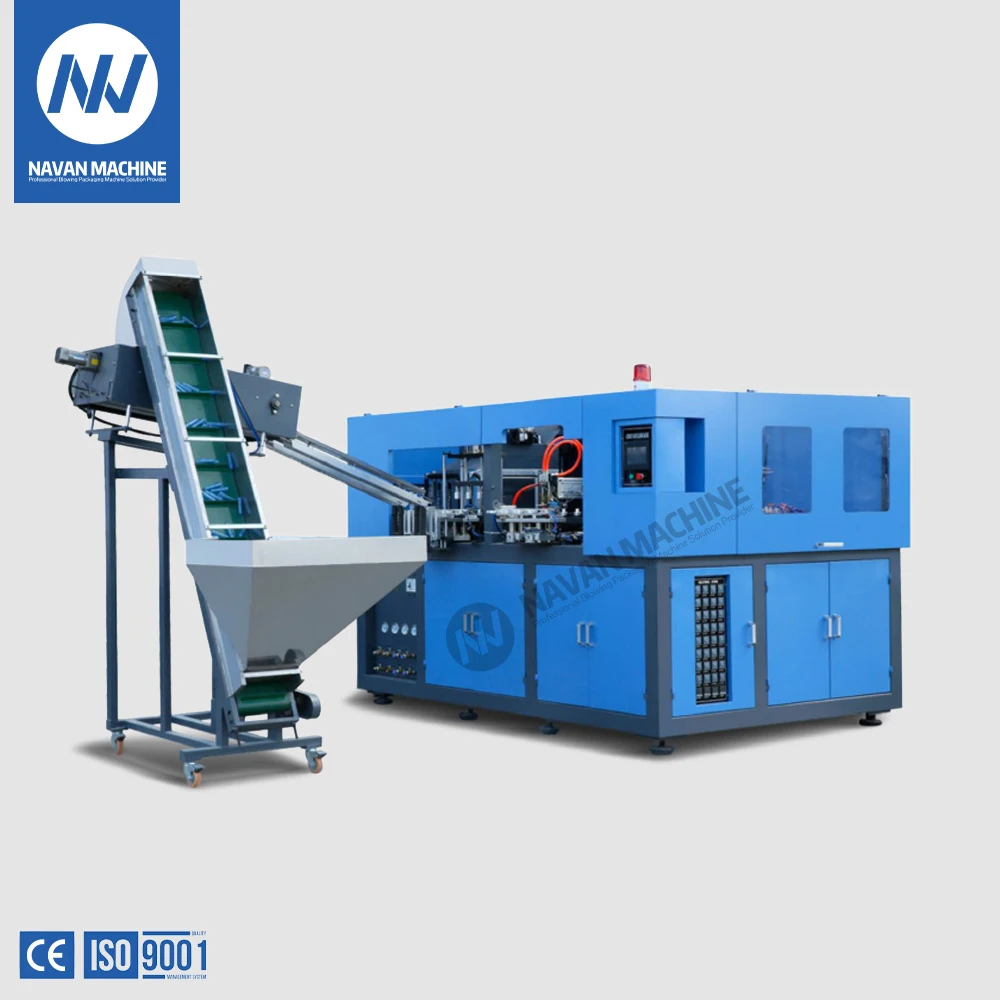

Full Automatic 4000-4500bph 0.5-2L PET Bottle Blowing Machine.
The bottle blowing machine is used for the production of PET water bottles, hot-filled bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles. The linear blow molding machine stretches the preform through a servo motor controlled stretch rod. The advantage is that it can be stretched in sections, and the preform is positioned first to ensure the verticality of the preform during stretching, and then the second stretch is performed. Ensure the uniformity and consistency of stretching of each preform. At the same time, the stretch speed of the bottle blowing machine is fast and the position is accurate.
Container | Max Container Volume Itr | 2 |
Max Neck Diameter mm | 50 | |
Max Container diameter mm | 110 | |
Max Container Height mm | 320 |
Details Images

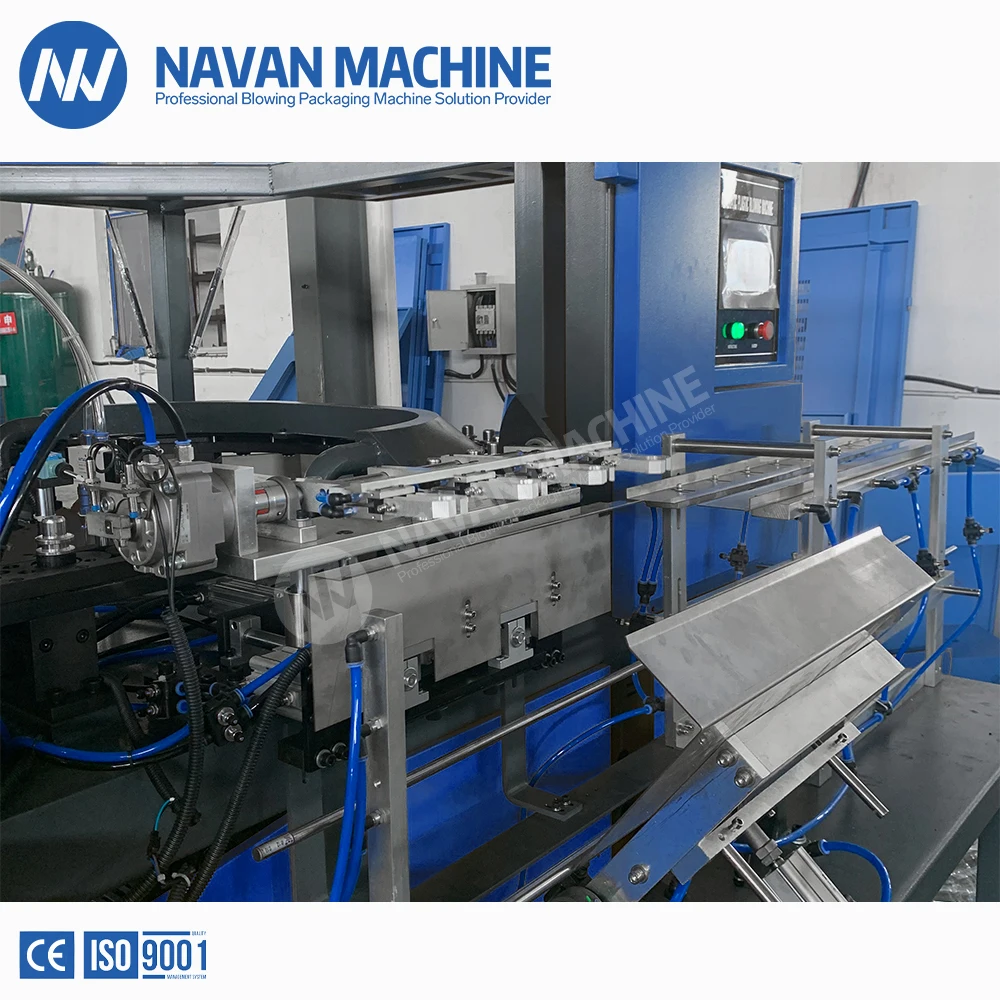

New Auto Preform Unscrambler System.
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.

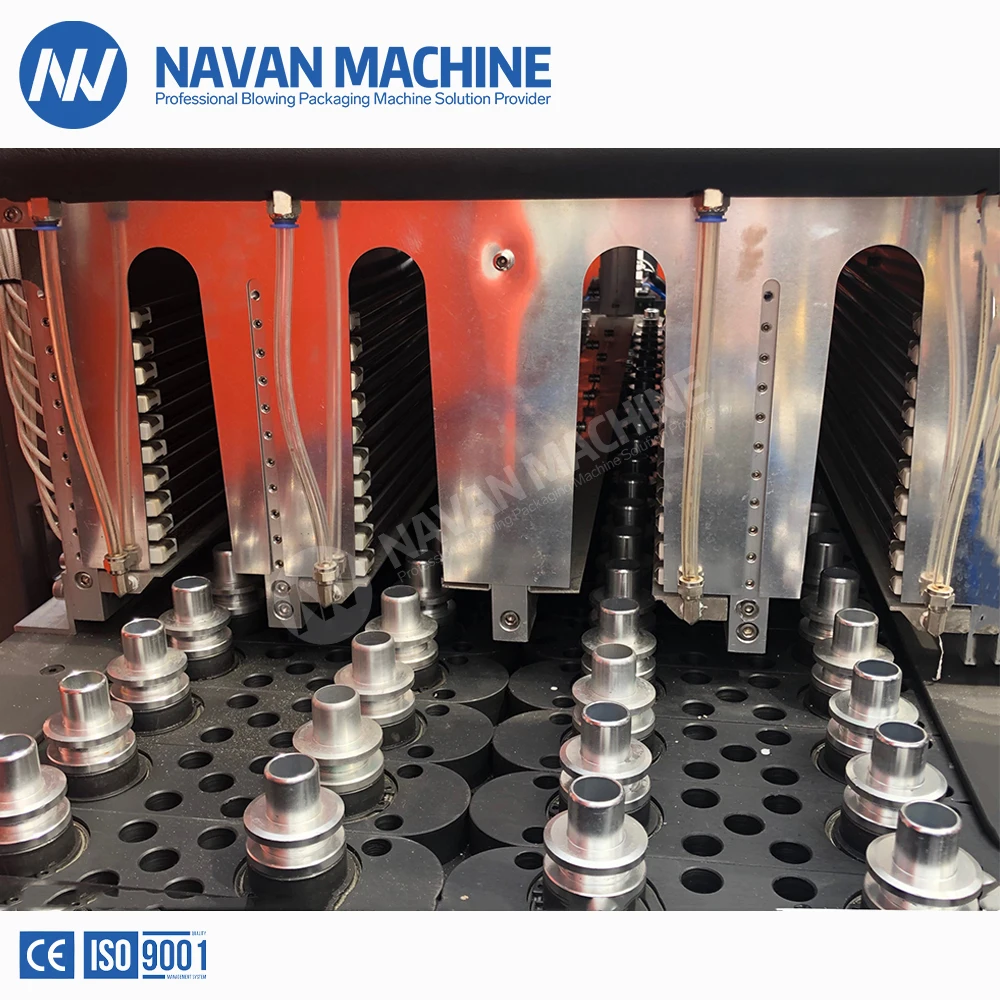

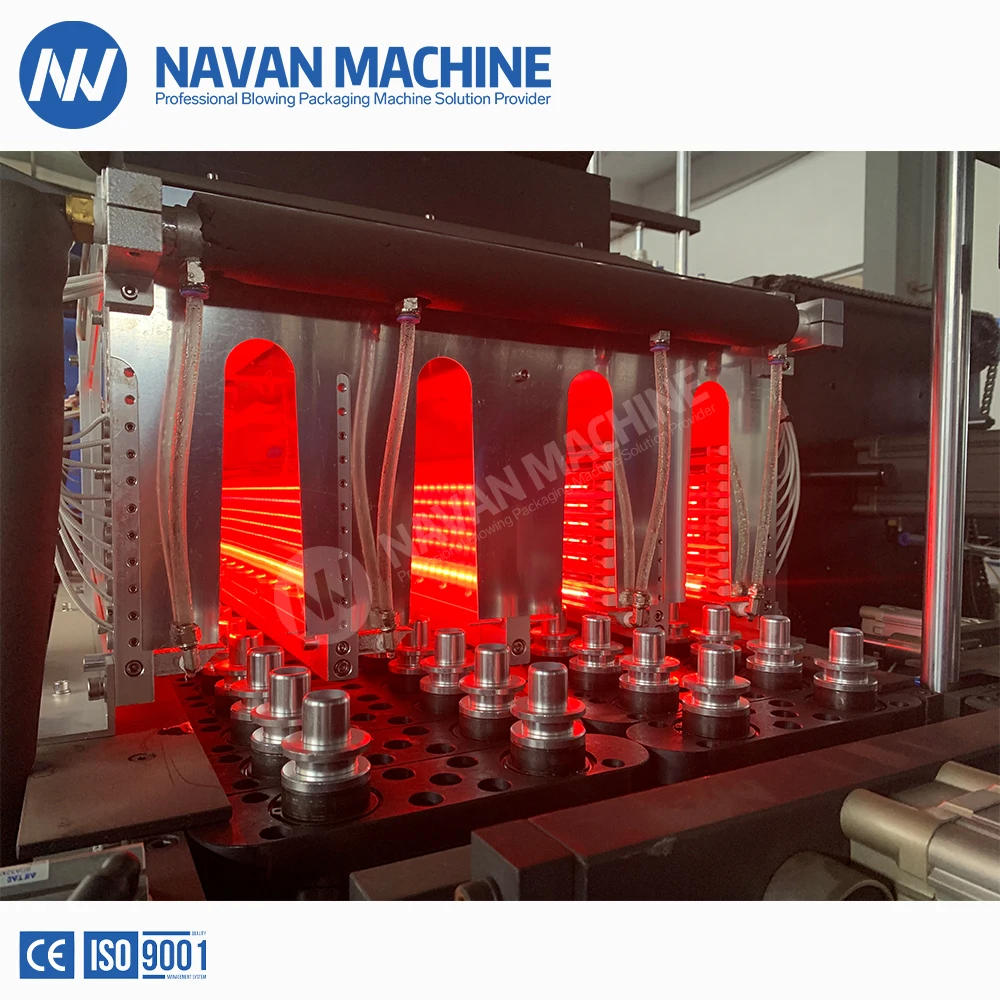

New Heating System.
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
Easy To Change Bottle Shape.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.

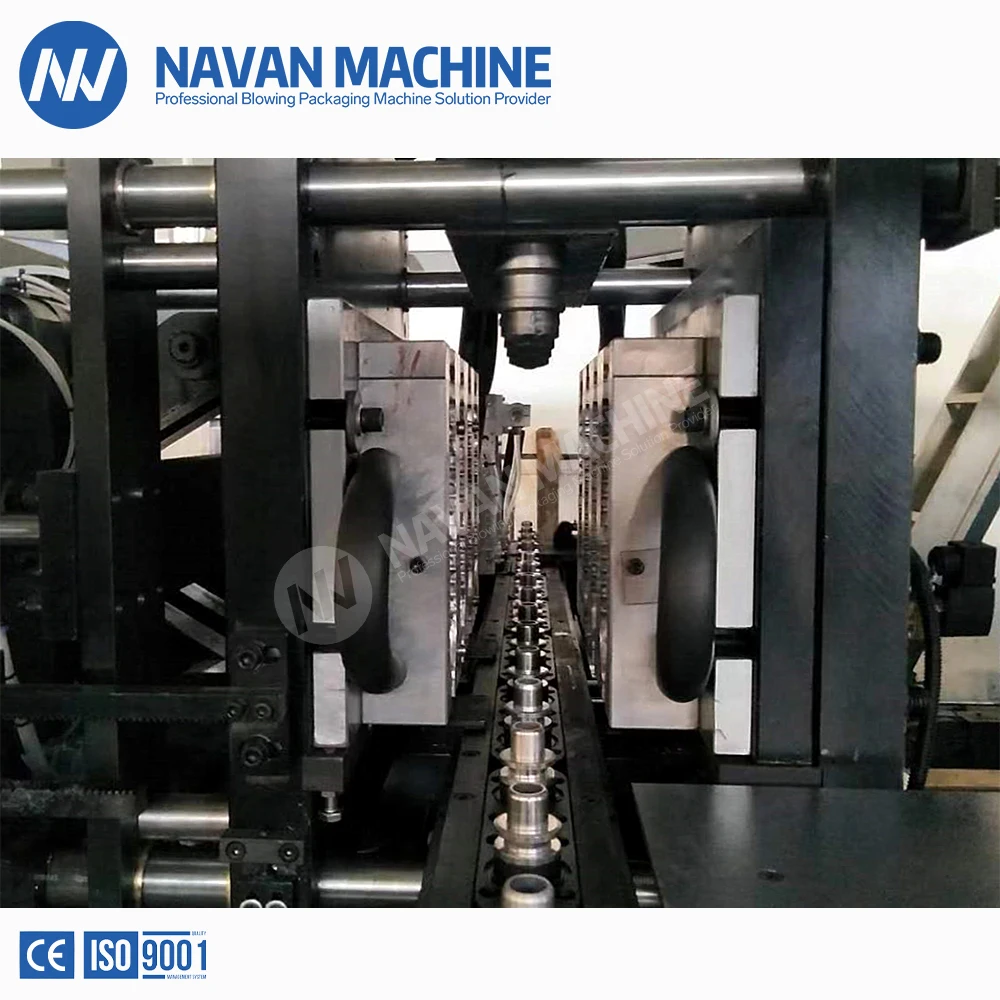

Servo Technology Innovation On Clamping System & Stretching.
* Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
Intelligent Human-Machine Interface.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
Intelligent Human-Machine Interface.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
Product Paramenters
Model | NB-4000 | NB-4000SF | ||
Molding | Clamping Force kg | 22000 | 22000 | |
Clamping Stroke mm | 125 | 125 | ||
Stretching strok mm | 450 | 450 | ||
Bottom Stroke mm | 40/70 | 40/70 | ||
Cavity Spacing mm | 120 | 120 | ||
Number of Cavity Cavities | 4 | 4 | ||
Carriage Unit pcs | 124 | 124 | ||
Theoretical Output | bph | 3000-4000 | 4000-4800 | |
Total Power kw | 50 | 52 | ||
Heating Power kw | 32x1.5KW=48 | 32x1.5KW=48 | ||
Number of Lamp Layers Layers | 8 | 8 | ||
Operating Pressure kg/cm² | 7-9 | 7-9 | ||
Low Pressure Air Consumpt Itr/min | 2000 | 1600 | ||
Blowing Pressure kg/cm² | 20-30 | 30-40 | ||
High Pressure Air Consumpt Itr/min | 3200 | 4000 | ||
Operating Pressure kg/cm² | 2-4 | 2-4 | ||
Temperature Range ℃ | 10-12 | 10-12 | ||
Consumption kcal/hr | 2000 | 2500 | ||
Flow Rate Itr/min | 250 | 250 | ||
Main machine dimensions mm(L*W*H) | 3000 x2130x2150 | 3000 x2130x2150 | ||
Main Machine Weight kg | 4000 | 4150 | ||
Preform Loader Dimensions mm(L*W*H) | 2350x1350x2650 | 2350x1350x2650 | ||
Preform Loader Weight kg | 550 | 550 | ||
