Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Полуавтоматическая 400-800bph 3-5L ПЭТ бутыло выдувные
- Категория: >>>
- Поставщик: Zhangjiagang,Navan,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 6664.40 $* | 6997.79 $* |
| Aug-15-2025 | 6608.65 $* | 6938.45 $* |
| Jul-15-2025 | 5544.55 $* | 5821.73 $* |
| Jun-15-2025 | 6496.60 $* | 6821.10 $* |
| May-15-2025 | 5656.64 $* | 5939.27 $* |
| Apr-15-2025 | 6384.41 $* | 6703.19 $* |
| Mar-15-2025 | 6328.25 $* | 6644.64 $* |
| Feb-15-2025 | 6272.10 $* | 6586.68 $* |
| Jan-15-2025 | 6216.13 $* | 6527.3 $* |
Характеристики
NAVAN Machine.
We produce NB series of fully automatic, semi-automatic PET blow molding machines and other 0.2L-2L Full Automatic Blow Molding Machine with output from 1000 to 8000 bottles per hour, which can satisfy different customers' requirements. Our products Certificated by CE. In order to meet customers’ specific requirements, factory offer product capacity ranges from 50ml to 30L, suitable for all kinds of PET bottles which contain mineral water, carbonated beverages, fruit juice, teas, edible oils cosmetics, detergents, and wide-mouth jar, etc. Navan Machinery is an ideal choice for large beverage factories, mineral water companies, and PET packaging enterprises.
Products Description

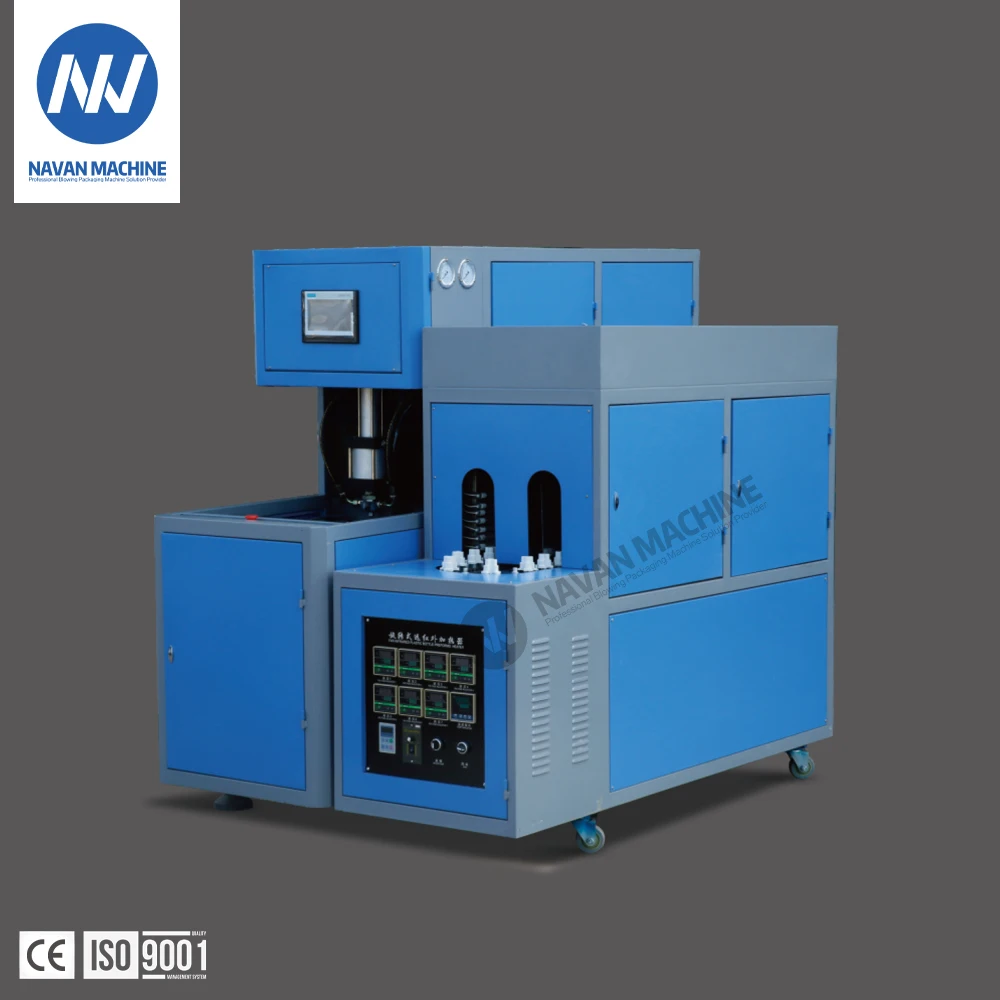

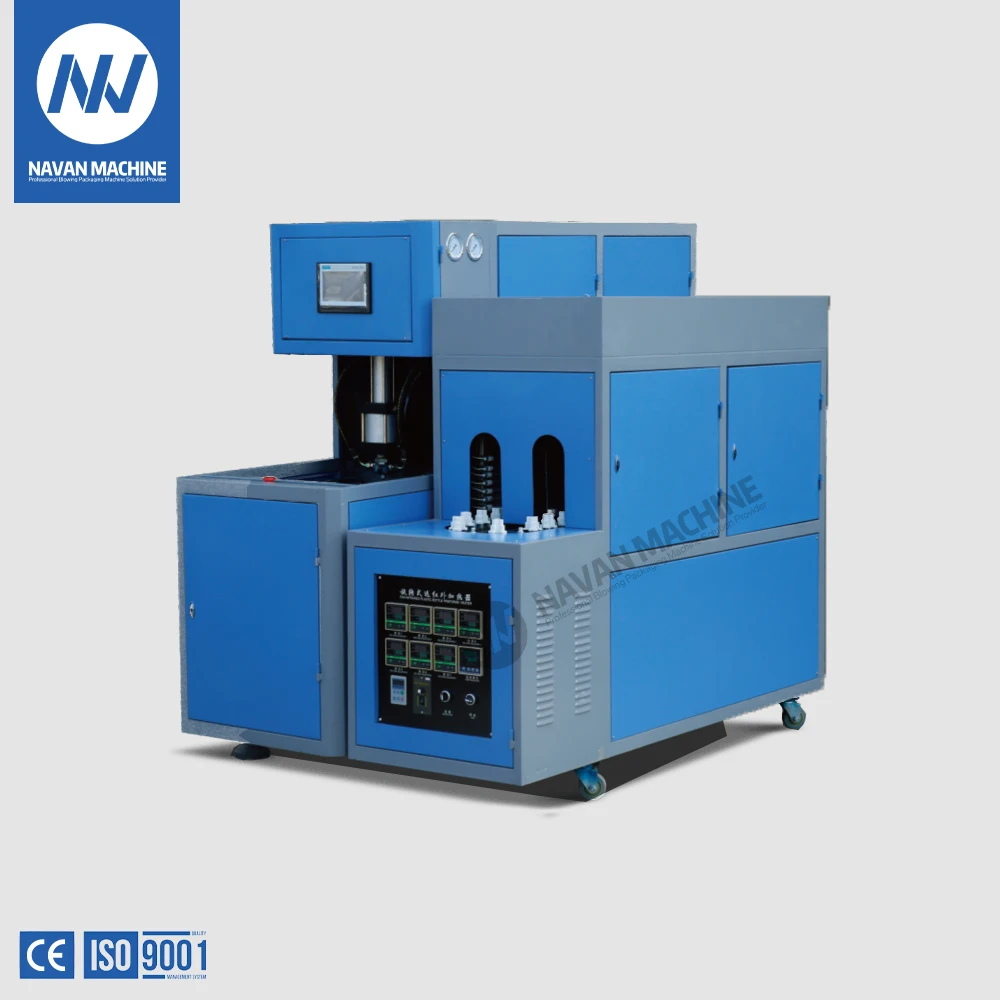

Semi Automatic 400-800bph 3-5L PET Bottle Blowing Machine.
The semi-automatic blow molding machine is a computer-controlled two-step PET blow molding machine. It is composed of mechanical, electrical, pneumatic and other systems to complete the stretching and blowing of the heated preform.

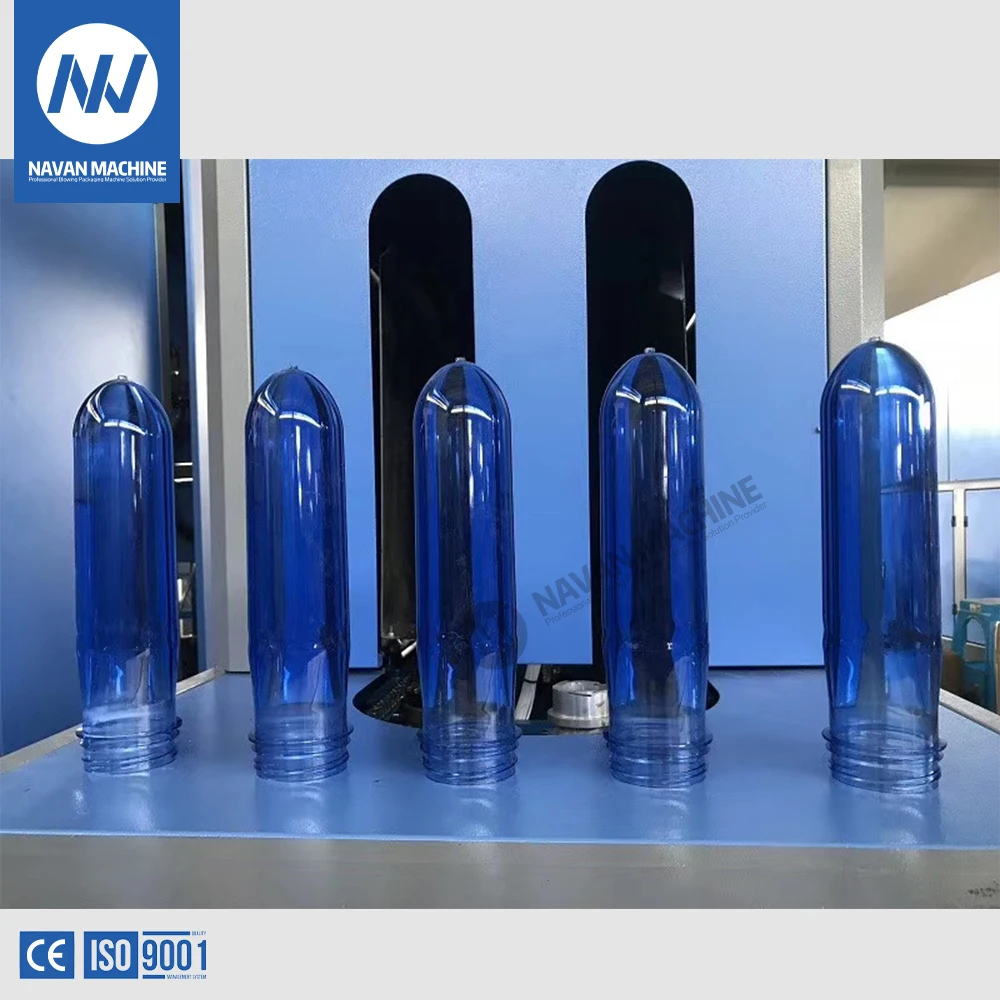

Semi-automatic bottle blowing machine preheating: The preform is irradiated by an infrared high-temperature lamp to heat and soften the preform part. In order to maintain the shape of the bottle mouth, the bottle mouth does not need to be heated, so a certain cooling device is required. Perform cooling operation.
Semi-automatic blow molding machine blow molding: This stage is to place the pre-heated preform into the ready blow mold, perform high-pressure inflation inside, and blow the preform into the required bottle.
Semi-automatic bottle blowing machine preheating: The preform is irradiated by an infrared high-temperature lamp to heat and soften the preform part. In order to maintain the shape of the bottle mouth, the bottle mouth does not need to be heated, so a certain cooling device is required. Perform cooling operation.
Semi-automatic blow molding machine blow molding: This stage is to place the pre-heated preform into the ready blow mold, perform high-pressure inflation inside, and blow the preform into the required bottle.
Container | Max Container Volume Itr | 6 |
Max, Neck Diameter mm | 120 | |
Max Container Diameter mm | 185 | |
Max Container Height mm | 380 |
Details Images

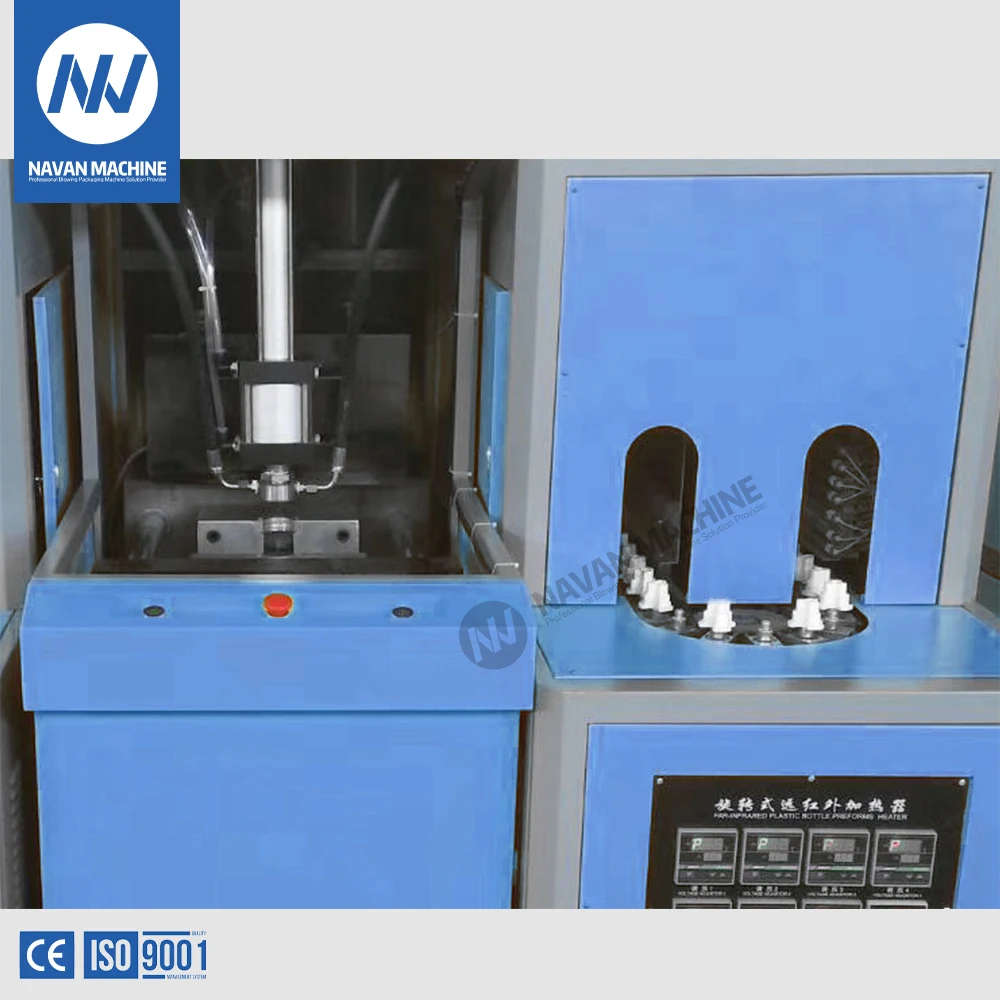

New Heating System.
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.

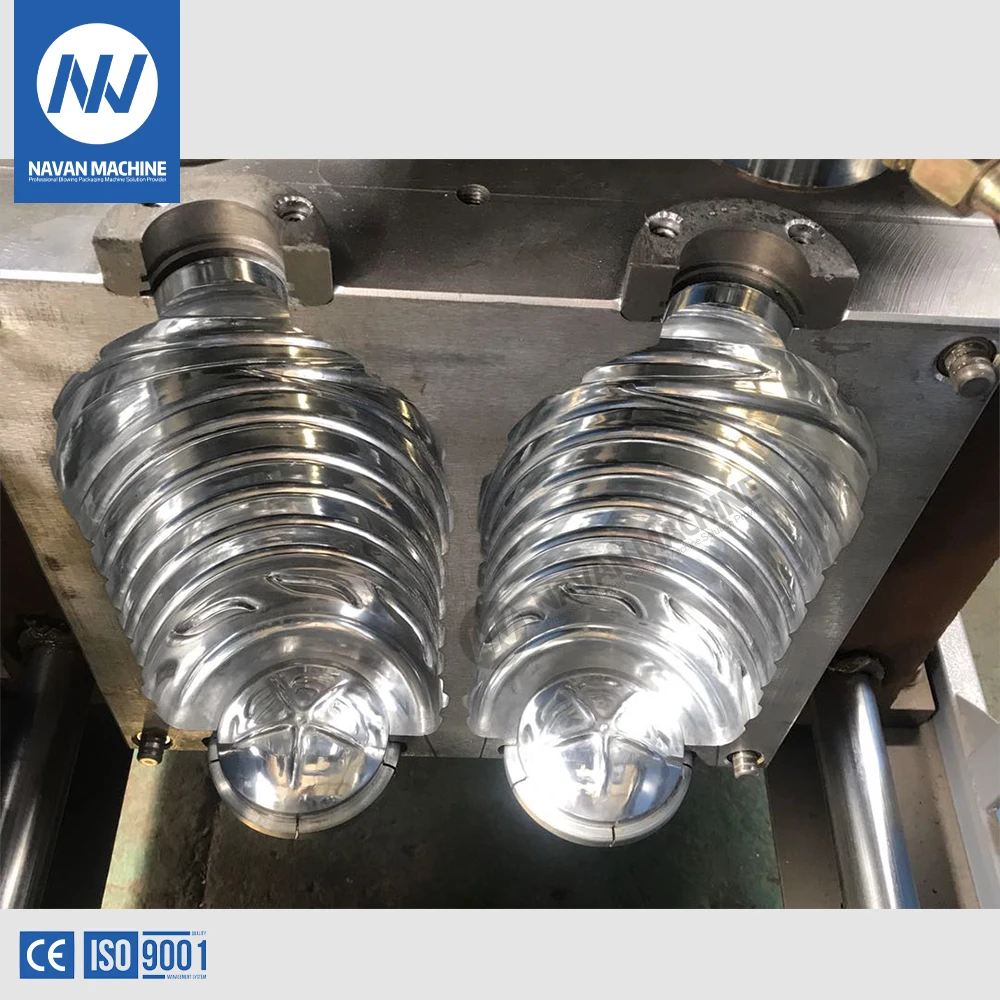

Easy To Change Bottle Shape.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.
Intelligent Human-Machine Interface.
*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
Product Paramenters
Model | NB-500 | NB-6L-2 | ||
Molding | Clamping Force kg | 25000 | 30000 | |
Clamping Stroke mm | 215 | 215 | ||
Stretching strok mm | 400 | 400 | ||
Bottom Stroke mm | \\ | \\ | ||
Cavity Spacing mm | 300 | 90-120 | ||
Number of Cavity Cavities | 1-2 | 1-2 | ||
Carriage Unit pcs | 72 | 96 | ||
Theoretical Output | bph | 400-1100 | 800-1200 | |
Electrical System | Total Power kw | 18 | 42 | |
Heating Power kw | 32x0.5KW=16 | 40x1KW=40 | ||
Number of Lamp Layers Layers | 8 | 10 | ||
Air System | Operating Pressure kg/cm² | 7-9 | 7-9 | |
Low Pressure Air Consumpt Itr/min | 600 | 800 | ||
Blowing Pressure kg/cm² | 20-30 | 20-30 | ||
High Pressure Air Consumpt Itr/min | 1200 | 1600 | ||
Chiller | Operating Pressure kg/cm² | 2-4 | 2-4 | |
Temperature Range ℃ | 10-12 | 10-12 | ||
Consumption kcal/hr | 1000 | 2000 | ||
Flow Rate Itr/min | 100 | 100 | ||
Machine(Blower) | Main machine dimensions mm(L*W*H) | 1900 x650x1800 | 2000 x780x1800 | |
Main Machine Weight kg | 750 | 800 | ||
Machine(Heater) | Heater Dimensions mm(L*W*H) | 1700 x670x1600 | 2170 x670x1600 | |
Heater Weight kg | 350 | 400 | ||
Recommend Products
Why Choose Us
NAVAN Machinery.
We are a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines. We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. NAVAN Machinery can provide turn-key services for customers, from plant layout, equipment manufacture, and production line set up to operator training. We will continually carry on trying our best to meet the demands of our customers and seek for development together with our customers. Additionally, we also supply technique consultation, factory construction design plan, equipment installation and adjustment, technology training, and other after-sales services. Now our products are exported to over ten countries and regions, including Southeast Asia, Russia, the Commonwealth of the Independent States, Western Asia, and South Africa.
Factory Show.
<1> Standardized workshop of total 3,000 square meters.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
Certificates.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark
registration,etc.
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark
registration,etc.
Customers.
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.
