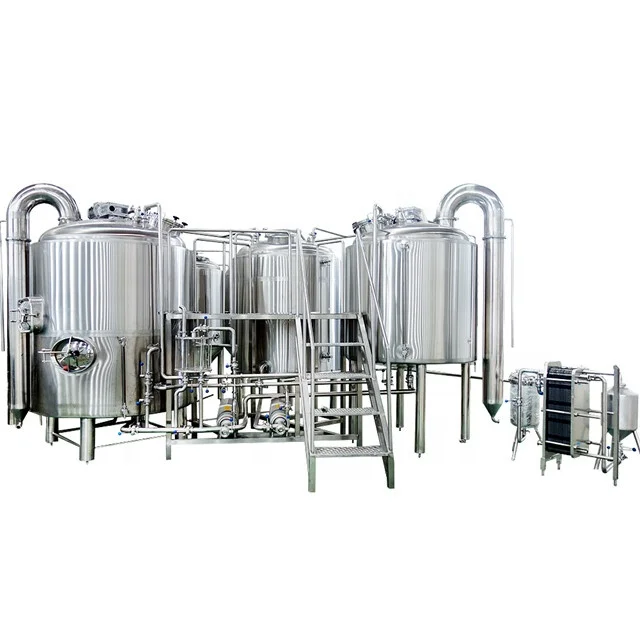

Small beer brewery equipment, 3BBL 10BBL beer brewhouse and whole brewing line

1. Features

1) Automatic /semi-automatic operation system ,need one or two brewer operate

2) With our equipment you can make different kinds beer such as ale,lager, IPA, stout beer and so on, we supply the brewing recipes

3) We have different capacity from 50L to 10000L per batch , our brewery equipment approved Pessure CE, ISO ,ROHS,TUV certificate

4) Have good feedback from our clients

5) Installation/Operation/ Service/ Maintenance Manual: Provided In English.

Parameters:

Beer  Brewhouse	Combination	Two Vessel Brewhouse	Mash/Lauter , Boiling/Whirlpool Tun or Customized
		Three Vessel Brewhouse	Mash, Lauter, Boiling/Whirlpool Tun or Customized
		Four Vessel Brewhouse	Mash,Lauter, Boiling,Whirlpool Tun or Customized
	Material	SUS304, SUS316, Red Copper etc
	Heating  Method	Steam Heating Method	It can provide uniform heating and temperature is easy control, which will not scorch the wort. And it need extra steam boiler.
		Direct Fire Heating	It need change the structure of brewhouse and certain premises height is necessary. (Fire room install under the bottom of kettle tank)
		Electric Heating	Most economic way compare with other heating method, but there have a risk to scorch the wort
	Process	Do acid wahsing and passivation to 0.2~0.4μm
	Thickness	Interior Shell:3mm, Exterior Shell 2mm

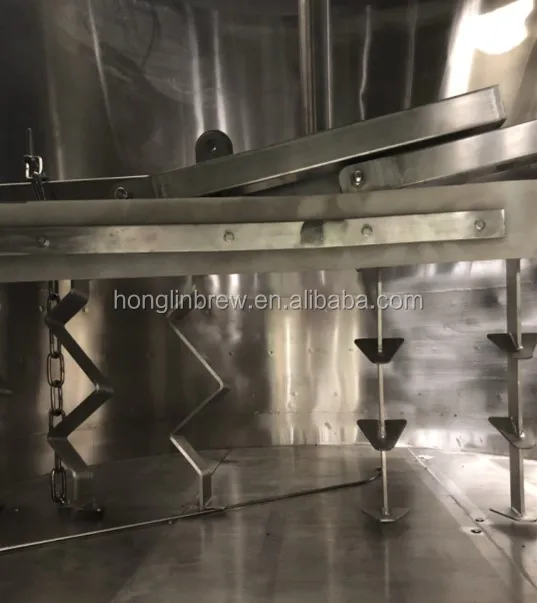

	Basic Configuraton	Grain rake with spent grain dozer, stainless steel manhole, wort grant, full stainless steel heat exchanger, pumps and valves etc



Fermentation Tank	Capacity	One or Two times bigger than brewhouse or customized baseon  brewing ability
	Material	SUS304, SUS316,SUS316L,Red Copper
	Cooling Jacket	Dimpled plate on cone and side
	Accessories	Sample Valve, Safe Valve, Manway, CO2 Blowoff Pipe, Discharge Port etc



PS: All the configurations and specifications can be customized according to your requests.



Equipments Components of beer manufacturing equipment:

1) Miller: Particle adjustable rolling crusher

2) Auger: Flexible or steel auger to directly lift the milled grain to mash tun

3) Brew house: Grain mashing, lautering, wort boiling, whirlpool, hot water supply

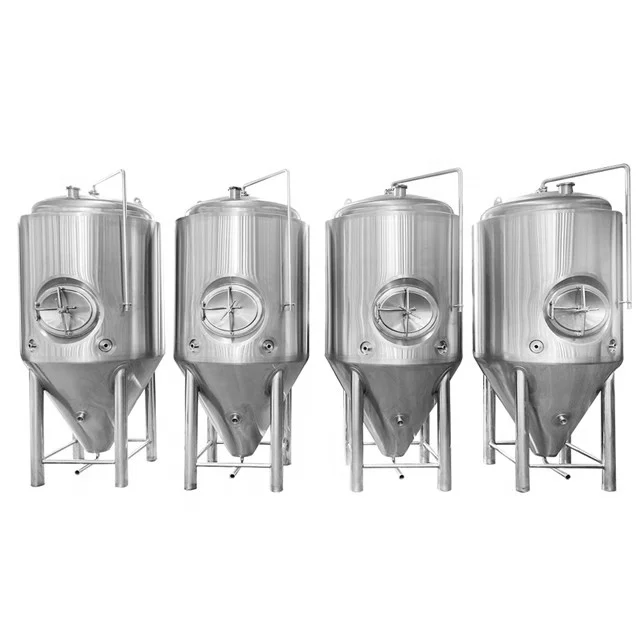

4) Fermentation tanks: Wort Fermentation or maturation

Single size or double size as brewhouse is common used in microbreweries

Also side mounted manhole and top mounted manhole for optional

5) Beer Filter Unit: Plate-Frame or Candle type DE (diatomite earth) filter

6) Bright Beer Tank Unit:  beer maturation, conditioning, service, carbonation

7) Cooling Unit: cooling wort and refrigerate the fermentation tanks and bright beer tanks

8) Controlling Unit: Brewhouse/fermentation tanks/bight beer tanks/chiller/glycol water tanks temperature control

9) CIP system: Supply caustic liquid and sterilization liquid for all tanks cleaning

10) Others: kegs, keg filling machine, keg cleaning machine, bottle filler, beer dispenser, keg coupler, beer taps  and so on



Honglin-Main product categories:
Craft Beer equipment, Beer machine, beer plant, stainless steel tanks
Beer making equipment, brewing beer equipment,  Beer Brewing Machine
Brewhouse system,mashing system,mashing tun,brew kettle
Home brewing equipment, brewing system, Beer Brewing System,micro beer brewing equipment
Industrial brewing equipment,commercial beer brewery equipment for sale
Conical fermenter,beer fermenter,beer fermentor,glycol jackt conical fermenter,fermentation tanks
Micro brewery equipment,copper brewery equipment,pub brewery,bar/pub beer equipment



Jinan Honglin beer equipment has been widely used around the world, such as home brewing, small breweries, pubs, restaurants, hotels, brewpubs, bars, teaching laboratories and leisure field, brewing barley beer, wheat beer, dark beer and different shades of beer fermentation process at room temperature, to achieve the dream of the brewer.



Packaging Details:

Packing: Wooden/Veneer case for LCL;

Plastic film wrapped and iron frame fixing for FCL

We can package according to your requests.



Delivery Detail: Shipped in 25-30 working days after payment.

Guarantee and After-sale service:

1. 10 years warranty for the main equipment; the electronic component is 2 year.

2.Technical support by phone, email or WhatsApp/Skype around the clock.

3.Installation/Operation/ Service/ Maintenance Manual: Provided In English.

4. Engineer available to service machinery overseas.

Good reviews from customer in the world:



Jinan Honglin Beer Equipment Co.,Ltd



Jinan Honglin Beer Equipment Co.,Ltd is a professional manufacture of brewery equipment,certified by CE,ISO,ROHS and TUV.We are specialized in brewery design,manufacture,installation and commissioning.With fine workmanship,excellent performance and simple operation,Honglin Brewery Equipment is your wise choice for beer brewing.No matter in appearance,quality,technology or service,Honglin product stands for the top level of beer brewing equipment domestically and worldwide.As an Original Design Manufacture,Honglin Brewery Equipment perfectly fits various brewing process.Our engineers had been sent all over the world for brewery designing,installation, training and technical supporting .
