Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Наване дешевой цене полуавтоматическая 5 литров пэт бутыло выдувные машины для завалки пищевого масла
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Zhangjiagang,Navan,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5117.23 $* | 5373.90 $* |
| Aug-19-2025 | 5074.97 $* | 5328.28 $* |
| Jul-19-2025 | 4257.68 $* | 4470.75 $* |
| Jun-19-2025 | 4988.15 $* | 5237.85 $* |
| May-19-2025 | 4343.63 $* | 4560.15 $* |
| Apr-19-2025 | 4902.72 $* | 5147.0 $* |
| Mar-19-2025 | 4859.17 $* | 5102.54 $* |
| Feb-19-2025 | 4816.31 $* | 5057.61 $* |
| Jan-19-2025 | 4773.65 $* | 5012.29 $* |
Характеристики
NAVAN Machine.
We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.NAVAN Machinery provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.
Products Description
NAVAN Cheap Price Semi Automatic 5 liter PET bottle blowing machine for edible oil filling factory
Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 3-5L. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
Details Images

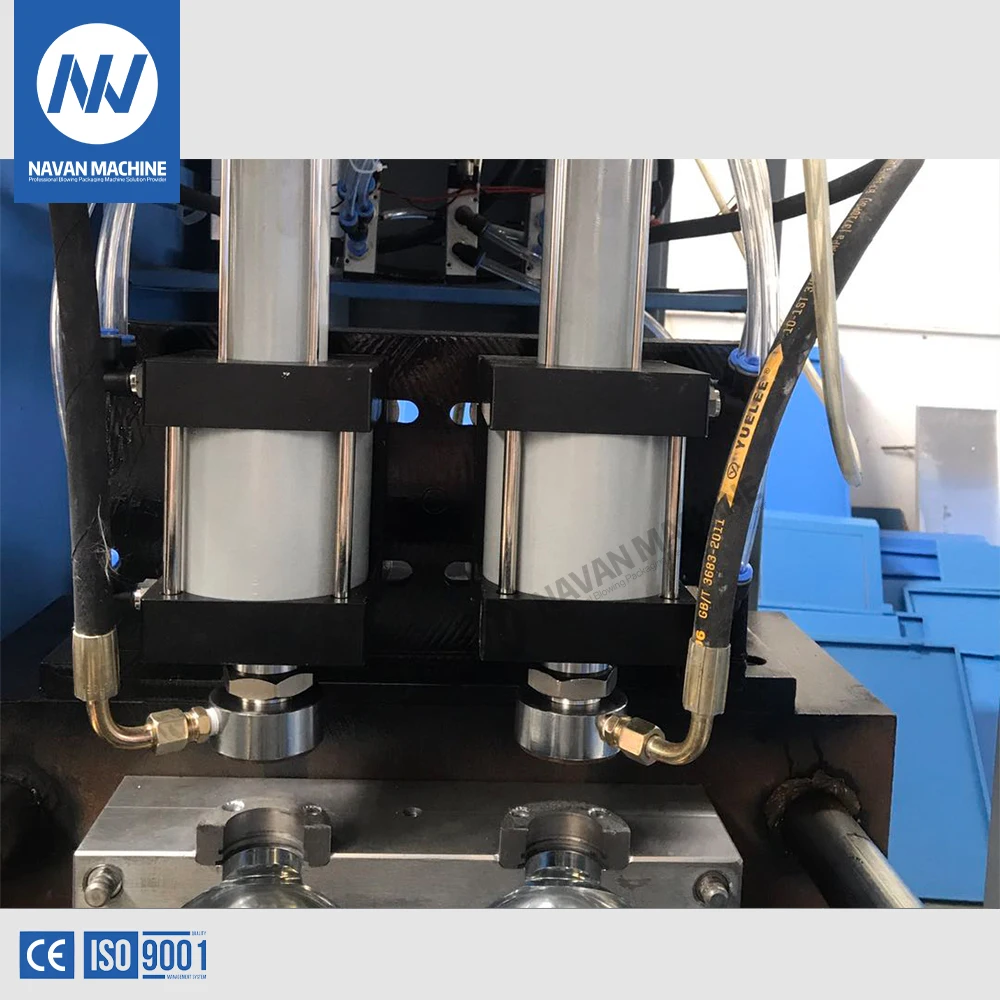

Blower of 5 liter PET bottle blowing machine
● Unique heating system, accurate temperature control and easy adjustment.
● Unique air storage unit.
● The cooling system achieves the desired cooling effect.
● Each action is driven by a cylinder instead of an oil pump, without contamination.
● Unique air storage unit.
● The cooling system achieves the desired cooling effect.
● Each action is driven by a cylinder instead of an oil pump, without contamination.
New Heating System of of 5 liter PET bottle blowing machine
● The drying tunnel and the blowing platform are separated, which shortens the time for mold opening, increases the blowing speed and increases the output.
● Compact design saves space, reduces investment costs and increases competitiveness.
● Advanced PLC control system, light and simple control panel.
● Compact design saves space, reduces investment costs and increases competitiveness.
● Advanced PLC control system, light and simple control panel.
Preform heater temperture controller of of 5 liter PET bottle blowing machine
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
Electrical parts of of 5 liter PET bottle blowing machine
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
Product Paramenters
Model No. | Unit | NB-500 |
Theoretical output | Pcs/hr | 400-800 |
Container volume | L | 3-6 |
Perform inner diameter | mm | 28-48 |
Max. bottle diameter | mm | 185 |
Max. bottle height | mm | 380 |
Cavity | Pc | 1~2 |
Blower machine size | mm | 1900 x650x1800 |
Machine weight | T | 0.75 |
Heater machine dimension | mm | 1700 x670x1600 |
Heater machine weight | T | 0.35 |
Max. heating power | KW | 14 |
Installation power | KW | 45 |
