Стальные колеса для высокоскоростных
- Категория: Поворотные ролики >>>
- Поставщик: Maanshan,Kingrail,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 60.92 $* | 63.77 $* |
| Aug-20-2025 | 59.40 $* | 62.76 $* |
| Jul-20-2025 | 50.97 $* | 53.60 $* |
| Jun-20-2025 | 58.50 $* | 61.65 $* |
| May-20-2025 | 51.64 $* | 54.63 $* |
| Apr-20-2025 | 57.0 $* | 60.55 $* |
| Mar-20-2025 | 57.85 $* | 60.39 $* |
| Feb-20-2025 | 56.60 $* | 59.63 $* |
| Jan-20-2025 | 56.15 $* | 59.71 $* |
Характеристики

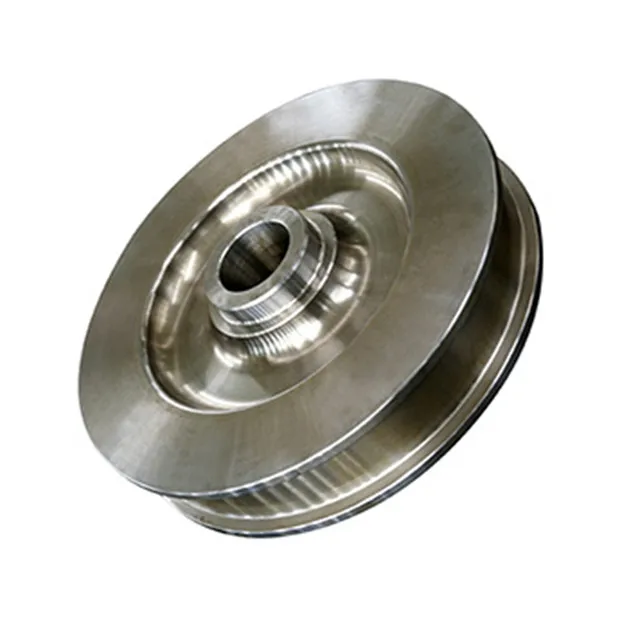

Road rail vehicle wheels, also called Hi Rail vehicle Wheels, are steel wheels used on Road rail vehicles. To ensure the free driving of hi rail vehicles on railway tracks
Hi rail vehicle wheels are divided into forging wheels and casting wheels
The main parameters for hi rail vehicle wheels:
Diameter: Φ200mm~Φ800mm
Material: 45, 35CrMo, CL60, 42CrMo, 8822H, 18CrNiMo7-6, 4140
Hardness:200-500HB
| Item | Railway wheel/ Railway Rolling Stock Bogie Wheels |
| Materials | UST provide forged wheels and cast wheels to many international standards |
| Standards | Wheels confirm to every recognized international quality standard: AAR M-107, UIC 811-1, EN13261, GOST 31334, IRIS 16/95, KSR 9220, BS 5892, JIS E4502, TB/T 2945 |
| Type | Hi rail vehicle Wheels, Railway construction wheels, Road rail vehicle Wheels and many other industrial or mine vehicles wheels |
| Test | 100% inspection before delivery Chemical analysis, Metallographic, Mechnical analysis, Ultrasonic testing, Magnetic testing, Impact testing, Hardness testing, Surface quality and dimension report |
| Certifications | ISO9001,ISO14001, OHSAS18001, AAR, IRIS, TSI |
| Production capacity | 1 million pcs/year |
| Processing | rooled/forging-castingCNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc. |
| Market | United States, Canada, Brazil, Australia, India,South Africa, Russia, Pakistain, Egypt, Germany, Chile, Uzbekistan and others country |
Road rail vehicle wheels In order to meet the driving requirements of hi rail vehicle under railway conditions, Road Rail vehicle Wheel is specially designed. First, the outer circumferential surface of the road rail vehicle wheel is provided with track grooves for vehicles running on the railway. Secondly, the road rail vehicle wheel has a specific fixed design of hubs embedded in the two end faces of the road rail vehicle wheel to facilitate the wheel bearing to connect the two wheels.
What is road rail vehicle?
Road rail vehicle refers to a special vehicle that can run on railway tracks as well as on general roads and even in the wild. It was mainly used in the military in the early days. Now it mainly undertakes emergency tasks such as overhaul and rescue of railway lines and along the lines. Road rail vehicles require quick and easy conversion of roads and railways. It is usually realized by the hydraulic lane-changing slewing device on the chassis and the railway traveling guide wheel device that can be raised and lowered at any time. With the guide wheel device, generally rubber tire wheels can drive straight along the rail. Since this type of vehicle requires a certain traction and carrying capacity, it can play a unique role in the event of a railway line interruption or blockage caused by a disaster. Road rail vehicles include: electric traction section catenary repair vehicles, hi rail excavators used for mountain railway repairs, and emergency road rail tractors, road rail power generation vehicles, hi rail fire trucks, hi rail fast bridge vehicles, etc. .
Hi rail vehicle wheels fitting the following vehicles

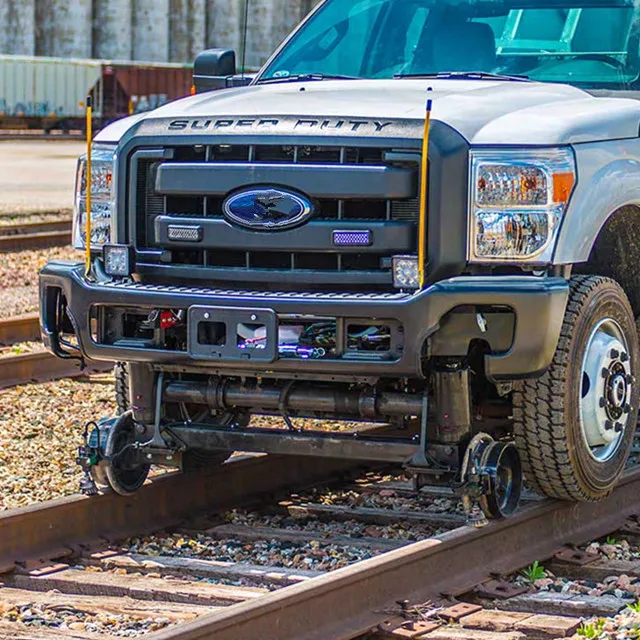

Rail road vehicles:hi rail crane, hi rail trolley, hi rail Track Inspectors,
Railway construction eupoments: Spike Drivers,Tie Pluggers,Tie Cranes,Spike Pullers,super claws,Screw Spikers and Spike Removers,Ride-On Plate Inserter,Mobile Flash Butt Rail Welders

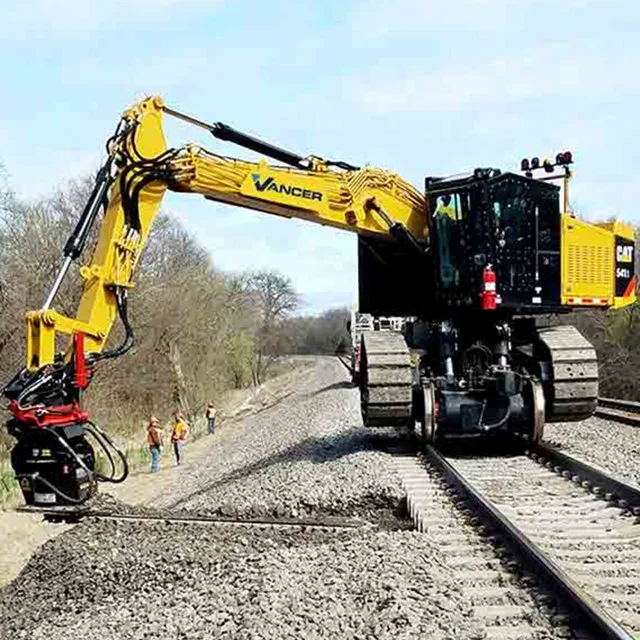

Hi rail exacvators: Hi rail Lifters,Hi Rail Drills, Hi rail Rail Grinders,
industrial or minging vehicles
Product Description
Processing of Our road rail Wheel

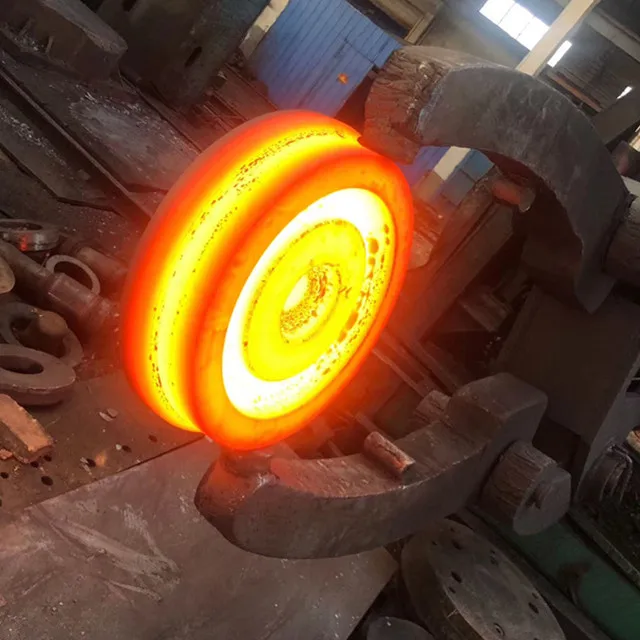

Forging/Casting –machining- Normalizing & Tempering – Precision Machining- Quenching & Tempering – Finish Machining-inspection-package
The surface of the road rail vehicle wheels of Ruika has no scratches, cracks, rust, and oil
The wheels can be painted on the surface according to customer requirements
Packaging & Shipping
Our Services
About the custom design china cast railway steel train wheel, our company Ruika is the professional manufacturer of the railway wheel, forged wheel, cast iron wheel, train wheel, steel crane wheel set which with more than 15 years designing and producing experience. With our own forging workshop, machining workshop, heat treatment workshop, we can provide all kind of wheels with different materials, such as ZG430640 cast steel, 60#,65 # , 65Mn, 42CrMoA or according to your demands. About the quality, we always insis on attentively manufacturing, keeping on improving and elaborately serving to make customers satisfied. And many good assessment had been received.
Material: cast steel or cast iron; forged steel
The type of the wheels: single flange wheel, double flange wheel, hollow wheel sets and solid wheel sets;
The diameter of the wheels: 300mm, 350mm, 400mm, 450mm;500mm; 900mm, 1200mm, etc. Or as your demands.
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: Generally within 30-45 days after the prepayment received.
Q: What is your terms of payment ?
A: 30% of the payment in advance , the balance before shippment via T/T.
Q: What's the packing way?
A: Bundled in steel strips with iron/wood pallets.
Q: How long will it be the quotation valid?
A: The validity is 15 days in general, but also depends on the quantity and special conditions. It will be shown in every quotation.
Q: What is MOQ?
A: We can accept small quantity for the wheels
Q: Do you have any certifications regarding rail wheels?
A: We have passed the certification of CRCC in China and ISO9001:2008 overseas. Before shipment, Certificate of Quality can be supplied. We also accept Third Party Inspection from clients, with free samples to supply.
